Ok next battle is finishing up the transmission setup:

1. I need help determining Where the Trans Signal Return is on the EEC Plug. I have looked over tons of diagrams and cannot find any ground information for the AODE Harness and ultimately where they end up when they make it to the EEC Harness.

2. Same thing as above where does the MLPS gnd come into the EEC?

3. For the VSS+ and VSS-, Keith from 64 Bit Tuning has it listed to install a 20-40ohm shunt resistor to reduce noise. I am not familiar with what i need here exactly. If you know what I need please help. Could I use a 10uF capacitor to reduce noise instead?
4. OD Switch setup. It is listed to wire it to ground. Im thinking this wire comes in on the eec plug on pin 41. If that is the case do I connect EEC pin 41 to Micro 34. Then at the switch take the other wire and ground to the chassis near the radio.
TCM Function
94-95 EEC PIN
MS3 Gray
MS3 Black
MicroSquirt
Other
Shift Solenoid 1​
51​
-​
-​
8​
TCC Lock Up​
53​
-​
-​
9​
Trans Temp TOT​
49​
-​
-​
26​
Shift Solenoid 2​
52​
-​
-​
7​
Trans Sig RTN (Sen GND)​
????​
-​
-​
20​
EPC​
38​
-​
-​
10​
MLPS Sensor GND​
????​
-​
-​
20​
MLPS​
30​
-​
-​
29​
MLPS VREF​
28​
Jump Micro 28 to 29 with 470ohm resistor​
VSS+​
3​
-​
-​
32​
22-40ohm 1/4w shunt resistor​
VSS-​
6​
-​
-​
33​
22-40ohm 1/4w shunt resistor​
OD Switch​
-​
-​
-​
34​
Wire switch to ground​

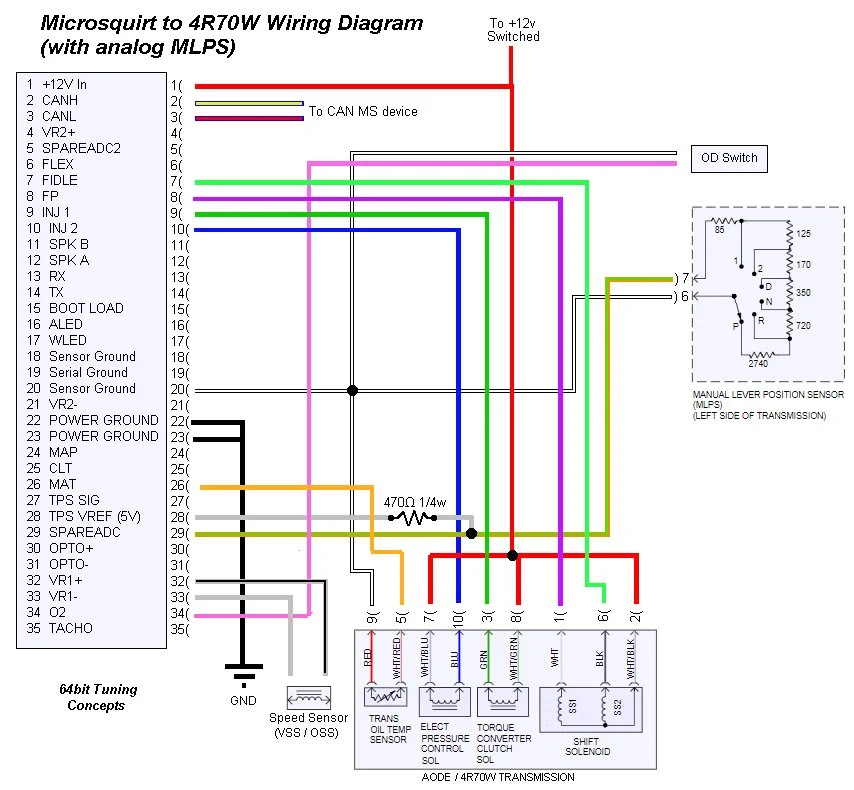

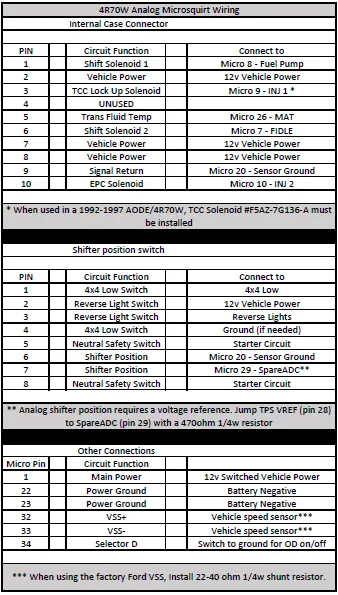

64Bit Tuning Guide:
aode 4r70w wiring.jpg

  • Sponsors(?)


beyondEOD

Member
Nov 23, 2019
92
10
18
Indiana
Okay decipha at efidynotuning.com confirmed the all signal returns come I to pin 46 on the EEC.

So that answers questions 1 & 2.

Now questions 3 & 4.


a91what

SendMeUrDataLog
Mod Dude
Apr 6, 2011
9,798
5,966
204
31
Hillsborough county
For #3 I use a 1k resistor, the purpose is to shunt some of the spike. remember that a VR sensor produces an AC wave form and at high speeds this can become too much for the input to handle. The micro has a capacitor shunted internally.

#4 the signal is a ground input, you can either use the sgn rtn or chassis ground. both will work

  • Like
Reactions: beyondEOD

beyondEOD

Member
Nov 23, 2019
92
10
18
Indiana
Thanks.

Just to clarify further for the OD switch I will take EEC 36 and jump it to a ground. Then the factory switch will work as designed?


a91what

SendMeUrDataLog
Mod Dude
Apr 6, 2011
9,798
5,966
204
31
Hillsborough county
Thanks.

Just to clarify further for the OD switch I will take EEC 36 and jump it to a ground. Then the factory switch will work as designed?
That is correct, this is also how i have mine wired.
other things to think about with the micro is tying in the brake light switch to drop you out of lock up and overdrive, this does require a 12v input to be made a ground signal. if you are willing to build a small board with components i can give you plans to do this with a transistor rather than a relay.
Alternatively you can solder the components and tape them then seal it in heat shrink inside the harness.

  • Like
Reactions: beyondEOD

a91what

SendMeUrDataLog
Mod Dude
Apr 6, 2011
9,798
5,966
204
31
Hillsborough county
Its smaller and wont go bad over time.. no clicking noises.. it's my go too personally. I always suggest a relay because most people understand how they work.

  • Like
Reactions: beyondEOD

beyondEOD

Member
Nov 23, 2019
92
10
18
Indiana

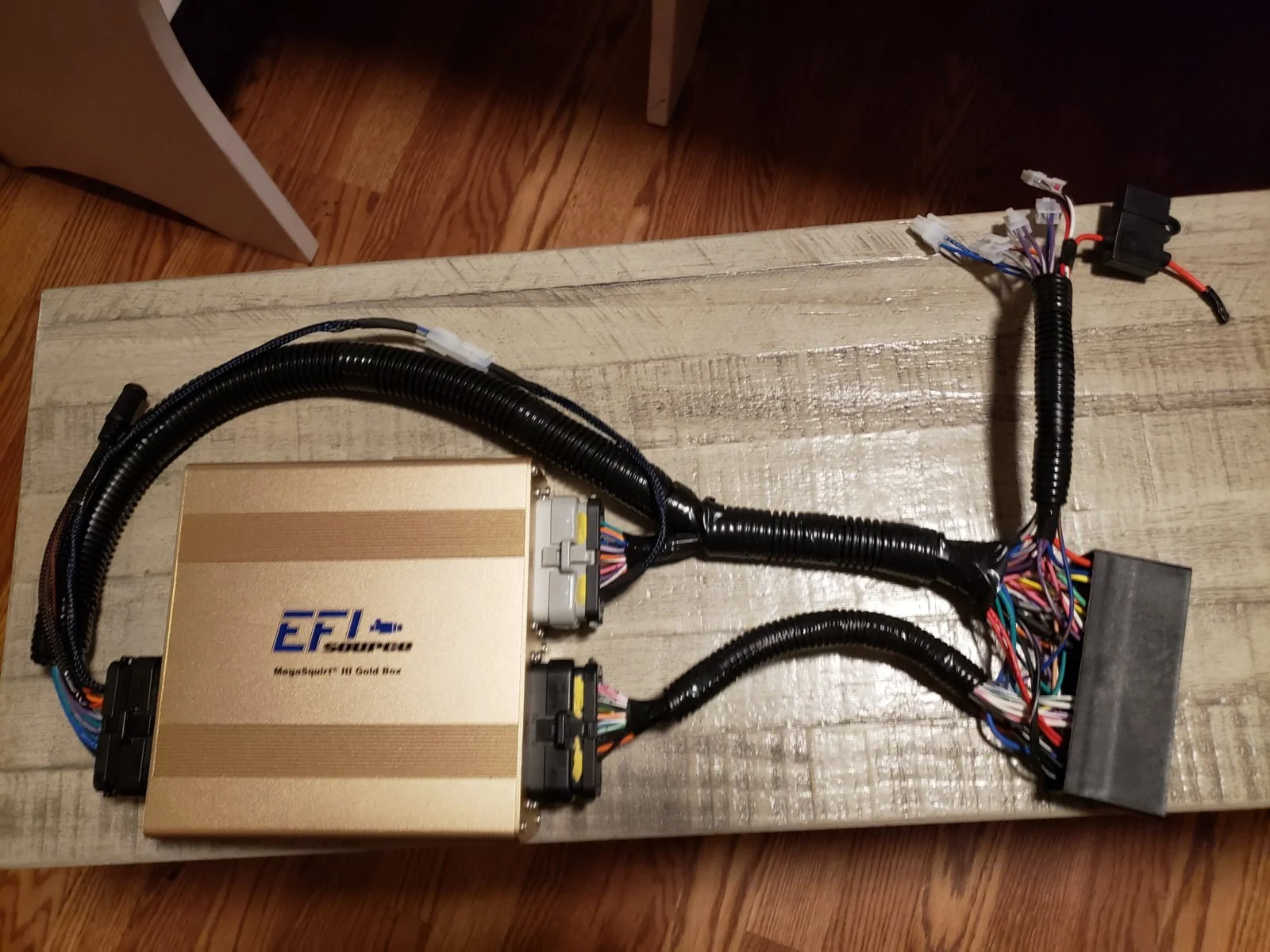

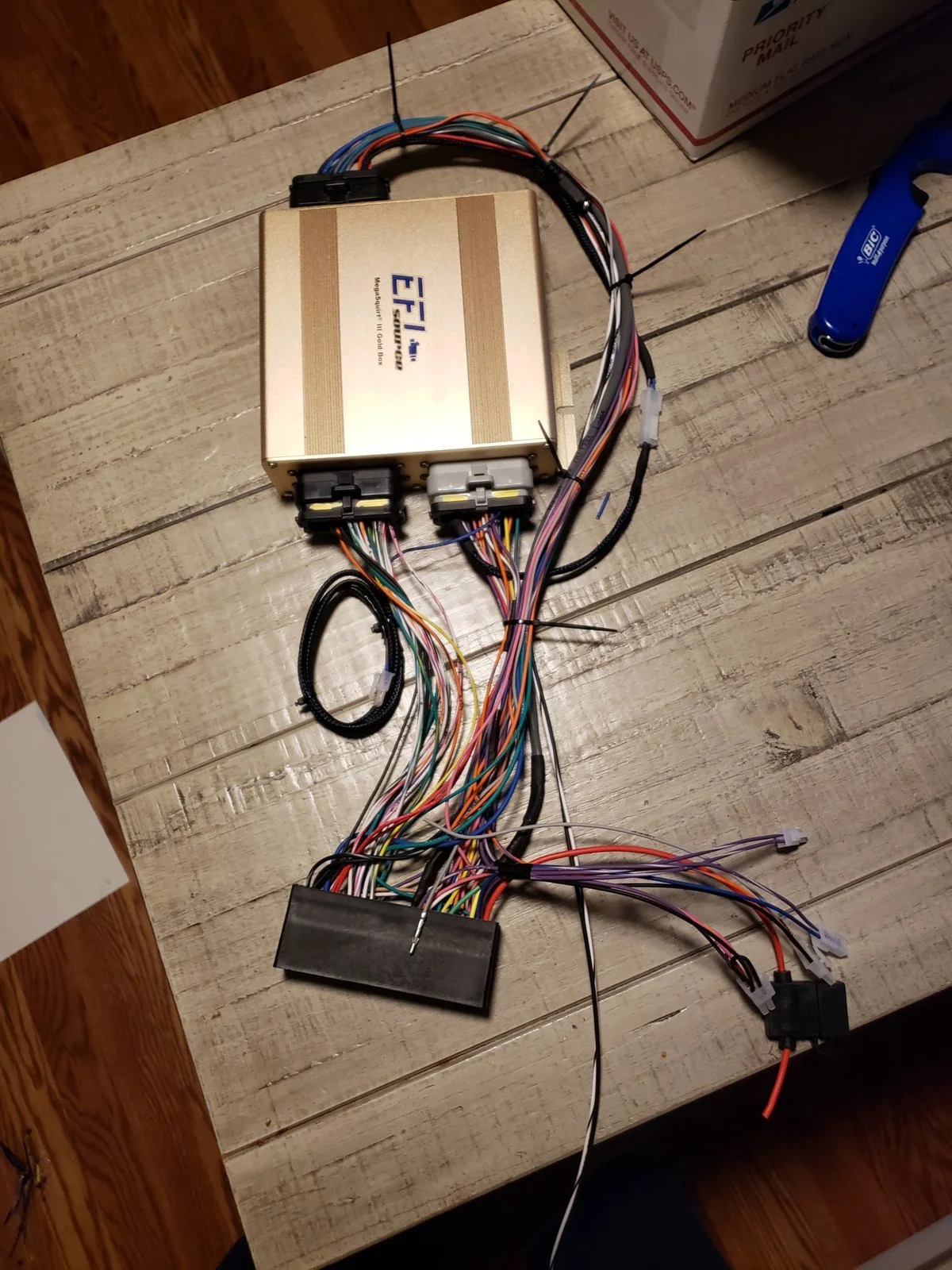

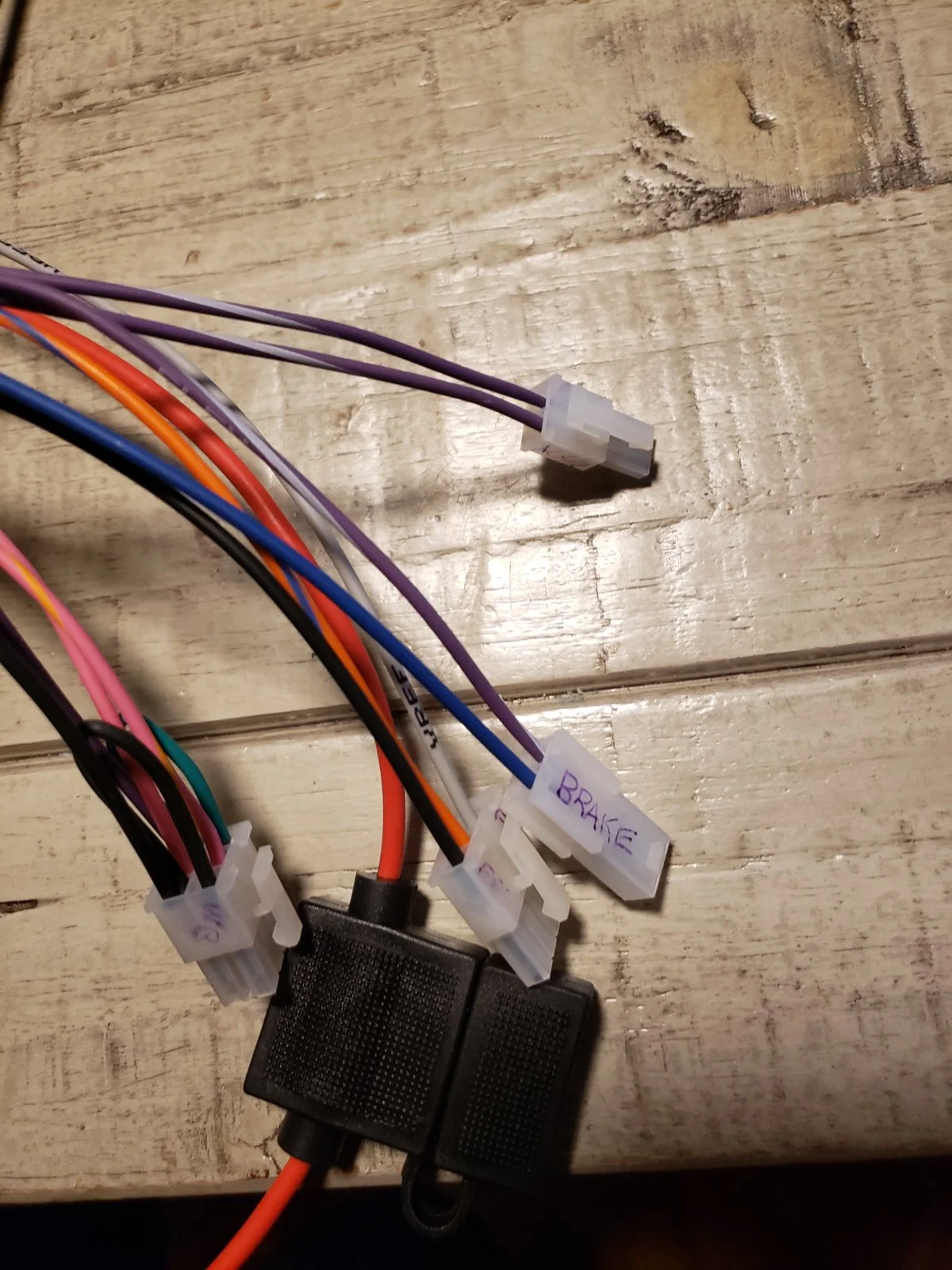

I am finishing up the harness and am wondering why EFI Source has a 330ohm resistor from EEC Pin 57 to EEC Pin 36:

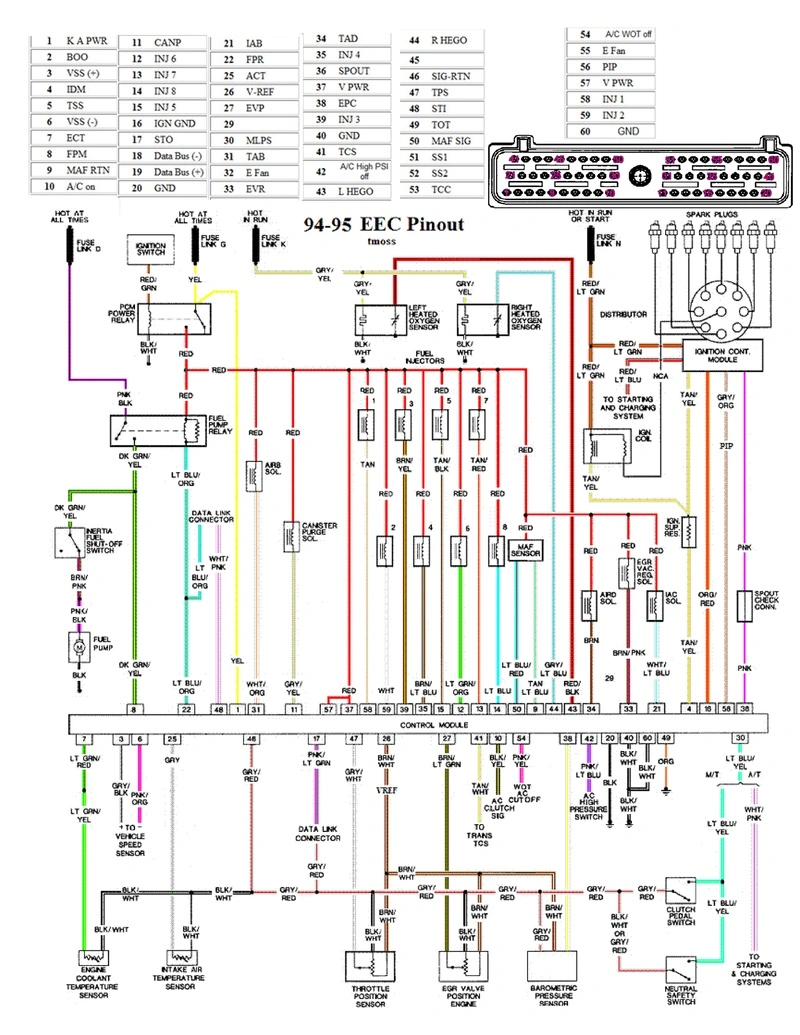

EEC DescriptionEEC PinMS3 DescriptionMS3 Pin
12V Ignition57
SPOUT36Tach26


beyondEOD

Member
Nov 23, 2019
92
10
18
Indiana
Ok good to leave it in there then?

I was going to us 57 to power the micro but ill tap into the other 12v ign source.


beyondEOD

Member
Nov 23, 2019
92
10
18
Indiana
Alright got the MS3 in the car and powered up. No smoke as of now. Did have a small wiring error with the CAN wiring. Switched the wires and the Micro connected. Lost my desoldering tool so I still have not connected the mosfets to take a few of the inputs to ground when triggered. So soon as Amazon delivers I can finish that wiring.

The ToDo List that I need help with:

H/L Fan Control

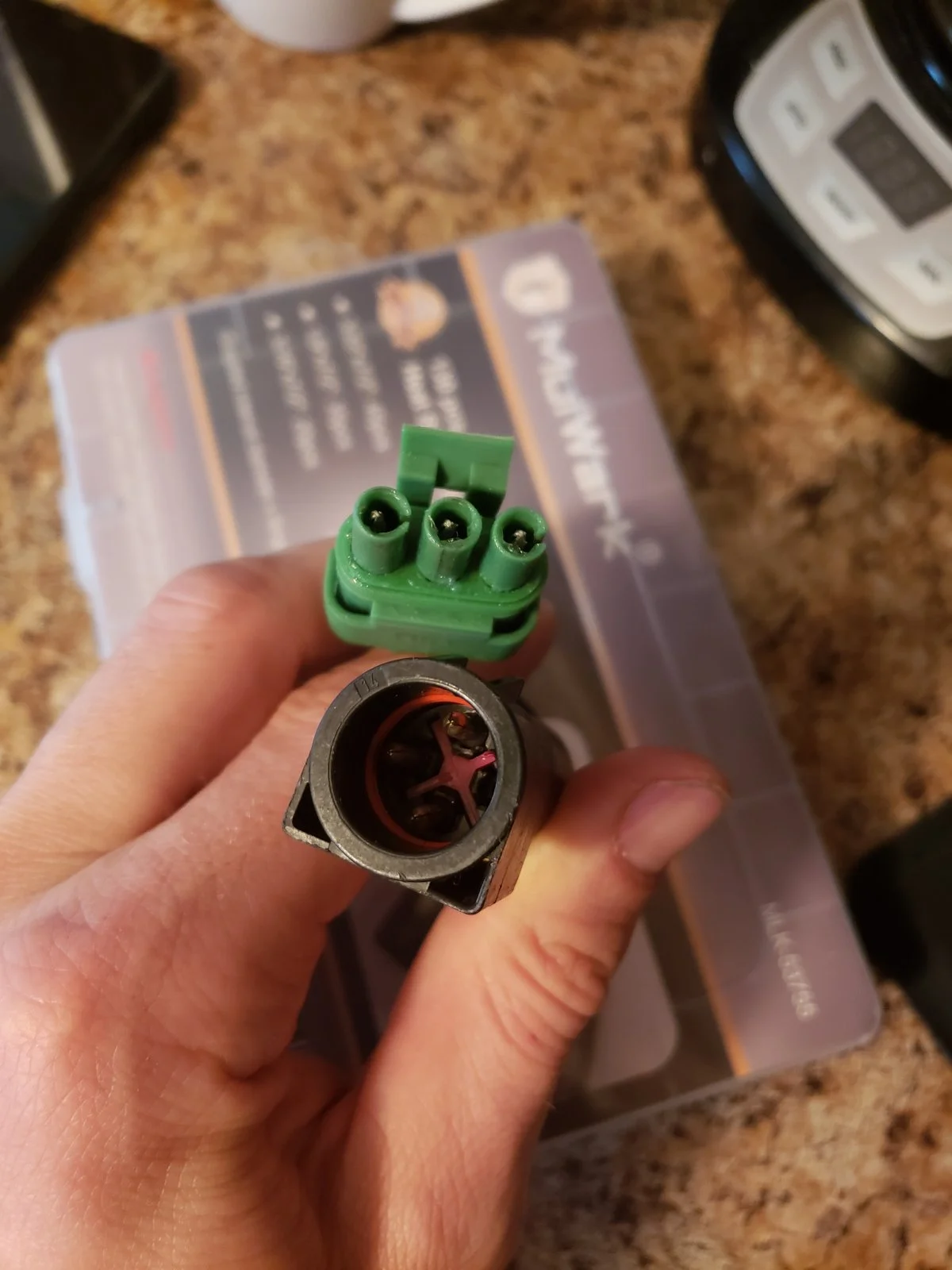

FP Sensor (on PT4, could not figure out how to assign PT4 to a generic sensor; should I repin to the spare 02 input?)
VSS Configuration
MLPS Configuration
IAT Calibration (assume the generic Ford Cal will work next time i connect to the MS)
CLT Callibration (assume the generic Ford Cal will work next time i connect to the MS)
ACCS Configuration
OD Switch

I have been through the software and have found these holes in my configuration. Might be time for some remote support.


Attachments

  • CurrentTune.msq
    262.5 KB · Views: 29
  • TCU_CurrentTune.msq
    26 KB · Views: 30
Last edited:

beyondEOD

Member
Nov 23, 2019
92
10
18
Indiana

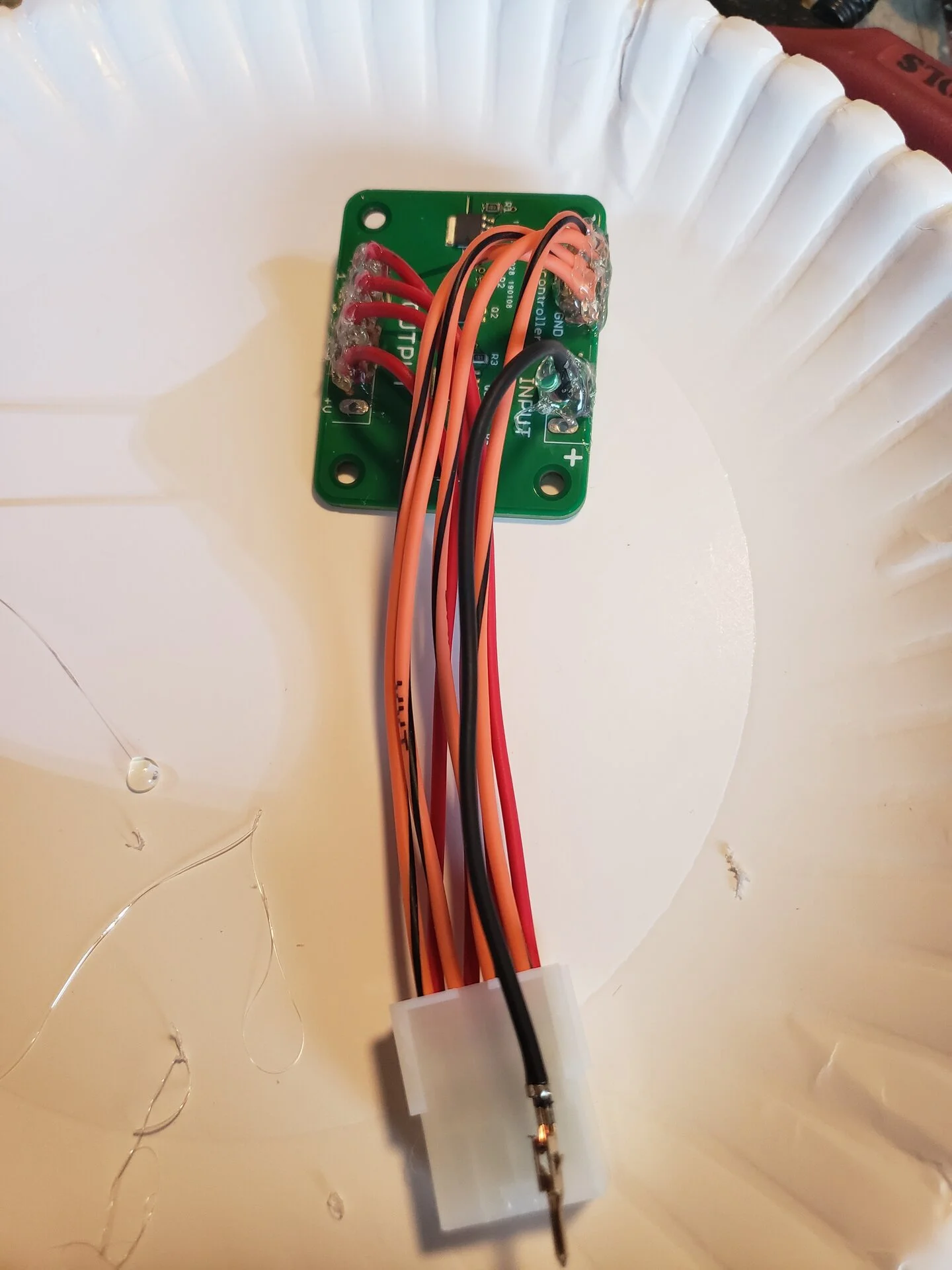

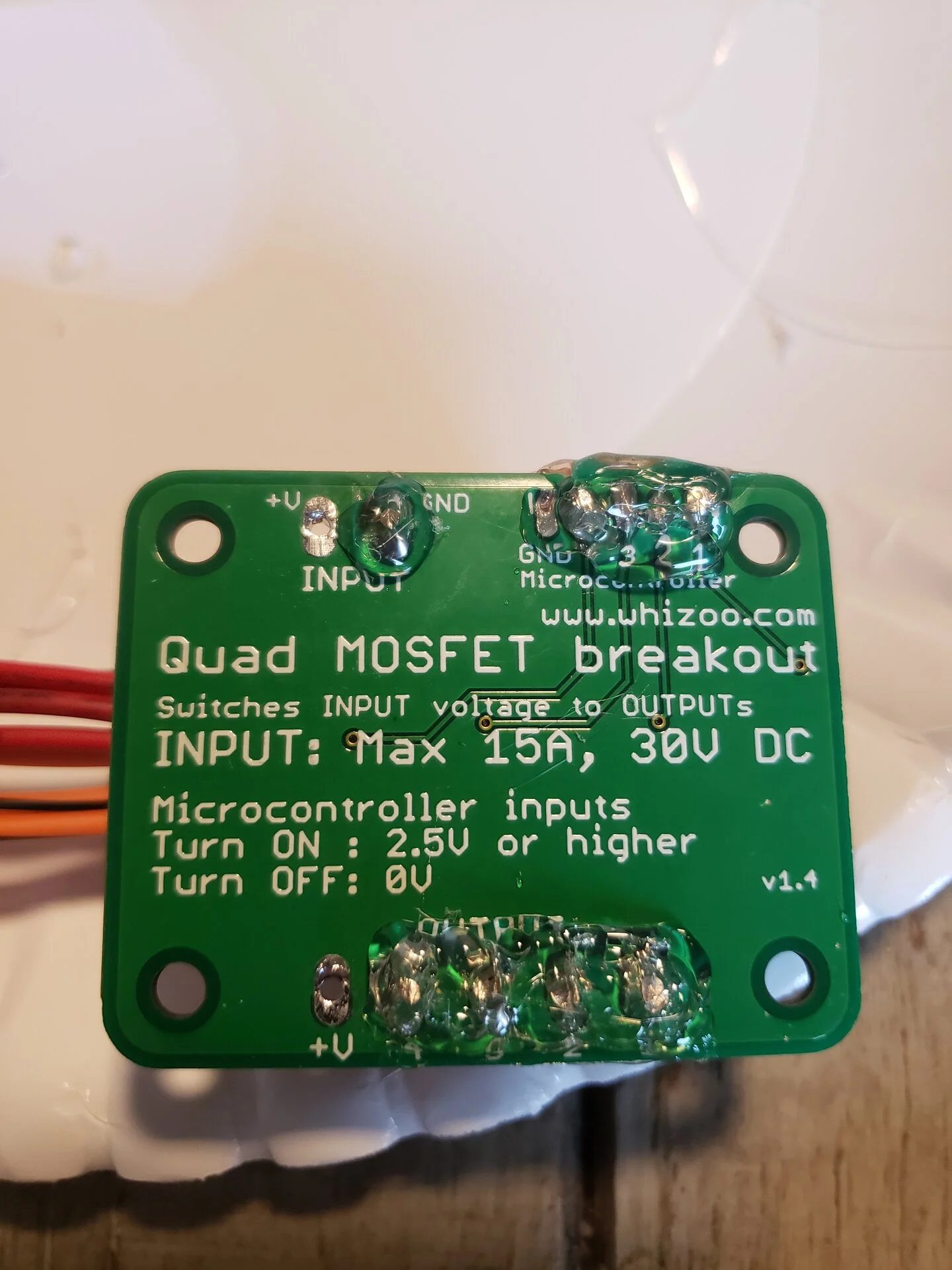

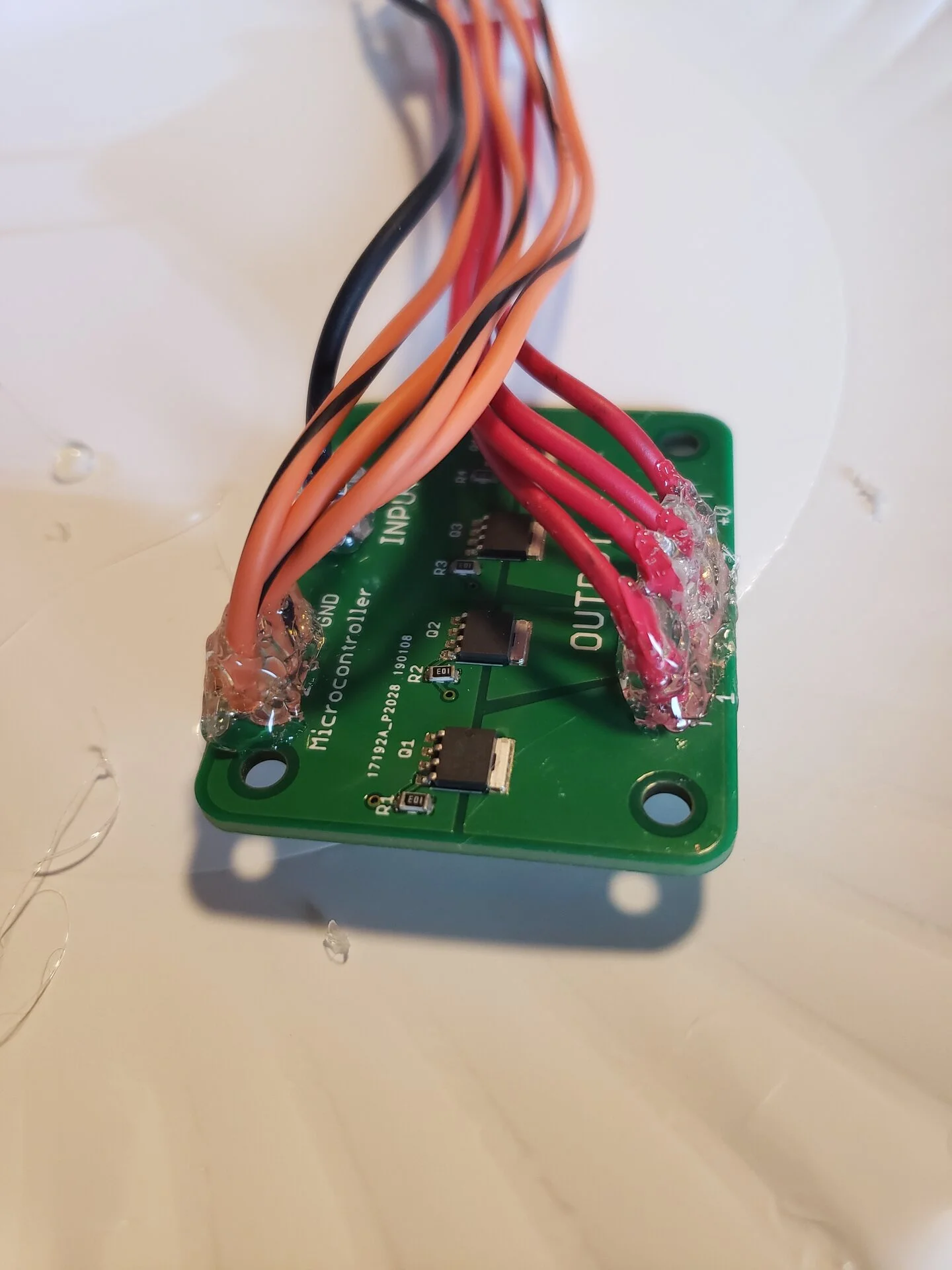

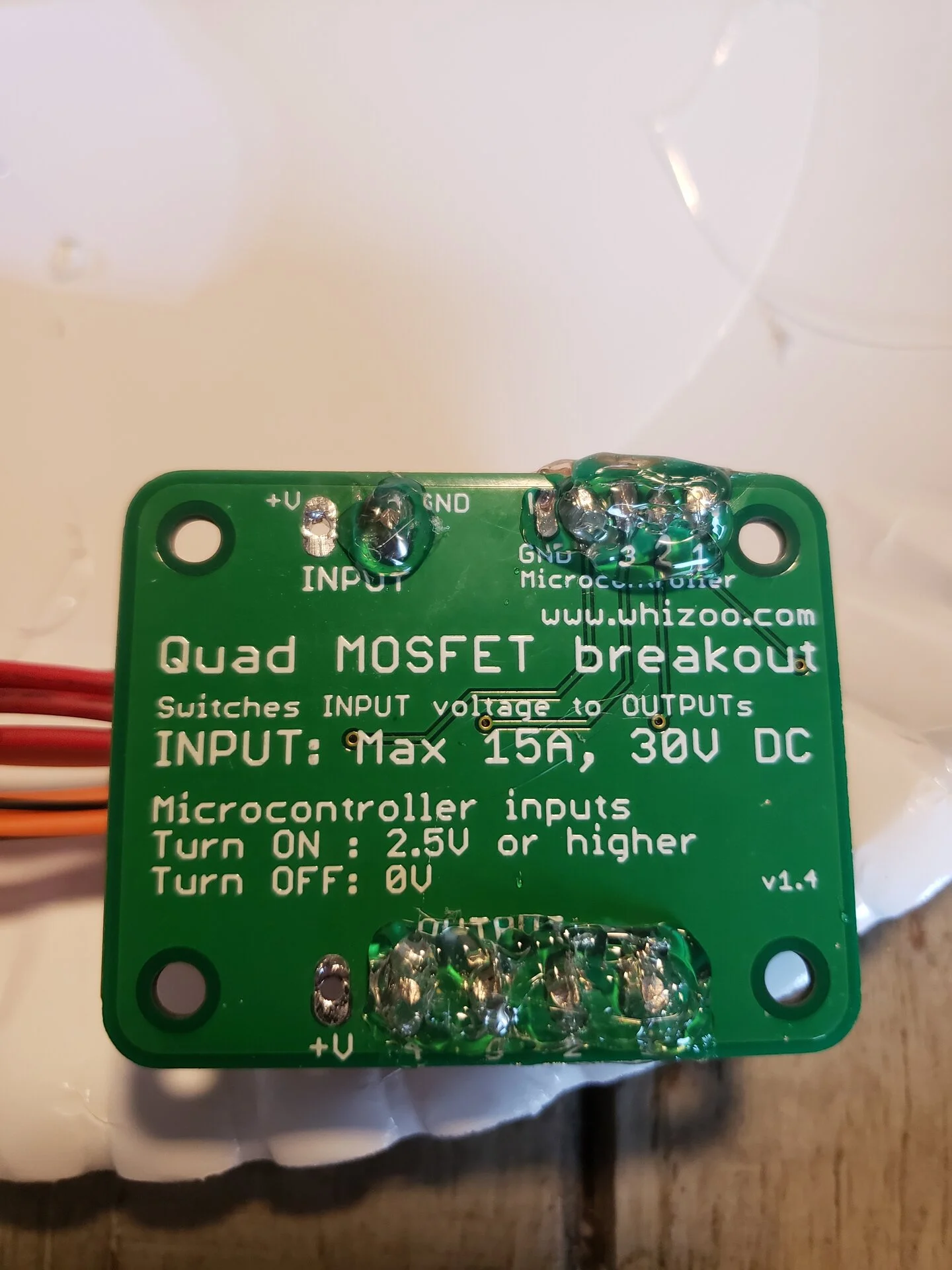

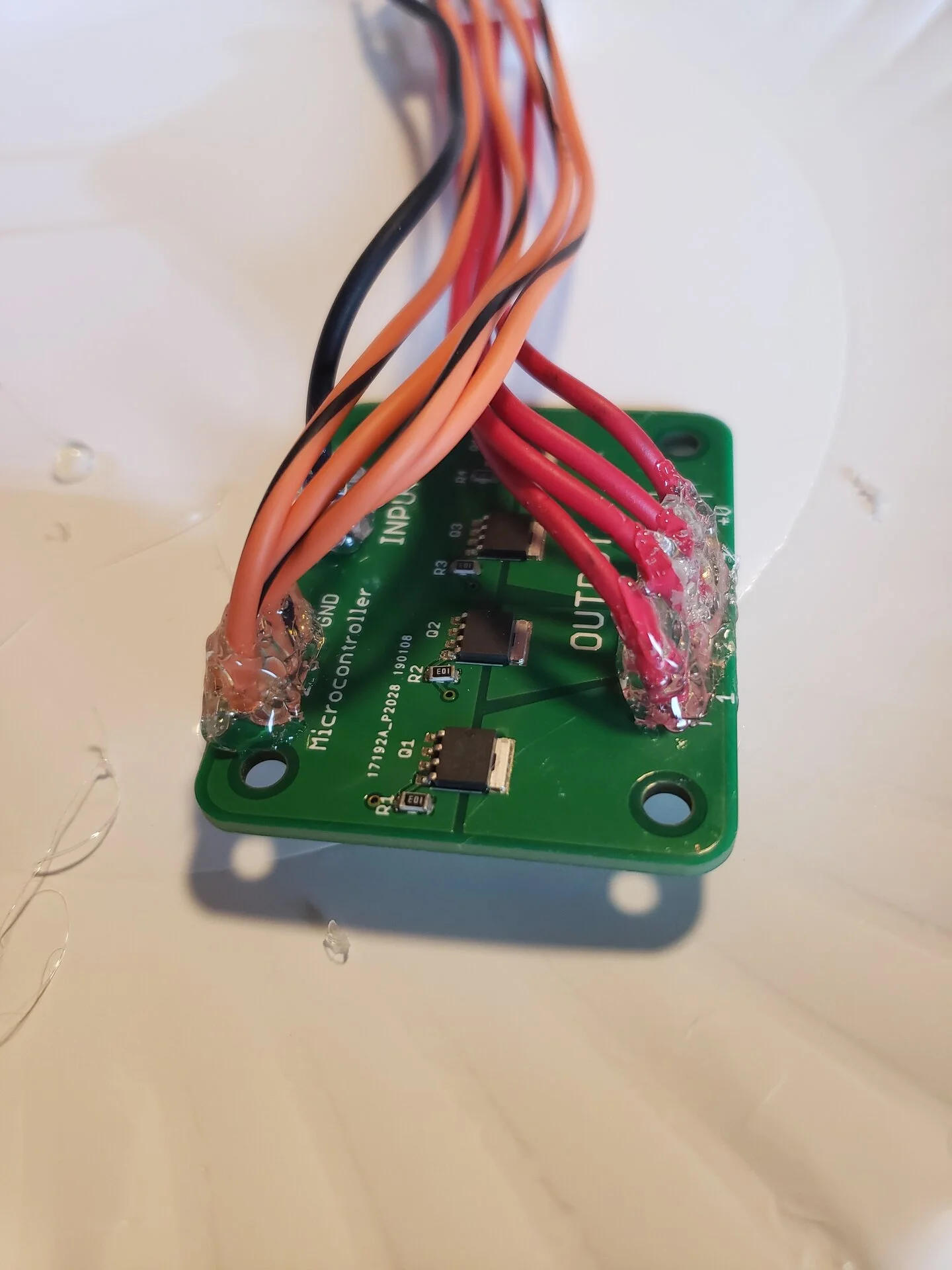

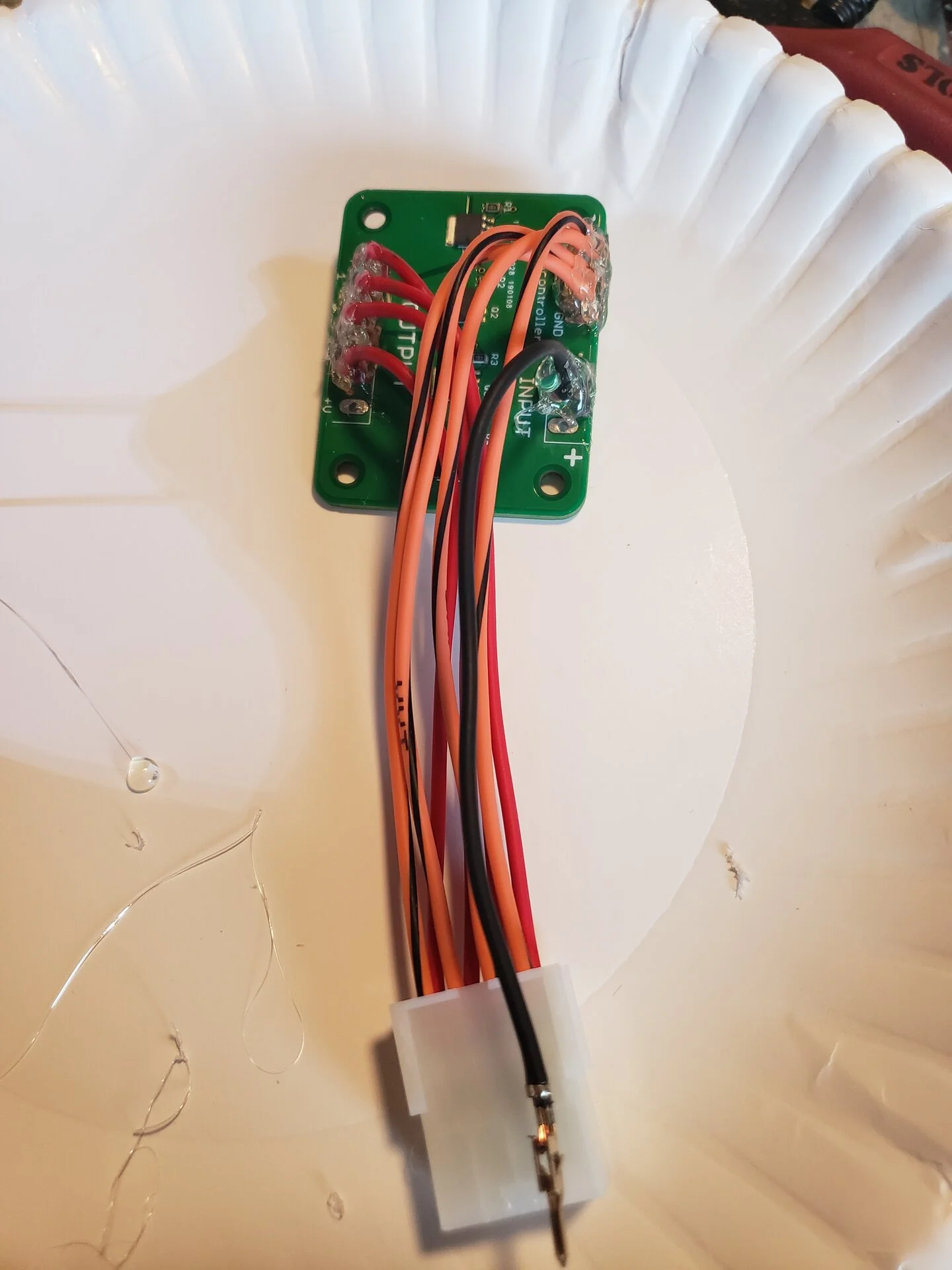

Came up with this mosfet board I found on ebay to handle my ground triggers. I removed the screw terminals that came on the board and soldered wires direct. I'm using this for the following functions.

Wideband turn on (complete the PWR GND of that circuit)

TC unlock with Brake engagement

ACCS


Attachments

  • 20200510_174818.jpg
    200.5 KB · Views: 26
  • 20200510_174849.jpg
    185.7 KB · Views: 27
  • 20200510_175235.jpg
    262.6 KB · Views: 27
