If you can, swap wheels/tires front to back and see if the vibration changes.
If the pinion is not loose, leave the nut alone.
How much farther down do the real lower control arms mount to the differential from stock? I see a relocation kit installed which I assume was to change the I/C to get the car to hook better.



[FastDriver]

Good question and advice, Bullitt. I'll look into it and report back.



[FastDriver]

Finished up the rear-end today. Test drive demonstrated that the vibration has not changed. I guess for the $60 this cost (bearings, seals, gear oil + the 2 days I had to spend messing with it, it feels a bit defeating to have not found the source of the vibration. I guess the best way to frame the effort in a positive light is that I crossed another possibility off of the list, did a little preventative maintenance, didn't pay someone else to fail to fix the vibration, and have a shiny black diff cover instead of a rusty one. I had just about had enough when I was done, so I didn't mess with the pinion flange nut or swap the tires back around. I'll have to come back to those items later.

The charcoal canister & purge solenoid have arrived, but I'm still waiting on the purge's wiring pigtail, vacuum lines and adapters before I can install that stuff.

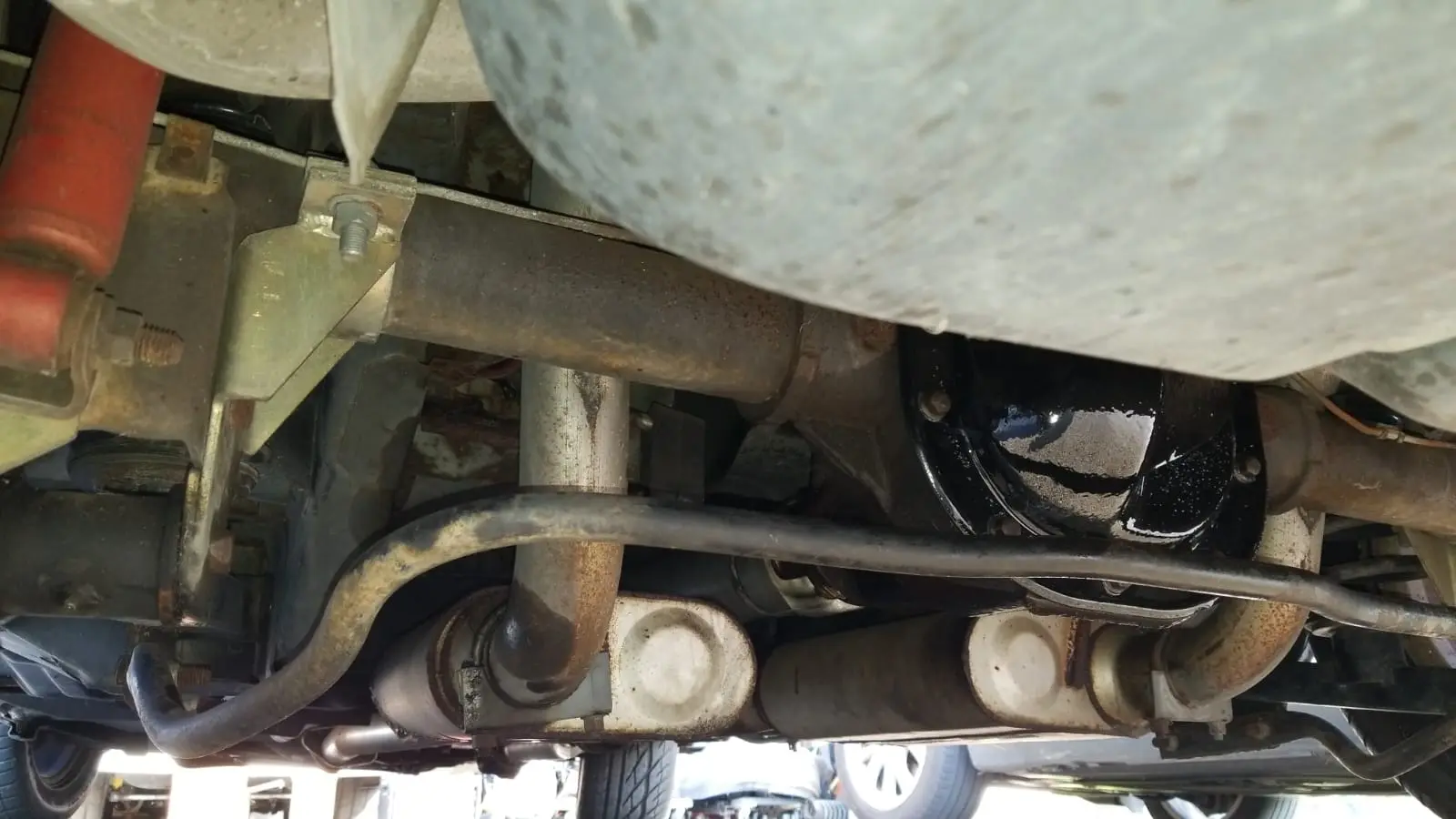

Bullitt, here's a pic that both shows the shiny diff cover and the LCA mounting points a little closer. You can also see the stock location's bolt. There's a 3rd hole between where the LCA is currently mounted and the stock mounting point, which I could use to raise the mounting point of the LCA. If I determine that the pinion angle is the culprit, I will do it and see if it alleviates the vibration to some degree.



[Trogdor]

Do you have a pinion angle tool? They are not too expensive and could tell you if the angle is wrong before you go in and spend a bunch of time moving the control arms.



[FastDriver]

Do you have a pinion angle tool? They are not too expensive and could tell you if the angle is wrong before you go in and spend a bunch of time moving the control arms.

I have two angle cubes. I didn't know they had a special tool for pinion angles.



[Bullitt347]

Usually dropping the real lower control arm mounting point by 1 inch or so is sufficient to change the Instant Center enough to be advantageous for helping the car hook.
If more than 1 inch, then you should certainly check your pinion angle.
On average, with stock bushings in the rear upper and lower control arms, having 1.5-2.0* pinion down angle is needed due to bushing deflection under acceleration.
If you have Urethane bushings then only .75 to 1.0* pinion down angle is required as there is less deflection in the control arm bushings.
With Heim Joints or solid bushings, then near 0* down angle is required as no real deflection is taking place.
Ideally you want the driveshaft at 0* front and rear when under acceleration as this provides the least amount of friction in the drivetrain.
If you have more than 2* of pinion angle, then I suspect that this is the source of your vibration.

Typically, U-joints are designed to work with up to 1.5* of angle each. So 2 U-joints should handle 3* of angle total. This is why double cardan joints are used in some applications to accommodate more severe driveline angles..................................................^^^^
