Cam Change = Firing Order Change= Injector Change

Rjaaaaaa

Well-Known Member
Jul 11, 2016
217
159
63
Well I need some help here.
I've got this thing all back together and went to fire it up and can't get it running right. I've checked and rechecked the timing and distributor wiring (both versions) and no luck, it has a terrible miss in it yet it's not back firing at all but it won't get out of it's own way.
I'm thinking that I have what was an original 5.0 engine but when I first bought the car I pulled all the plug wires off to clean them and that's when I found out that there were 2 different firing orders for the 5.0 and the 5.0 HO ? I guess when the PO replaced the cam ( x cam) it also changed the firing order to the HO order and when the firing order gets changed shouldn't the fuel injector order follow ? Can you just swap the injector wires around to follow the plug order?
So I'm wondering if this used engine wiring harness I bought might not be a standard 5.0 harness and the fuel injectors are not timed with the spark plug timing. Does this sound reasonable?
The 2 firing orders are close and my car will run on either but not very well.
It definitely had the HO firing order before.
I have the original factory 1988 factory wiring diagram but not the HO.
Does anyone have a diagram of the fuel injector wiring back to the eec
for an HO engine?
This thing is driving me crazy? I'm so close but so far.
I also told you it was an easy fix on my aluminum radiator "NOT" boy did I mess that one up, just couldn't get it to stop leaking until I finally ruined the radiator and had to buy a new one. :( :( live and learn!

  • Sponsors (?)


Well it seems that I'm the only one out there who has a 5.0 that through the cam change converted to a 5.0 HO firing order ???
I checked and double checked the old wiring harness pin out at the 60 pin plug and both of them are pinned out exactly the same (factory 5.0) not HO. So how is it that the engine ran so well?? I pulled all the plugs and they were all black and sooty, they only had 3 or 400 miles on them. I replaced them all and rechecked the 10 degrees BTDC. Didn't try to start it ran out of time.
New radiator came today, looks nice, 3 core from ebay for $115 and got here in 2 days.
Now it seems that the fuel pump or filter might be a problem, no fuel pressure while cranking ??? WHAT ELSE!!!

Well it seems that I'm the only one out there who has a 5.0 that through the cam change converted to a 5.0 HO firing order ???
I checked and double checked the old wiring harness pin out at the 60 pin plug and both of them are pinned out exactly the same (factory 5.0) not HO. So how is it that the engine ran so well?? I pulled all the plugs and they were all black and sooty, they only had 3 or 400 miles on them. I replaced them all and rechecked the 10 degrees BTDC. Didn't try to start it ran out of time.
New radiator came today, looks nice, 3 core from ebay for $115 and got here in 2 days.
Now it seems that the fuel pump or filter might be a problem, no fuel pressure while cranking ??? WHAT ELSE!!!

This doesn’t prove that the block is a HO block. Some trucks evidently use a HO firing order with a low lift cam (this will result in less than the desired HP output). However, it will definitely prove that a block can’t be HO because the firing order is wrong.

Remove the #1 & #3 spark plugs. Put your finger in #1 spark plug hole. Crank the engine over until you feel compression on #1 cylinder. Slowly turn the engine until the TDC mark and the timing pointer line up. Mark TDC on the balancer with chalk or paint. Put your finger in #3 spark plug hole and crank the engine 90 degrees. You should feel pressure trying to blow past your finger. If you do not feel pressure, repeat the process again. If you feel pressure, it is a HO engine.

No pressure the second time, remove spark plug #5. Put your finger in #1 spark plug hole. Crank the engine over until you feel compression on #1 cylinder. Put your finger in #5 spark plug hole and crank the engine 90 degrees. If you feel pressure now, the engine is not a HO model, no matter what it says on the engine.

Using a small carpenter or machinist square to mark the harmonic balancer off into 90 degree sections may be helpful here.

A 15/16 deep socket & breaker bar or ratchet may be used to turn the engine.

The HO firing order is 1-3-7-2-6-5-4-8.
Non HO firing order is 1-5-4-2-6-3-7-8


See the graphic for the 10 pin connector circuit layout.


Do an end to the injector wring test to make sure that the injectors are properly sequenced for a HO engine and computer

Disconnect the main connector from the computer and pull it down so that you have good access to the computer side of the connector.
Place one voltmeter lead in pin 40 or 60 - they are both the main computer power ground. This lead does not change for any of the tests
Disconnect all the injector connectors from the injectors.
You will re-connect them one at a time to do the testing. Once you have checked an injector lead, disconnect it before testing the next injector. Fail to do this and you will get incorrect results

Turn the ignition switch to Run
Check pins 37 & 57; you should see 12 volts.

Computer wiring harness connector, wire side


Computer wiring harness connector, computer side side


Here are the HO injector wires that are different; check to see that you have 12 volts on them one at a time.
Connect injector #3, look for 12 volts on pin 12 on the computer. Disconnect the injector connector from the injector before testing the next wire.
Connect injector #7, look for 12 volts on pin 42 on the computer. Disconnect the injector connector from the injector before testing the next wire.
Connect injector #5, look for 12 volts on pin 14 on the computer. Disconnect the injector connector from the injector before testing the next wire.
Connect injector #4. look for 12 volts on pin 13 on the computer. You are finished now and can reconnect all the injector connectors to the injectors.



Fuel Pump Troubleshooting for 87-90 Mustangs

Revised 1-Dec-2015 to add fuse links diagram.

Clue – listen for the fuel pump to prime when you first turn the ignition switch on. It should run for 1-3 seconds and shut off. To trick the fuel pump into running, find the ECC test connector and jump the connector in the upper LH corner to ground.





Turn the ignition switch on when you do this test.


If the fuse links are OK, you will have power to the pump. Check fuel pressure – remove the cap from the Schrader valve behind the alternator and depress the core. Fuel should squirt out, catch it in a rag. A tire pressure gauge can also be used if you have one - look for 37-40 PSI. Beware of fire hazard when you do this.

No fuel pressure, possible failed items in order of their probability:
A.) Tripped inertia switch – press reset button on the inertia switch. The hatch cars hide it under the plastic trim covering the driver's side taillight. Use the voltmeter or test light to make sure you have power to both sides of the switch

B.) Fuel pump power relay – located under the driver’s seat in most Mustangs built before 92. See the diagram to help identify the fuel pump relay wiring colors. Be sure to closely check the condition of the relay, wiring & socket for corrosion and damage.
C.) Clogged fuel filter
D.) Failed fuel pump
E.) Blown fuse link in wiring harness.
F.) Fuel pressure regulator failed. Remove vacuum line from regulator and inspect
for fuel escaping while pump is running.

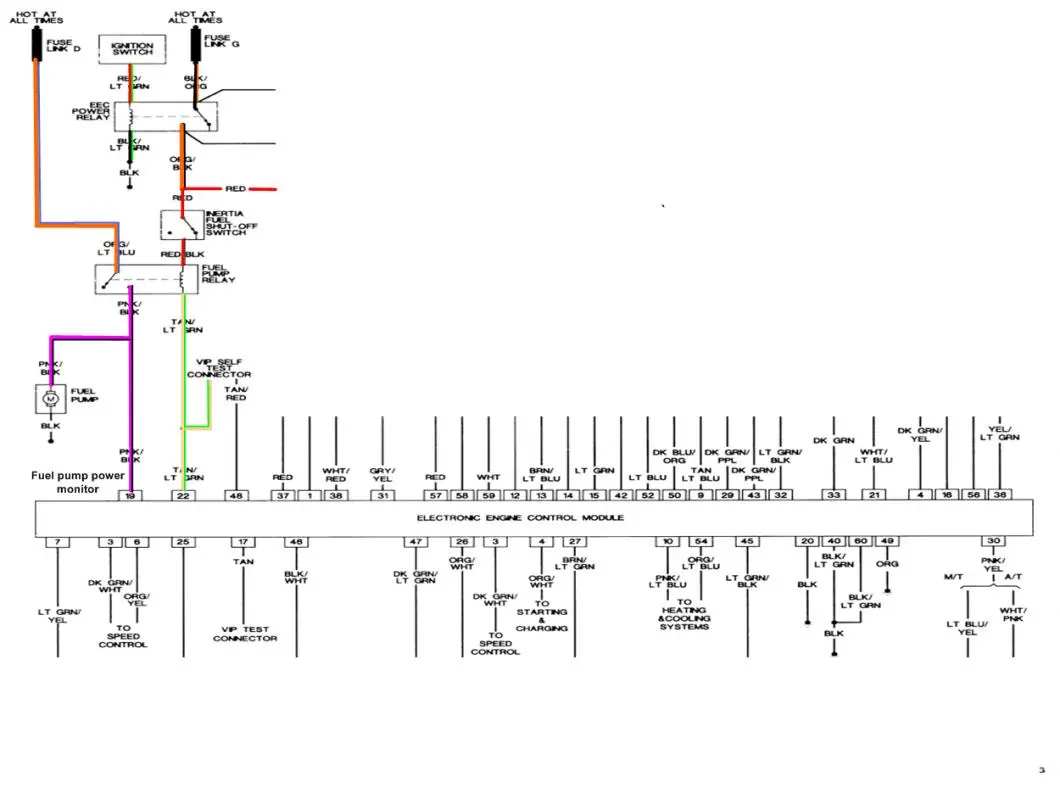

The electrical circuit for the fuel pump has two paths, a control path and a power
path.

Control Path
The control path consists of the inertia switch, the computer, and the fuel pump relay coil. It turns the fuel pump relay on or off under computer control. The switched power (red wire) from the ECC relay goes to the inertia switch (red/black wire) then from the inertia switch to the relay coil and then from the relay coil to the computer (tan/ Lt green wire). The computer provides the ground path to complete the circuit. This ground causes the relay coil to energize and close the contacts for the power path. Keep in mind that you can have voltage to all the right places, but the computer must provide a ground. If there is no ground, the relay will not close the power contacts.


Power Path
The power path picks up from a fuse link near the starter relay. Fuse links are like fuses, except they are pieces of wire and are made right into the wiring harness. The feed wire from the fuse link (orange/ light blue wire) goes to the fuel pump relay contacts.

Fuse links
http://www.stangnet.com/mustang-forums/attachments/64326

Fuse links come with a current rating just like fuses. A clue as to what current they are designed for is to look at the size wire they protect. Fuse link material is available at most good auto parts stores. There may even be a fuse link already made up specifically for your car. Just be sure to solder the connection and cover it with heat shrink tubing.

Heat shrink tubing is available at Radio Shack or other electronics supply stores.

See the video below for help on soldering and heat shrinking wiring. There is a lot of useful help and hints if you don’t do automotive electrical work all the time.


View: http://youtu.be/uaYdCRjDr4A


When the contacts close because the relay energizes, the power flows through the contacts to the fuel pump (light pink/black wire). Notice that pin 19 on the computer is the monitor to make sure the pump has power. The fuel pump has a black wire that supplies the ground to complete the circuit.

Remember that the computer does not source any power to actuators, relays or injectors, but provides the ground necessary to complete the circuit. That means one side of the circuit will always be hot, and the other side will go to ground or below 1 volt as the computer switches on that circuit.



Now that you have the theory of how it works, it’s time to go digging.

All voltage reading are made with one voltmeter lead connected to the metal car body unless otherwise specified

Check for 12 volts at the red wire on the inertia switch. No 12 volts at the inertia switch, the ignition switch is turned off or faulty or there is no power to the EEC (computer) power relay. To be sure look for good 12 volts on the red wire on any fuel injector.
Good 12 volts means the EEC relay is working. No 12 volts and the ECC wiring is at fault.
Look for 12 volts on the red/green wire on the ignition coil: no 12 volts and the ignition switch is faulty, or the fuse link in the ignition power wire has blown. No 12 volts here and the ECC relay won’t close and provide power to the inertia switch. Check the Red/black wire on the inertia switch, it should have 12 volts. No 12 volts there, either the inertia switch is open or has no power to it. Check both sides of the inertia switch: there should be power on the Red wire and Red/Black wire. Power on the Red wire and not on the Red/Black wire means the inertia switch is open. Push the button on the side of it to reset it, and then recheck. Good 12 volts on one side and not on the other means the inertia switch has failed.

Look for 12 volts at the Orange/Lt. Blue wire (power source for fuel pump relay). No voltage or low voltage, bad fuse link, bad wiring, bad ignition switch or ignition switch wiring or connections. There is a mystery connector somewhere under the driver’s side kick panel, between the fuel pump relay and the fuse link.

Turn on the key and jumper the fuel pump test connector to ground as previously described. Look for 12 volts at the Light Pink/Black wire (relay controlled power for the fuel pump). No voltage there means that the relay has failed, or there is a broken wire in the relay control circuit.

Pump wiring: Anytime the ignition switch is in the Run position and the test point is jumpered to ground, there should be at least 12 volts present on the black/pink wire. With power off, check the pump ground: you should see less than 1 ohm between the black wire and chassis ground.



The yellow wire is the fuel tank sender to the fuel quantity gage. The two black wires are grounds. One ground is for the fuel tank sender and the other is the fuel pump. The ground for the fuel pump may be larger gauge wire that the fuel tank sender ground wire.

Make sure that the power is off the circuit before making any resistance checks. If the circuit is powered up, your resistance measurements will be inaccurate.

You should see less than 1 Ohm between the black wire(s) and ground. To get some idea of what a good reading is, short the two meter leads together and observe the reading. It should only be slightly higher when you measure the black wire to ground resistance.

The Tan/Lt Green wire provides a ground path for the relay power. With the test connector jumpered to ground, there should be less than .75 volts. Use a test lamp with one side connected to battery power and the other side to the Tan/Lt Green wire. The test light should glow brightly. No glow and you have a broken wire or bad connection between the test connector and the relay. To test the wiring from the computer, remove the passenger side kick panel and disconnect the computer connector. It has a 10 MM bolt that holds it in place. With the test lamp connected to power, jumper pin 22 to ground and the test lamp should glow. No glow and the wiring between the computer and the fuel pump relay is bad.

Computer: If you got this far and everything else checked out good, the computer is suspect. Remove the test jumper from the ECC test connector located under the hood. Probe computer pin 22 with a safety pin and ground it to chassis. Make sure the computer and everything else is connected. Turn the ignition switch to the Run position and observe the fuel pressure. The pump should run at full pressure.
If it doesn't, the wiring between pin 22 on the computer and the fuel pump relay is bad.
If it does run at full pressure, the computer may have failed.

Keep in mind that the computer only runs the fuel pump for about 2-3 seconds when you turn the key to the Run position. This can sometimes fool you into thinking the computer has died. Connect one lead of the test light to power and the other lead to computer pin 22 with a safety pin. With the ignition switch Off, jumper the computer into self test mode like you are going to dump the codes. Turn the ignition switch to the Run position. The light will flicker when the computer does the self test routine. A flickering light is a good computer. No flickering light is a bad computer.
Remove the test jumper from the ECC test connector located under the hood.

Fuel pump runs continuously: The fuel pump relay contacts are stuck together or the Tan/Lt Green wire has shorted to ground. In extreme ghetto cases, the pump relay may have been bypassed. Remove the fuel pump relay from its socket. Then disconnect the computer and use an ohmmeter to check out the resistance between the Tan/Lt Green wire and ground. You should see more than 10 K Ohms (10,000 ohms) or an infinite open circuit. Be sure that the test connector isn’t jumpered to ground.
If the wiring checks out good, then the computer is the likely culprit.

Prior to replacing the computer, check the computer power ground. The computer has its own dedicated power ground that comes off the ground pigtail on the battery ground wire. Due to it's proximity to the battery, it may become corroded by acid fumes from the battery. It is a black cylinder about 2 1/2" long by 1" diameter with a black/lt green wire. You'll find it up next to the starter solenoid where the wire goes into the wiring harness

If all of the checks have worked OK to this point, then the computer is bad. The computers are very reliable and not prone to failure unless there has been significant electrical trauma to the car. Things like lightning strikes and putting the battery in backwards or connecting jumper cables backwards are about the only thing that kills the computer.

See the following website for some help from Tmoss (diagram designer) &
Stang&2Birds (website host)

http://www.veryuseful.com/mustang/tech/engine/images/IgnitionSwitchWiring.gif

http://www.veryuseful.com/mustang/tech/engine/images/fuel-alt-links-ign-ac.gif

http://www.veryuseful.com/mustang/tech/engine/images/88-91eecPinout.gif

Dunno if this helps... but if your car is efi it will be set up for ho unless you have some crazy set up. There were no efi non ho cars( mustangs).

Last edited:
Hey thanks for all the info, it really helps but no body still answered my questions.
With the firing order change, should the injectors order be changed also?
I'm thinking now that maybe the computer ( It's a IV ) software can (or was used to ) reassign the injector order already?
Both of the engine wiring harnesses were rewired to use MAF.
The computer has a label on it that it's a remanufactured unit.
What would cause the plugs to be so sooty?
Still trouble shooting fuel problem, might just be a clogged filter. I do hear the pump prime now but it still won't start. If I spray so gas in the TB it starts then quits.

Hey thanks for all the info, it really helps but no body still answered my questions.
With the firing order change, should the injectors order be changed also?
I'm thinking now that maybe the computer ( It's a IV ) software can (or was used to ) reassign the injector order already?
Both of the engine wiring harnesses were rewired to use MAF.
The computer has a label on it that it's a remanufactured unit.
What would cause the plugs to be so sooty?
Still trouble shooting fuel problem, might just be a clogged filter. I do hear the pump prime now but it still won't start. If I spray so gas in the TB it starts then quits.


The answer is in here...

Cranks OK, but No Start Checklist for Fuel Injected 5.0 Mustangs model years 1986-1995

A word about this checklist before you start: it is arranged in a specific order to put the most likely failure items first. That will save you time, energy and money. Start at the top of the list and work your way down. Jumping around will possibly cause you to miss just what you need to see to find and fix the problem. Don’t skip any steps because the next step depends on the last step working correctly.


Revised 16 Mar-2017 to add information on the ignition switch fuse link.

All text applies to all models unless stated otherwise.

Note: 94-95 specific changes are in red

1.) Remove push on connector (small red/blue wire) from starter solenoid and turn ignition switch to the Run position. Place car in neutral or Park and set the parking brake. Remove the coil wire from distributor & and hold it 3/8” away from the engine block. Jumper the screw to the big bolt on the starter solenoid that has the battery wire connected to it. You should get a nice fat blue spark.
Most of the items are electrical in nature, so a test light, or even better, a voltmeter, is helpful to be sure they have power to them.

No spark, possible failed items in order of their probability:
A.) MSD, Crane, or other ignition box if present - Bypass it and return to stock configuration if possible. Do this as a temporary measure to eliminate it as a possible problem source.
B.) PIP sensor in distributor. The PIP sensor supplies the timing pulse to trigger the TFI and injectors. A failing PIP sensor will sometimes let the engine start if the SPOUT is removed. See paragraph 5A – Using a noid light will tell if the PIP is working by flashing when the engine is cranking.
C.) TFI module: use a test light to check the TFI module. Place one lead of the test light on the red/green wire on the ignition coil connector and the other lead on the dark green/yellow wire on the ignition coil connector. If the TFI is working properly, the test light will flash when the engine is cranked using the ignition switch.
D.) Coil
E.) No EEC or computer power - EEC or computer relay failure
86-93 models only: EEC relay next to computer - look for 12 volts at the fuel injector red wires.
94-95 models only: EEC or PCM power relay in the constant control relay module. Look for 12 volts at the fuel injector red wires.
Both 86-93 and 94-95 models: No 12 volts with the ignition switch in the run position on the fuel injector red wires. The relay has failed or there is no power coming from the ignition switch. Make sure that there is 12 volts on the red/green wire on the coil before replacing the relay.
F.) No EEC or computer power - fuse or fuse link failure
86-93 models only: Fuse links in wiring harness - look for 12 volts at the fuel injector red wires. All the fuse links live in a bundle up near the starter solenoid. Look for a 20 gauge blue fuse link connected to 2 black/orange 14 gauge wires.
94-95 models only: 20 amp EEC fuse in the engine compartment fuse box. Look for 12 volts at the fuel injector red wires.
G.) Ignition switch - look for 12 volts at the ignition coil red/lt green wire. No 12 volts, blown fuse link or faulty ignition switch. Remove the plastic from around the ignition switch and look for 12 volts on the red/green wire on the ignition switch with it in the Run position. No 12 volts and the ignition switch is faulty. If 12 volts is present in the Run position at the ignition switch but not at the coil, then the fuse or fuse link is blown.
Note: fuses or fuse links blow for a reason. Don’t replace either a fuse or fuse link with one with a larger rating than stock. Doing so invites an electrical fire.
Ignition fuse links may be replaced with an inline fuse holder and 5 amp fuse for troubleshooting purposes.
94-95 models only: Check inside fuse panel for fuse #18 blown – 20 amp [fuse
H.) Missing or loose computer power ground. The computer has its own dedicated power ground that comes off the ground pigtail on the battery ground wire. Due to it's proximity to the battery, it may become corroded by acid fumes from the battery.
In 86-90 model cars, it is a black cylinder about 2 1/2" long by 1" diameter with a black/lt green wire.
In 91-95 model cars it is a black cylinder about 2 1/2" long by 1" diameter with a black/white wire.
You'll find it up next to the starter solenoid where the wire goes into the wiring harness
I.) Computer. Don’t replace the computer just because you don’t understand how it works. Computers seldom fail, it usually is a sensor or wiring problem that causes the problems.
J.) Bad or missing secondary power ground. It is located between the back of the intake manifold and the driver's side firewall. It supplies ground for the alternator, A/C compressor clutch and other electrical accessories such as the gauges.
K.) Engine fires briefly, but dies immediately when the key is released to the Run position. Crank the engine & when it fires off, pull the small push on connector (red/blue wire) off the starter relay (Looks like it is stuck on a screw). Hold the switch in the crank position: if it continues to run there is a problem with either the ignition switch or TFI module. Check for 12 volts at the red/green wire on the coil with the switch in the Run position. Good 12 volts, then replace the TFI.
See the Ignition switch wiring diagram for more information on the ignition wiring fuse link because it is the next thing to be tested. You will need a Multimeter or DVM and know how to use the Ohms function to check continuity between the red/green wire on the ignition coil and the red/green wire on the ignition switch. Make sure that the ignition switch is in the off position when you do the check. You should see less than 1 Ω (Ohm) between the red/green wire on the coil and the red/green wire on the ignition switch. More than 1 Ω means that the fuse link may have blown open and needs to be replaced. If you get 1 Ω or less means the fuse link is OK and the ignition switch is bad.

Wiring Diagrams:

See the following website for some help from Tmoss (diagram designer) & Stang&2Birds (website host) for help on 88-95 wiring Mustang FAQ - Engine Information Everyone should bookmark this site.

Ignition switch wiring
http://www.veryuseful.com/mustang/tech/engine/images/IgnitionSwitchWiring.gif

Fuel, alternator, A/C and ignition wiring
http://www.veryuseful.com/mustang/tech/engine/images/fuel-alt-links-ign-ac.gif

Complete computer, actuator & sensor wiring diagram for 88-91 Mass Air Mustangs
http://www.veryuseful.com/mustang/tech/engine/images/88-91_5.0_EEC_Wiring_Diagram.gif

Complete computer, actuator & sensor wiring diagram for 91-93 Mass Air Mustangs
http://www.veryuseful.com/mustang/tech/engine/images/91-93_5.0_EEC_Wiring_Diagram.gif

Complete computer, actuator & sensor wiring diagram for 94-95 Mass Air Mustangs
http://www.veryuseful.com/mustang/tech/engine/images/94-95_5.0_EEC_Wiring_Diagram.gif


AutoZone wiring diagrams: You can navigate to the diagrams yourself via Repair Info | AutoZone.com and select the car year, make, model and engine. That will enable you to bring up the wiring diagram for your particular car.

2.) Spark at coil wire, pull #1 plug wire off at the spark plug and check to see spark. No spark, possible failed items in order of their probability: [/b]
A.) Moisture inside distributor – remove cap, dry off & spray with WD40
B.) Distributor cap
C.) Rotor
D.) Spark Plug wires
E.) Coil weak or intermittent - you should see 3/8" fat blue spark with a good coil

3.) Spark at spark plug, but no start.
Next, get a can of starting fluid (ether) from your local auto parts store: costs a $1.30 or so. Then pull the air duct off at the throttle body elbow, open the throttle, and spray the ether in it. Reconnect the air duct and try to start the car. Do not try to start the car without reconnecting the air duct.

Two reasons:
1.) If it backfires, the chance for a serious fire is increased.
2.) On Mass Air cars, the computer needs to measure the MAF flow once the engine starts.
If it starts then, you have a fuel management issue. Continue the checklist with emphasis of fuel related items that follow. If it doesn’t, then it is a computer or timing issue: see Step 4.

Clue – listen for the fuel pump to prime when you first turn the ignition switch on. It should run for 2-4 seconds and shut off. To trick the fuel pump into running, find the EEC test connector and jump the connector in the Upper RH corner to ground. The EEC connector is near the wiper motor and LH hood hinge.



If the relay & inertia switch are OK, you will have power to the pump. Check fuel pressure – remove the cap from the Schrader valve behind the alternator and depress the core. Fuel should squirt out, catch it in a rag. Beware of fire hazard when you do this. In a pinch, you can use a tire pressure gauge to measure the fuel pressure. It may not be completely accurate, but you will have some clue as to how much pressure you have. If you have any doubts about having sufficient fuel flow/pressure, rent a fuel pressure test gauge from the auto parts store. That will tell you for sure if you have adequate fuel pressure.


4.) No fuel pressure, possible failed items in order of their probability:
A.) Tripped inertia switch – Coupe & hatch cars hide it under the plastic trim covering the driver's side taillight. Use the voltmeter or test light to make sure you have power to both sides of the switch
B.) Fuel pump power relay – located under the driver’s seat in most stangs built before 92. On 92 and later model cars it is located below the Mass Air Flow meter. Look for 12 volts at the Pink/Black wire on the fuel pump relay.
C.) Clogged fuel filter
D.) Failed fuel pump
E.) 86-90 models only: Blown fuse link in wiring harness. Look for 12 volts at the Orange/Lt Blue wire on the fuel pump relay.
91-93 models only Blown fuse link in wiring harness. Look for 12 volts at the Pink/Black wire on the fuel pump relay.
The fuse links for all model years 86-93 live in the wiring harness near the starter solenoid.
94-95 models only: 20 amp fuel pump fuse in the engine compartment fuse box. Look for 12 volts at the Dark green/yellow wire on the constant control relay module.
F.) Engine seem to load up on fuel and may have black smoke at the tailpipe. Fuel pressure regulator failed. Remove the vacuum line from the regulator and inspect for fuel escaping while the pump is running. If fuel is coming out the vacuum port, the regulator has failed. Check the regulator vacuum line for fuel too. Disconnect it from the engine and blow air though it. If you find gas, the regulator has failed.

5.) Fuel pressure OK, the injectors are not firing.
A.) The PIP sensor in the distributor tells the computer when to fire the injectors. A failing PIP sensor will sometimes let the engine start if the SPOUT is removed.
A noid light available from any auto parts store, is one way to test the injector circuit to see if the injectors are firing. The noid light plugs into the fuel injector harness in place of any easily accessible injector. Plug it in and try to start the engine: it will flash if the injector is firing.

I like to use an old injector with compressed air applied to the injector where the fuel rail would normally connect. I hook the whole thing up, apply compressed air to the injector and stick it in a paper cup of soapy water. When the engine cranks with the ignition switch on, if the injector fires, it makes bubbles. Cheap if you have the stuff laying around, and works good too.
B.) Pull an injector wire connector off and look for 12 volts on the red wire when the ignition switch is on.
C.) No power, then look for problems with the 10 pin connecter (salt & pepper shakers at the rear of the upper manifold).

See the graphic for the 10 pin connector circuit layout.

The injector power pin is the VPWR pin in the black 10 pin connector.


D.) No power and the 10 pin connections are good: look for broken wiring between the orange/black wire on the EEC relay and the red wire for the 10 pin connectors.
E.) TPS voltage exceeds 3.7 volts with the throttle closed. This will shut off the injectors, since the computer uses this strategy to clear a flooded engine. Use a DVM, a pair of safety pins, and probe the black/white and green wires to measure the TPS voltage.
On a 94-95 Mustang, probe the black/white and grey/white wires to measure the TPS voltage.
It should be .5-.1.0 volts with the key on, engine not running. Note that if the black/white wire (signal ground) has a bad connection, you will get some strange readings. Make a second measurement using the battery post as the ground to eliminate any ground problems. If the readings are different by more than 5%, you may have a high resistance condition in the black/white signal ground circuit.

6.) Spark & fuel pressure OK.
A.) Failed IAB or improperly set base idle (no airflow to start engine). Press the throttle ¼ way down and try to start the car. See the "Surging Idle Checklist for help with all your idle/stall problems.
B.) Failed computer (not very likely)
C.) Engine ignition or cam timing off: only likely if the engine has been worked on recently. If you removed the distributor, there is a good probability that you installed it 180 degrees out of time.
D.) Firing order off: HO & 351 use a different firing order from the non HO engines.
HO & 351W 1-3-7-2-6-5-4-8
Non HO 1-5-4-2-6-3-7-8
E.) No start when hot - Press the throttle to the floor & try starting it, if you get this far. If it starts, replace the ECT.
F. ) Engine that has had the heads off or valves adjusted. Do a compression test to make sure the valves are not adjusted too tight. You should have a minimum of 90 PSI on a cold engine.

is the car speed density or do you have a mass air meter?

The reason I ask is because if you were running on the old 302 firing order, it's possible you have one of the non-HO batch fire speed densitynECUs

Batch fire means all 4 injectors on one side squirt at the same time. So even if you rewire the injectors, you are still firing 4 at once.

I'd also check the above post and confirm your 10-pin connectors are pinned like shown

I recently had an idle issue with my car and traced it to the " salt and pepper " 10 pin connectors. I had to pull the pins one by one and clean them with electrical cleaner and re-grease them with dielectric grease.

I'm confused ? Wasn't this car already running with the current engine in it?

It's been answered but I'll say it anyway . If you have a mustang ecu a9l,a9p,a3m etc the firing order In which the injectors are fired is in the HO firing order. So your x cam would work with the same HO Ignition firing order.

If you haven't pulled the heads off ever and you think you have an original non ho engine . Likely it would have flat top Pistons with no valve relief and the valves would be kissing pistons with that cam .

Tell us which ecu the car has . Eeciv covers a variety of ecus .

Well I need some help here.
I've got this thing all back together and went to fire it up and can't get it running right. I've checked and rechecked the timing and distributor wiring (both versions) and no luck, it has a terrible miss in it yet it's not back firing at all but it won't get out of it's own way.
I'm thinking that I have what was an original 5.0 engine but when I first bought the car I pulled all the plug wires off to clean them and that's when I found out that there were 2 different firing orders for the 5.0 and the 5.0 HO ? I guess when the PO replaced the cam ( x cam) it also changed the firing order to the HO order and when the firing order gets changed shouldn't the fuel injector order follow ? Can you just swap the injector wires around to follow the plug order?
So I'm wondering if this used engine wiring harness I bought might not be a standard 5.0 harness and the fuel injectors are not timed with the spark plug timing. Does this sound reasonable?
The 2 firing orders are close and my car will run on either but not very well.
It definitely had the HO firing order before.
I have the original factory 1988 factory wiring diagram but not the HO.
Does anyone have a diagram of the fuel injector wiring back to the eec
for an HO engine?
This thing is driving me crazy? I'm so close but so far.
I also told you it was an easy fix on my aluminum radiator "NOT" boy did I mess that one up, just couldn't get it to stop leaking until I finally ruined the radiator and had to buy a new one. :( :( live and learn!
It had the H.O. firing order from the factory, because all EFI 5.0 Mustangs used the H.O. firing order. The X-cam has the same firing order.

Was the distributor moved at all while you had things apart?

Near as I can recall car ran an drove fine, had engine fire and replaced wiring under hood. I think he needs to step back and have a beer (or beverage of choice) and start with the basics.
Timing (HO firing order) fuel pressure (although I don't think this is the issue) see if the computer will put out codes, then go through the cranks but no start checklist.
JMO

  • Like
Reactions: 1 user
The only thing missing here is a chalkboard. That would be the only way that @jrichker could write the solution to the problem any bigger.

Raj,...take the diag Joe wrote out for you and go through the processes to troubleshoot where the problem is. The car shouldn't run on one or the other firing order,..there are so many different cylinders being fired in the wrong order between 351 and 5.0 orders, only one should be close enough for the car to run. Finding the correct firing order thing is as simple as removing the plugs, bring it up to TDC on #one, and bump/turn by hand the engine. If you have a 351 FO, in one quarter of a turn, the very next cylinder that will be coming up on it's TDC will be #3. Put your finger there to see if you got pressure. One more quarter turn you gotta reach waaay back for #7. If you have pressure there, you've got a HO order. Once you got that nailed down, then sequence the injectors to match.

However,...I don't see how this is the case.

You've said all along that you have a letter cam....

A letter cam is a 5.0 cam.

I'm betting you got a problem w/ your harness that was JY sourced,...but again you'd do well to go through the diag processes to find that out.

I'm more confused the everybody. Yes you are right, the car ran fine before the fire.
I'm not too certain about anything in the engine because I didn't build it. The block number indicates it's a 1986 block. The PO gave me all the other info.
Bored to 306, Edelbrock intake, stock heads with some work done to them ? , x cam , maf rewire ( so the original wiring harness was speed density). The harness I purchased also had the MAF mod done to it so it to started out as a speed density harness.
Both 60 pin connectors are wired the same at the ECU.
After the fire I replaced the injectors with 24#, PO had 42# in it, replaced entire engine wiring harness, dist. replaced (pulled used one out of a crown vic), Yes I have checked and recheck the timing by hand cranking the engine and its ok.
The ECU is a IV- A3M1
I'm currently working on the fuel issue, haven't had much time here around the holidays but I will today. Pump seems to be priming but it sounds different ? It's not getting any fuel because if I spray some gas in the TB it fires and dies. I'm working on this today.
I appreciate all the input.
