Progress Thread Foot Hill's supercharged efi Fastback

Foot Hill

Active Member
Dec 9, 2014
78
51
28

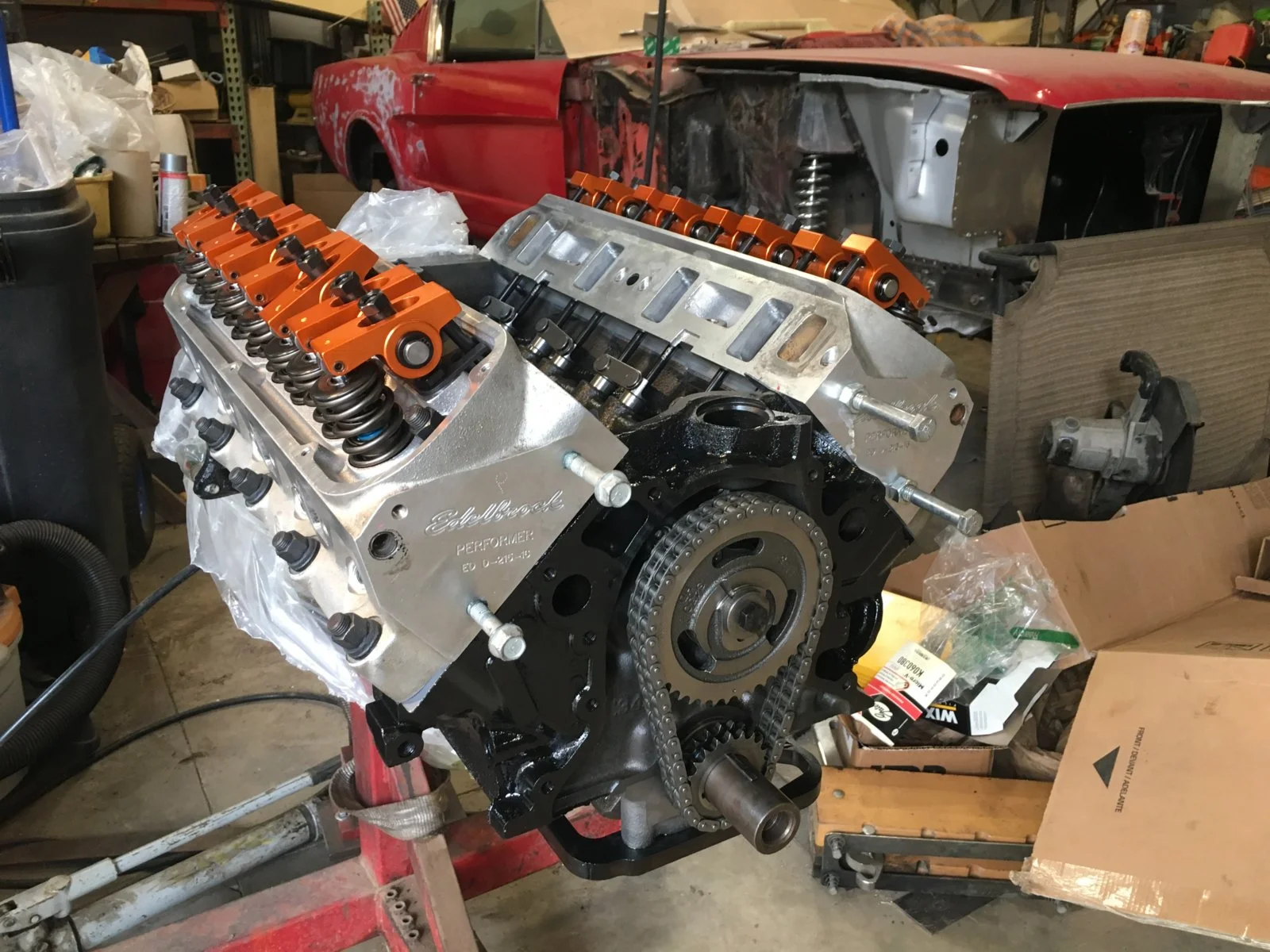

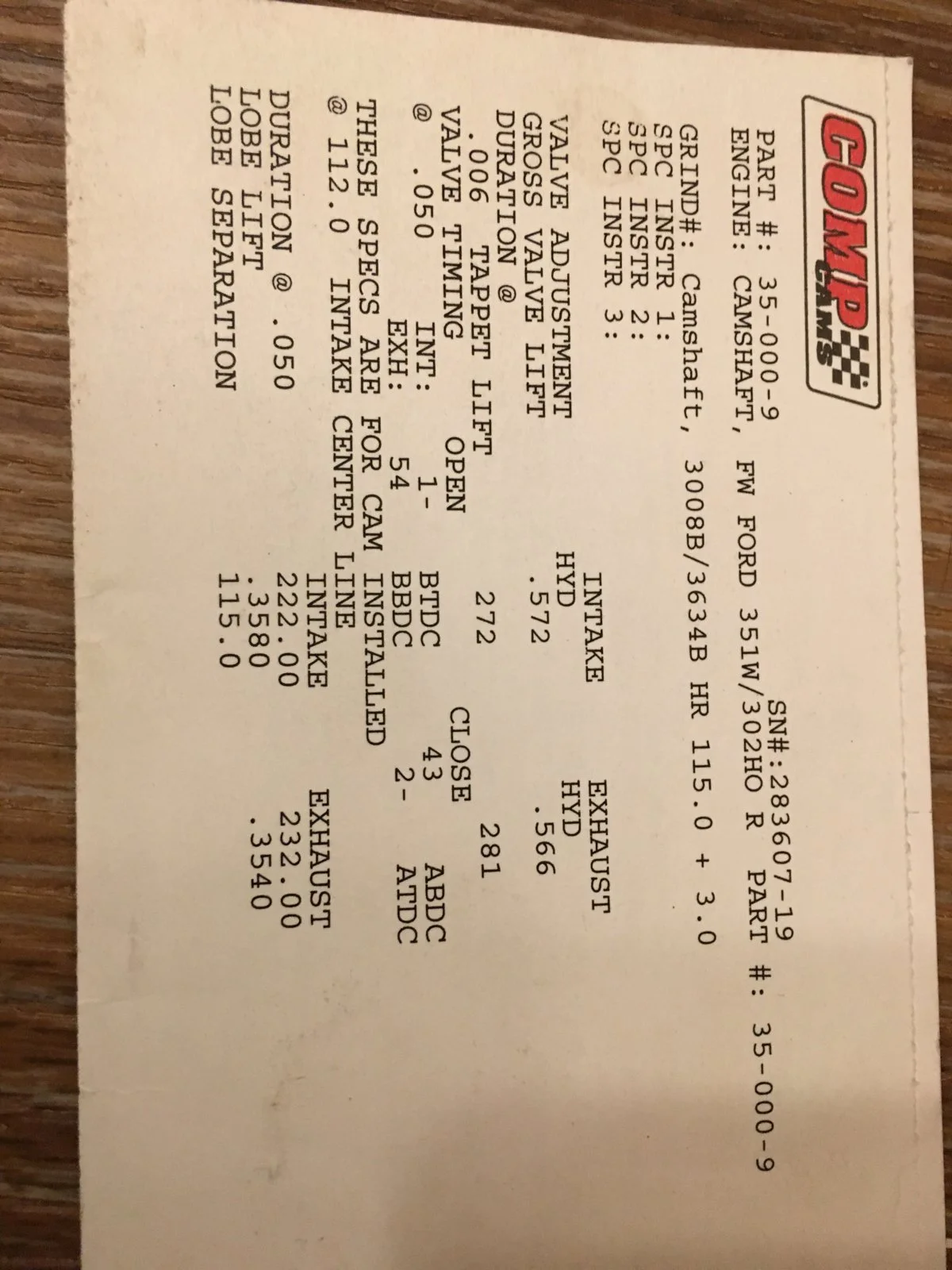

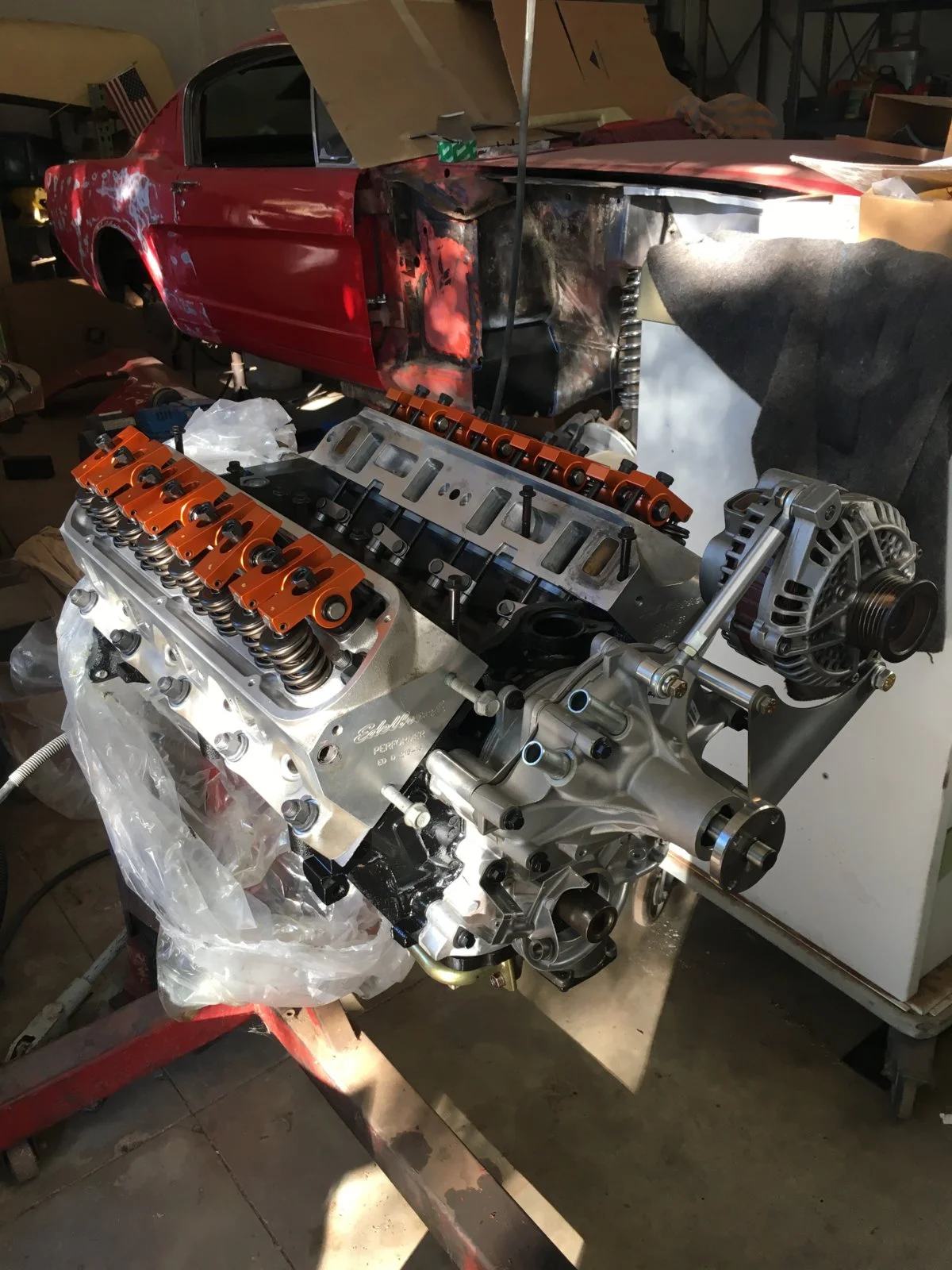

Got new roller cam with new HO firing order
Removed engine, removed cyl heads, had machine shop mill out the old felpro lock wire grooves (10k)
Installed new valve springs and required hardened spring seat washers.


Attachments

  • Like
Reactions: RaggedGT
  • Sponsors(?)


Foot Hill

Active Member
Dec 9, 2014
78
51
28

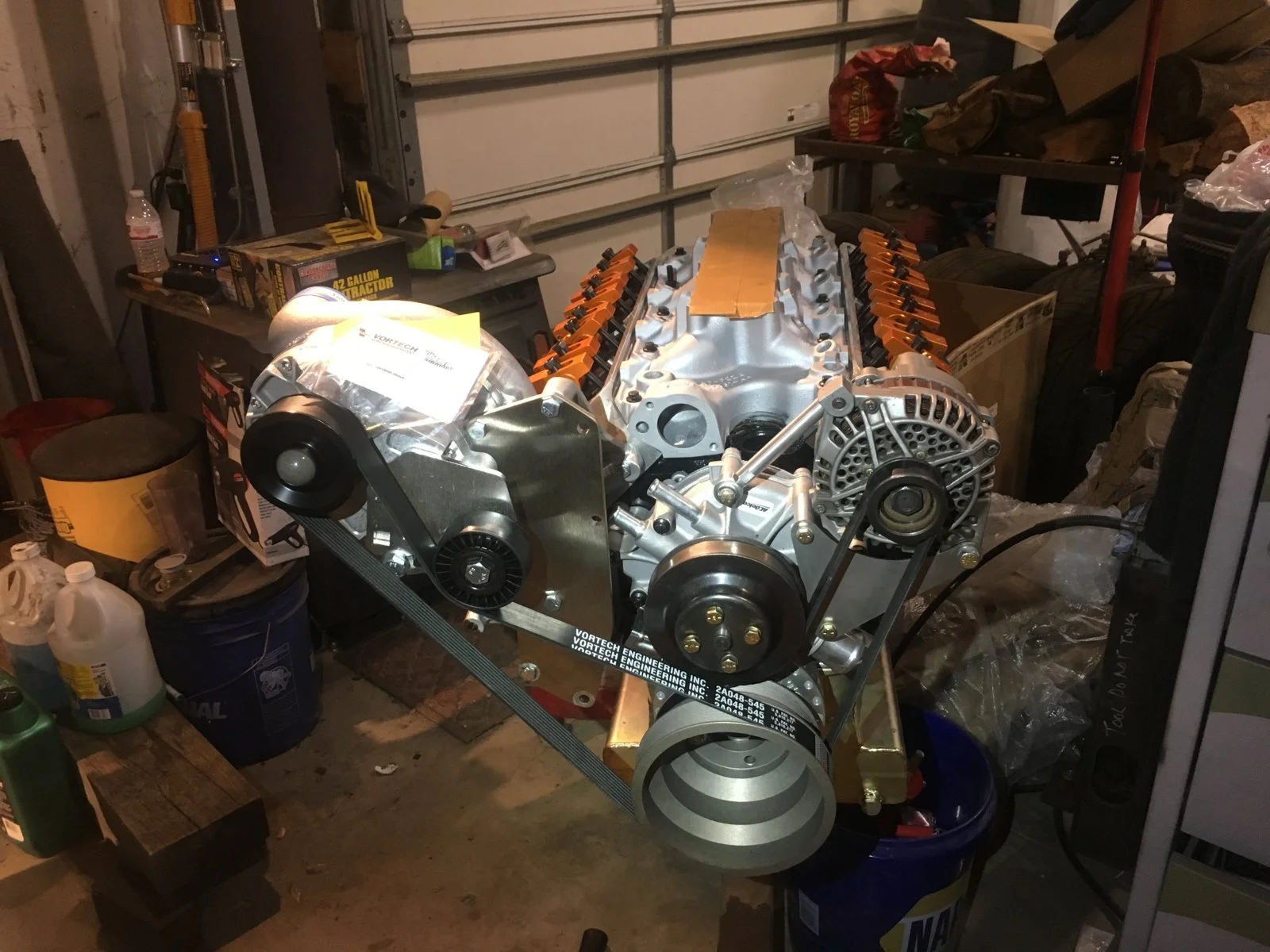

Ordered Vortech v3 si so got inspired to strengthen my stock block.
I know main Griddles effectiveness are sometimes argued but I figured this might Give me the confidence to go ahead with smaller pulley (more boost;) once Everything gets running
Purchased the 1/2” trick flow tool steel girdle

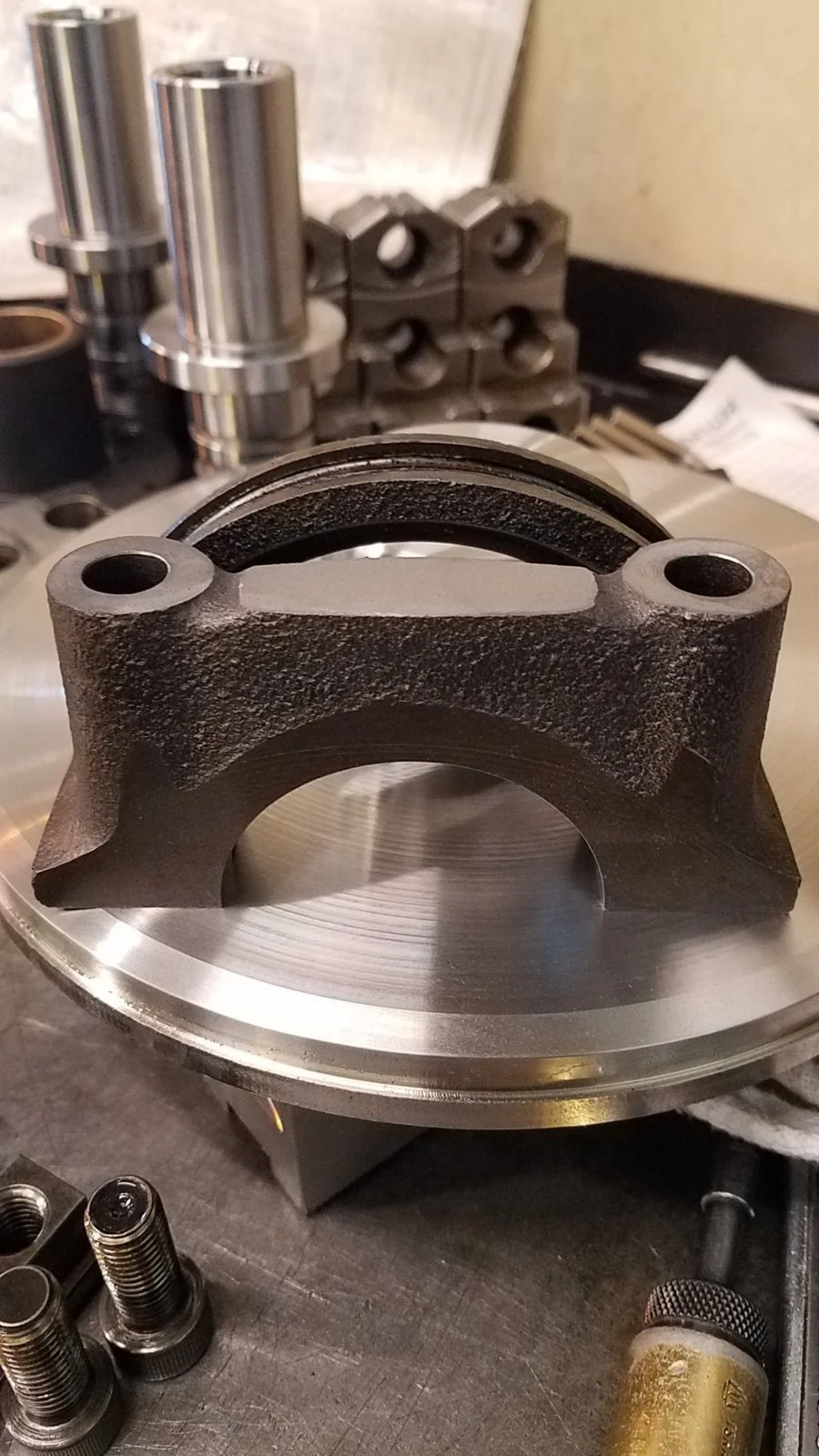

this required my main caps being machined down all to the same height


Attachments

2Blue2

will be trying this sex one when I can find it
Mar 5, 2019
1,928
1,103
123
52
Oahu
Lets see a picture of that girdle when its mocked up
Gonna be a nice combo the done.


Foot Hill

Active Member
Dec 9, 2014
78
51
28
Next was the harmonic balancer.
The first one I ordered was a nice trick flow with 28 outs in balance as needed for my early crank.
It slipped onto the crank snow with no effort at all and I could almost wiggle it it slipped all the way onto the crank snout with no effort at all and I could almost wiggle it!
Returned it and tried and even nicer Pioneer harmonic balancer.
It fit a little bit tighter but still no real press fit it fit a little bit tighter but still no real press fit.
That let me to if you weeks searching for someone capable of making a custom undersize bore balancer
That led me to innovators West

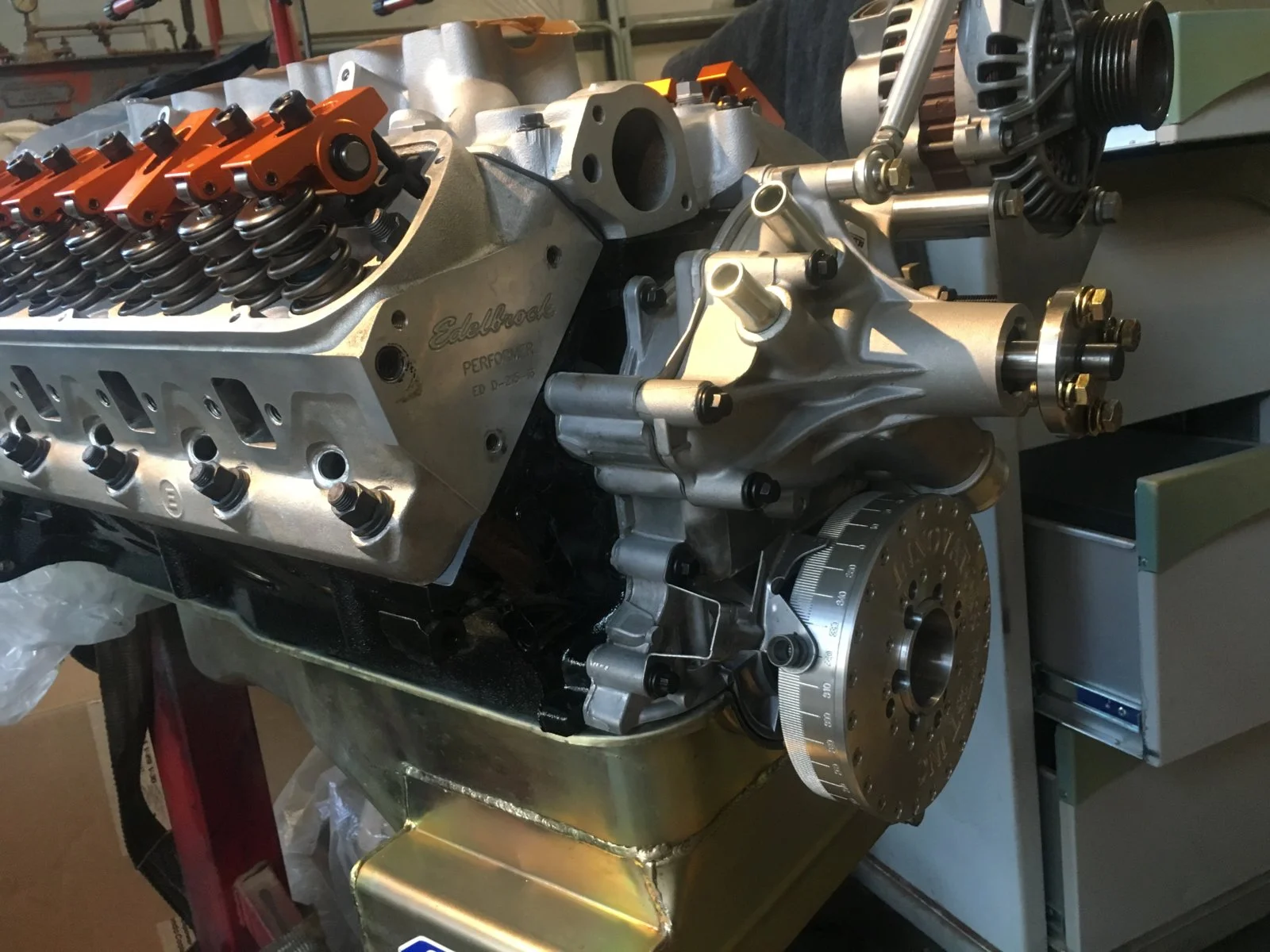

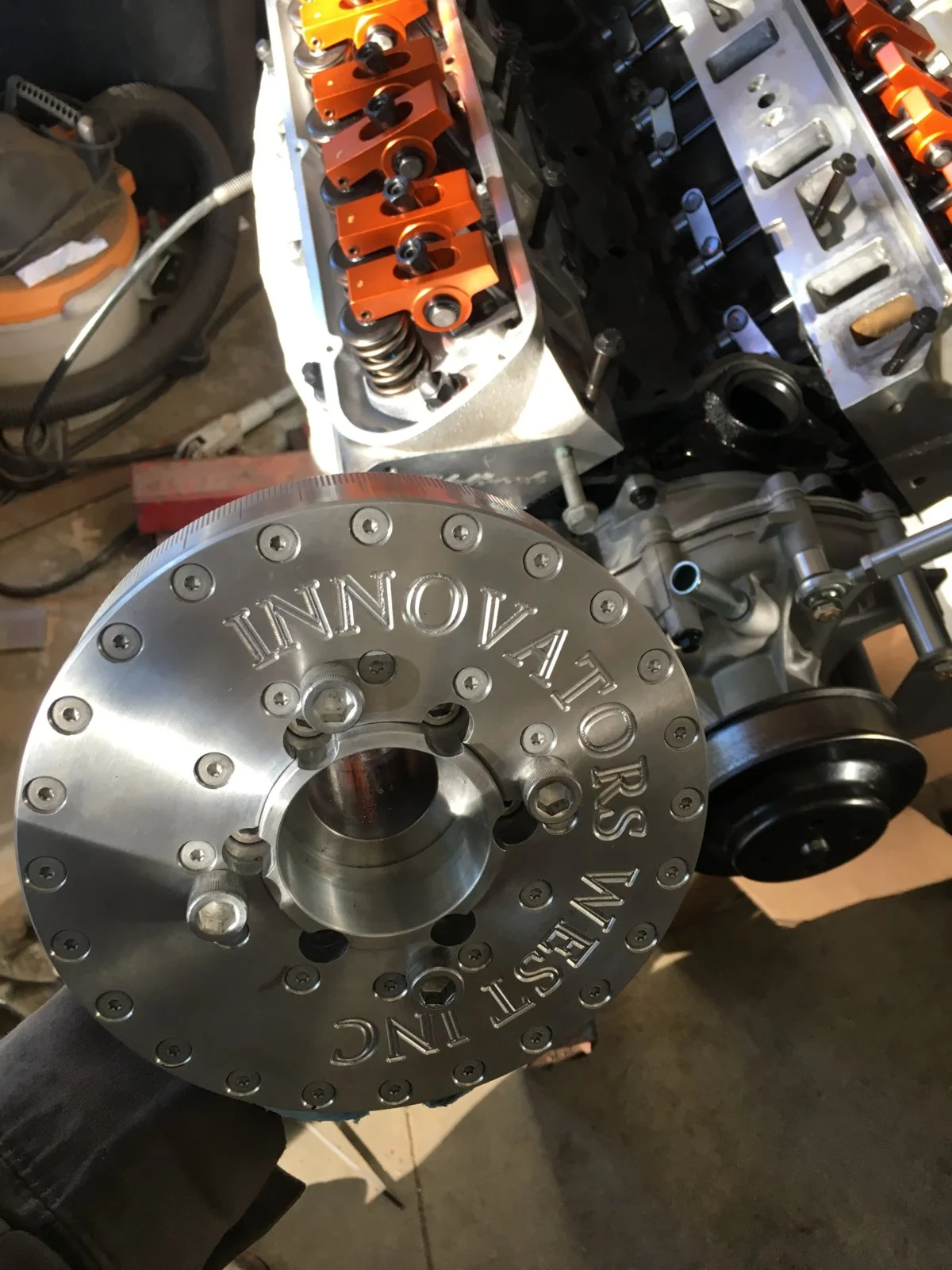

I gave them the specs of my slightly undersize crank snout and opted for their “blower pulley” option with the oversized seal as required to accommodate a thicker hub.

It pressed on beautifully and I highly recommend this company so far
-their customer support was outstanding !


2Blue2

will be trying this sex one when I can find it
Mar 5, 2019
1,928
1,103
123
52
Oahu
Its the worlds prettiest harmonic balancer

I'm too sexy for my shirt, too sexy for my shirt,
So sexy it hurts


Foot Hill

Active Member
Dec 9, 2014
78
51
28

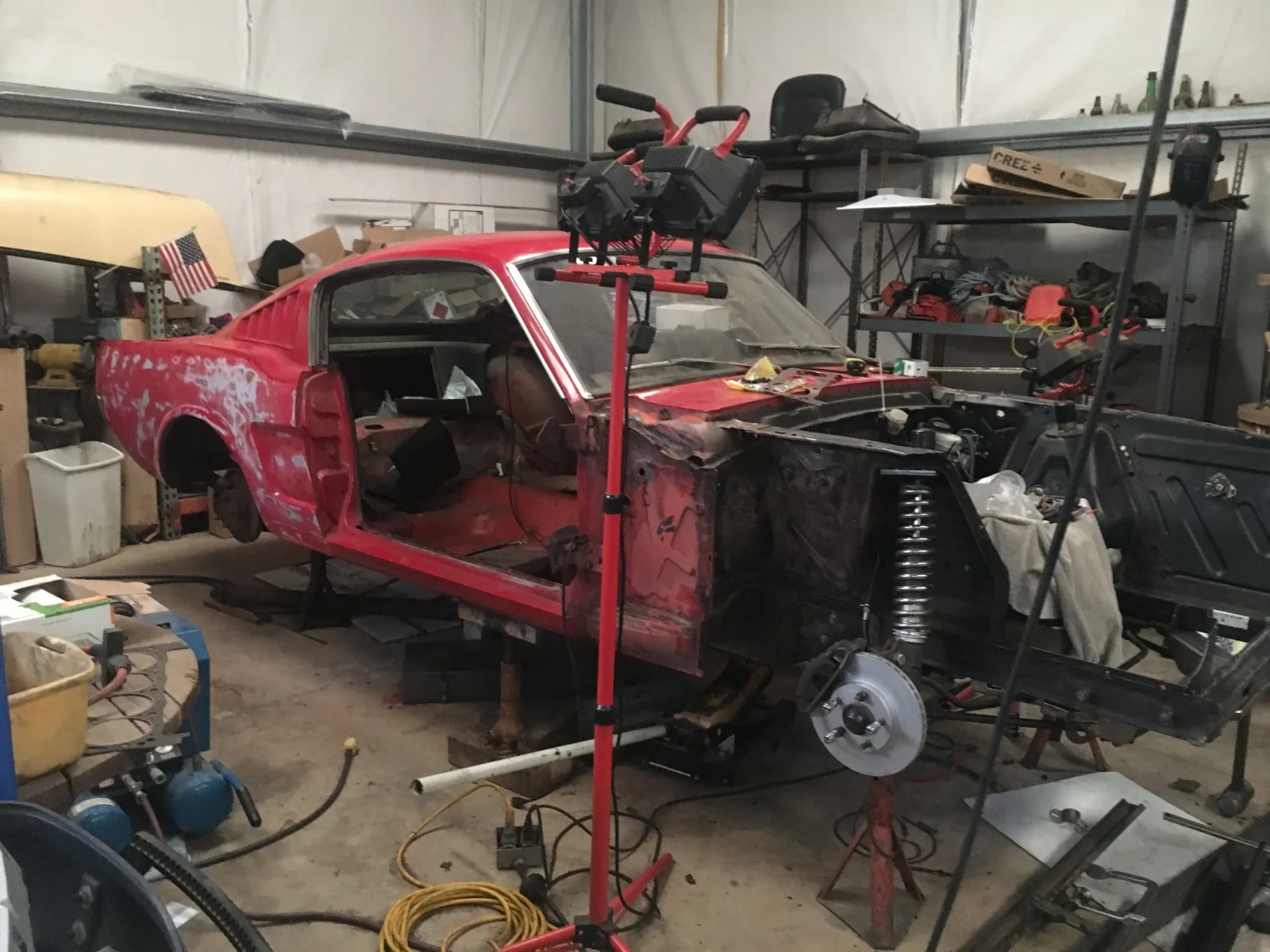

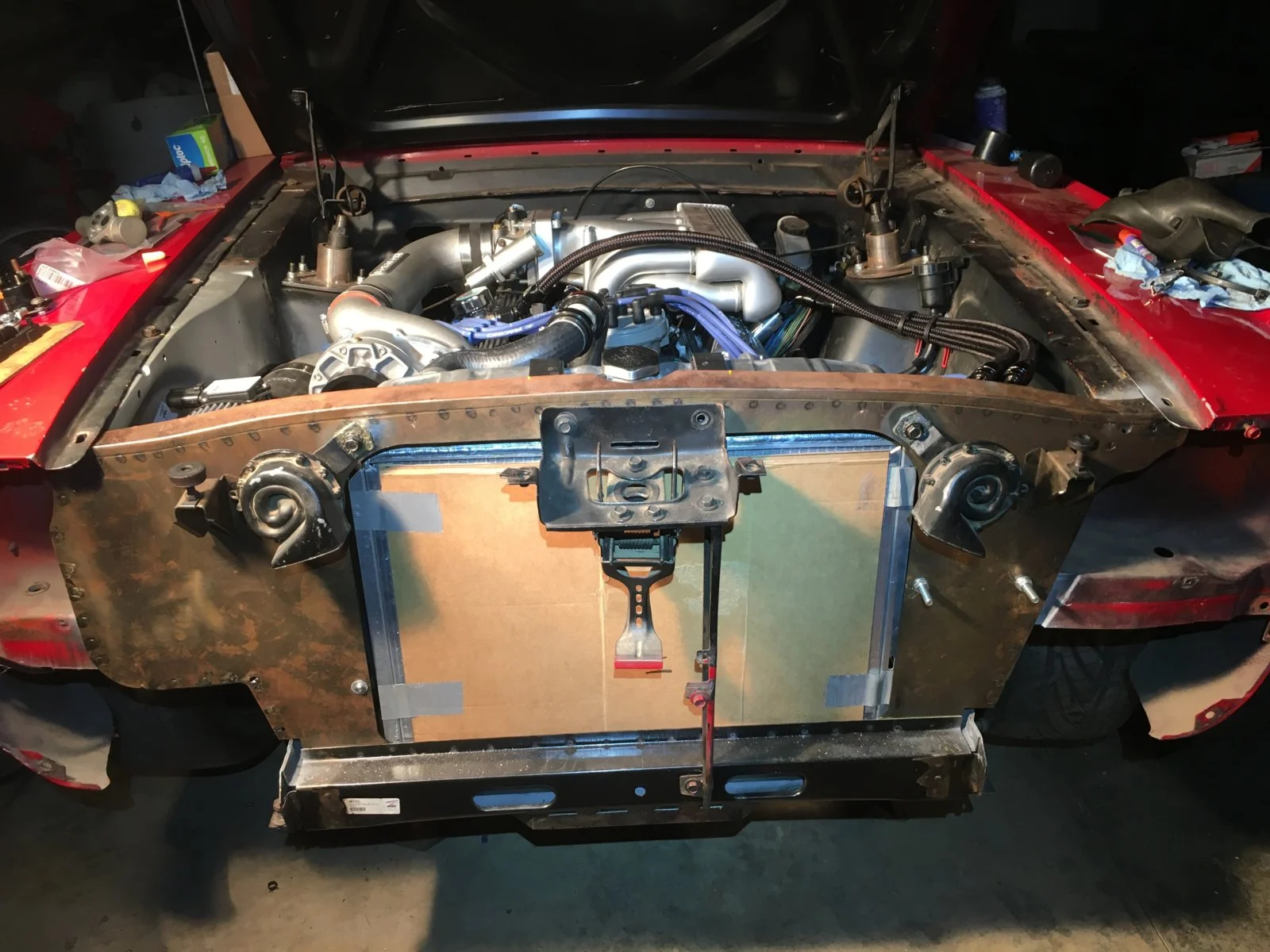

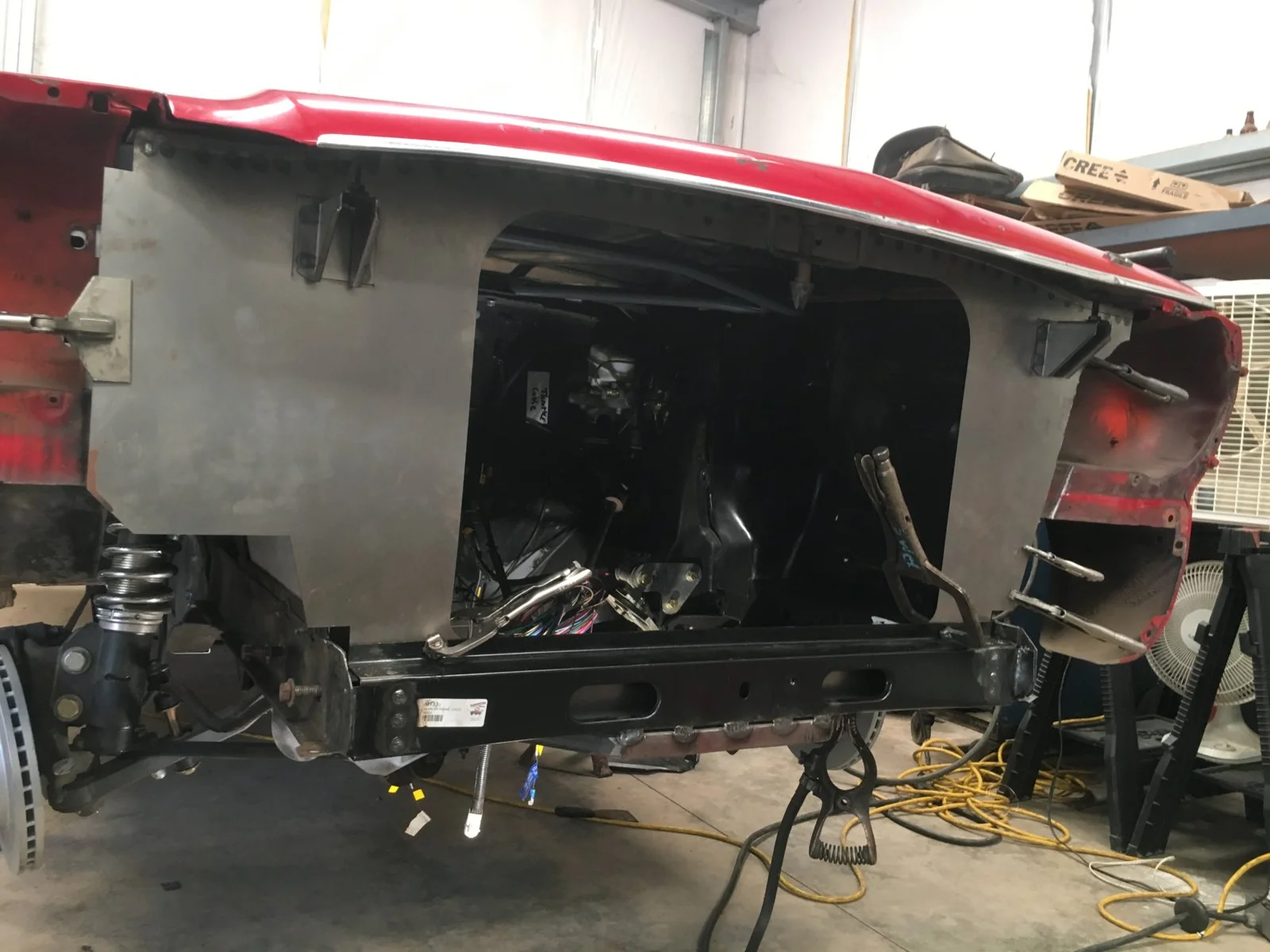

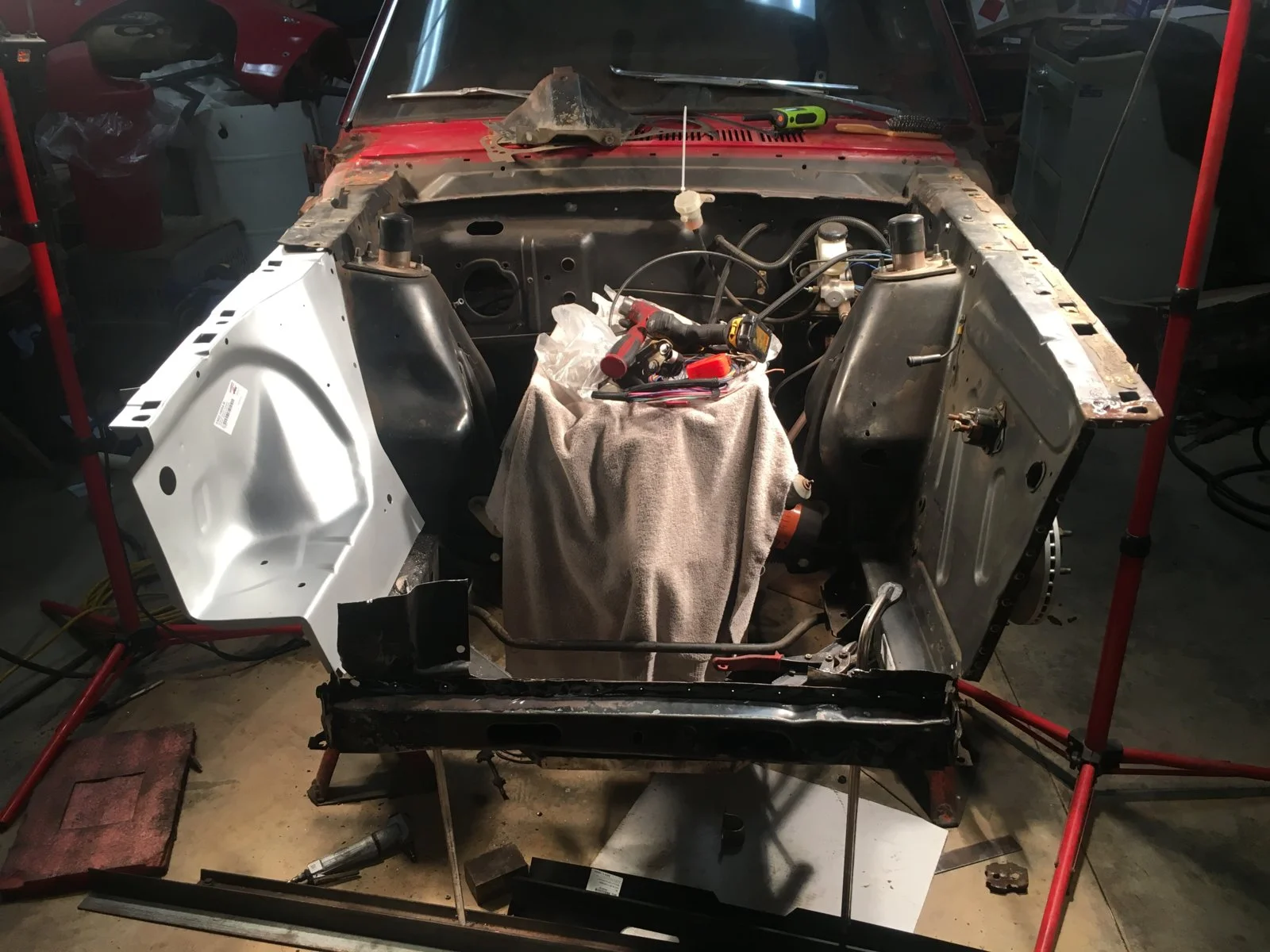

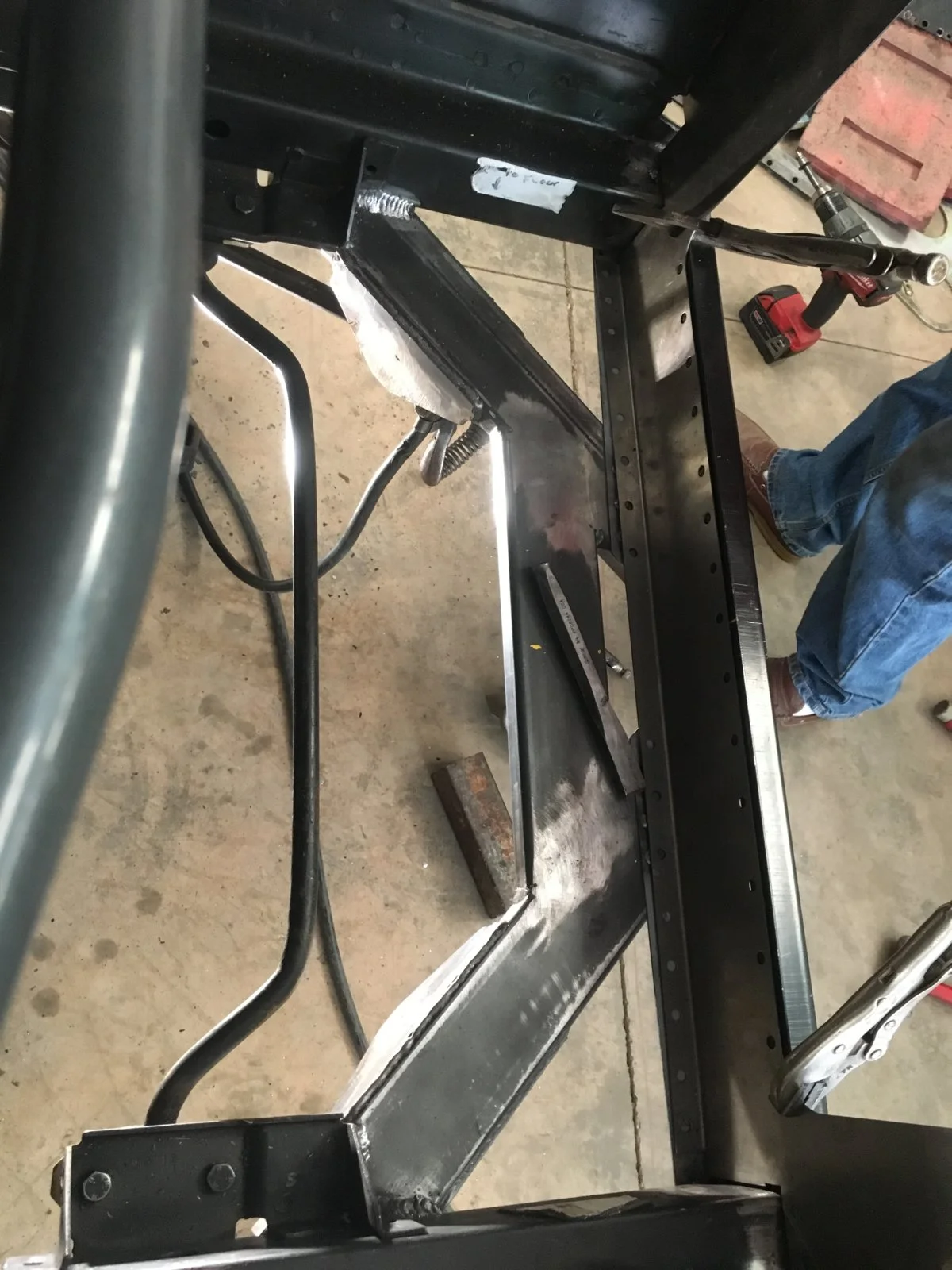

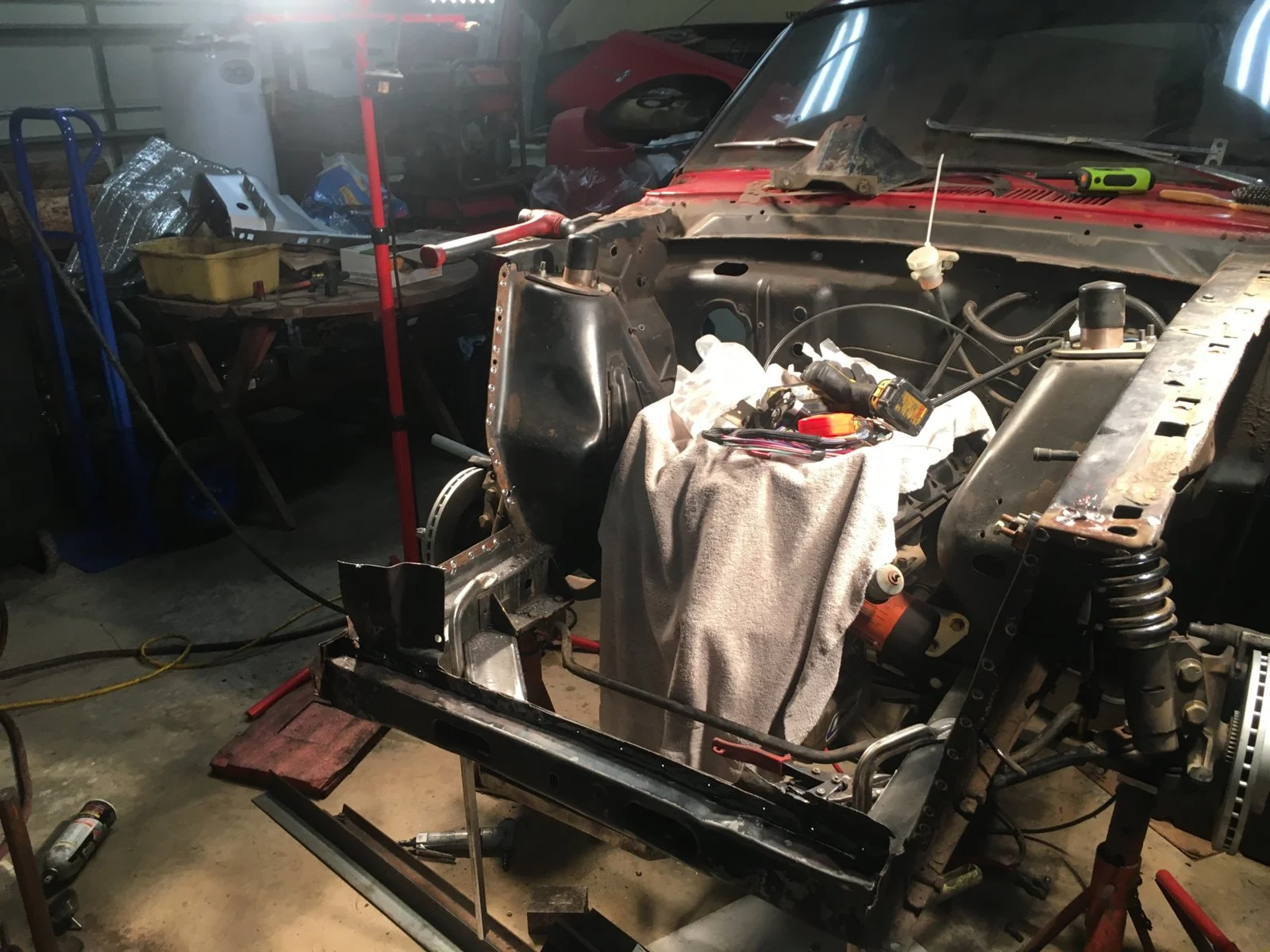

Had to address pushed in frame on passenger side
Also battery tray and inner fender was damaged badly and looked like crap.

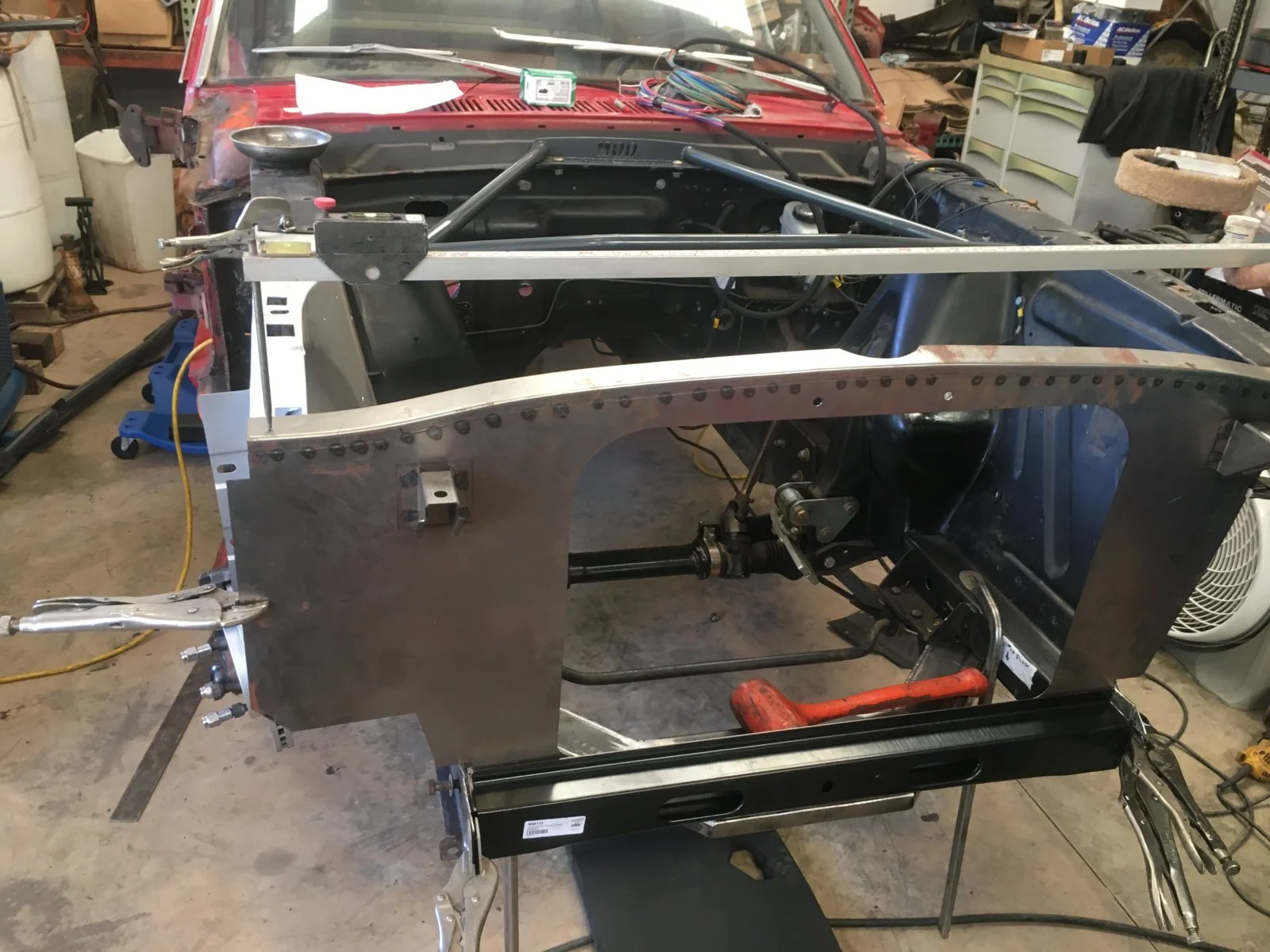

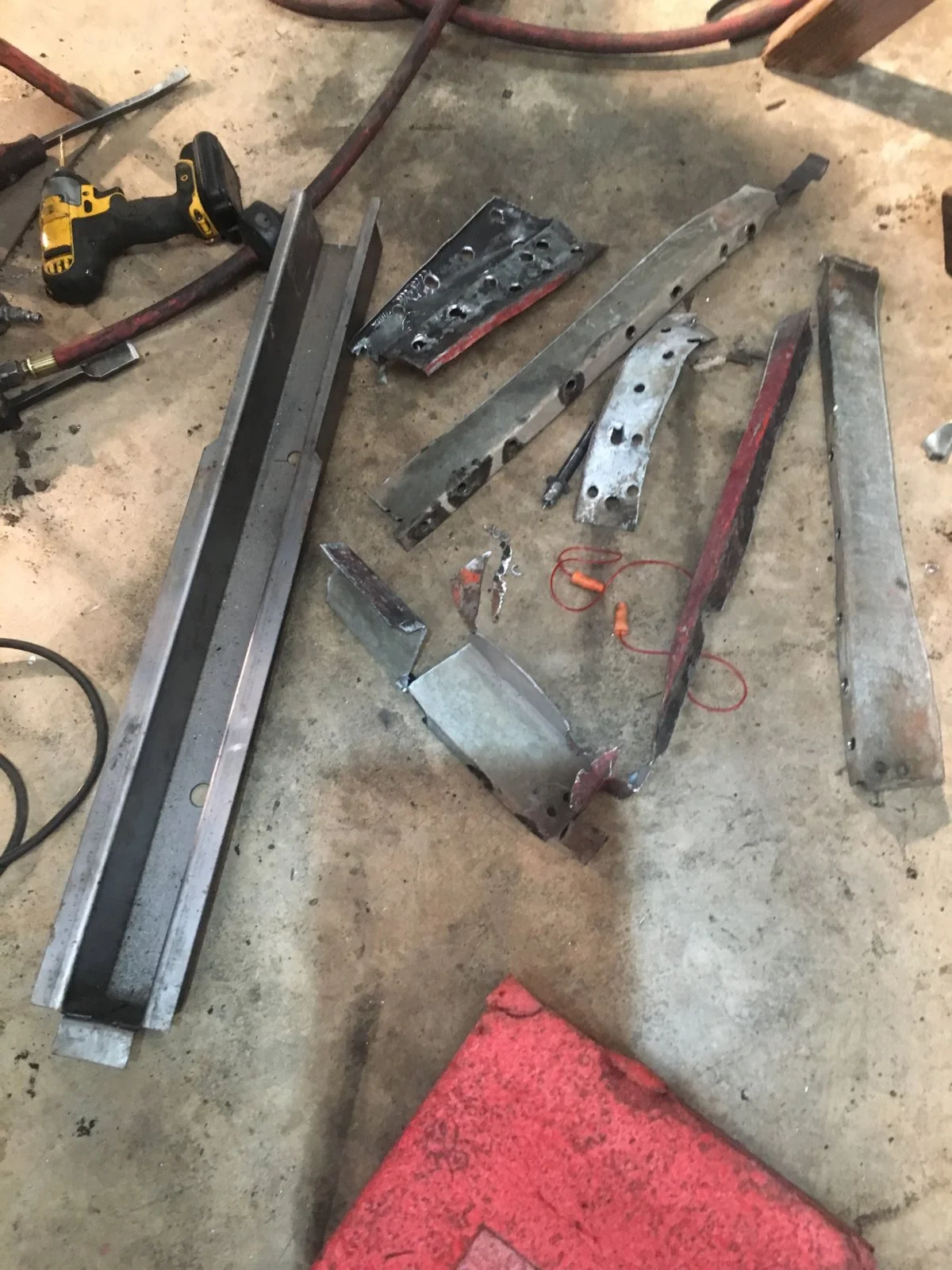

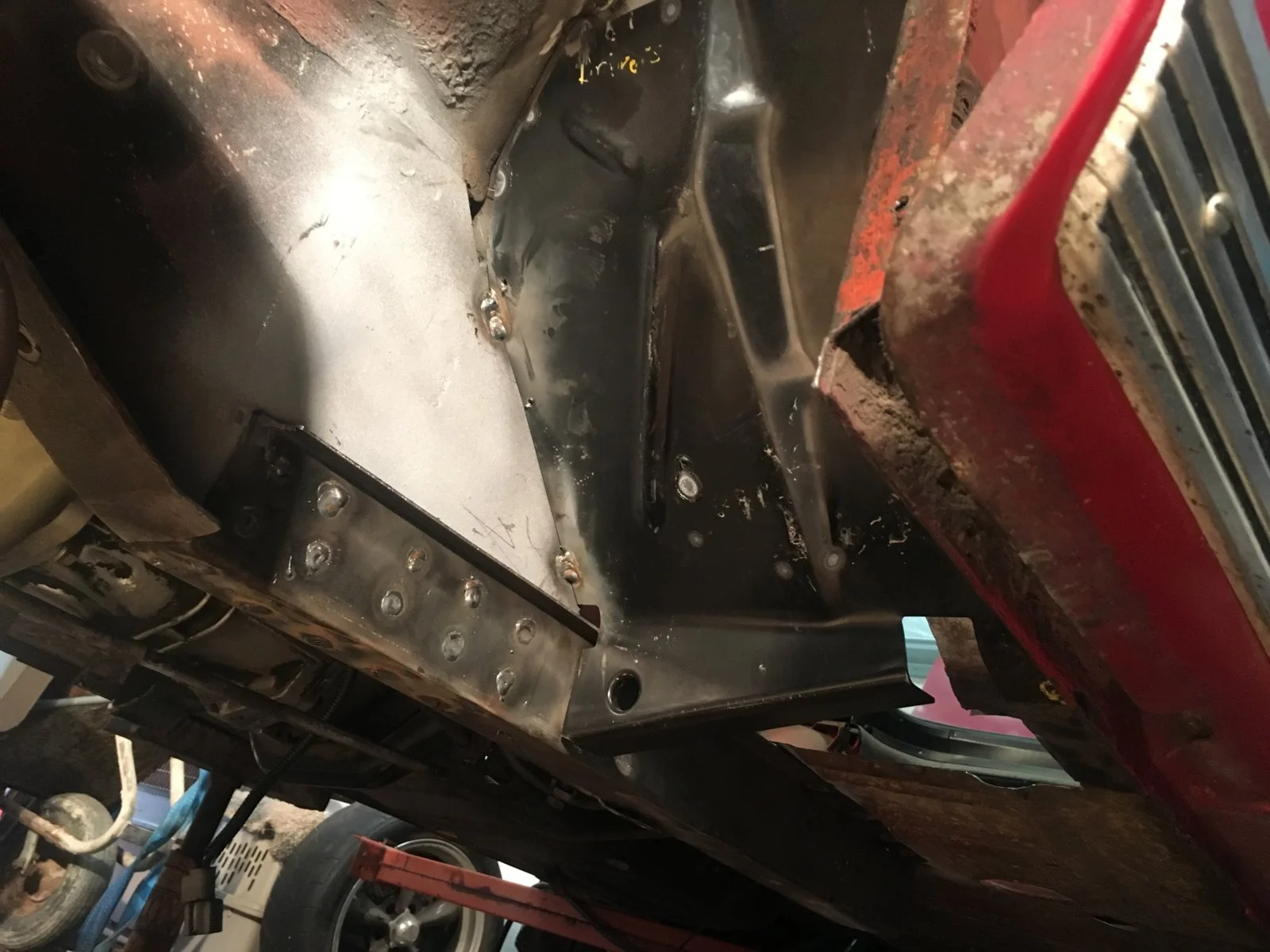

So I cut it all out, pulled the frame out about 3/8” and welded in new inner fender, lower brace and mustangs to fear radiator core support


2Blue2

will be trying this sex one when I can find it
Mar 5, 2019
1,928
1,103
123
52
Oahu
fun to see the port a power on that frame rail
ya got some serious tools
I want to see more of the mustangs to fear radiator support installed


Foot Hill

Active Member
Dec 9, 2014
78
51
28
fun to see the port a power on that frame rail
ya got some serious tools
I want to see more of the mustangs to fear radiator support installed

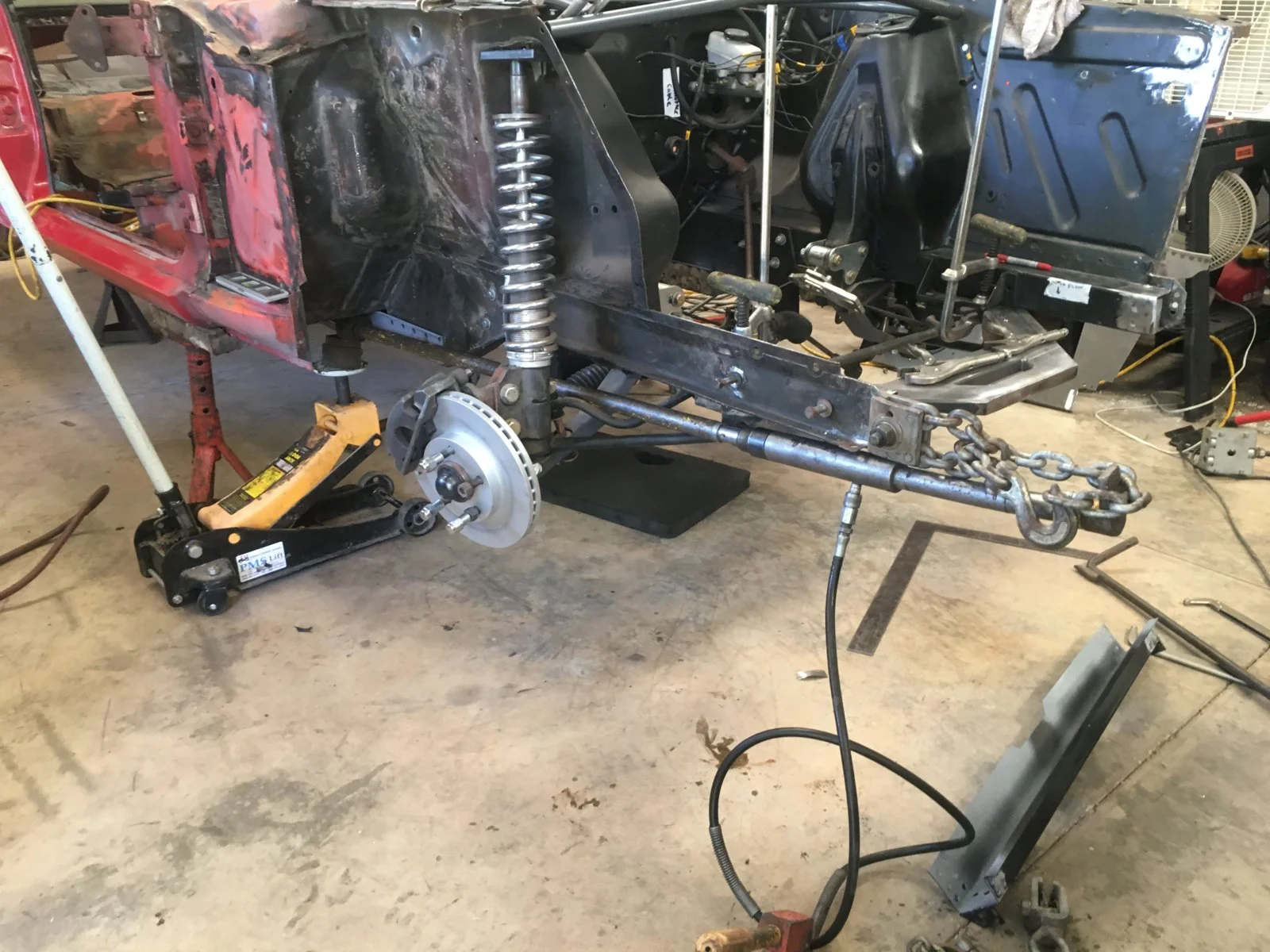

Yeah that Porta power belongs a frame and auto body collision friend of mine.
He is the one who noticed the frame wasn’t 100% square
Knowledgeable friends are priceless!! Especially when they have awesome tools.
Do you see that transom bar or bubble level in the picture with the radiator core support?

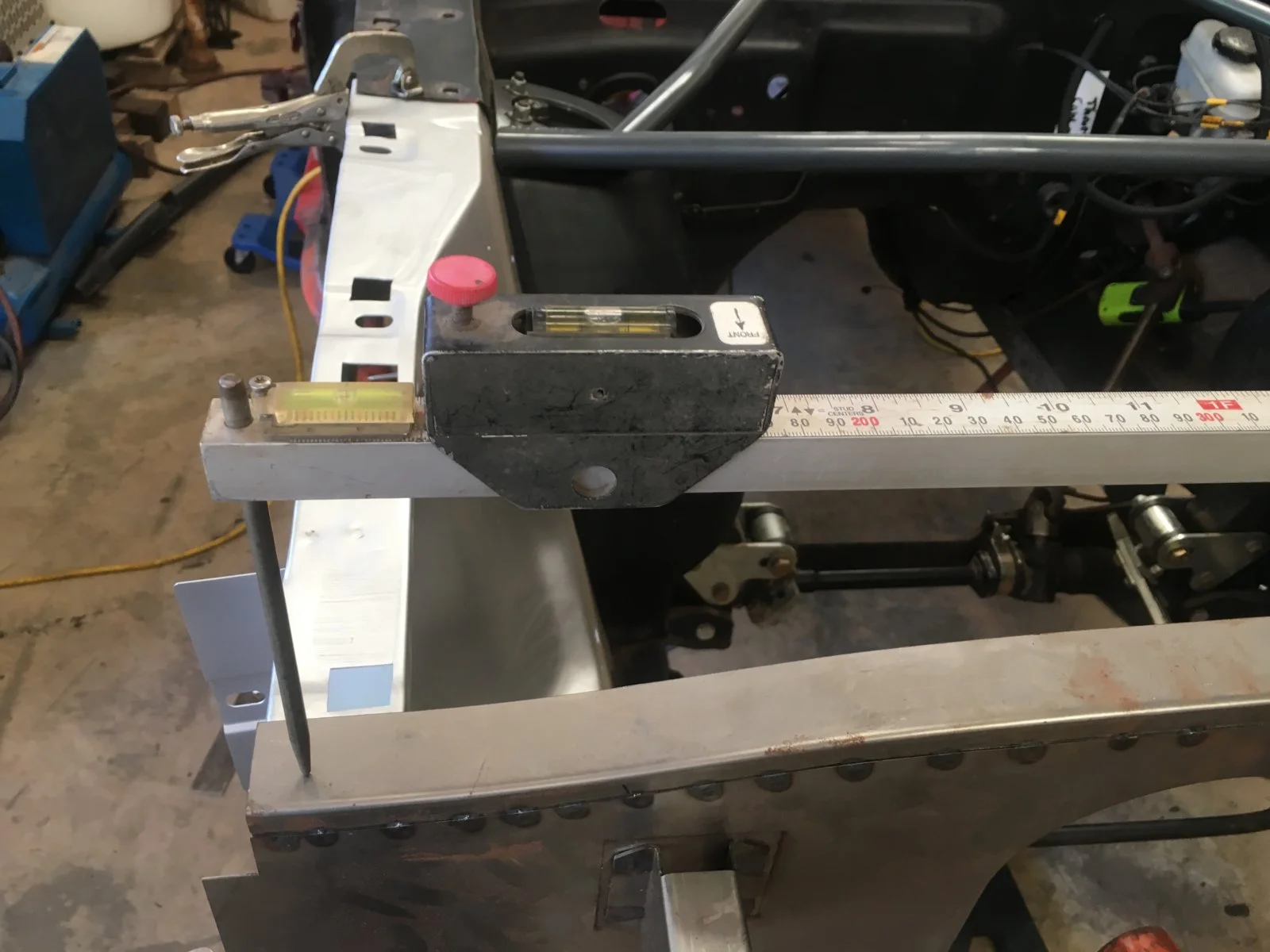

he gets a bubble reading off of a solid part of the frame then he Re:ZERO to that reading and checks everything on the car to make sure it is on that same plane
Seriously cool.


  • Like
Reactions: 2Blue2

2Blue2

will be trying this sex one when I can find it
Mar 5, 2019
1,928
1,103
123
52
Oahu
How much of the Mustangs to fear front sub frame are ,you using?


Foot Hill

Active Member
Dec 9, 2014
78
51
28
How much of the Mustangs to fear front sub frame are ,you using?
I’m only using the mustangs to fear “jack pad” and radiator core support

I have fat man fabrication strut kit that uses manual rack and pinion steering

If steering is too difficult I can always add the electric power steering option to my steering column

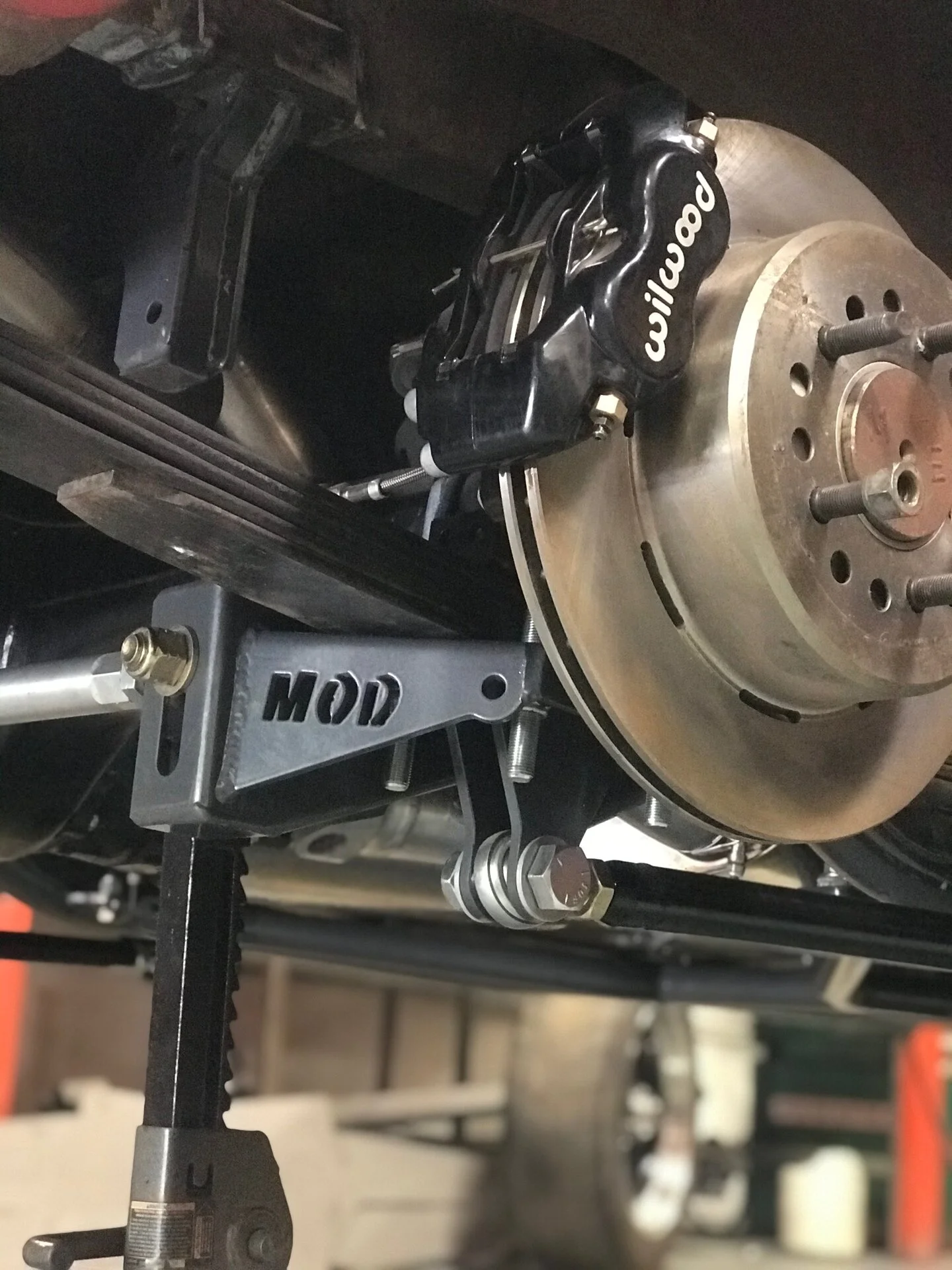

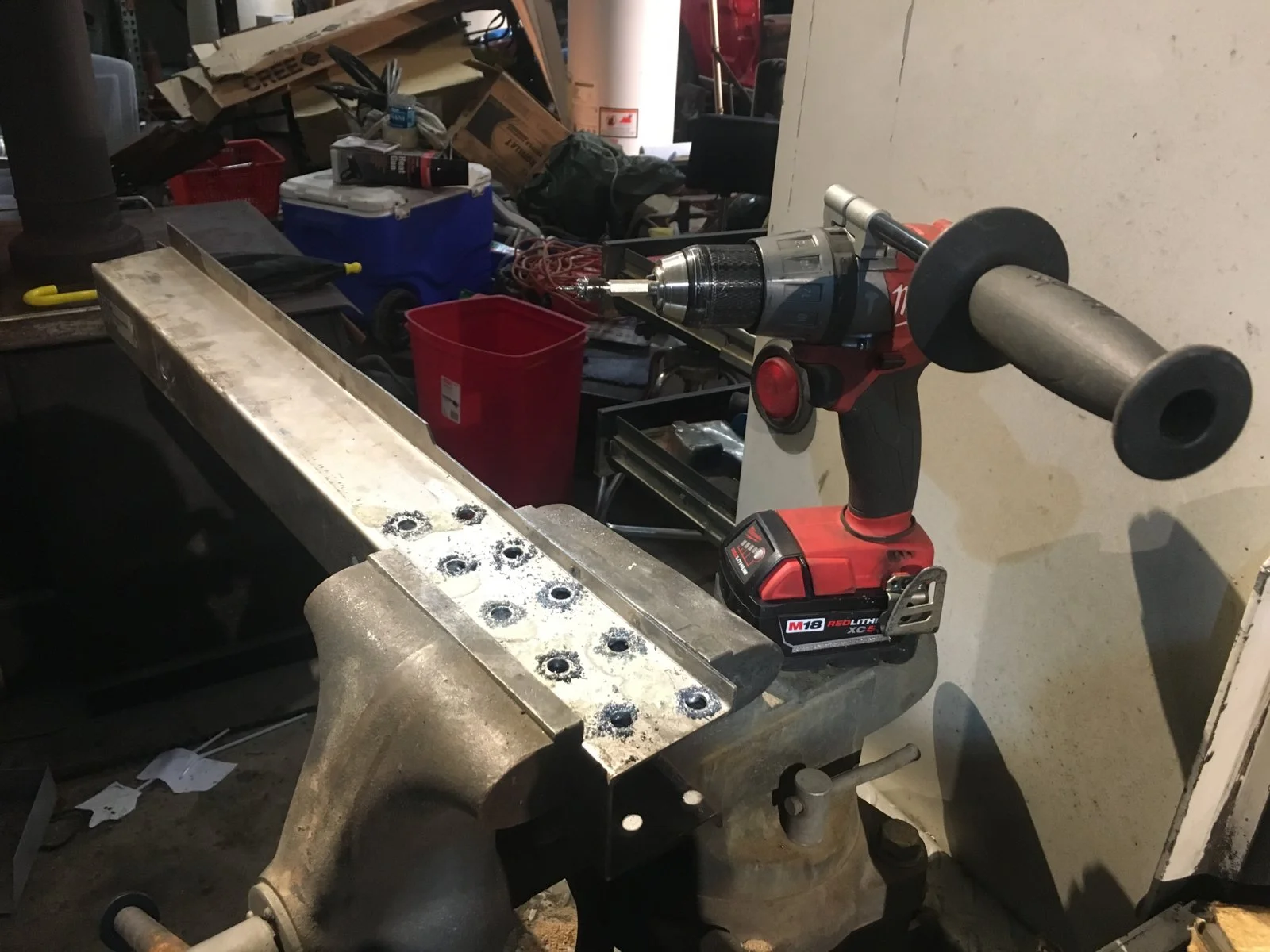

I’m using mike Meier’s mod full length sub frame connectors

Also put factory front torque boxes in.

  • Like
Reactions: 2Blue2

2Blue2

will be trying this sex one when I can find it
Mar 5, 2019
1,928
1,103
123
52
Oahu
Full length subs and torque boxes should make for a solid platform.
Bitchin!
Carry On!


Foot Hill

Active Member
Dec 9, 2014
78
51
28

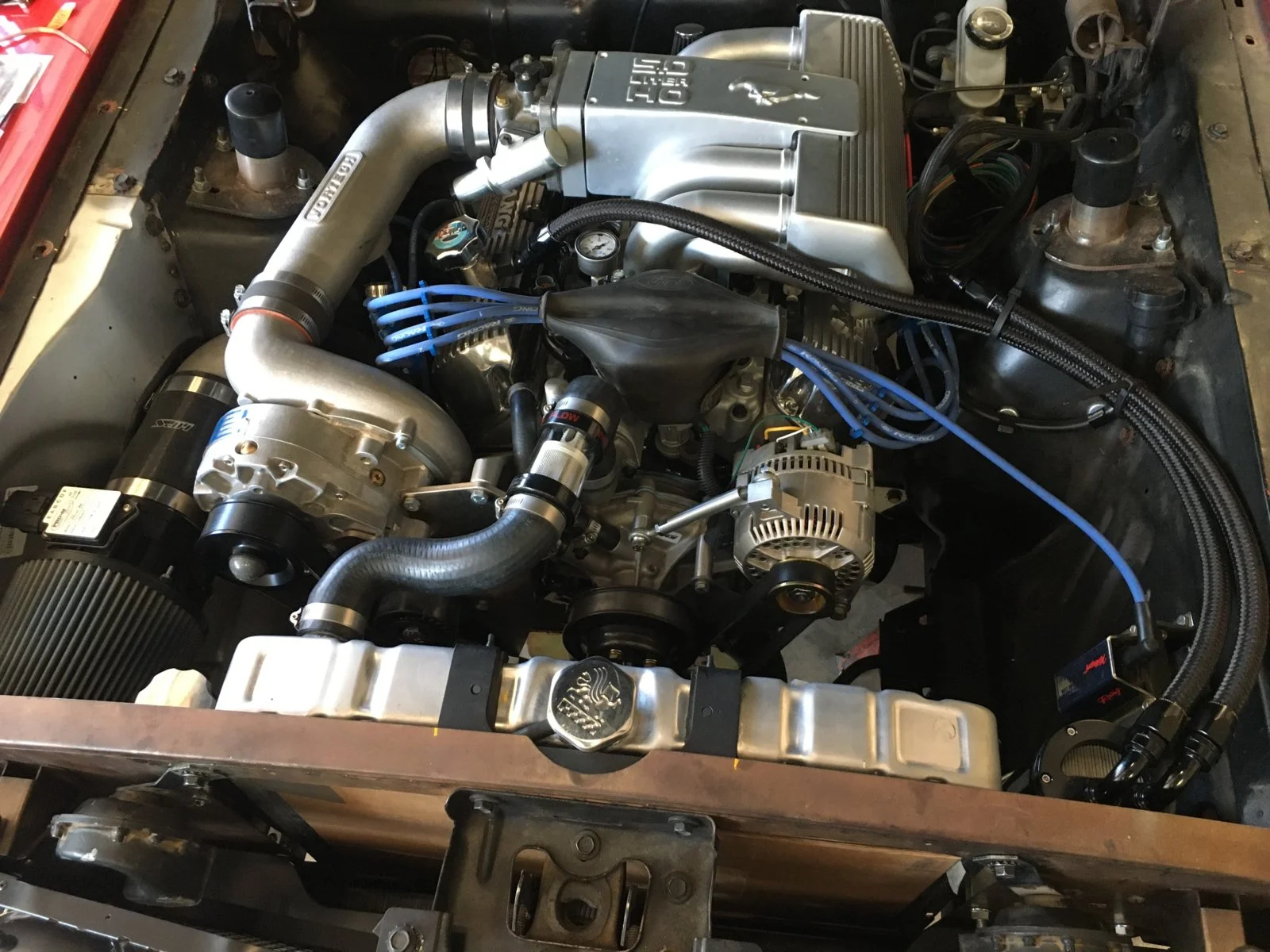

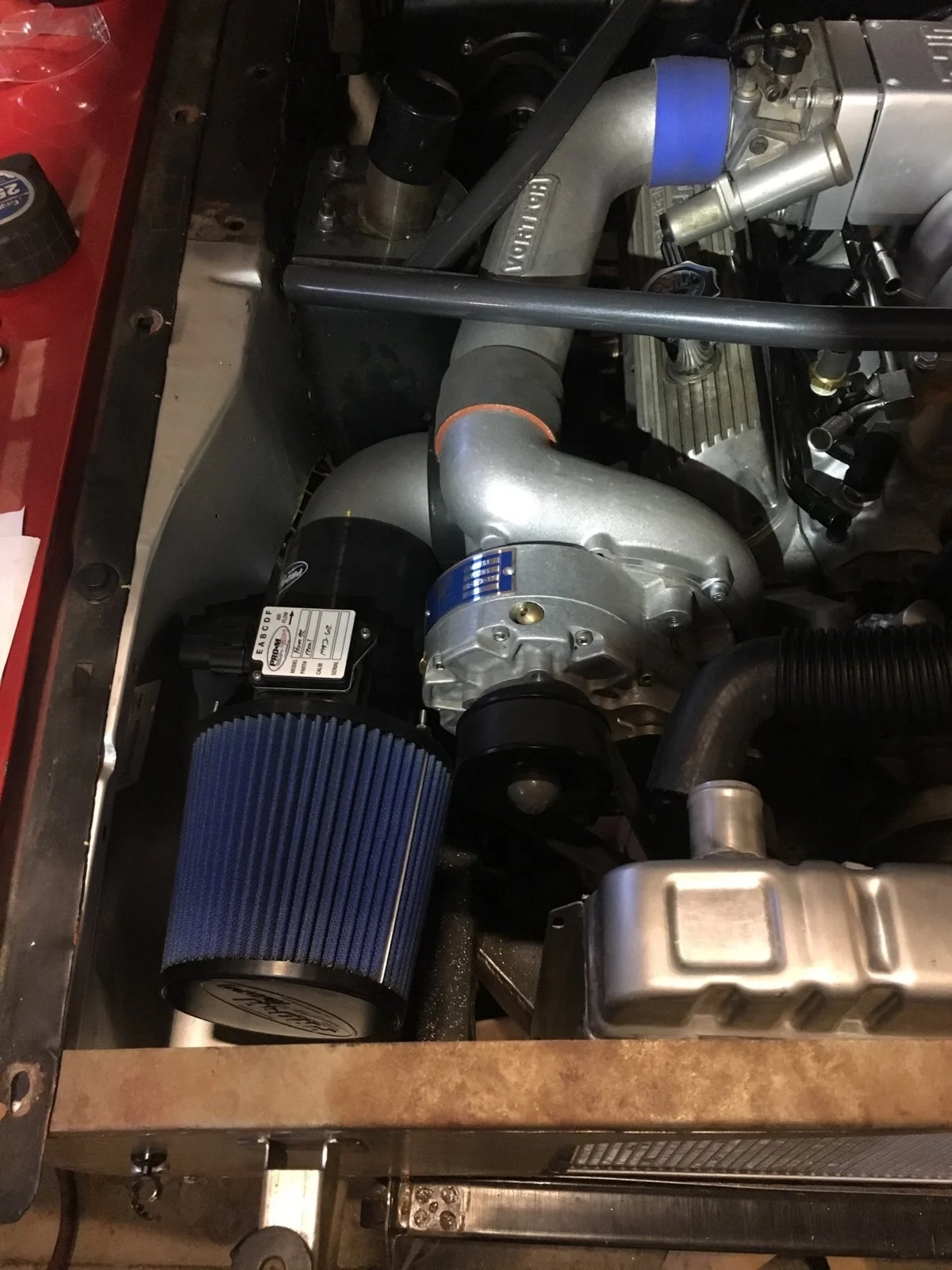

Supercharger air inlet installed.

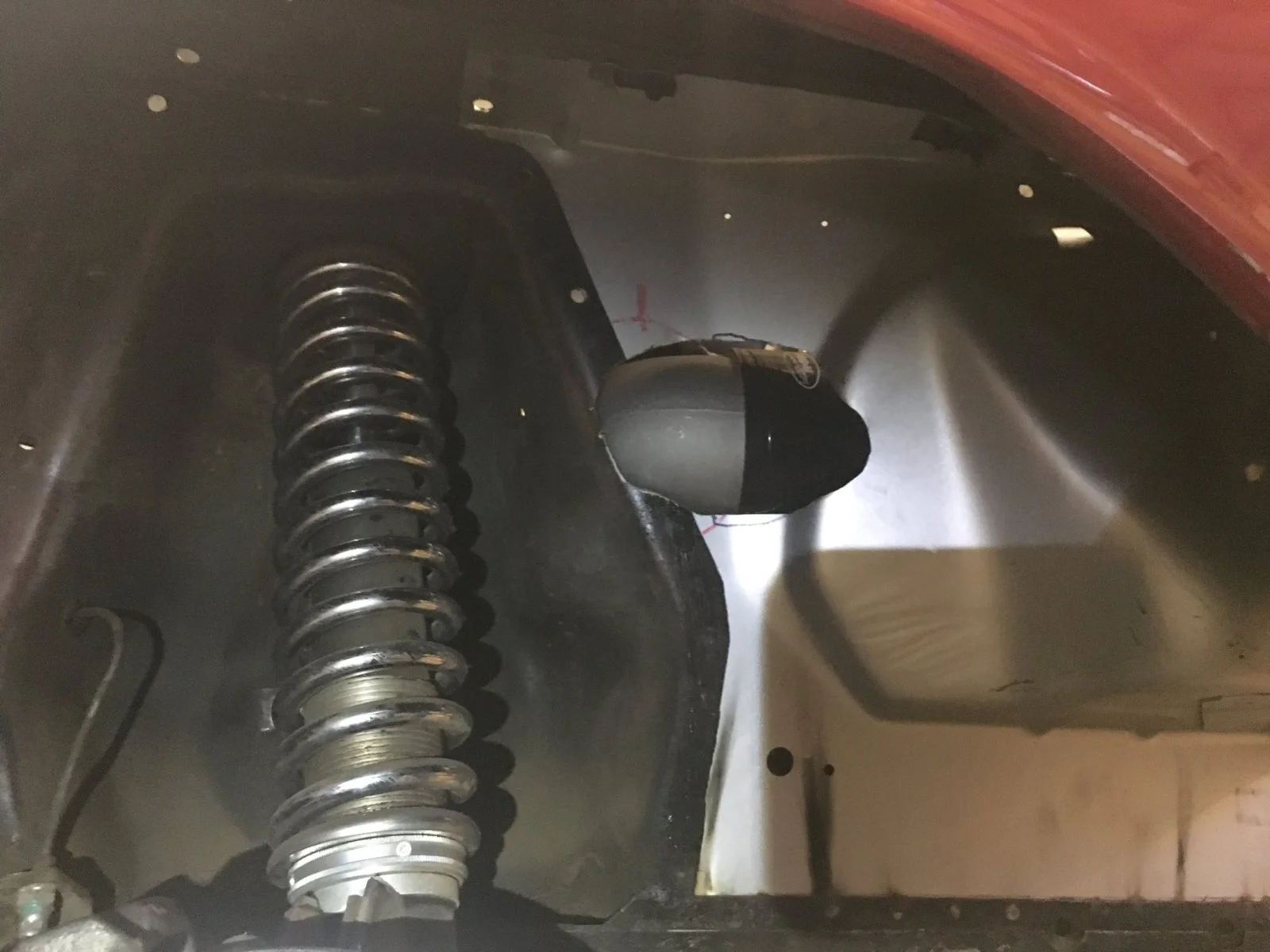

I used 3.5” to 4” 90* rubber elbow from 3.5” inlet to supercharger then 4” cast aluminum 90* elbow to make a tight shock tower hugging fit.

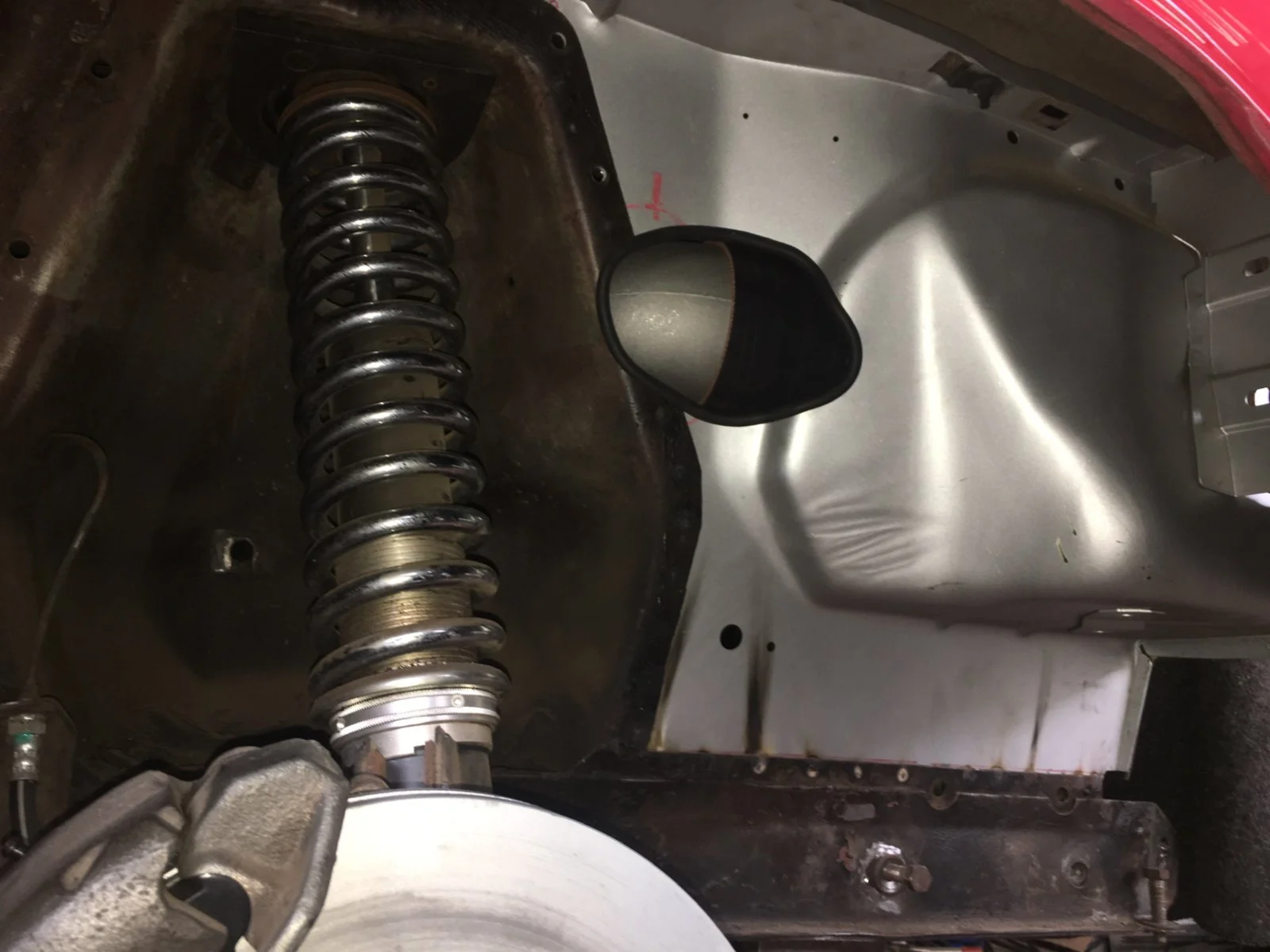

Some trimming of the fender apron was necessary to clear the cast elbow.
I used vacuum hose to trim edges on hole.
The pro m 92 mass air meter and filter fit nicely where stock battery was. (My battery going in truck)


Attachments

Foot Hill

Active Member
Dec 9, 2014
78
51
28

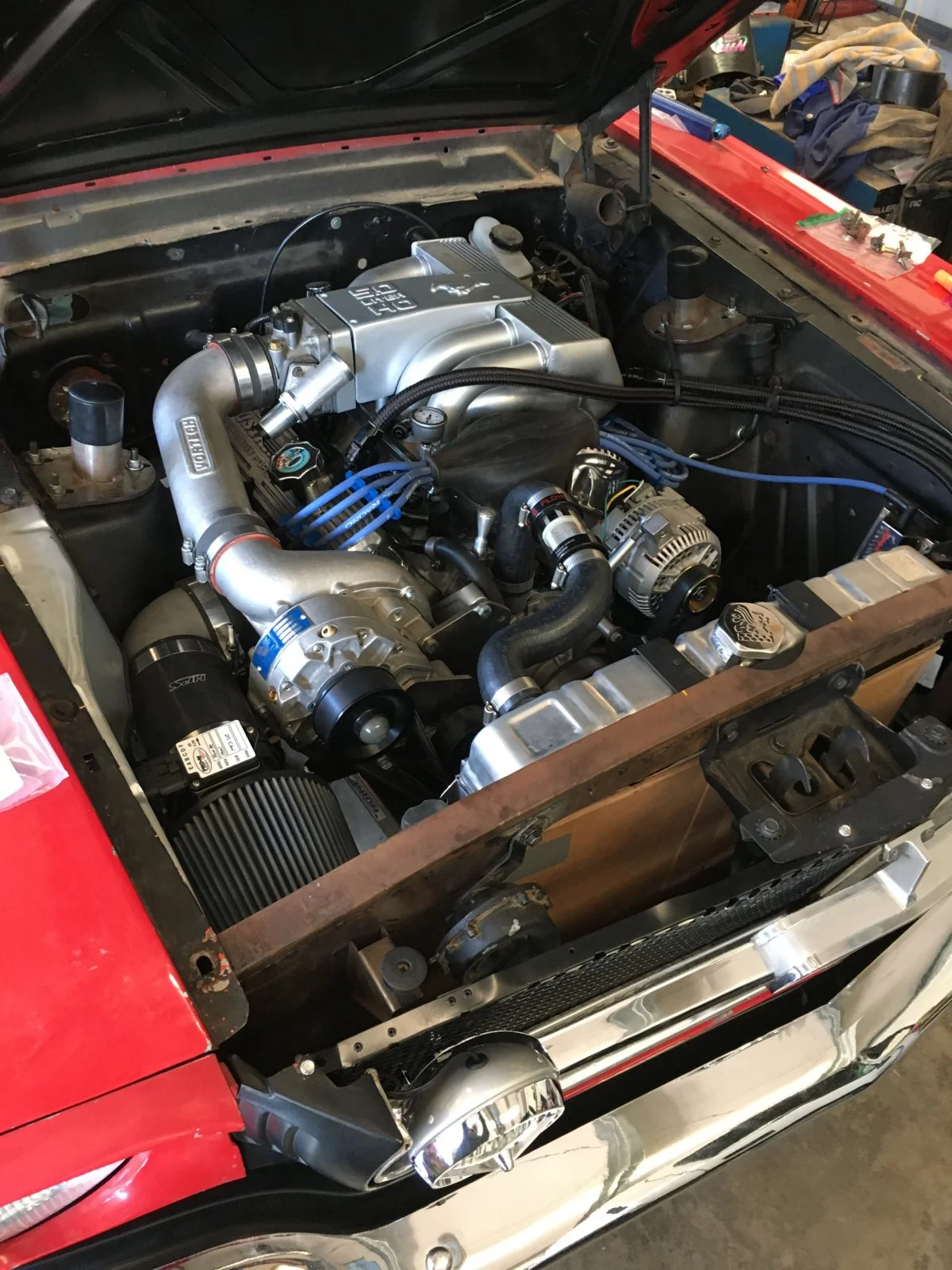

-New 3g 95 amp alt
-Coolant reservoir installed
-Fit fenders and hood

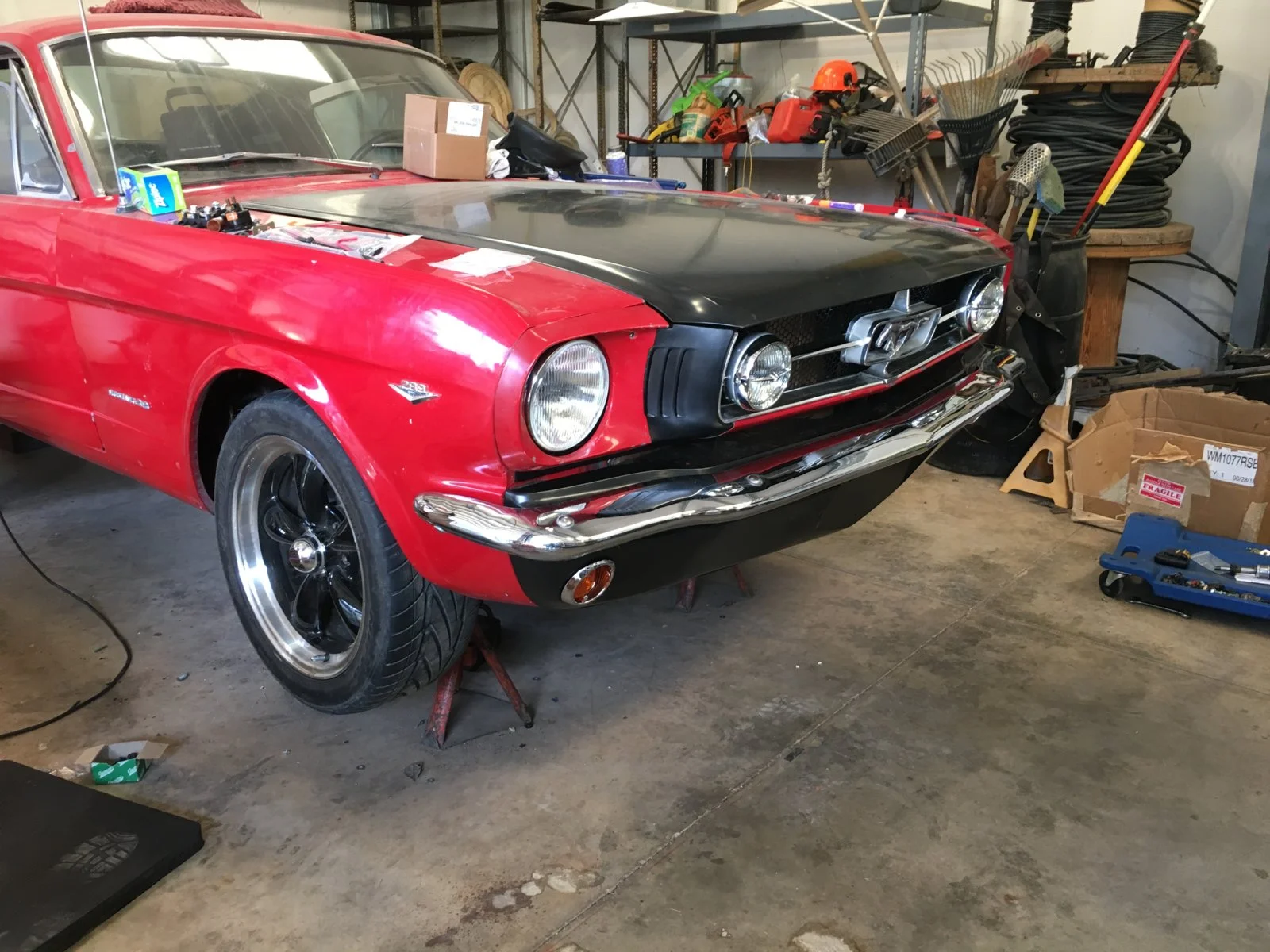

-New lower valance, grill, bumper and fog light kit

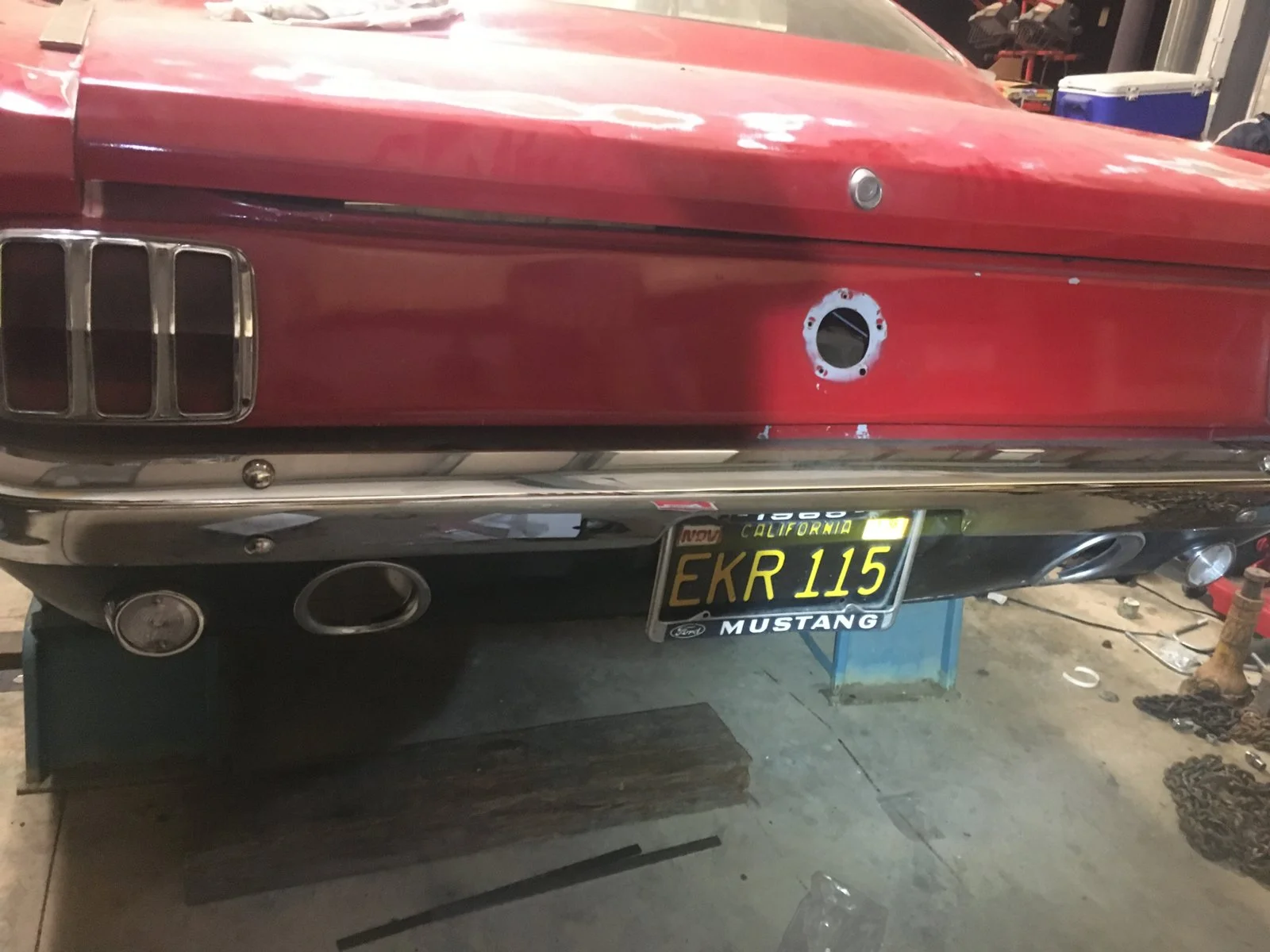

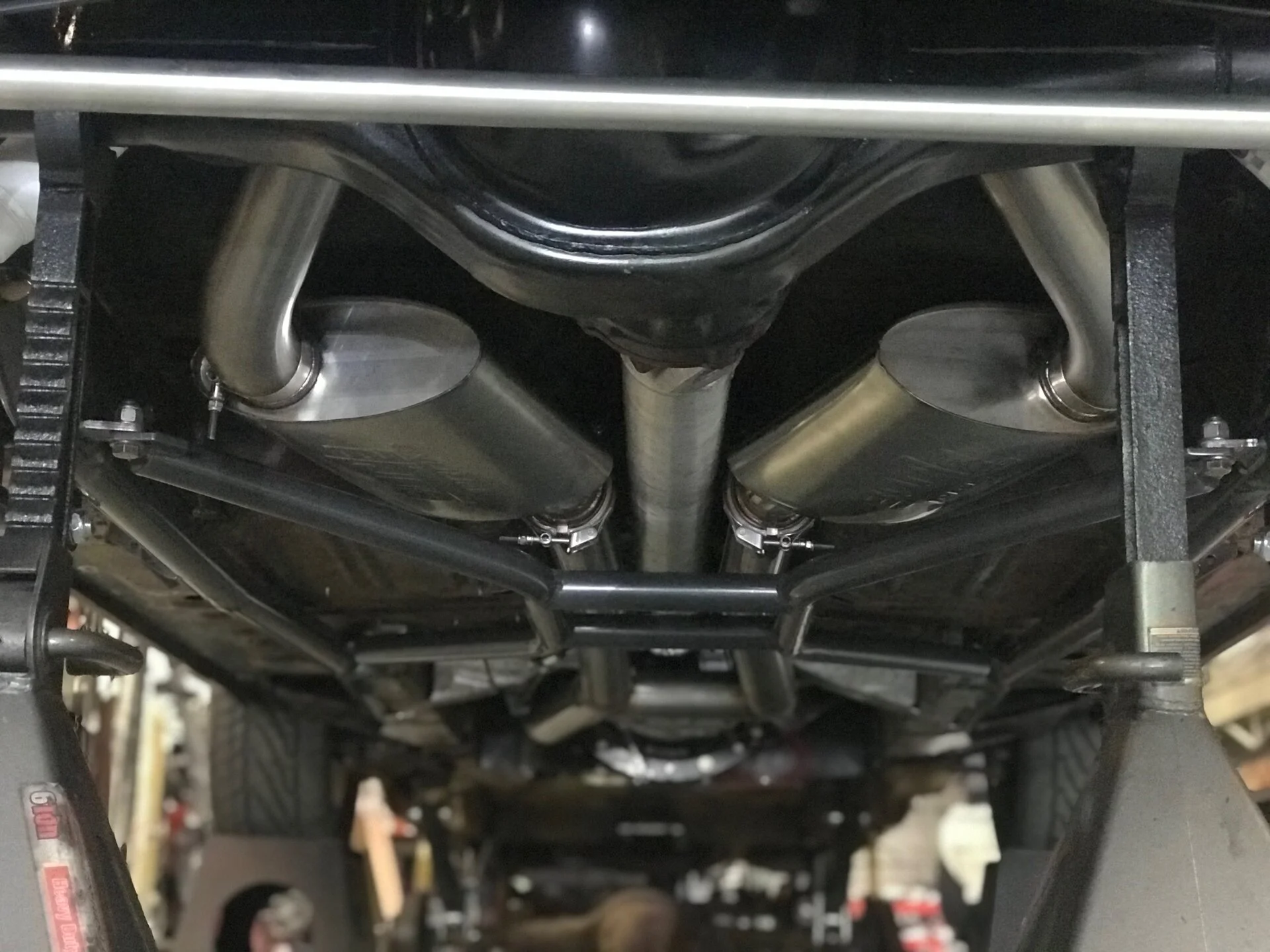

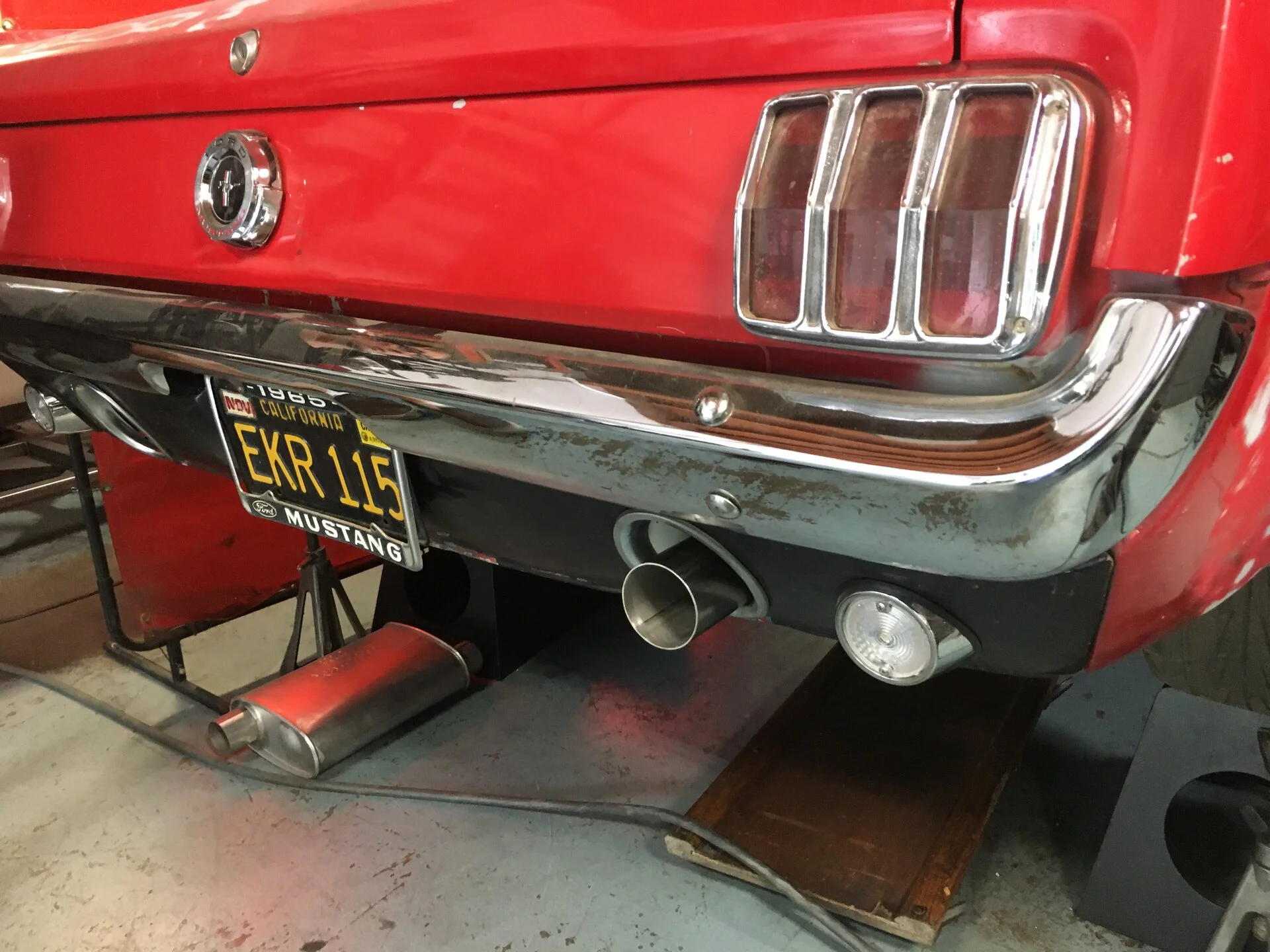

-Installed original GT rear valance with duel exhaust cutouts
-installed new backup light kit
-Ran all front light wires
-Installed bypass valve
-Replaced 86-93 distributer with SN95 (doesn’t have tfp module )
-installed new sn95 fuel rails (flow more than fox body rails)
Oh yeah... pay no attention to any of the parts colors, it’s all just primered parts.
Everything will get paint and body work one I’m all done modifying things
-
