Scrolled back in your pictures and it appears it is the same kit for the gaskets but not the shaft seal.



meno1103

Member
May 28, 2022
2
1
13
Texas

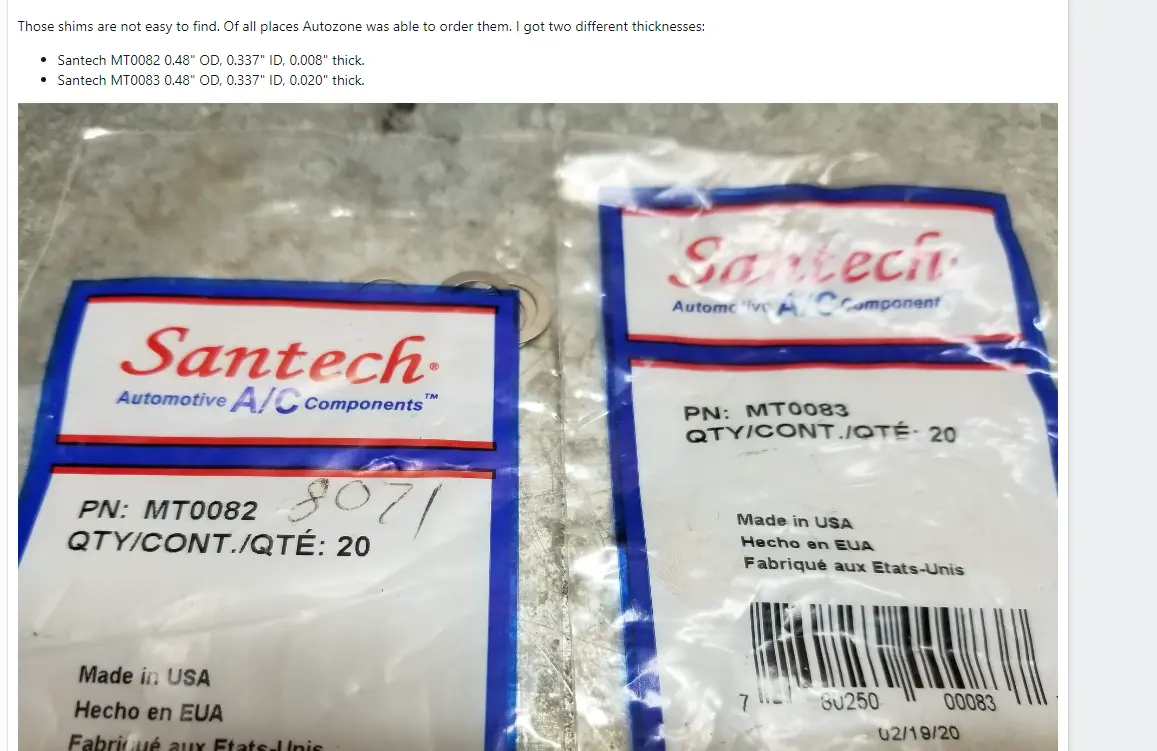

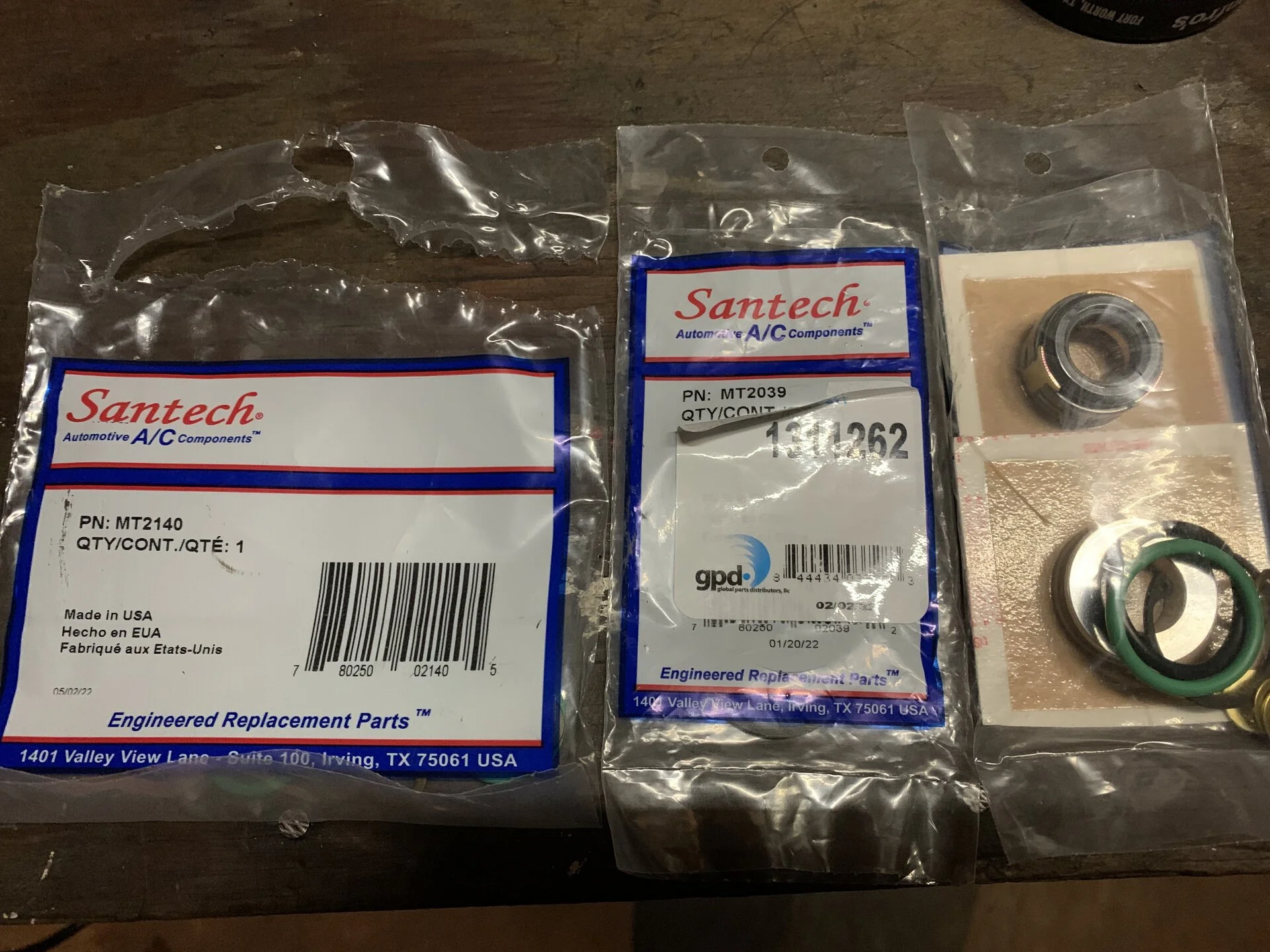

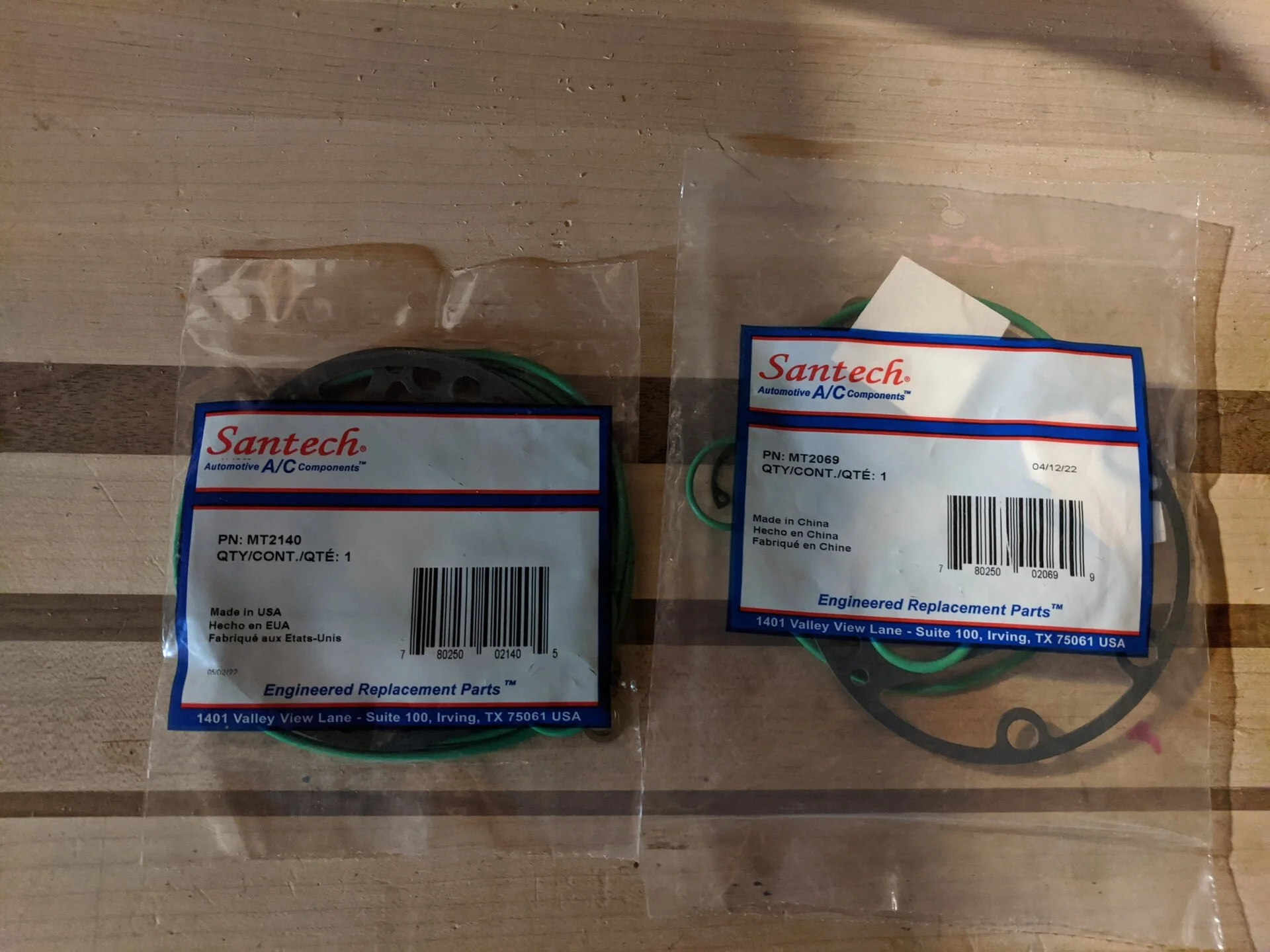

Well, it's been a long week: got a transmission installed, fixed an IAC leak and did finally get around to rebuilding the compressor, all for different vehicles too lol. These are the part numbers of kits I used along with a spare shaft seal on the right side. If anything, I liked the design of the factory installed body gaskets which seem like a teflon coated metal instead of the new all fiber ones, but went together just fine. Will be a little while before I actually test the compressor under pressure for leaks, but it's ready for that now.



limp

wrap a little cheese around it and its a done
Oct 4, 2020
2,643
1,640
133
67
Florida
Gave up on trying to get the key out...... found the ford tool on Ebay for $20..... It still amazes me how the right tool makes the job so much easier...Pretty sure this will go in the NEVER used again tool drawer..... LOL


Wayne Waldrep

Before I post a pic, do you have one of yours?
15 Year Member
Apr 14, 2003
1,251
688
143
56
Cuba, AL
Gave up on trying to get the key out...... found the ford tool on Ebay for $20..... It still amazes me how the right tool makes the job so much easier...Pretty sure this will go in the NEVER used again tool drawer..... LOL
I'd love to see the Ford tool and exactly how it works. Got pics to share? I can't find anything even on Youtube showing how it works.

Last edited:

Mustang5L5

Put lubricant all over the balls
Mod Dude
Feb 18, 2001
39,211
15,114
224
Massachusetts
I'd love to see the Ford tool and exactly how it works. Got pics to share? I can't find anything even on Youtube showing how it works.



The collar has a slot for the key. You slide it down over the key and twist it a bit so the key rests on a lip. You then thread in the center piece to push the shaft down. The collar then pulls the key up and out. It's pretty simple actually.


Wayne Waldrep

Before I post a pic, do you have one of yours?
15 Year Member
Apr 14, 2003
1,251
688
143
56
Cuba, AL


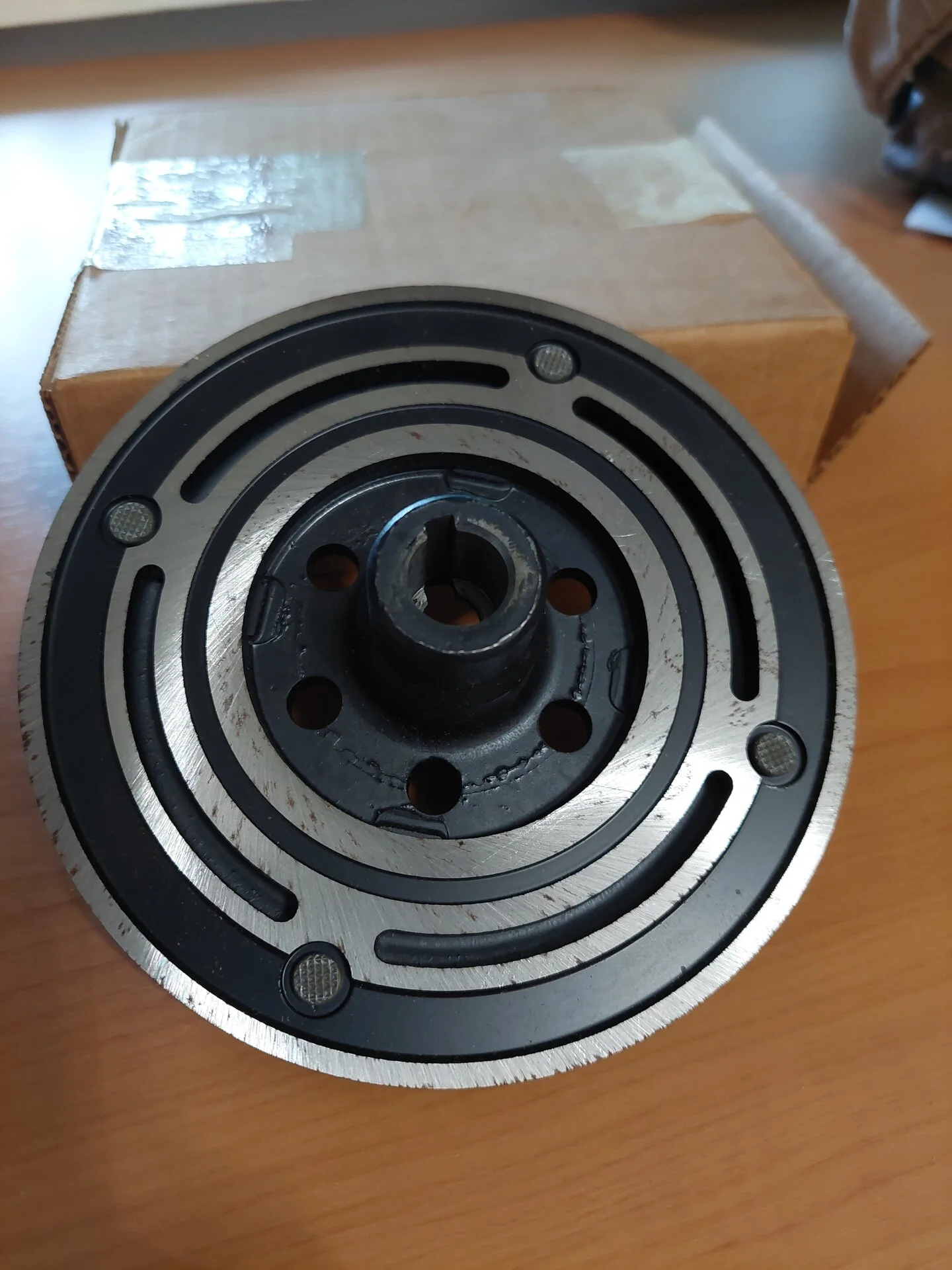

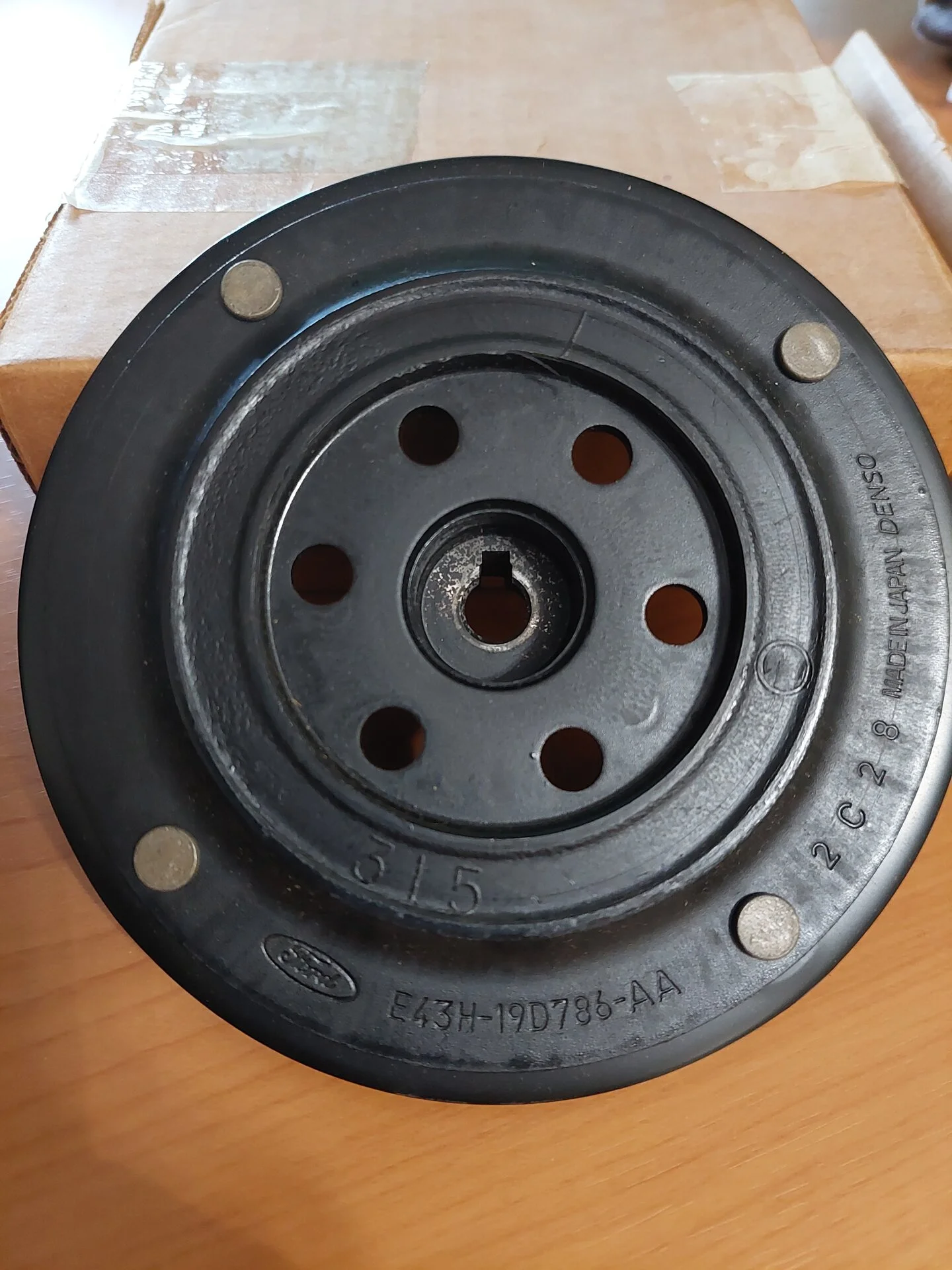

Sorry for the dumb questions. I need to get the key out today or tomorrow and I'm trying to figure out how I'm going to do it. I got a NOS Ford A/C clutch in today and need to finish the fix this afternoon or tomorrow. Thanks for the help. And you can delete these questions afterward if you need to so I don't junk up your thread...lol.


limp

wrap a little cheese around it and its a done
Oct 4, 2020
2,643
1,640
133
67
Florida
I had thought I bottomed out my key while "gently" tapping a small screwdriver behind it to pry it out... So I understand your question..
This ford tool worked exactly like 5L5 said, it is round with a slot to fit over the key while inserting it... Twist it so the lip catches the key, then twist the " screw" down and it pushes right out..... I don't think you will have any problem with the "key" being bottomed out...
On a side note, I took the tool after receiving it, and was just going to fool with it on the compressor.... Slid down so nicely, twisted it and started twisting the screw in and it came right out...... Like I said, love it when a specialty tool works so well.......

  • Like
Reactions: 1 user

limp

wrap a little cheese around it and its a done
Oct 4, 2020
2,643
1,640
133
67
Florida

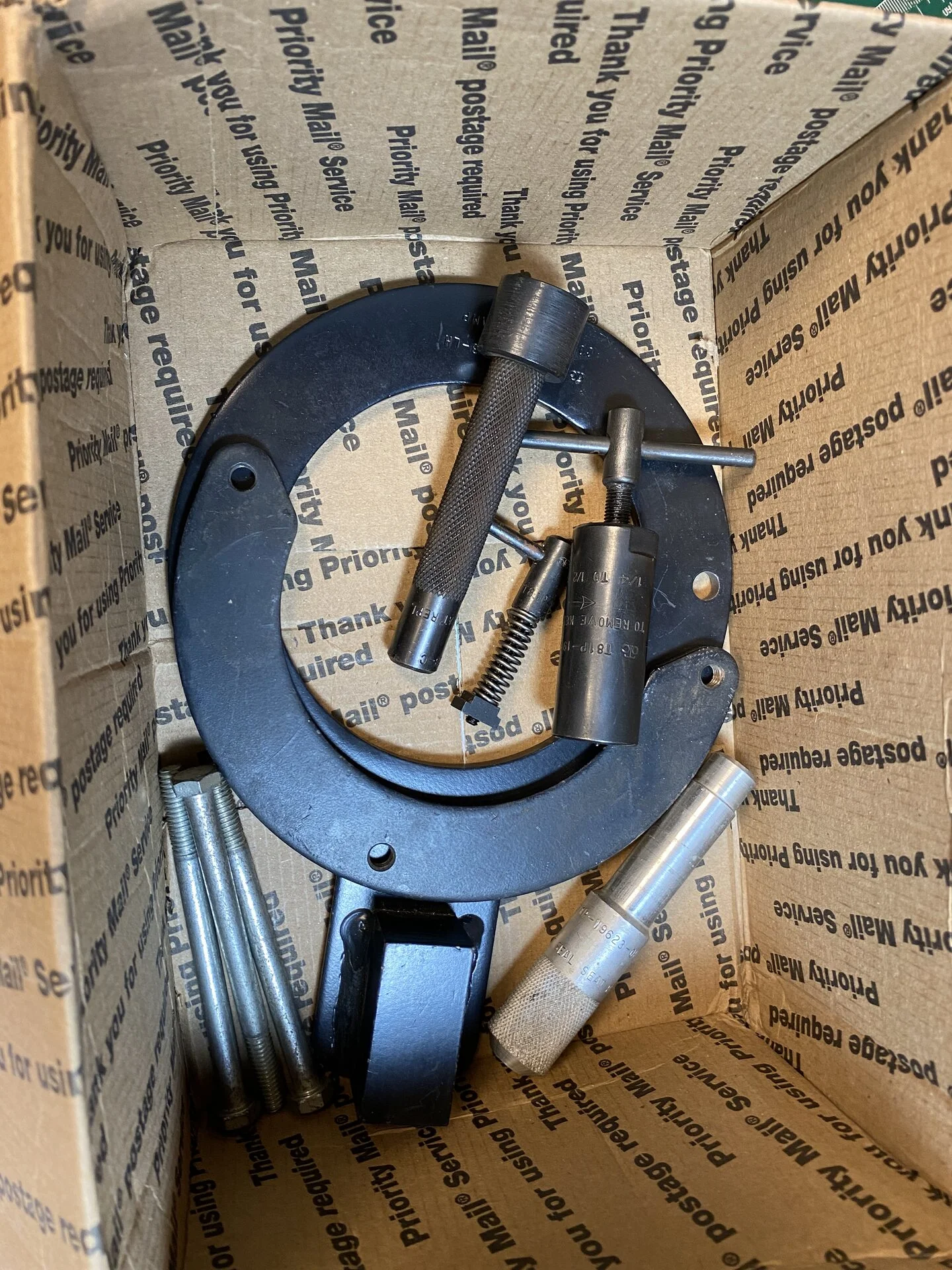

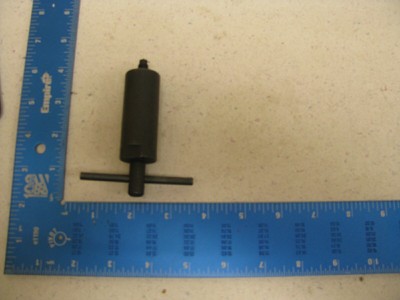

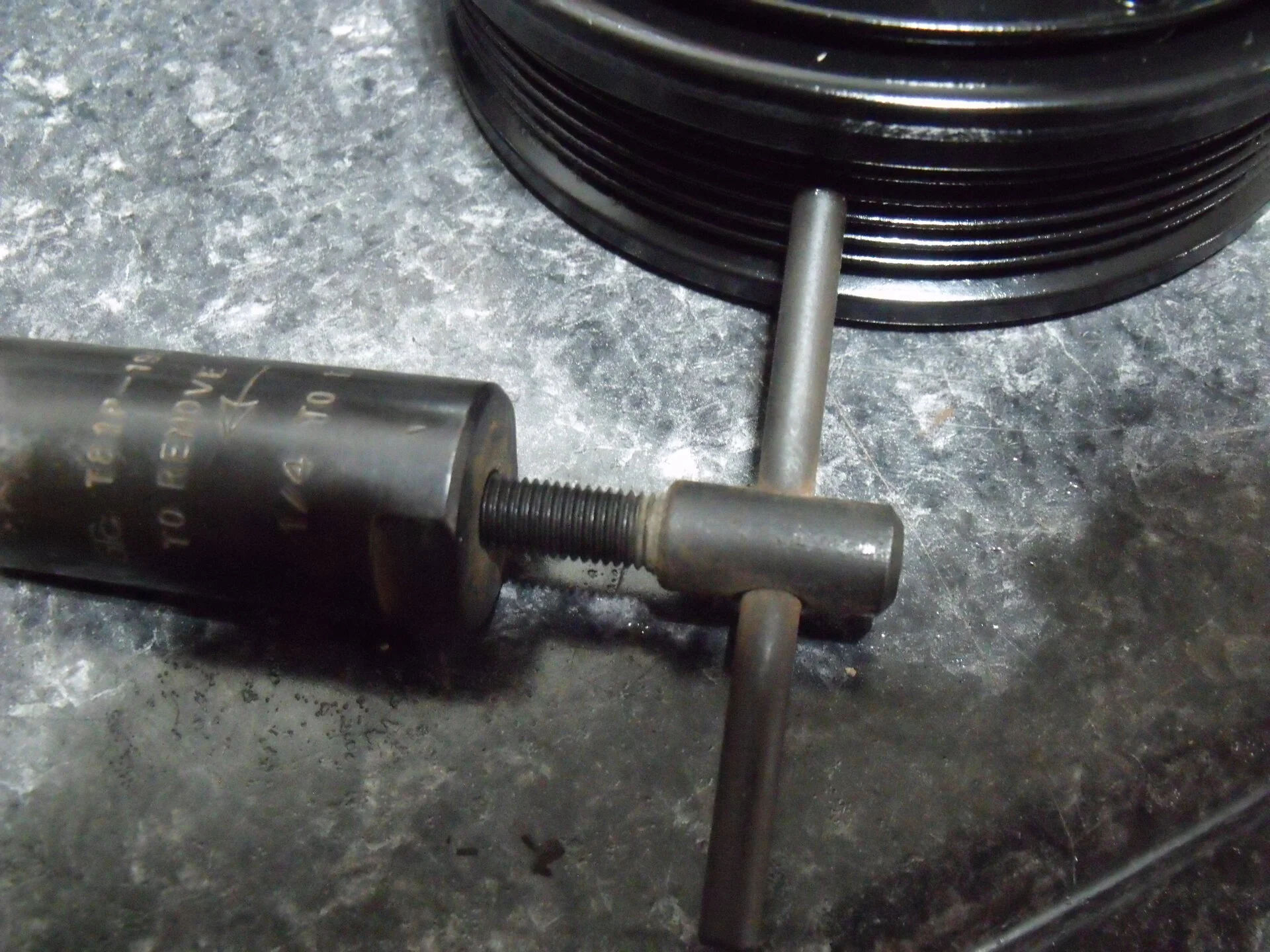

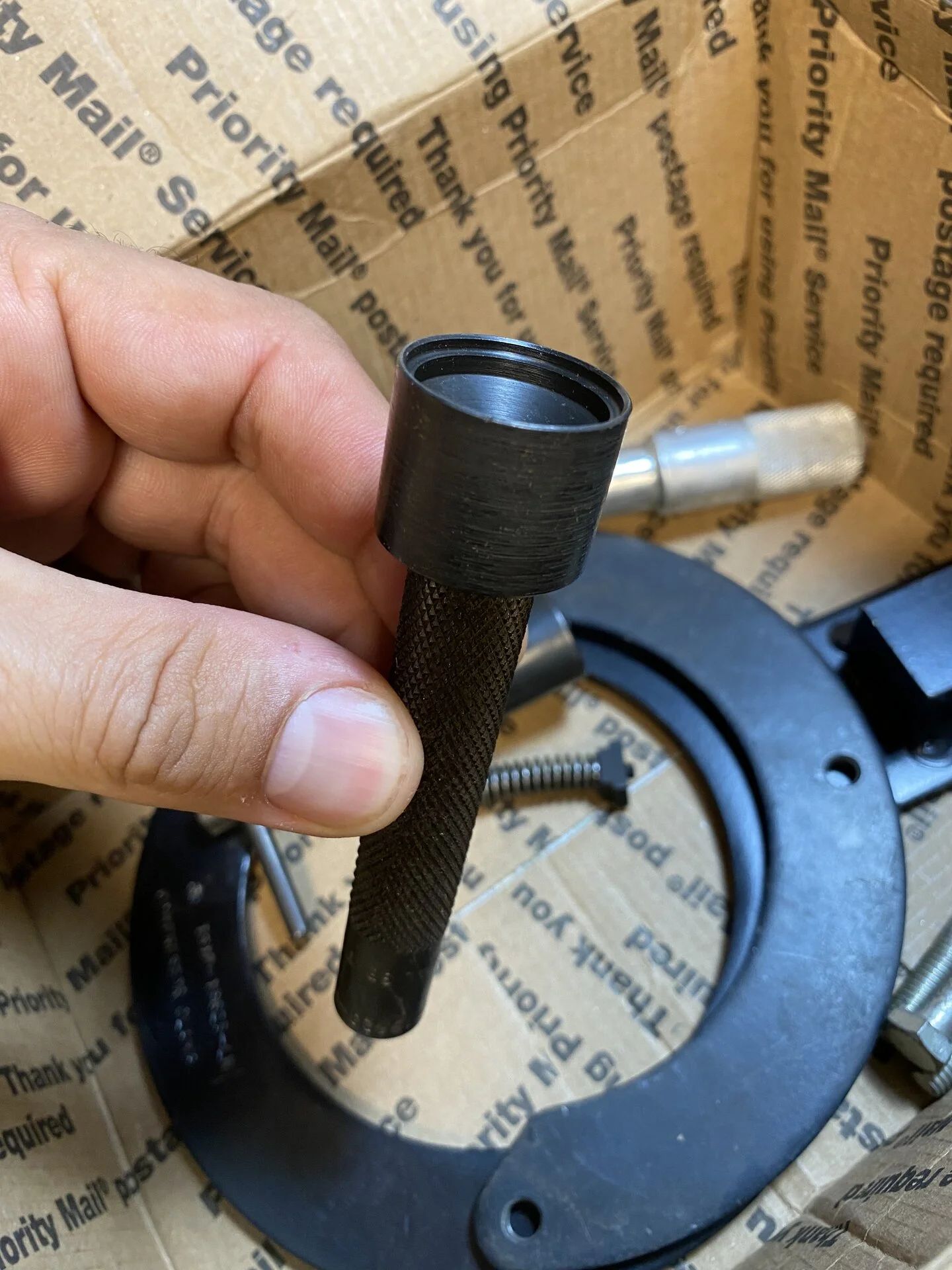

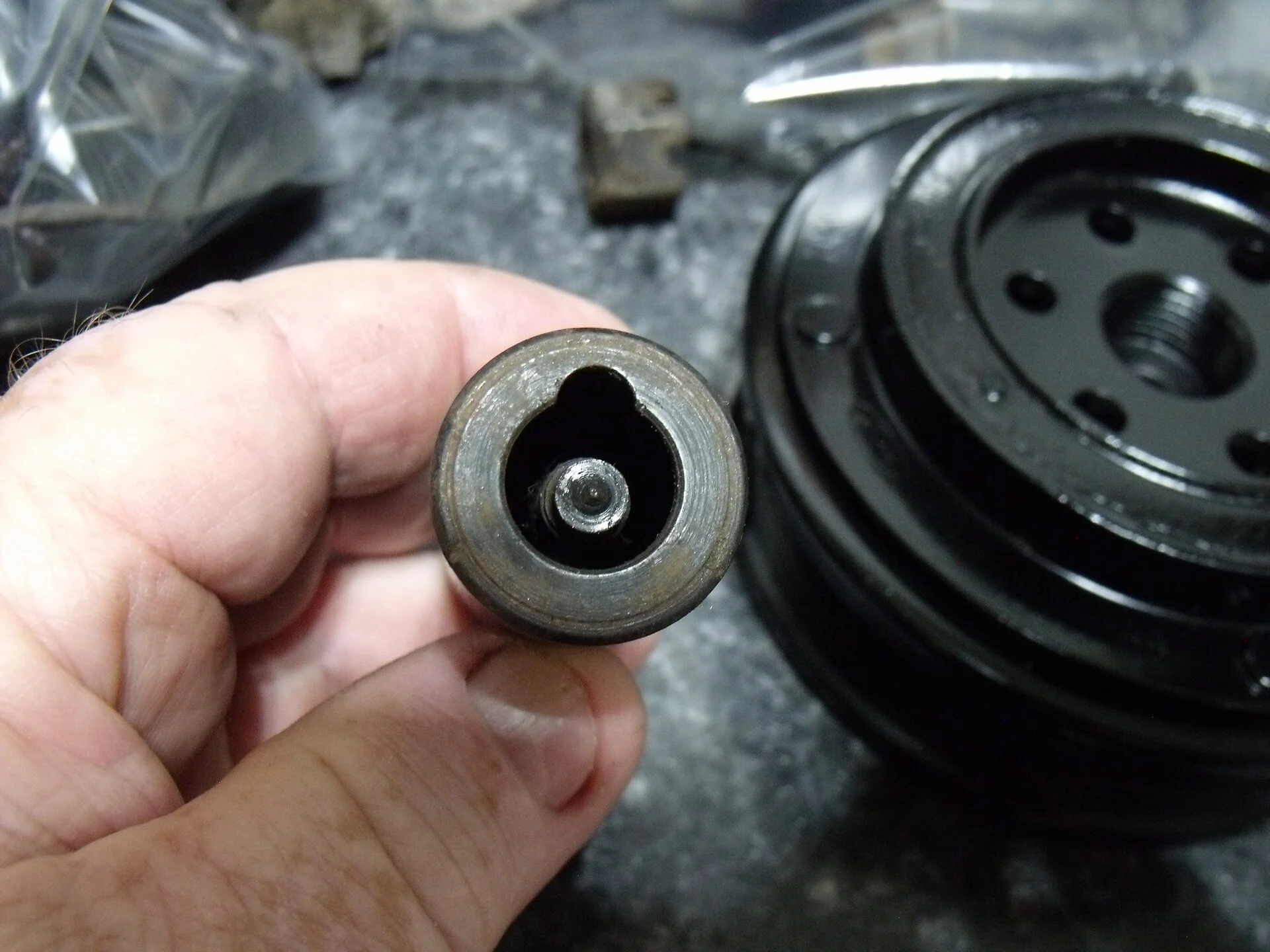

Here are two pics.... One shows he bottom of the tool with the slot.. The other shows the t handle used for running the screw down to remove the key

  • Like
Reactions: 2 users

Mustang5L5

Put lubricant all over the balls
Mod Dude
Feb 18, 2001
39,211
15,114
224
Massachusetts
Of all the compressor tools, the key removal tool is really the only one absolutely needed

I have em all



The shaft seal driver might be a good tool to also use, but you can prob find a substitute

  • Like
Reactions: 1 user

limp

wrap a little cheese around it and its a done
Oct 4, 2020
2,643
1,640
133
67
Florida
What do you clean up the wick with? I do not want to damage it as I am assuming it is unobtainable ... Mine is pretty dirty and was thinking about some brake cleaner then letting it dry.....


Mustang5L5

Put lubricant all over the balls
Mod Dude
Feb 18, 2001
39,211
15,114
224
Massachusetts

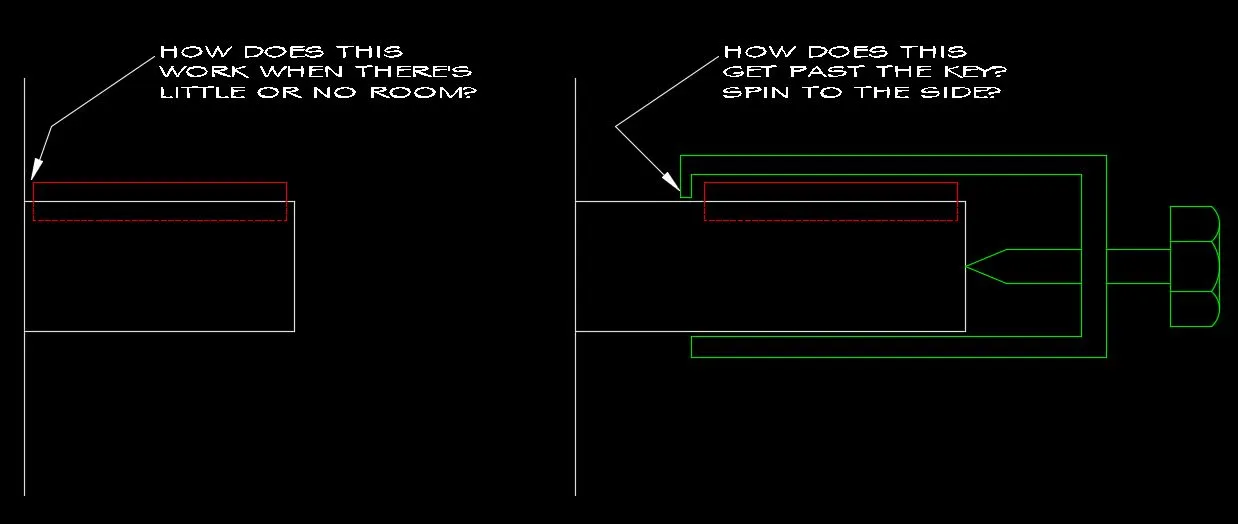

Still don't see how it pulls the key out. Nothing above has addressed how it gets behind the key to "pull" it or how it does it without being behind it.

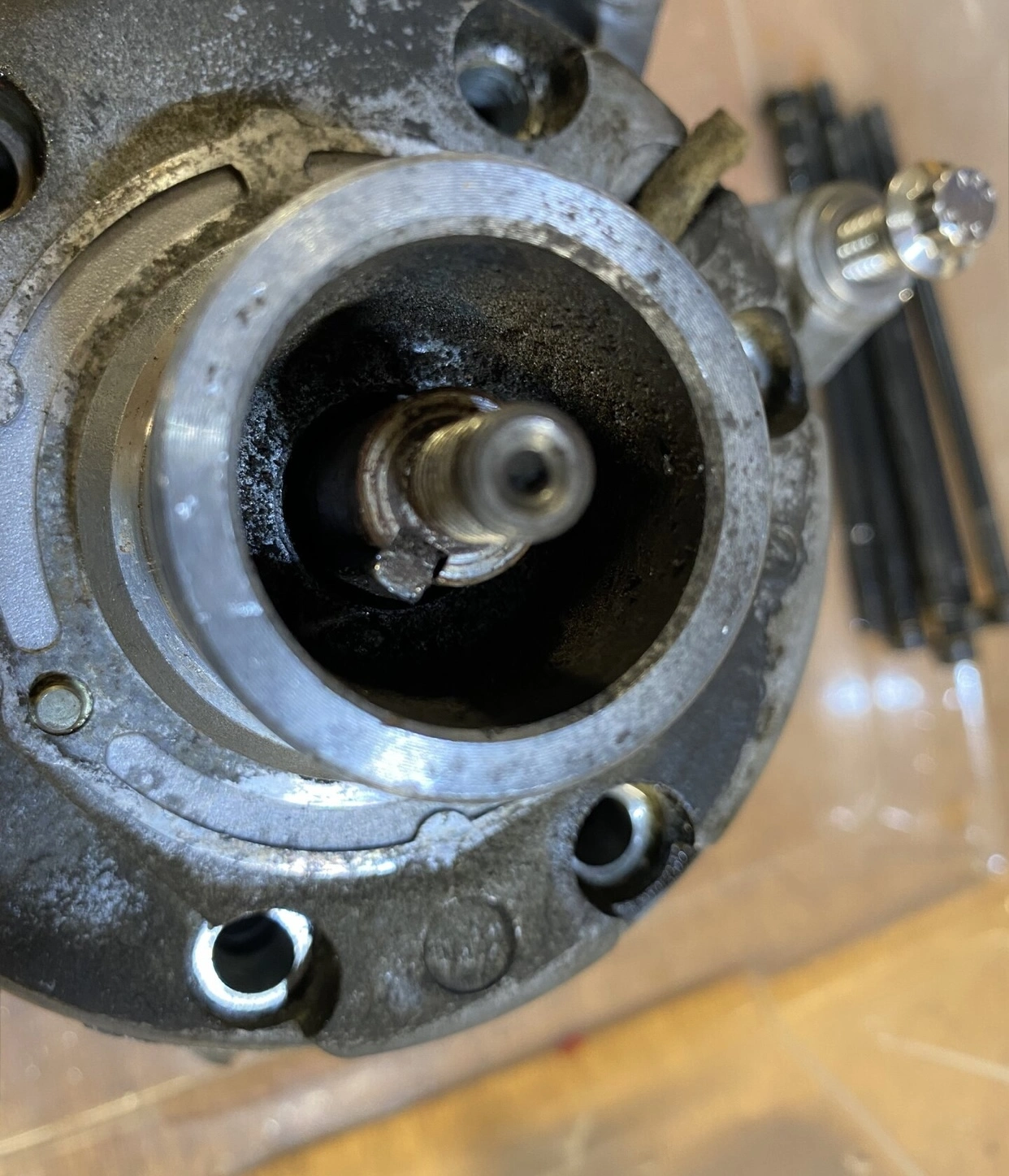

There should be a small gap behind the key inside the recess of the compressor. Slide the tool down with the slot over the key, and then you twist the tool 90-180 degrees or so so the slot is no longer aligned. Only works if there is a gap but you don’t need much.
