having an issue with the front tires rubbing the front of the front fenders. Car drives well and the tires are stock size. The car has been lowered 1 inch using different coil springs.
Thanks in advance.



horse sence

15 Year Member

Nov 29, 1999

12,208

8,049

233

Wile Coyote's stunt double

Oct 21, 2017

#2

• Oct 21, 2017

• #2

What size are the tires,69 has a larger wheel opening than the earlier years . Are the wheels moved to far forward in the opening ? The radius rods are adjustable on a 69



candphall

Active Member

Jun 8, 2009

488

32

49

Orlando Florida

Oct 21, 2017

#3

• Oct 21, 2017

• #3

I will take a look tomorrow. Glad to see you are still kicking



candphall

Active Member

Jun 8, 2009

488

32

49

Orlando Florida

Oct 21, 2017

#4

• Oct 21, 2017

• #4

By radius rods you are talking strut rods right. Can the wheels be moved back in the wells using these. Won’t that screw alignment.



horse sence

15 Year Member

Nov 29, 1999

12,208

8,049

233

Wile Coyote's stunt double

Oct 21, 2017

#5

• Oct 21, 2017

• #5

It would have to be realigned but yes you can move the tires back some ,how bad do they hit?



candphall

Active Member

Jun 8, 2009

488

32

49

Orlando Florida

Oct 23, 2017

#6

• Oct 23, 2017

• #6

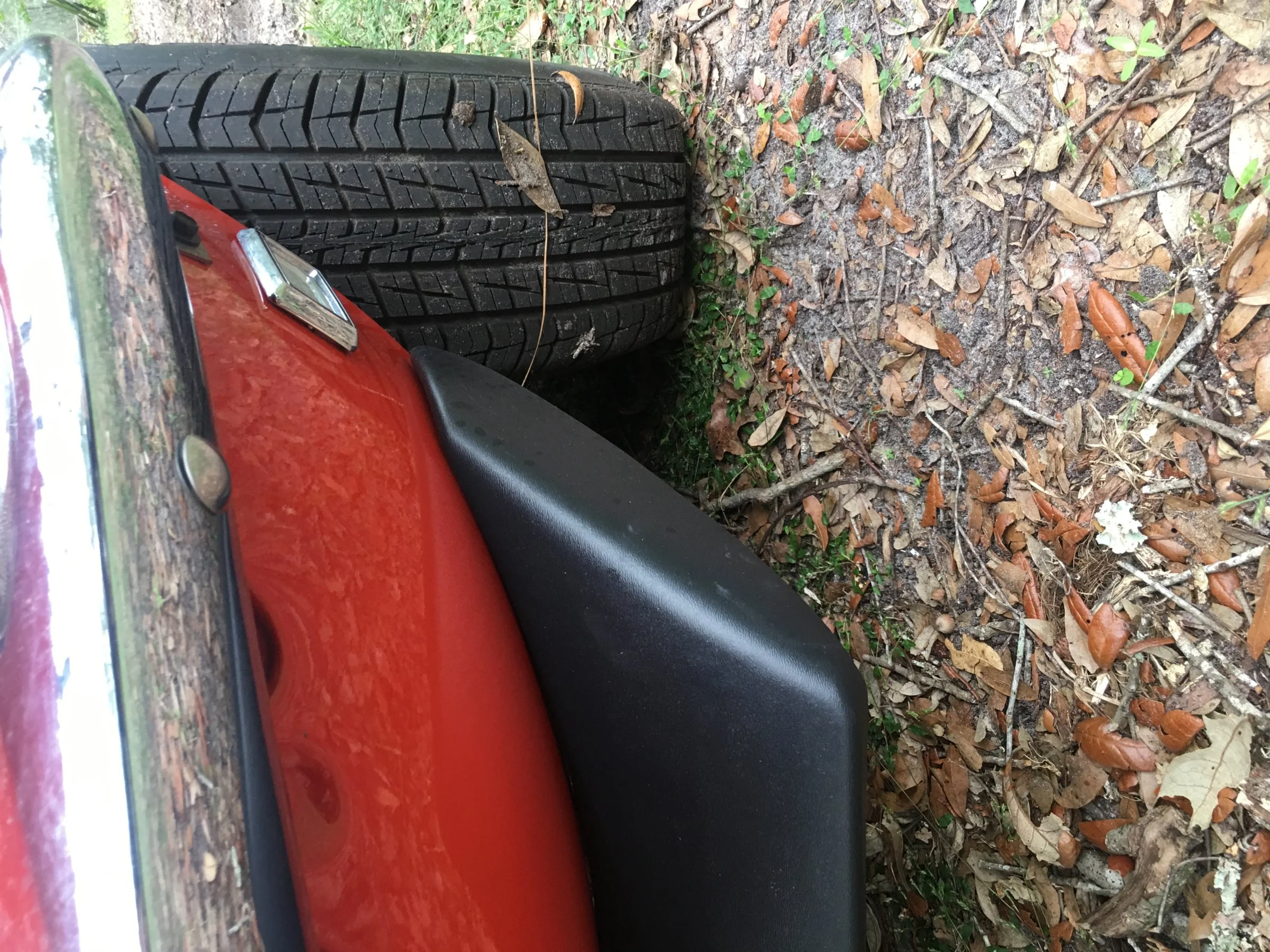

The tires I chose a P225R 14 I’m thinking that maybe they are to wide for the front. The wheel appears to be centered in the well. And for a self alignment it drives better that it ever did. So may be a 215R 14 instead.



Attachments

• 62A37F0A-92E5-4876-8A44-013E3588F111.webp

  389.6 KB · Views: 301
• 889BCF8E-553D-4E8F-B2E3-E576AA383F53.webp

  287.3 KB · Views: 279
• D7C53901-5048-4486-A7E0-15C3D2614D4D.webp

  688.5 KB · Views: 287

horse sence

15 Year Member

Nov 29, 1999

12,208

8,049

233

Wile Coyote's stunt double

Oct 23, 2017

#7

• Oct 23, 2017

• #7

It could also be the wheel offset ,a slightly narrow tire could make the difference



tos

Founding Member

Apr 27, 2001

896

68

59

Cincinnati Ohio

Nov 2, 2017

#8

• Nov 2, 2017

• #8

Looks like you need to adjust your caster as well. Do you have a pic of the rear of the tire clearance?



candphall

Active Member

Jun 8, 2009

488

32

49

Orlando Florida

Nov 5, 2017

#9

• Nov 5, 2017

• #9

I will post picture today. What do you recommend the caster to be. I have heard many things.



tos

Founding Member

Apr 27, 2001

896

68

59

Cincinnati Ohio

Nov 5, 2017

#10

• Nov 5, 2017

• #10

Around 1 to 2.5 degrees positive. With your clearance issue you would probly be better to go to 2.5 pos. This will shift you tire rearwards.
Camber would be around 1/2 deg neg



Reactions: horse sence

candphall

Active Member

Jun 8, 2009

488

32

49

Orlando Florida

Nov 5, 2017

#11

• Nov 5, 2017

• #11



candphall

Active Member

Jun 8, 2009

488

32

49

Orlando Florida

Nov 5, 2017

#12

• Nov 5, 2017

• #12

Sorry about the upside down. I will adjust caster as instructed. Thanks



horse sence

15 Year Member

Nov 29, 1999

12,208

8,049

233

Wile Coyote's stunt double

Nov 5, 2017

#13

• Nov 5, 2017

• #13

candphall said:

Sorry about the upside down. I will adjust caster as instructed. Thanks

Click to expand...

Yeah ,those tires are way forward



horse sence

15 Year Member

Nov 29, 1999

12,208

8,049

233

Wile Coyote's stunt double

Nov 5, 2017

#14

• Nov 5, 2017

• #14

Here you go Chris



Attachments

• downloadfile.webp

  216.5 KB · Views: 261

candphall

Active Member

Jun 8, 2009

488

32

49

Orlando Florida

Nov 5, 2017

#15

• Nov 5, 2017

• #15

Left side castor +5 I will readjust
Thanks for your help.



candphall

Active Member

Jun 8, 2009

488

32

49

Orlando Florida

Nov 5, 2017

#16

• Nov 5, 2017

• #16

I seams to me that if 2.5 is good +5 would find it further back not forward. But I will give it a go.
