Mustang II clutch fork/ clutch lever

  • Sponsors(?)


2Blue2

will be trying this sex one when I can find it
Mar 5, 2019
2,294
1,385
133
53
Oahu

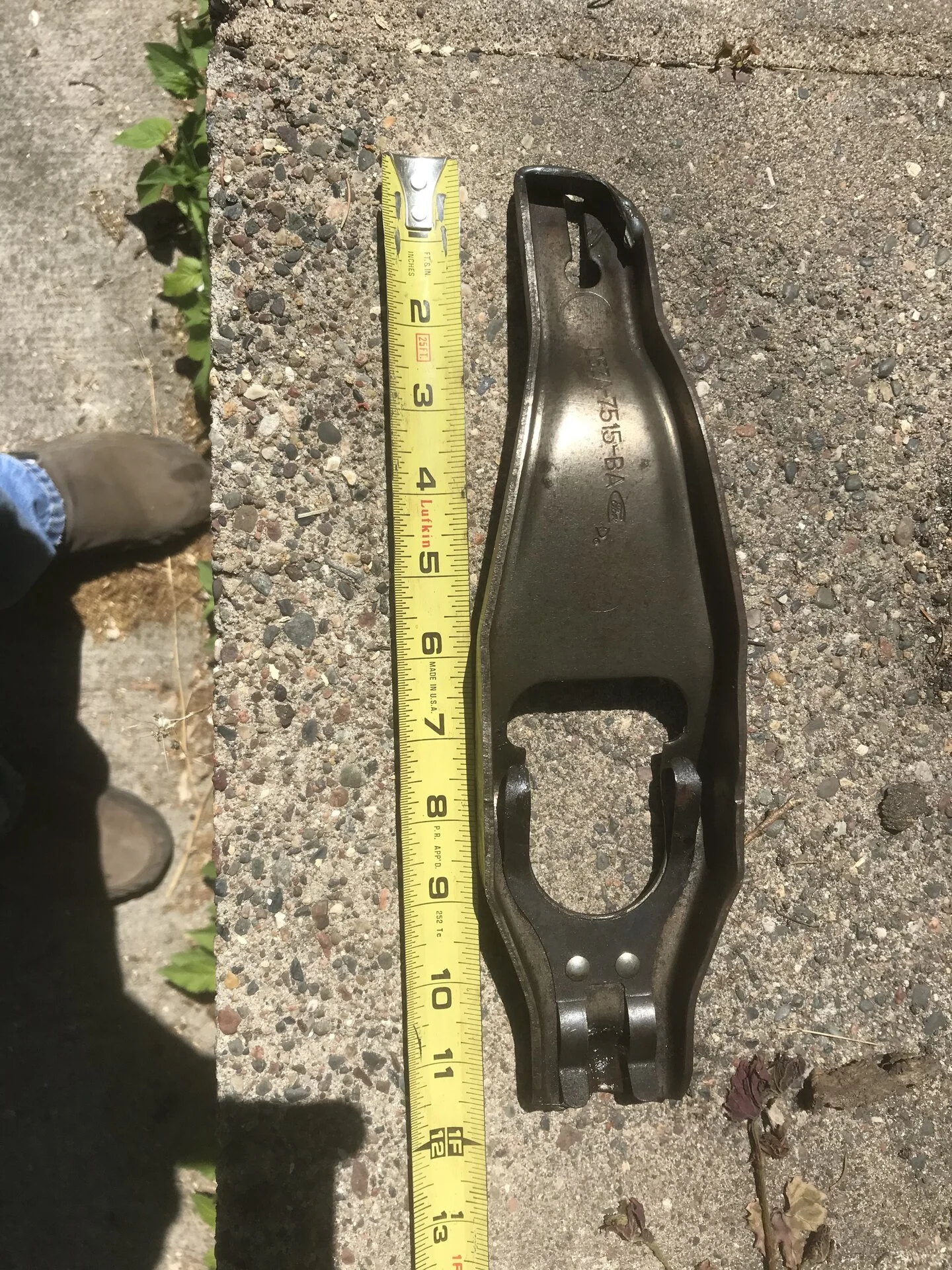

Extra Stout your fork looks flatter than IICrew's and mine

wait was that the Fox one?


LILCBRA

I wish I didn't have all of these balls in the air
10 Year Member
Dec 6, 2005
2,229
1,265
164
48
Marietta, Ga
A quick google search of that part number comes up with evidence that it might be a 2.3 fork from a Pinto. I haven't found anything else to back that up, just this from foureyedpride....


  • Like
Reactions: 2Blue2

2Blue2

will be trying this sex one when I can find it
Mar 5, 2019
2,294
1,385
133
53
Oahu
it might be a 2.3 fork from a Pinto.
Hadn't considered that. Dang 2.3

This is supposed to be a pinto bell
The rivets direction match mine and is different than the V8?



2Blue2

will be trying this sex one when I can find it
Mar 5, 2019
2,294
1,385
133
53
Oahu
LILCBRA 's attachment actually has that D52A part number in it


2Blue2

will be trying this sex one when I can find it
Mar 5, 2019
2,294
1,385
133
53
Oahu
The quote talking about 2.3s
D52A-7515-AC left, D4ZA-7515-B8 2nd from left, D8BC-7515-AC third from left, but only the Fox 5.0 fork , the forth from the left, will work


Isegrim

Active Member
Mar 29, 2019
52
80
28
39
Deutschland
hello people ... sorry that I do not answer so quickly ... I have to do a lot through Corana ..
Ok I'm confused ... which one is the right one now ... or fits best?


2Blue2

will be trying this sex one when I can find it
Mar 5, 2019
2,294
1,385
133
53
Oahu
Final tally
mine is incorrect, everybody else is using theres

options
modify a fox one to work
use the quicktime bell housing with a fox fork
maybe find and ask Phill from the mustang 2 facebook page? Phil Schmidt 334-298-3038
he is a source for used and new mutt2 parts,
mixed reviews here and there though, i guess cause people have high expectations for 45 yr old car parts


2Blue2

will be trying this sex one when I can find it
Mar 5, 2019
2,294
1,385
133
53
Oahu
I'm pretty sure yours is correct.
mine is for a 2.3 so not 'correct'
probably would still work though depending on how different the 2.3 and the small mutt2 302bell housings are
