Progress Thread She’s a runner

KZGUNS · Aug 20, 2019

a91what said:
M112 for Ken · Jul 4 – Aug 14, 2019

Shared album · Tap to view!

photos.app.goo.gl

That was quick!

a91what · Aug 20, 2019

KZGUNS said:
That was quick!

nice thing is we can talk and comment on each picture to answer questions. I have more in another album from the original build process

KZGUNS · Aug 20, 2019

We wait....
We bbq....

KZGUNS · Aug 21, 2019

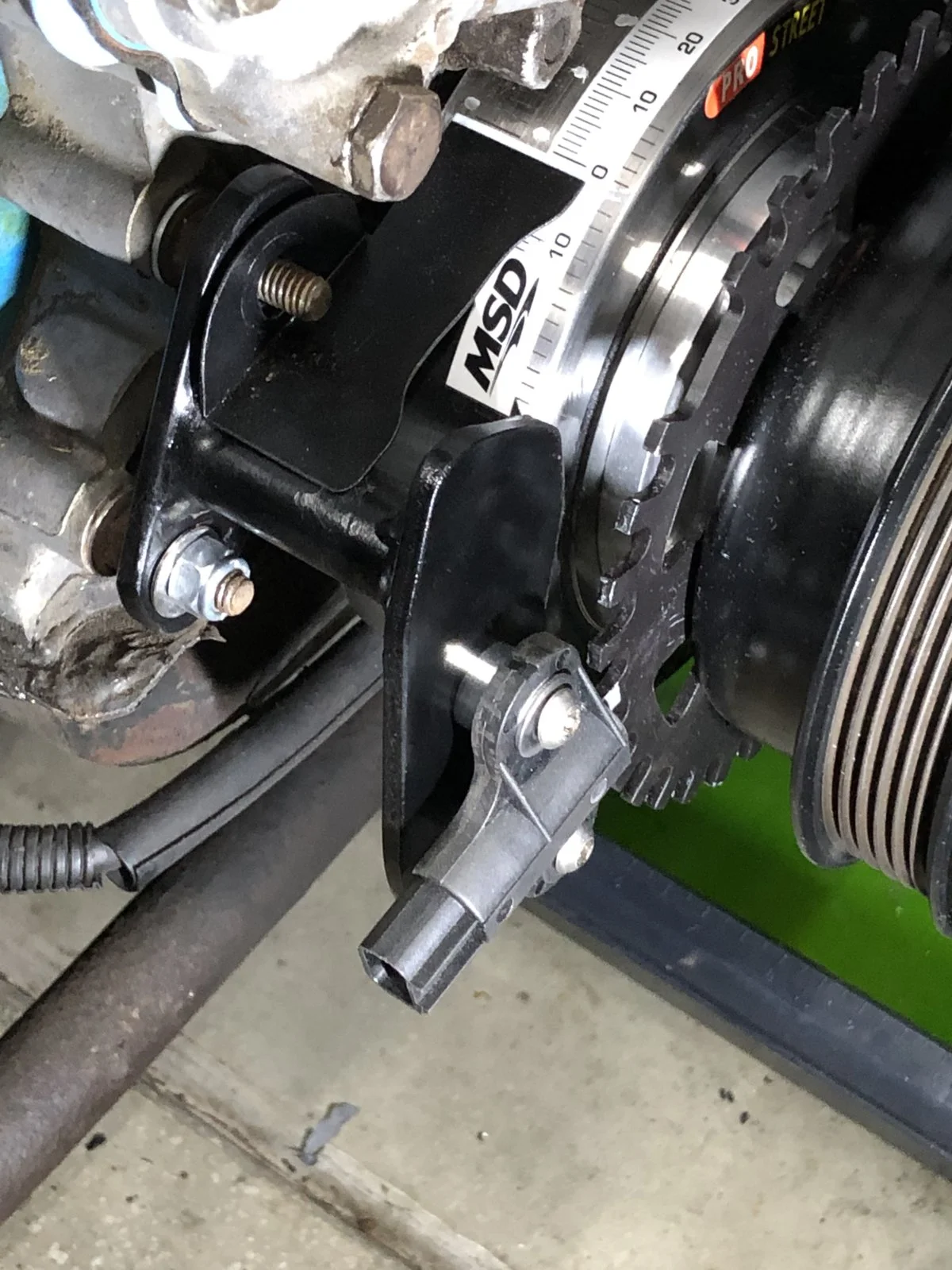

Everything arrived in great condition. I did discover my VR sensor is in conflict with the tensioner. Guess that’s what I get for making the bracket before I had the parts. Oh well, I reclocked the trigger wheel and will adapt the bracket to move the sensor down.

KZGUNS · Aug 23, 2019

Made some good progress. A few things had to be figured out but no big deal. Looks like possibly the bosses on my water pump are slightly different than Steve’s. Trimmed up a spacer and was good to go. I also had to reclock the trigger wheel and mod the mount because it was too close to the tensioner. Intake is torqued down. Blower snugged but not completely tight yet. Front dress is nearly done. Still need to add idler to the right of blower and measure for a belt.

KZGUNS · Aug 23, 2019

More pics...

stanglx2002 · Aug 23, 2019

This is awesome!

Glad to see Steve's blower in good hands

KZGUNS · Aug 24, 2019

Little bit of progress today. Need to extend the air temp sensor plug and maybe another one. Injectors and rails are in. Pulleys are done and aligned. Blower down tight. I think I’ll be ready to start it tomorrow, we’ll see... now I’m off to the wineries.

KZGUNS · Aug 25, 2019

Well everything is installed and ready but had an issue with the edis. This will be resolved later this week. Thanks again to the mad scientist @a91what for the help today troubleshooting.

KZGUNS · Aug 29, 2019

ITS ALIVE!!!!

We had some challenges but we have overcome those to become victorious. Need to clean up some wiring and fix a valve cover leak then get working on the tune.

90sickfox · Aug 30, 2019

Im glad to be able to see this thing run on another car here. That set up is awesome !

KZGUNS · Aug 31, 2019

90sickfox said:
Im glad to be able to see this thing run on another car here. That set up is awesome !

I’m honored to have the opportunity to buy this from Steve. Was able to get her on the road last night. Should be a fun weekend of dataloging. Of course I’m already gonna step up to the next size pulley.

KZGUNS · Sep 2, 2019

few things going on. First thing is the 64bit tuning trigger wheel is a bit sloppy on their hub so i had to fix that. Was having some weird miss or lean spot off idle. I believe we're finally closing in on this problem. It wanted more fuel! was hard to see on the DL since the pop increased map and wasn't showing me where the fuel was needed. once i held the pedal steady off idle where it was rough i added fuel to smooth it out and it seemed to work. under load and boost it holds steady but during cruise i'm getting random lean spikes. Oh...I ditched the stock pulley and put on the bronco pulley so shes now getting 8.5 lbs of forced feedings. I'm a bit annoyed about the trigger wheel and hub, i will send them an email about this since i had a sensor strike because it was off so much.

KZGUNS · Sep 5, 2019

Nothing super new to update. Still working on the tune and have decided to go ahead and get everything I need to spray meth. Definitely need to bring down MAT. I feel I’m leaving all kinds of power on the table as timing is pulled back when MAT increases with boost. I’m gonna mount the reservoir and pump in the back so I don’t have to relocate battery and can use a 2.5gal reservoir.

KZGUNS · Sep 14, 2019

Gone cool this thing down a bit.
We’ll see how the day goes. Hopefully get this plumbed and wired today

a91what · Sep 14, 2019

Ohh pretty

KZGUNS · Sep 14, 2019

Got everything buttoned up and working. Install turned out pretty good.

KZGUNS · Sep 16, 2019

Went for a quick drive while doing meth... car seems to never run outta power! Datalog shows still slightly rich under boost. I’ll look over it some more at “work” still got an afr that spikes at cruise/low kpa, it’s not felt while driving etc. still thinking maybe air getting sucked in at the collector maybe.

stanglx2002 · Sep 16, 2019

What intake temps are you seeing now, but also before temps?

Also, what size nozzle are you running or are you running more than one with a PWM solenoid?

Adding WMeth to the mix will richen your AFR due to the Methanol in the mix. At some point I would recommend a table switch table for your Fuel VE to reduce those numbers for when the WMeth is running. The Fuel VE Table 1 can be your "safe" Non-WMeth table, so if you run out of fluid your still fine.

a91what · Sep 16, 2019

I got him all setup with table switching...

and its a 10GPH nozzle with a PWM solenoid feeding it... just like i have mine setup.

oh a hobbs switch as well to say 'I got pressure table switch'
