Engine Trickflow Intake Street Burner Spacer Needed?

johnny21

Member
Jan 26, 2020
27
2
13
Miami
Hey! So I have an 87 LX 5.0 that I recently picked up and it had a 4" cowl that I really didn't like. I found a stock hood on craigslist to replace it. Once getting ready to install I realized that there was a 1" spacer between the upper and lower intake on the Trickflow and it definitely looked like there was not going to be enough clearance for the factory hood.

So I ordered the TF part I needed to remove/install without the spacer (correct bolt length and gasket) All was going well until I put the intake back on without a spacer and realized that there is not enough clearance between the vacuum part on the underside of the intake and the fuel line/injector connection. I think the fuel line is aftermarket (Stainless Steel BBK). I was thinking (hoping) maybe a 3/8 spacer would work for both the hood clearance and fuel line clearance?


Any recommendations/thoughts on how to best approach is greatly appreciated, thanks!

Last edited:
  • Sponsors(?)


johnny21

Member
Jan 26, 2020
27
2
13
Miami

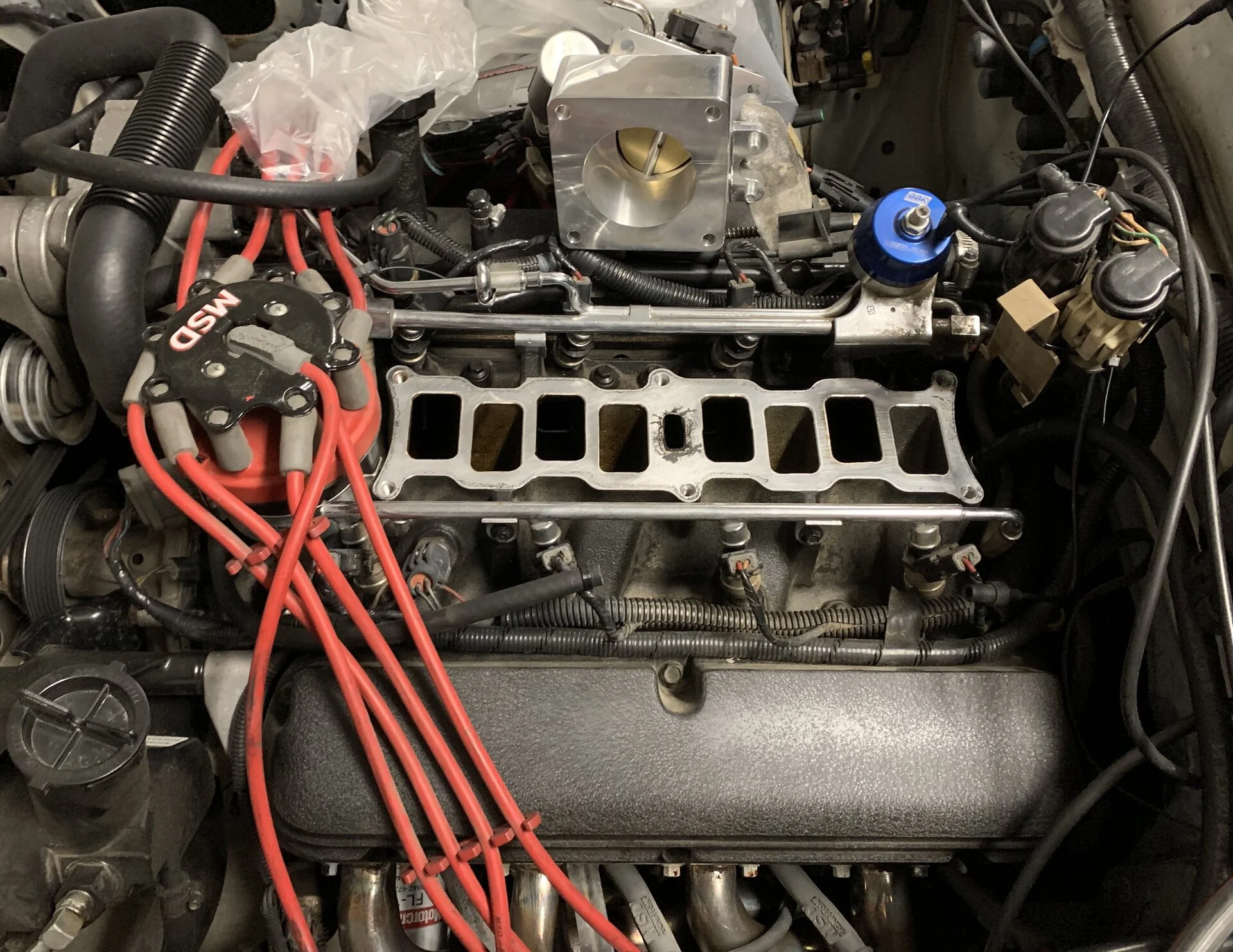

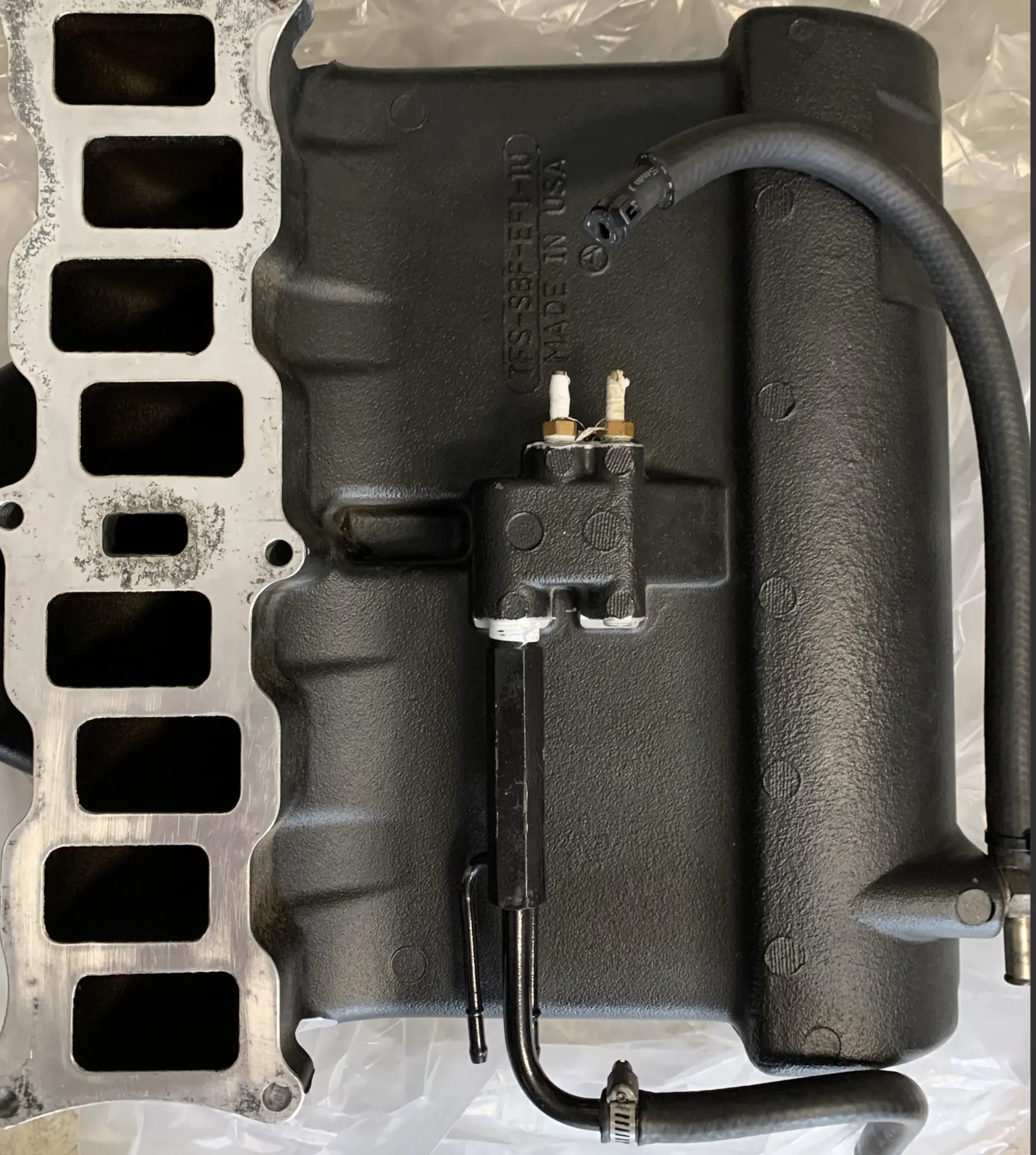

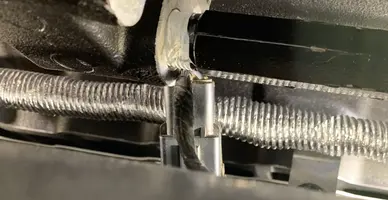

Hey Monkey - Looks like the manifold vacuum line is landing right on top of the injector plug.


Attachments

  • Screen Shot 2020-07-04 at 7.24.36 PM.png
    Screen Shot 2020-07-04 at 7.24.36 PM.png
    4.4 MB · Views: 145
  • Screen Shot 2020-07-04 at 7.25.02 PM.png
    Screen Shot 2020-07-04 at 7.25.02 PM.png
    2.6 MB · Views: 127

NXcoupe

Active Member
Dec 3, 2009
75
27
28
Dayton, OH
Fuel line can be moved easily. What exactly is hitting your connectors? Just work around it. I've put dozens of those intakes on with no spacer. Just sayin.


Mstng93SSP

You have a nice rear end there Dave.
15 Year Member
Nov 29, 1999
2,291
2,602
184
Mililani, Hawaii
The intake itself is hitting the top of the injector plug. There is no bending anything that is going to fix that. Get a half inch spacer. Problem solved.

Chris

  • Agree
Reactions: 1 user

johnny21

Member
Jan 26, 2020
27
2
13
Miami
Thanks for all the advice everyone - I ordered the 3/8 spacer and will post an update when it arrives.


johnny21

Member
Jan 26, 2020
27
2
13
Miami

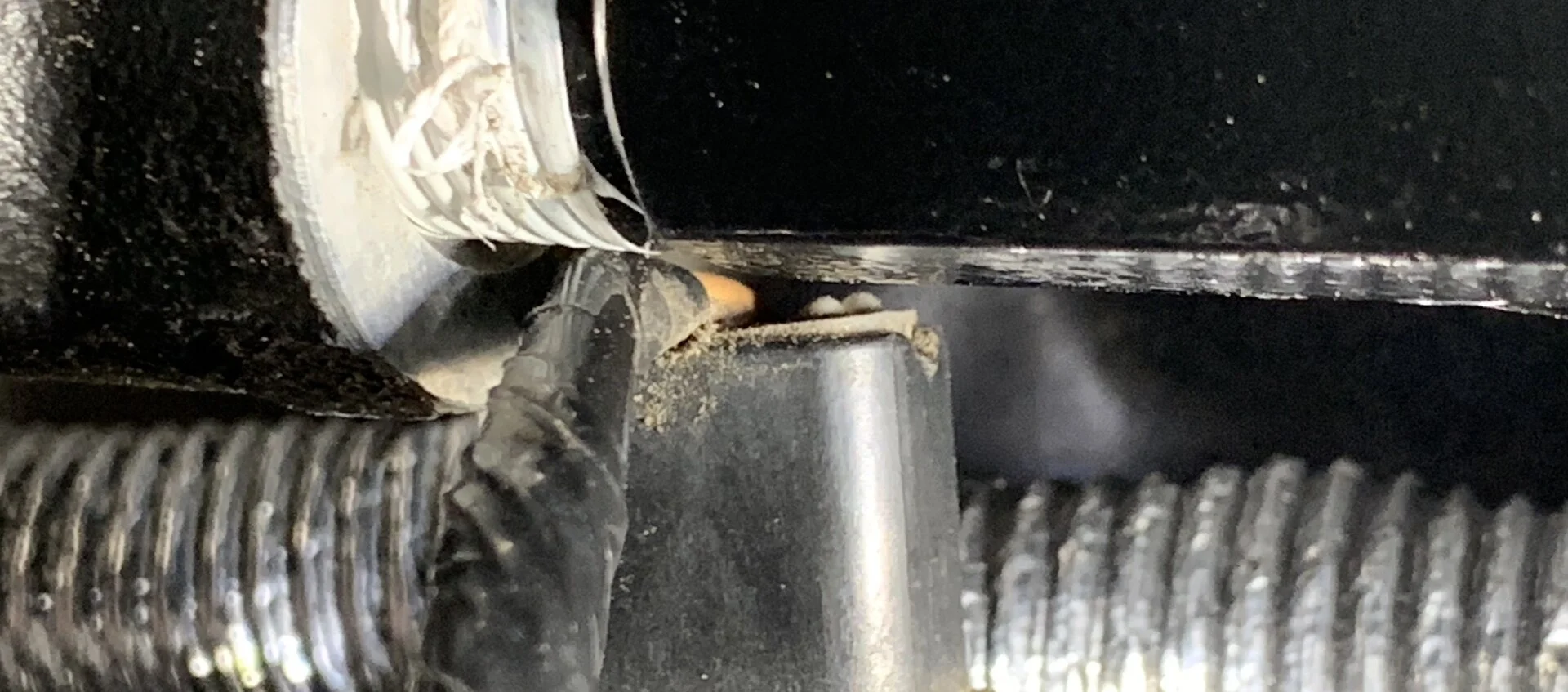

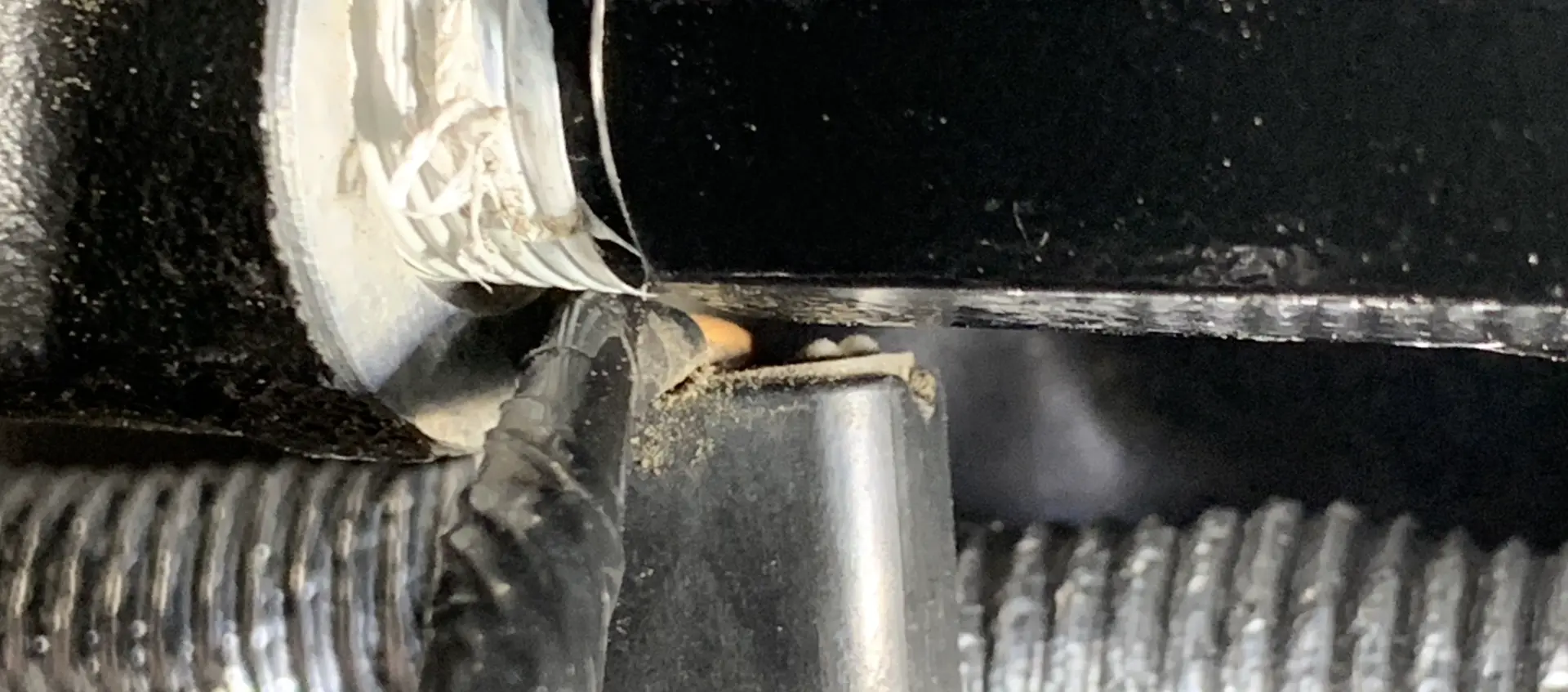

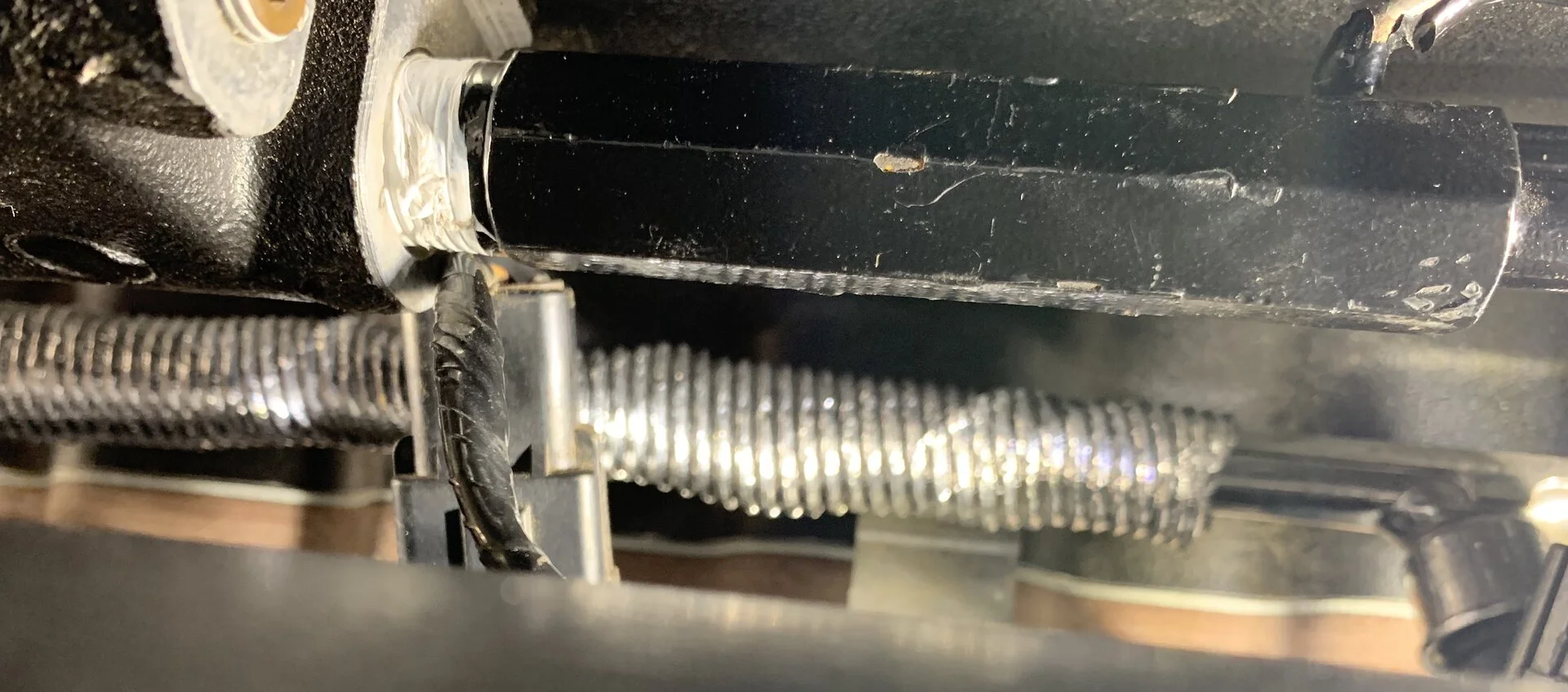

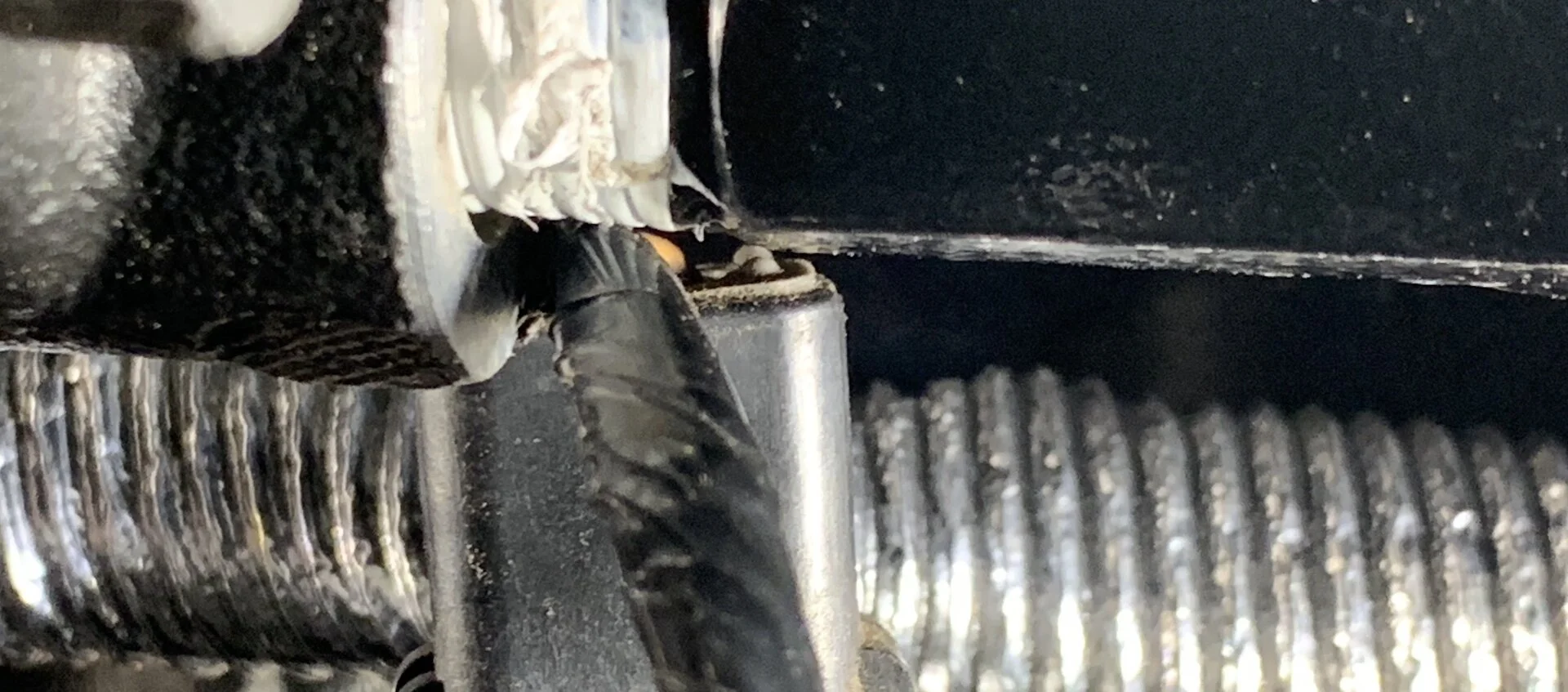

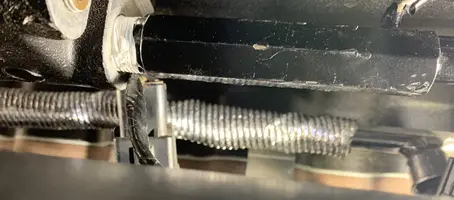

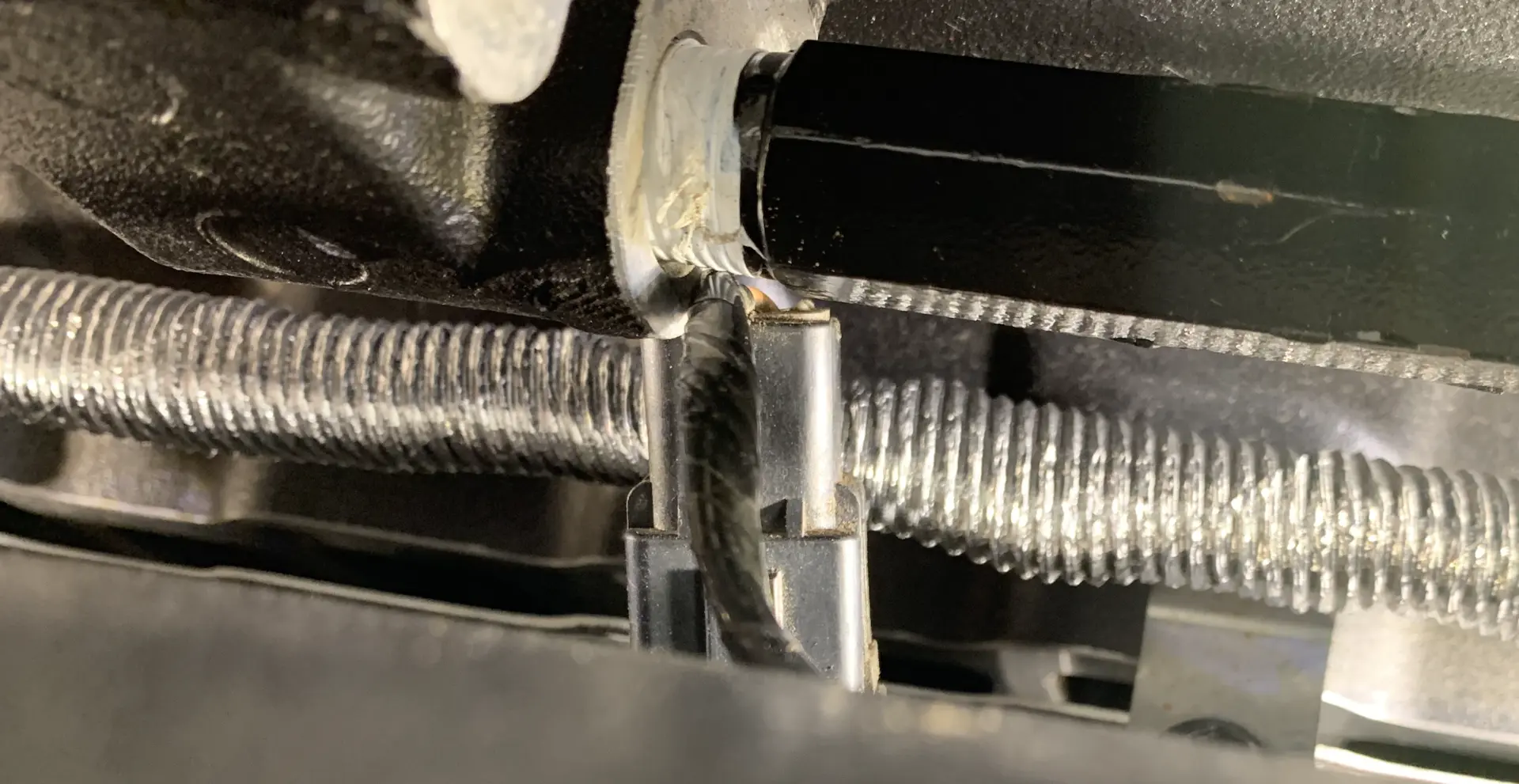

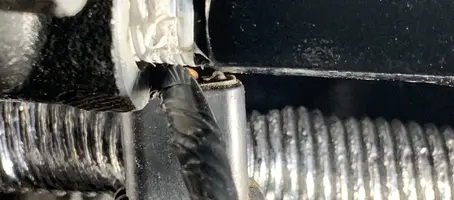

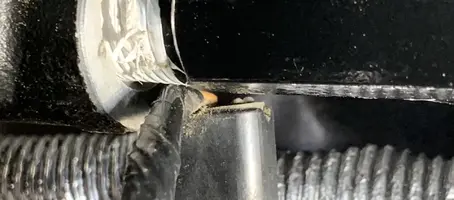

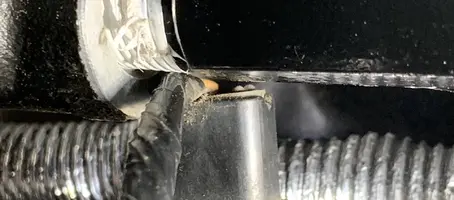

Okay - so the 3/8 spacer showed and it is SO close...this is it loosely tightened but not torqued to spec yet. It is so close that I am posting pictures to see if it's a problem. Not 100% sure if the injector wires are can handle the direct heat.

EDIT: Actually when I compare these pictures to the original they look almost identical so makes me wonder if even though it's loosely tightened if it is still partially resting on the injector.


Attachments

  • SS1.jpg
    262.2 KB · Views: 60
  • SS4.jpg
    254.7 KB · Views: 59
  • SS3.png
    2 MB · Views: 62
  • SS2.jpg
    266.9 KB · Views: 54
Last edited:

a91what

SendMeUrDataLog
Mod Dude
Apr 6, 2011
10,365
6,463
214
32
Hillsborough county
have you tried rotating the injector so its not hitting the vacuum tube? its just an oring fit top and bottom it should rotate easily for clearance.


johnny21

Member
Jan 26, 2020
27
2
13
Miami
So yeah - somehow i missed the advice \ it didn't click on rotating the injector until Friday. Thanks as that definitely resolved the manifold clearance issue.
