Unmetered air through oil filler?

Daggar

New Member
Jul 19, 2004
3,902
5
0
blackcloud50 said:
I see alot of confusion with regards to this particular subject in countless posts and now I am confused somewhat. Here I cut and paste a response that I recieved from one member:

Removing the TB/VC line is not a good idea as this is the source of fresh air for the crankcase. It is the fresh air running through the crankcase that picks up all of the volatile contaminants from the crankcase, to be purged via the pcv.
No TB/VC hose = No Fresh Air = Lots of Contaminants in oil.
The only time this line should be eliminated is if the engine is running boost, or there is a vac pump running on the crankcase.

Using a breather on a pcv system will essentially create a vac leak, as the air entering the crankcase via the breather will not be metered by the MAF. This can cause typical vac leak symptoms.

You may be right about the confusion. In reference to the quote you posted... I don't see what the problem would be having unmetered air enter into the crank case. That portion of the motor is not used for combustion. If that were the case, then you'd not be able to run the motor without the oil filler cap on (which obviously, you can), not to mention the probably THOUSANDS of folks out there that run valve cover breathers on both carb and fuelie applications.

The oil filler neck to throttle body hose is separate from the PCV system. What they have in common is that BOTH vent positive crank case pressures. The PCV from an area that's inhearantly rich in unspent that can also have a tendancy to PULL air during a portion of one engine rotation and PUSH air during another portion of one engine rotation. Thus the requirement for the PCV check valve. The valve cover area (so far as I know) is not effected to the same degree. It's almost a constant PUSH of air form that location, not a PULL or vacuum.

  • Sponsors (?)


blackcloud50

New Member
Mar 30, 2005
388
0
0
Daggar said:
You may be right about the confusion. In reference to the quote you posted... I don't see what the problem would be having unmetered air enter into the crank case. That portion of the motor is not used for combustion. If that were the case, then you'd not be able to run the motor without the oil filler cap on (which obviously, you can), not to mention the probably THOUSANDS of folks out there that run valve cover breathers on both carb and fuelie applications.

The oil filler neck to throttle body hose is separate from the PCV system. What they have in common is that BOTH vent positive crank case pressures. The PCV from an area that's inhearantly rich in unspent that can also have a tendancy to PULL air during a portion of one engine rotation and PUSH air during another portion of one engine rotation. Thus the requirement for the PCV check valve. The valve cover area (so far as I know) is not effected to the same degree. It's almost a constant PUSH of air form that location, not a PULL or vacuum.

Unmetered air that enters into the crankcase will get sucked in by the pcv into the intake causing the a/f to be on lean side. Now I just looked at a good reference manual that reinforces what I have been mentioning above before I said I was confused. Carbed cars will be a little different as there obviously is no MAF.

As stated, the tube that runs from the v/c to the tb is the source of fresh "metered" air that gets pulled into the crankcase and then out via the pcv. (this is along with blowby) This occurs at idle, cruise, and light throttle.

Under heavy acceleration or high speed the crankcase is vented by both the pcv and the tube that runs from vc to tb.


Daggar

New Member
Jul 19, 2004
3,902
5
0
How can that be???

The pistons and rings are what separate the induction system from the crank case. The PCV is vented from the TOP of the motor.... The lower intake manifold to be exact. The PCV valve vents going OUT.

Now... take a look at your throttle body where the line comes in from the filler cap. Let me know if you see soot or oil in there. Chances are that you will... even if just a little. What do you think that indicates?

There should be no reason that you would have negative crank case pressure for that line to pull air in unless A) something is wrong or B) I'm missing something and not seeing it (which has been known to happen upon occation... lol) or C) a vacuum pump is being used.


criticman

Member
Sep 7, 2003
723
1
16
Rome, GA
I am 100% with Daggar on this one.

Blow past the top of a straw (90* angle). Air shouldn't reach your fingers. Air is being pulled up through the straw.

Same for the TB. The tube is at such an angle that air is not going to be pulled into it...the positive pressure crossing it (because your engine, a giant air pump, is sucking in air when the TB blade opens) draws air through the tube, into the TB.

As Daggar points out, you will likely find soot/oil where the tube connects to the TB. That is from the crankcase, not magically from behind the TB blade.

The PCV valve lets air out - once again, as Daggar said, it has the check valve (take yours out and play with it). Air can only properly go one way with a functioning PCV valve.

The only air that is supposed to be brought into your engine is through the TB...unless you want to count the smog pump which when setup in stock form, pumps air through one of the tubes into the back of the heads.

EDIT: I too have seen posts similar to what you mention, also talking about how the breather element is "bad" when used to cap the oil fill neck, how it destroys the function of the PCV system, blah blah blah. So, I don't know, maybe I'm crazy, maybe Daggar is wrong...but to me, our view on it makes the most sense.


blackcloud50

New Member
Mar 30, 2005
388
0
0

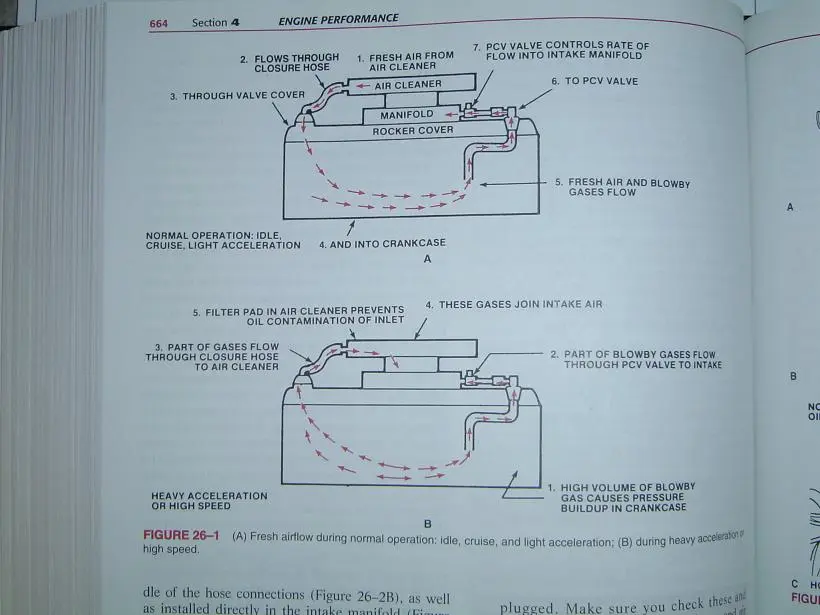

Here you can reference-
