Ok so I'm all excited to get my new Dynacorn door lined up so I installed the factory
front fender and......E-GADS to my surprise the plane between the fender and the door is way off.

Anyone ever seen this? I have a factory door on the pass side so I made a template and compared and I think it's actually the factory fender that's off. The thing is there's quite alot of structure along that seam on the fender so how the heck do I fix this??

Any suggestions are very welcome guys.

Chris

  • Sponsors(?)


horse sence

That $5 hooker turn out to be a guy
Mod Dude
Nov 29, 1999
8,788
2,974
233
Wile Coyote's stunt double
Wow ,that is worst i have seen yet .Not so sure its the fender though .It looks like the door has a lot of arch .Do you have an old door to check the fender against ? If they were off just a little you can carefully hit on the back side of the edge of the low spot to bring it up but that is a lot.
It is possible the fender is flat .If it was hit at the upper line of the indent running down the fender it could be smashed in.
Usually the fitting problem is the gap between the door and fender .


65-Fstbk

Active Member
May 20, 2007
278
13
29
Vancouver, B.C. Canada
look at the inner structure and see if there is damage ,wrinkles or crushing.
I took the fender off and looked. No damage at all. Pass side door is a factory door and doesn't seem to have as much curve. The Dynacorn door shell structure appears all good though so unless the door shell curve that the skin follows is out of whack??? I'm perplexed.


65-Fstbk

Active Member
May 20, 2007
278
13
29
Vancouver, B.C. Canada
I don't think it's the fender. here's a pic of the car before I started stripping it. Same front fender mated to a factory door (door was not original to car and had a ton of rot along the bottom thus the swap). I paid more money for what I was thinking would be a better product. Hoping CJ Pony Parts doesn't leave me hanging. I'll keep you posted on that.


[email protected]

5 Year Member
Mar 5, 2010
597
25
59
45
Harrisburg, PA
www.cjponyparts.com
I don't think it's the fender. here's a pic of the car before I started stripping it. Same front fender mated to a factory door (door was not original to car and had a ton of rot along the bottom thus the swap). I paid more money for what I was thinking would be a better product. Hoping CJ Pony Parts doesn't leave me hanging. I'll keep you posted on that.
are you talking to someone already?


horse sence

That $5 hooker turn out to be a guy
Mod Dude
Nov 29, 1999
8,788
2,974
233
Wile Coyote's stunt double

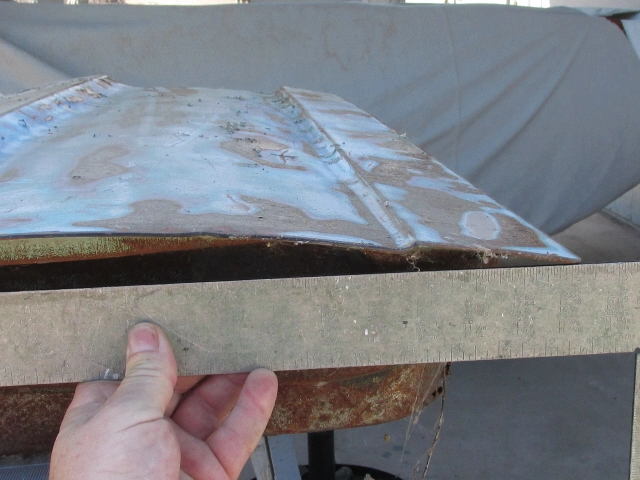

You might try this test on the door at the fender end ,take a straight edge from to top point to the bottom edge of the new door .
Picture 1 002.jpg
Picture 1 001.jpg

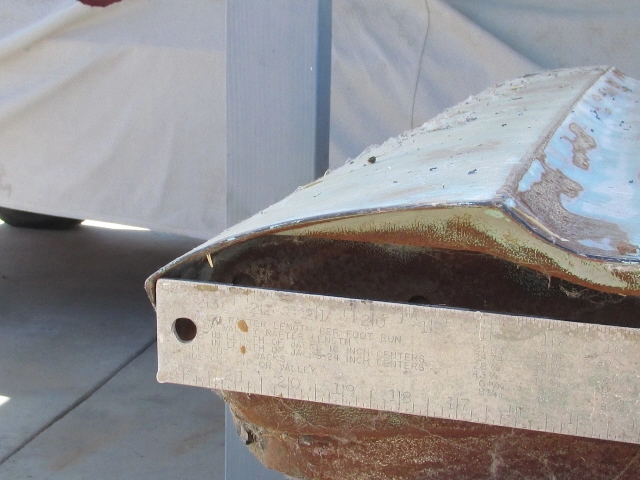

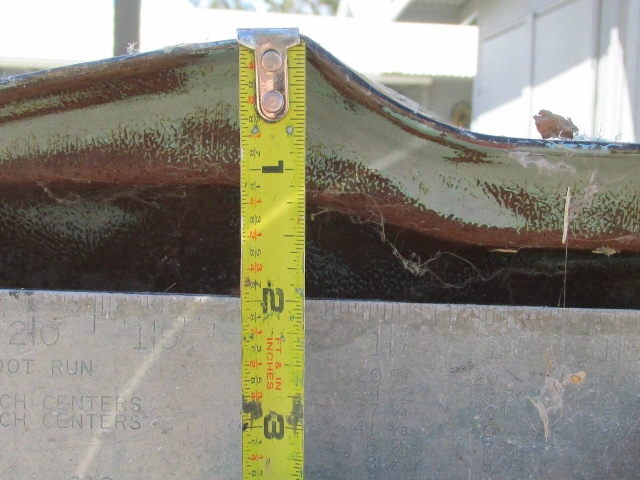

The highest point should be 2 inches .
Picture 1 003.jpg

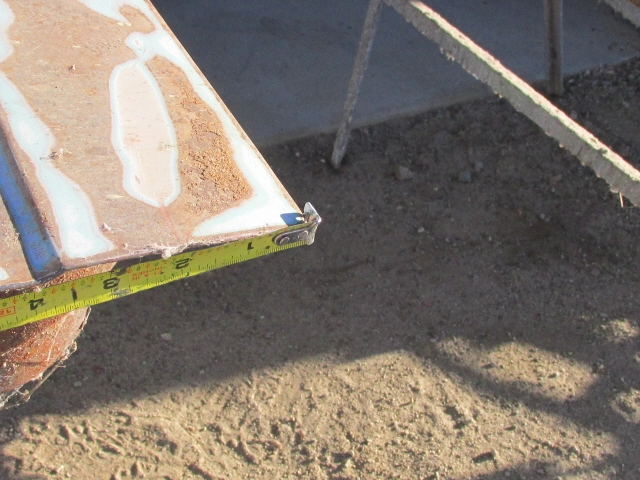

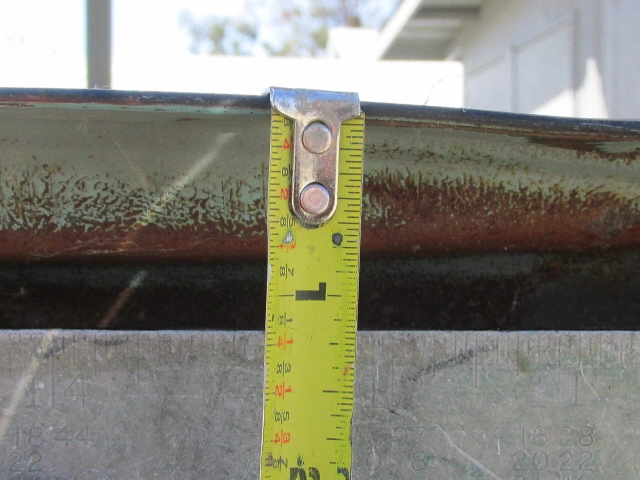

In the center of the door between the two points that become the c scoop in the quarter should be 1 3/8 inches .I know this was a good fitting door it was just rotted at the bottom.
Picture 1 004.jpg


65-Fstbk

Active Member
May 20, 2007
278
13
29
Vancouver, B.C. Canada
You might try this test on the door at the fender end ,take a straight edge from to top point to the bottom edge of the new door .
Picture 1 002.jpg
Picture 1 001.jpg
The highest point should be 2 inches .
Picture 1 003.jpg
In the center of the door between the two points that become the c scoop in the quarter should be 1 3/8 inches .I know this was a good fitting door it was just rotted at the bottom.
Picture 1 004.jpg
Thanks Horse....I checked those dimensions on the Dynacorn shell. I have about 2 1/8" on the high spot but the center of the c-scoop measures pretty much the 1 3/8" you mentioned. I had my wife help me by trying to physically align the leading edge of the door with the trailing edge of the fender while removed from the car and there's just no way it's going to mate up along the entire line. I'm starting to wonder again if maybe somehow the fender is out. Very confusing to say the least. I will put up some pics tomorrow.

BTW just wanted to let you all know that CJPP is not backing away from this. I'm feeling a good vibe from them if this in fact turns out to be the Dynacorn door. Something here is off though....just have to figure it out.

Thanks to all who have chimed in.

Chris


tos

SN Certified Technician
Apr 27, 2001
880
66
59
Cincinnati Ohio
It does look like the front of the door is arched a bit much but It looks like the back of the door lines up pretty good with the quarter panel. It also looks like the door could stand to be adjusted in a bit more at the front hinges cause the top and bottom of the door is sticking out a bit from the looks of you photo. I would adjust the front hinges in a little which will shorten that gap a little, then leaving the fender bolted at the top and bottom shim the fender at the stud that comes thru and under the kick panel. this will arch the fender a little. You may also check the bottom fender bolt to see if it is shimmed and remove a few to give you a little more arch. Try this before you go thru all the headache of taking it back off and shipping it back to CJs.


65-Fstbk

Active Member
May 20, 2007
278
13
29
Vancouver, B.C. Canada
It does look like the front of the door is arched a bit much but It looks like the back of the door lines up pretty good with the quarter panel. It also looks like the door could stand to be adjusted in a bit more at the front hinges cause the top and bottom of the door is sticking out a bit from the looks of you photo. I would adjust the front hinges in a little which will shorten that gap a little, then leaving the fender bolted at the top and bottom shim the fender at the stud that comes thru and under the kick panel. this will arch the fender a little. You may also check the bottom fender bolt to see if it is shimmed and remove a few to give you a little more arch. Try this before you go thru all the headache of taking it back off and shipping it back to CJs.
I haven't done any adjustments at all to the hinges at this point. Just hung the door and had a moment when I looked at that seam. Something is off here. The dimensions Horse gave me are pretty close but the old fender seemed to fit very well which is the same fender going back on.

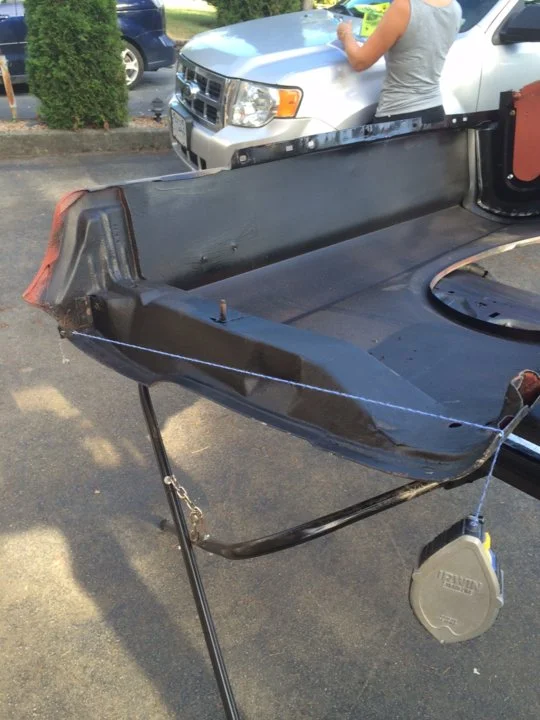

Horse do you happen to have a spare fender around where you could lay a string across it (see pic) and give me those dimensions from peak to string etc? I have attached a pic of the inside of the fender going back on. There's one small area of damage near the bottom which you can see but I don't think that would be enough to affect the radius of the arch on the fender.



horse sence

That $5 hooker turn out to be a guy
Mod Dude
Nov 29, 1999
8,788
2,974
233
Wile Coyote's stunt double

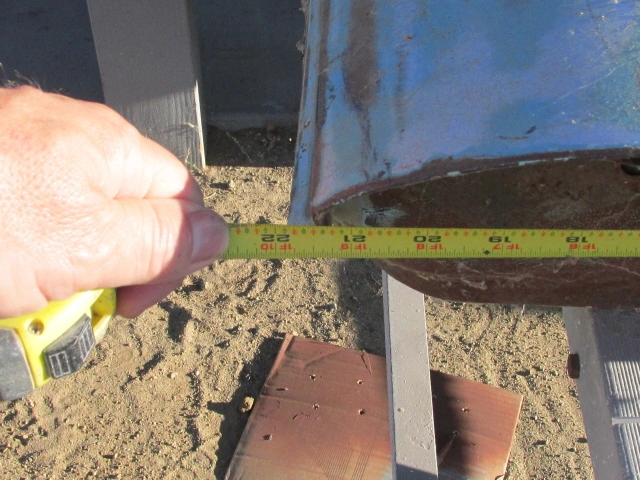

I measured the door from the top point to the bottom edge ,it is 21 1/2 inches and marked that measurement over to the fender.
Picture 1 001.jpg

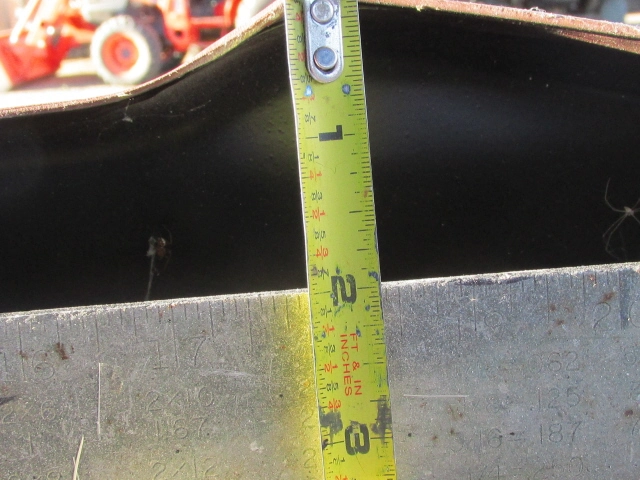

Using a straight edge again from the point on the fender to the
21 1/2 inch mark , the high point is 2 1/8 inch
Picture 1 007.jpg

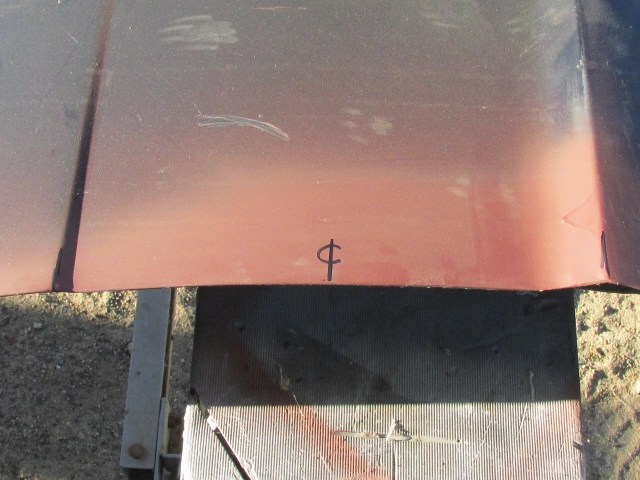

I marked the center of the scoop between the points and it measures
1 1/4 inch
Picture 1 006.jpg

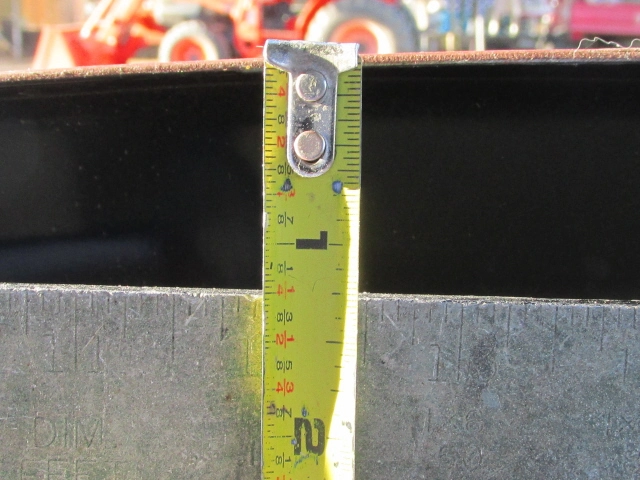

Picture 1 008.jpg

That seems to be just about right on with the Dynacorn door so it must be the fender .


Attachments

Last edited:

65-Fstbk

Active Member
May 20, 2007
278
13
29
Vancouver, B.C. Canada
Thanks Horse. I'm trying to line up a new fender and will let you know. May remove the pass side door which is a factory door and compare side by side with the Dynacorn. Raining here today so I have to wait until I can get it outside as my garage is too tight for door removal on both sides.

The thing is if you look at the pic of the car before I started stripping it you can see the fender and door alignment was very nice. Maybe the old door and fender were reworked to fit or something. The measurements from the Dynacorn door seem to be close though. I am really confused but there's something amiss here.


horse sence

That $5 hooker turn out to be a guy
Mod Dude
Nov 29, 1999
8,788
2,974
233
Wile Coyote's stunt double

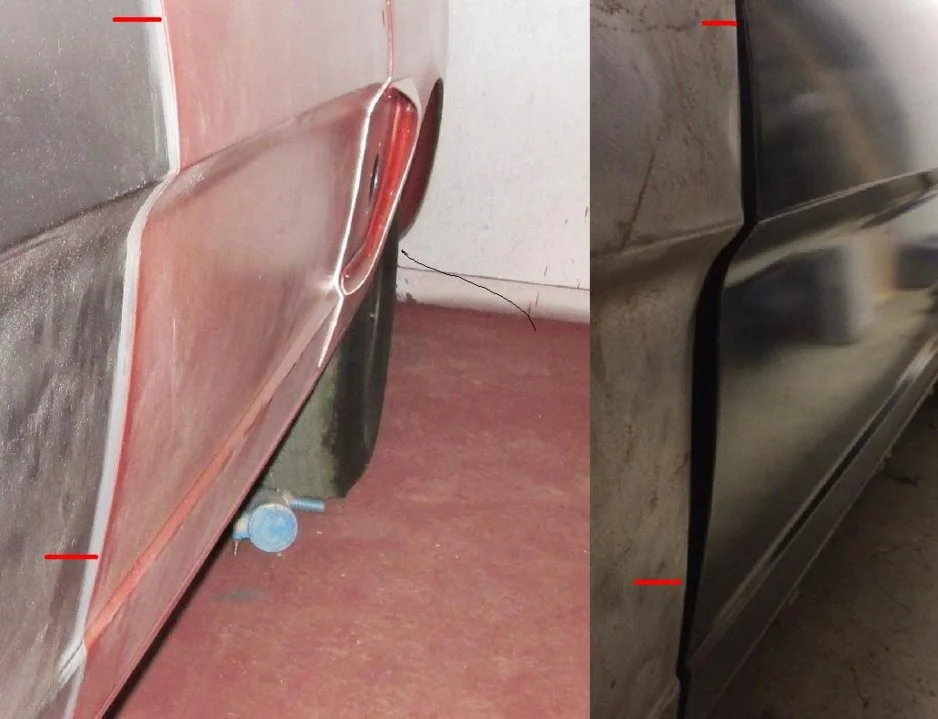

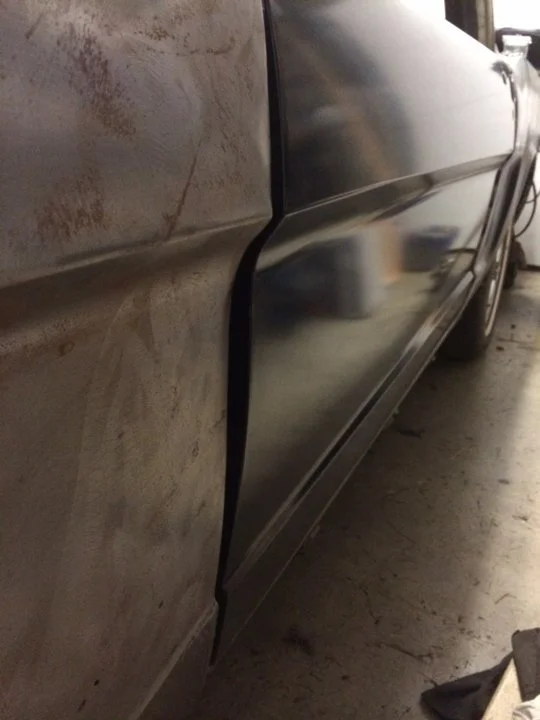

I tried to do a compare between the door and fender on your car and my car ,it really looks like your fender is pushed in, in between the two red lines .
