Progress Thread Finally got my first Fox Body - 1988 GT

DudeStang

Active Member
Apr 30, 2017
318
144
53
In order to use the factory plug you'd have to drill and tap the end, where the rubber grommet is, and install a plug. A 3/8 pipe thread tap and 3/8 plug works well for that. It looks ugly though...and as cheap as the aftermarket plug is...its worth it not to have the hassle. I bough mine from LMR. It didn't come with a new o ring so I used my old one. It goes at the end of the threads by the top of the cap.
I went ahead and ordered the one from LMR as well, despite it not having the o ring. The shipping cost for the MM plug was $24 (cheapest option) and I couldn't find anything else on their site that I desperately need right now.

  • Like
Reactions: 90sickfox
  • Sponsors(?)


DudeStang

Active Member
Apr 30, 2017
318
144
53
Shocker! They always make it look easy.
When I was researching springs, I watched one the LMR videos on installing springs. The comments took me in the direction of some random threads, including on SN, and it was one of the few times I’m glad I read comments. Definitely seems more challenging than LMR makes it out to be.


DudeStang

Active Member
Apr 30, 2017
318
144
53
I am planning to try and make some progress on the brake master cylinder swap this week. I've been looking through this article: https://lmr.com/products/Fox-Body-Mustang-Disc-Brake-Conversion-Installation-SVE-5-Lug-Kit and there's MC install instructions (about 3/4 of the way down). It doesn't say anything about removing or draining brake fluid from the MC reservoir before removing the MC...it just says to put paper towels or rags in the area below because fluid will leak. I'm wondering if this was maybe just an oversight and it does make sense to try and remove as much fluid as possible before pulling the MC out. Any thoughts from folks who have done this swap before?

Thanks


Rdub6

Mustang Master
Dec 29, 2017
1,597
1,185
123
Long Island, NY
I am planning to try and make some progress on the brake master cylinder swap this week. I've been looking through this article: https://lmr.com/products/Fox-Body-Mustang-Disc-Brake-Conversion-Installation-SVE-5-Lug-Kit and there's MC install instructions (about 3/4 of the way down). It doesn't say anything about removing or draining brake fluid from the MC reservoir before removing the MC...it just says to put paper towels or rags in the area below because fluid will leak. I'm wondering if this was maybe just an oversight and it does make sense to try and remove as much fluid as possible before pulling the MC out. Any thoughts from folks who have done this swap before?

Thanks
I recently did a MC swap in my truck. I just disconnected the bolts, unhooked the lines and took it out. The rags and towels are for the drips that will ruin your paint if you get it on it.
Bench bled my new one, and reversed the process.
Then of course bled the brakes once all was reconnected.

  • Like
Reactions: DudeStang

Mustang5L5

i'm familiar with penetration
Mod Dude
Feb 18, 2001
33,300
9,600
224
Massachusetts
The brake fluid won’t pour out. It might drip out a little bit but it should stay in the reseviour.

when I bought my hydroboost setup they shipped the Mc full of fluid and disconnected. Tiny bit of seepage out

  • Like
Reactions: DudeStang

DudeStang

Active Member
Apr 30, 2017
318
144
53
I recently did a MC swap in my truck. I just disconnected the bolts, unhooked the lines and took it out. The rags and towels are for the drips that will ruin your paint if you get it on it.
Bench bled my new one, and reversed the process.
Then of course bled the brakes once all was reconnected.
Awesome. Thanks!

Any time LMR uses the word "simply" in a video you know you are in trouble.

LMR: "simply remove your guage cluster, steering column, dash and heater box and the heater core is easily accessible" .......:rolleyes:
So true, lol

The brake fluid won’t pour out. It might drip out a little bit but it should stay in the reseviour.

when I bought my hydroboost setup they shipped the Mc full of fluid and disconnected. Tiny bit of seepage out
Very helpful, thanks!

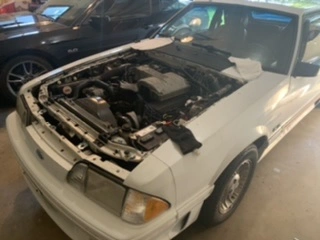

I removed the hood to replace the hood hinge cups and to install the hood firewall seal, but it seems this will make the brake MC installation a bit easier as well.

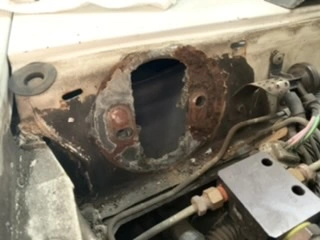

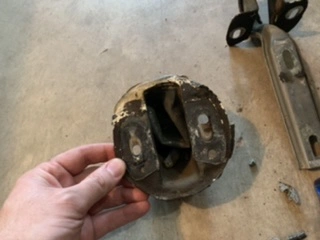

Passenger side is quite rusted...so I’m glad I decided to replace these.

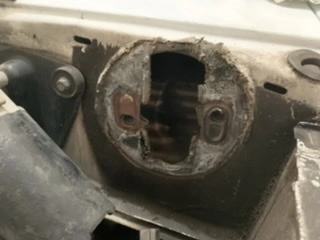

Driver side isn’t as bad but still needs some work.

I also ordered valve cover gaskets so I’m planning to do those and also clean up and paint the valve covers and intake manifold while I have them off.


Rdub6

Mustang Master
Dec 29, 2017
1,597
1,185
123
Long Island, NY
Awesome. Thanks!


So true, lol


Very helpful, thanks!

I removed the hood to replace the hood hinge cups and to install the hood firewall seal, but it seems this will make the brake MC installation a bit easier as well.

Passenger side is quite rusted...so I’m glad I decided to replace these.

Driver side isn’t as bad but still needs some work.

I also ordered valve cover gaskets so I’m planning to do those and also clean up and paint the valve covers and intake manifold while I have them off.
Wow..... I guess that rust on the hinge cups was a product of the bad hood seal. Havnt really heard of that being a typical rust spot.


DudeStang

Active Member
Apr 30, 2017
318
144
53
Wow..... I guess that rust on the hinge cups was a product of the bad hood seal. Havnt really heard of that being a typical rust spot.
Right? I was thinking the same thing....I need to look back through my pictures and see if the seal was significantly worse on one side because the rust is definitely a lot worse on the passenger side.

I did a little bit of drill brushing last night. This is the passenger side.

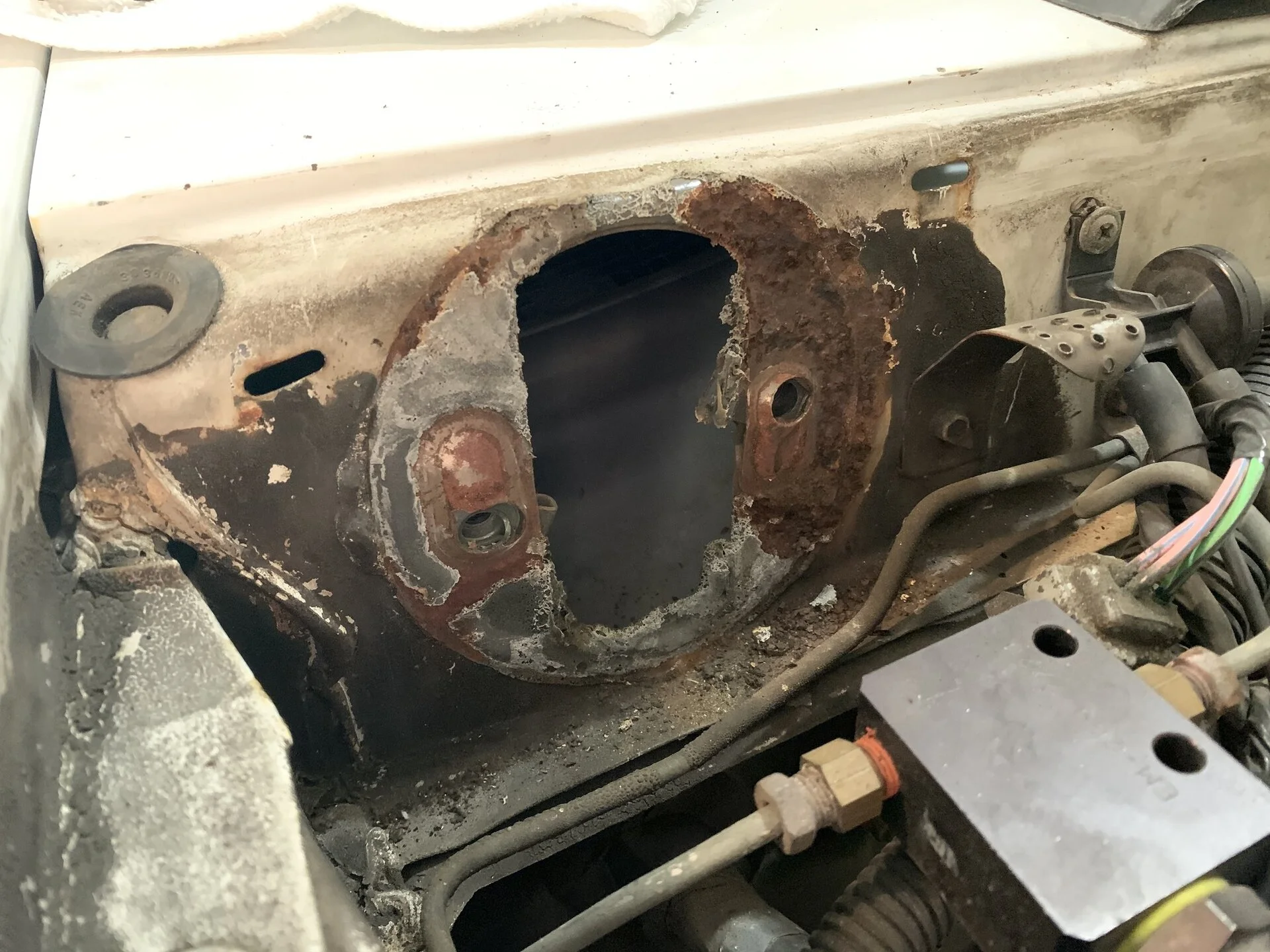

Before:

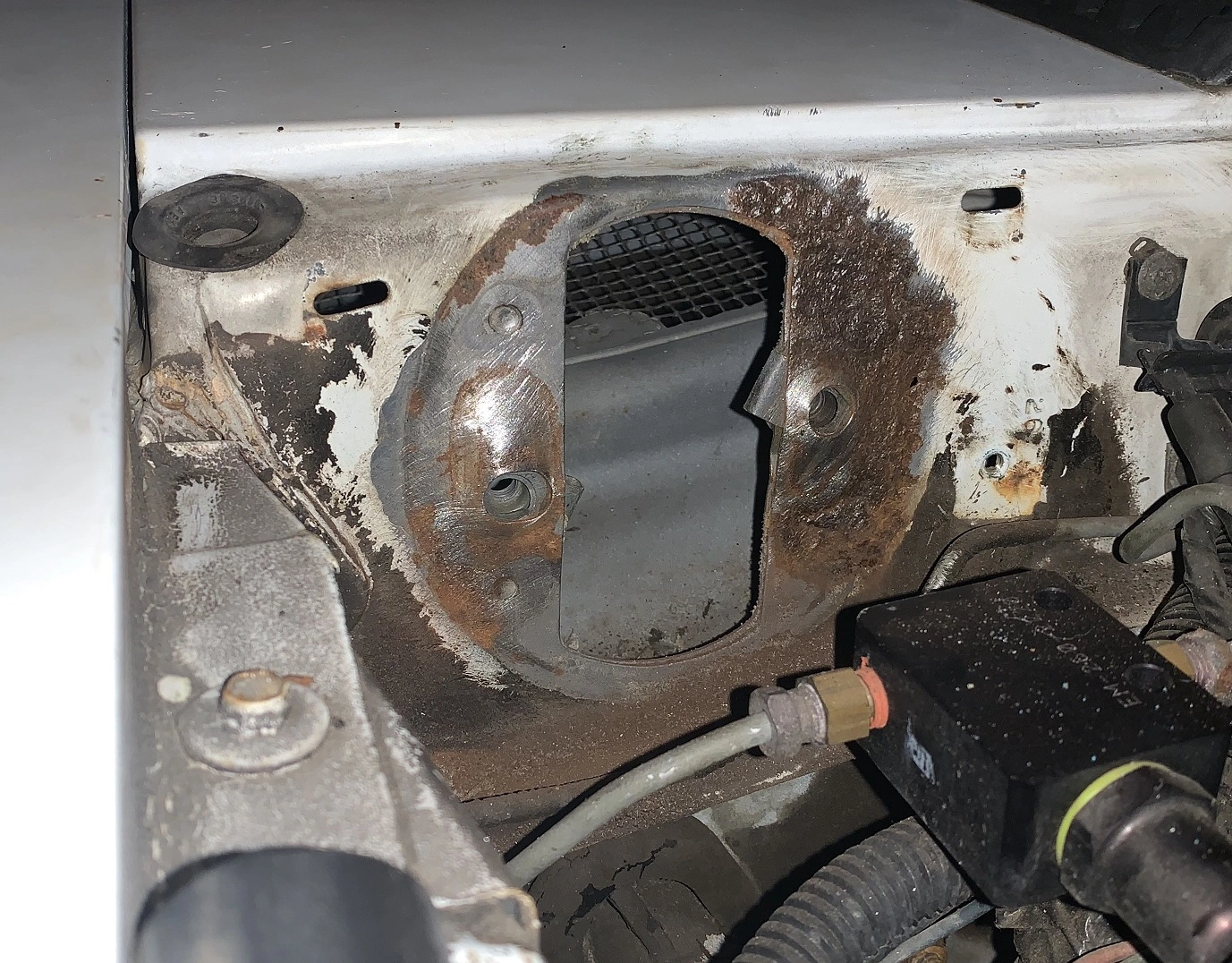

After:

Still gotta do some more work. I'm hoping the small can of POR-15 I got recently will be enough to cover both this and the shock tower but I guess we'll see...

  • Like
Reactions: 90sickfox and Rdub6

CarMichael Angelo

clearly, I’ve got something going on in that hole
15 Year Member
Nov 29, 1999
9,176
6,956
234
62
Birmingham, al
m.imdb.com
Right? I was thinking the same thing....I need to look back through my pictures and see if the seal was significantly worse on one side because the rust is definitely a lot worse on the passenger side.

I did a little bit of drill brushing last night. This is the passenger side.
Before:
After:

Still gotta do some more work. I'm hoping the small can of POR-15 I got recently will be enough to cover both this and the shock tower but I guess we'll see...
Every fox body car I've owned has had ( including the current one) significant rust issues in those areas.

  • Like
Reactions: DudeStang

DudeStang

Active Member
Apr 30, 2017
318
144
53

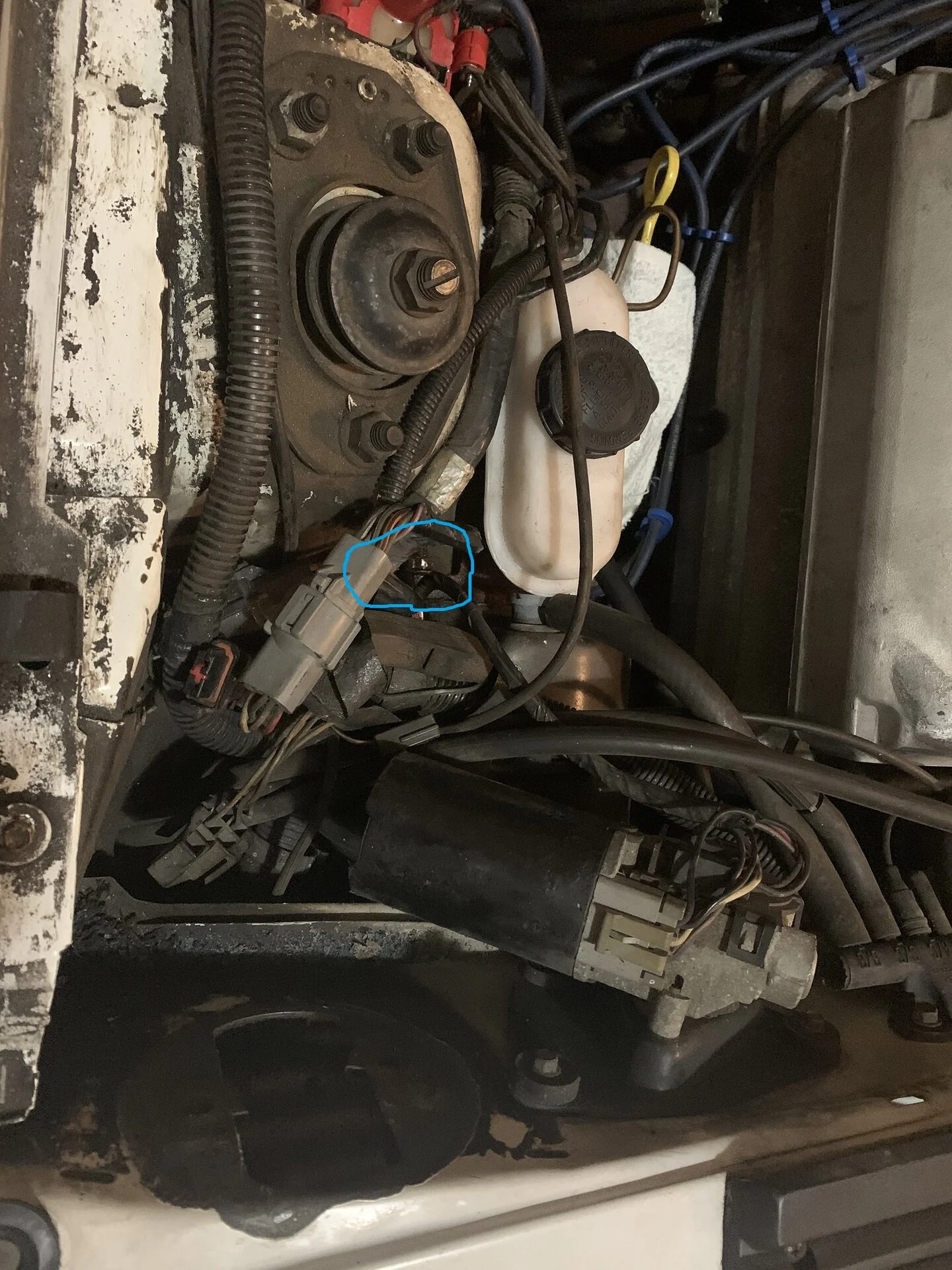

I made a brief attempt at getting the MC out last night but I wasn't able to get the nut off on the side closer to the fender. Any tips on getting that one out without breaking something or lighting the engine bay on fire?


Steel1

Mustang Master
Aug 18, 2017
1,096
494
113
51
Connecticut
Soak it with some penetrating oil ( I like PB blaster ) and let it sit for a while.
Not sure what kind of wrench you're using but if you have a socket or combo wrench in 12pt. that will grip the best.
If none of that works a little heat could be necessary.

  • Like
Reactions: DudeStang

90sickfox

I didn't really have an issue with the stink...
SN Certified Technician
Mar 2, 2015
5,170
4,262
203
42
I forgot how much stuff is over there on a stock car.

  • Like
Reactions: DudeStang

Blown88GT

Founding Member
Nov 13, 1999
2,110
494
134
Palm Beach Gardens, FL
I made a brief attempt at getting the MC out last night but I wasn't able to get the nut off on the side closer to the fender. Any tips on getting that one out without breaking something or lighting the engine bay on fire?
I needed a 14mm mid-length socket. None available locally; bought a 1/4 in drive deep well & had a friend mill it down. Then used a wobble extension on the modified socket.

  • Like
Reactions: DudeStang

DudeStang

Active Member
Apr 30, 2017
318
144
53
I needed a 14mm mid-length socket. None available locally; bought a 1/4 in drive deep well & had a friend mill it down. Then used a wobble extension on the modified socket.
Thanks. I need to get some wobble extensions...been meaning to pick some of those up for a while.

Is it because the nut will not turn, or you can’t get a wrench on it? Or both?
Both...I managed to get a 14mm (I think) wrench on once but couldn’t get it to turn. Also managed to get a mid length socket on but I can’t fit the wrench down there. I tried an extension but it was pressing against the shock tower and I couldn’t get a good angle and it wouldn’t turn.


Rdub6

Mustang Master
Dec 29, 2017
1,597
1,185
123
Long Island, NY
I’d go with some PB for a while - be patient and let it work. Then maybe a box wrench around it..... and some taps with a hammer to shock it loose.
