Never posted when it was done 2 years ago.

Rebuilt stock block, forged internals
TFS 170 heads
Chinese Cobra Intake
70 MM TB
73 MM MAF with 24# injectors
Shorty headers, off road H and flow masters
10* timing

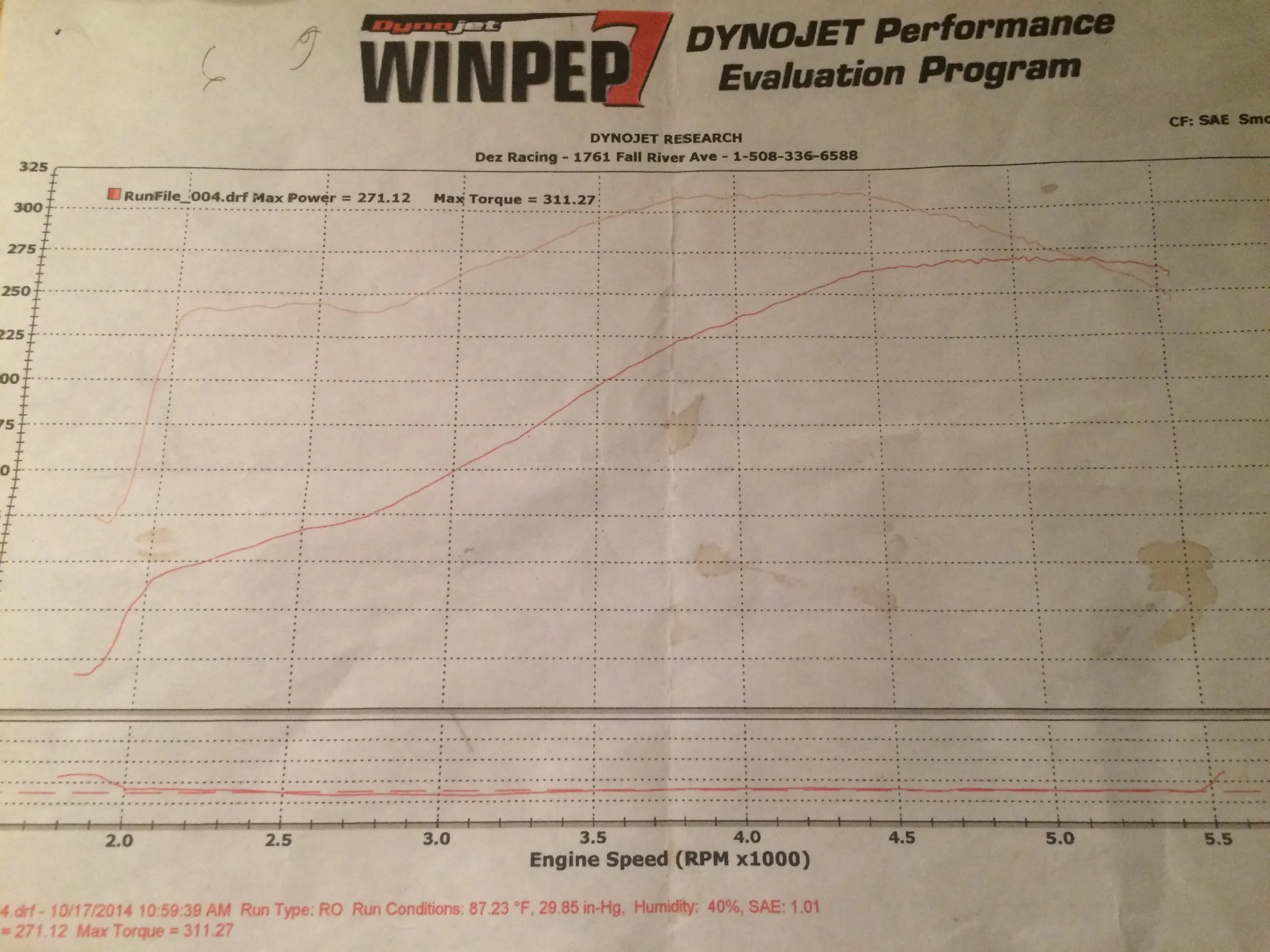

271/311


  • Like
Reactions: 1 user
  • Sponsors(?)


RangerJoe

I leave the horn on while driving
5 Year Member
Apr 26, 2010
2,560
1,167
174
Georgia
No dyno for new combo, but I do have a time slip.

-Home built, stock block 331, 10.7:1
-AFR 185'so OOTB w/ LS style valve springs
-FTI cam, 227/235 .613/.588 111.5
-HSM2 with 70mm Race Accufab and 80mm Pro-Mike
-AFM Big tube Shorties
-AC & PS intact
-No tuning
-3360lbso race weight

-7.45 @ 91.88 MPH leaving off 2 step @ 6,000 rpm. Online calculators show 364.5 rwhp.

Joe

  • Like
Reactions: 2 users

a91what

SendMeUrDataLog
Mod Dude
Apr 6, 2011
10,365
6,464
214
32
Hillsborough county

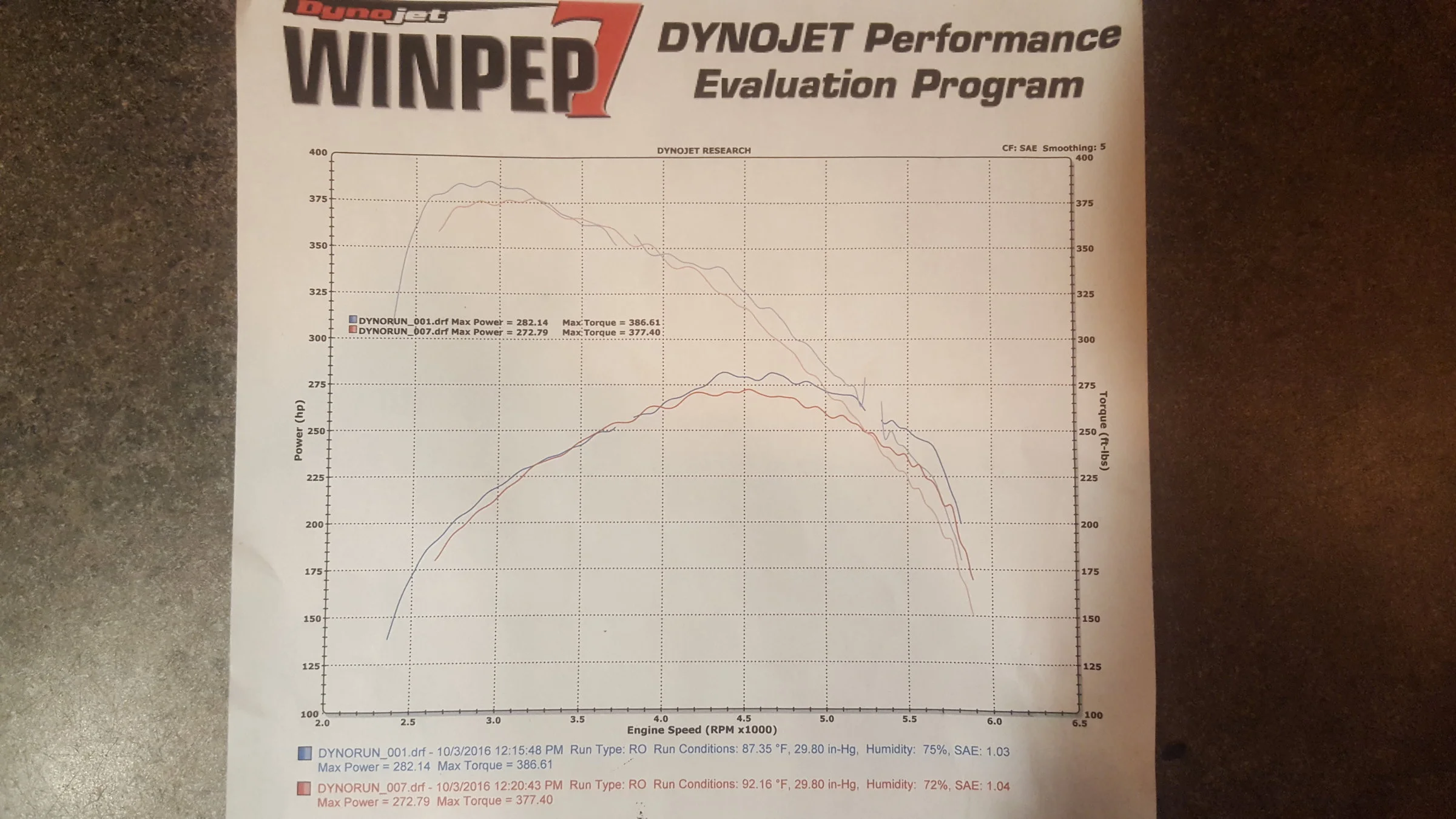

Here's my sheet, the supercharger puked it's guts during the pull (front seal). I think it has more potential but we will see.

306. 9.3:1
Gt40 3 bar heads home ported
Funnel Web
50lb injectors
Eaton m90 10psi -- 6psi by 5k rpm
E303
75 and 65mm throttle bodies
Blue oval shortie headers.
Alot of stock clutch slippage.

That's 386tq 282hp.

  • Like
Reactions: 4 users

Jason 302

10 Year Member
Aug 9, 2003
685
71
68
37
Newark, Ohio

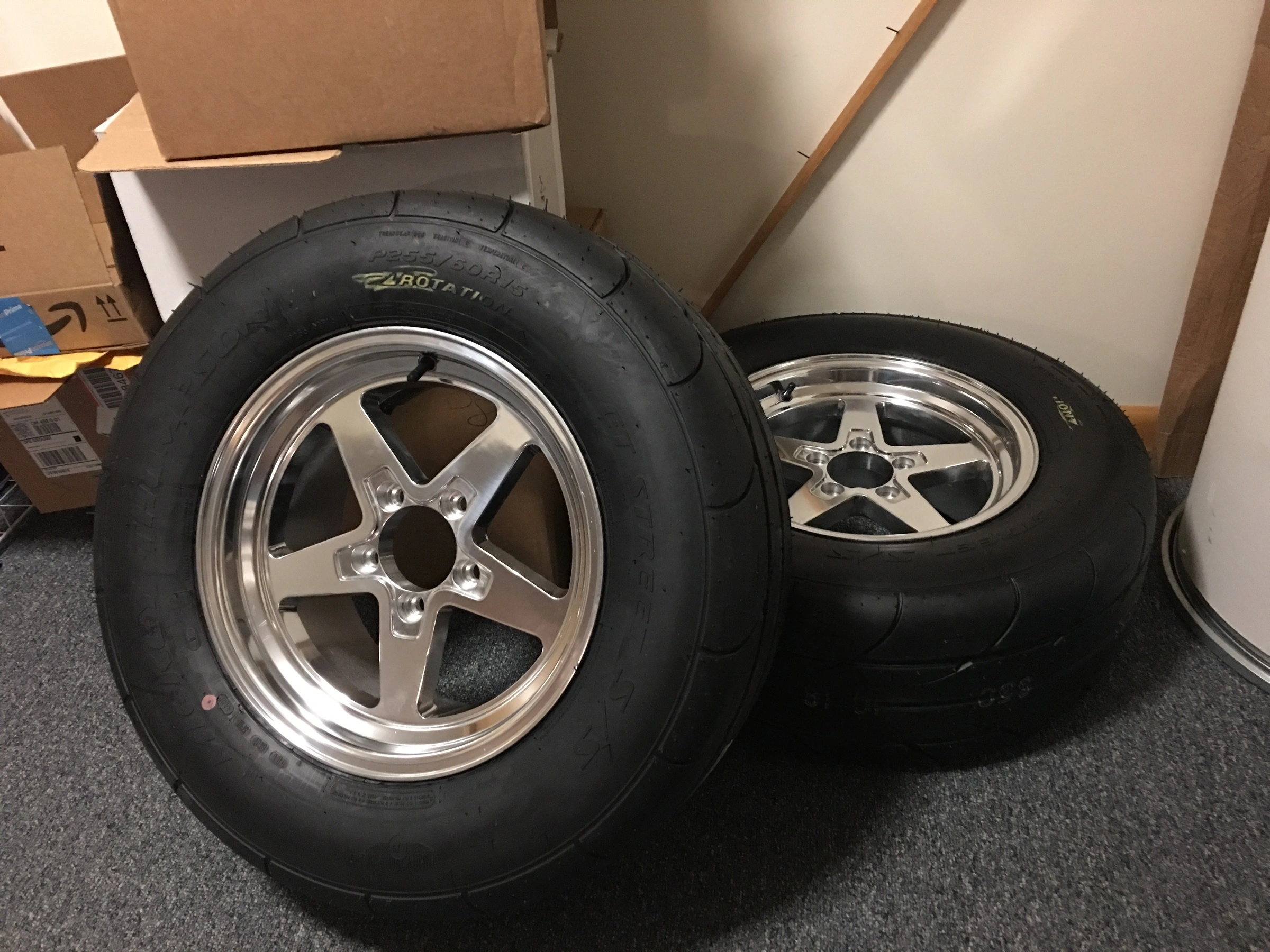

Curious what my 1/4 times will be now that I put some 255/60-15 Mickey Thompson S/S drag radials on the car.

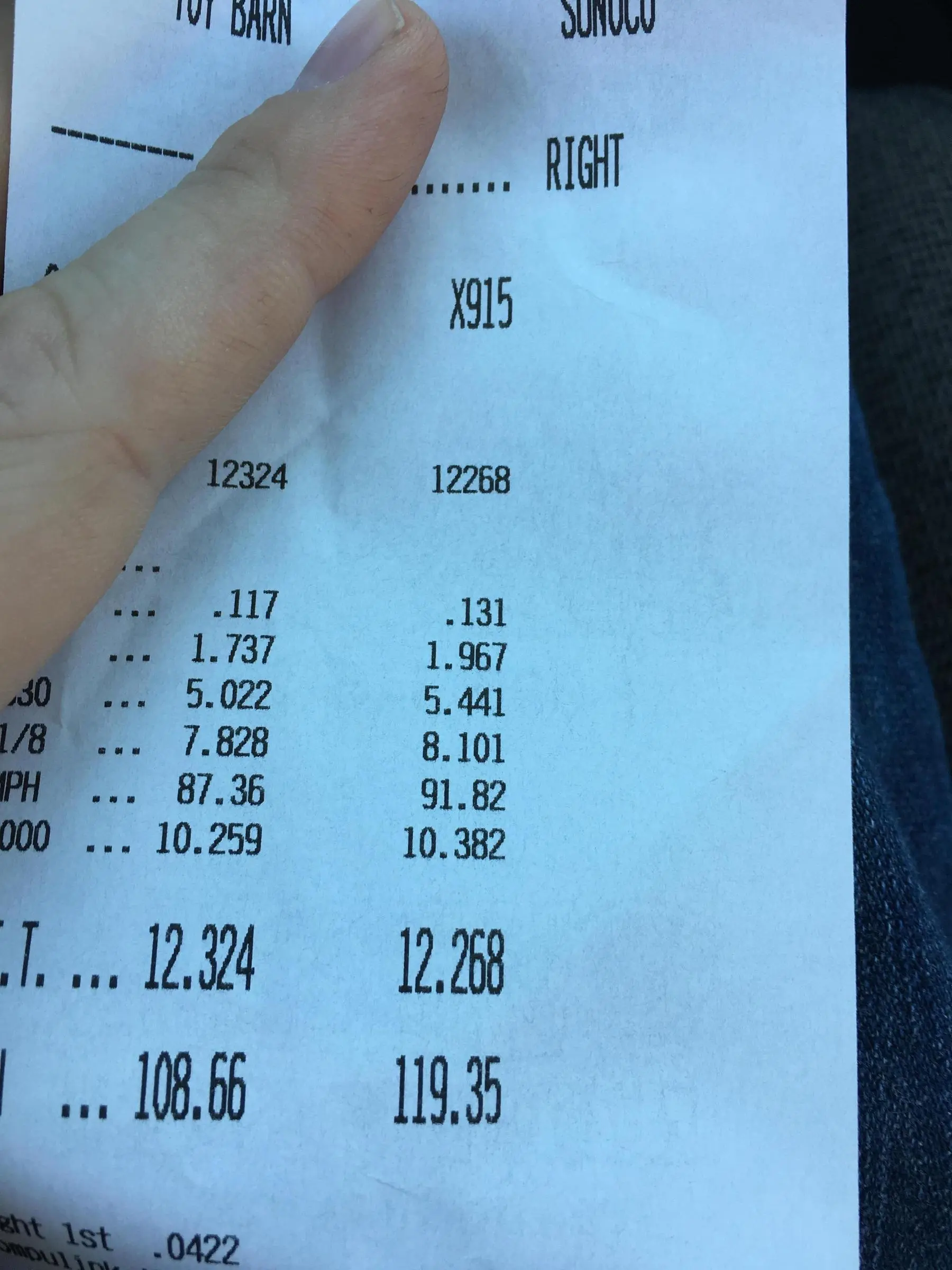

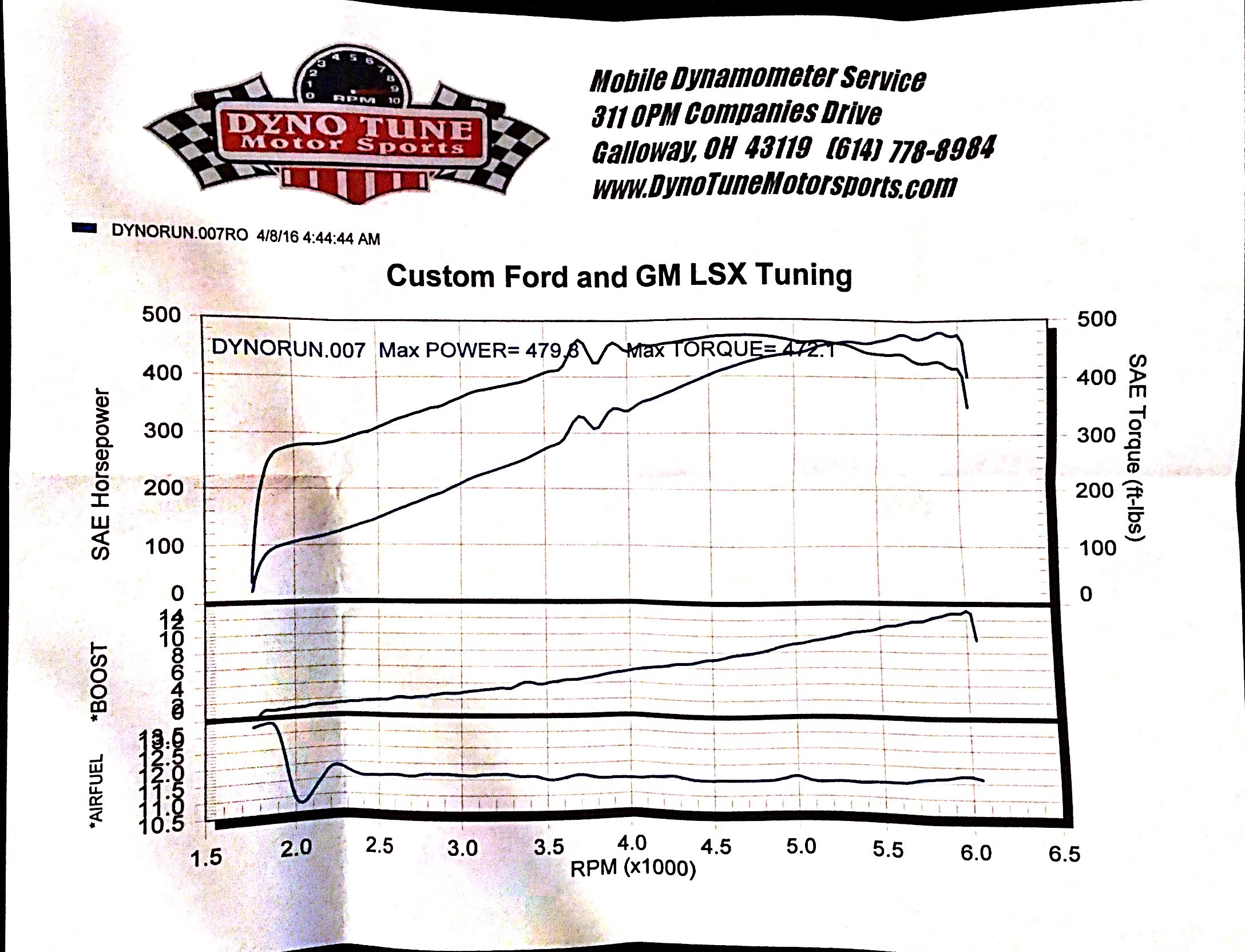

Car made 479rwhp and 473rwtq and ran 12.268 @ 119.35 on super cheap 245/45-17 radial tires last year. Any guesses?




  • Like
Reactions: 1 users

85_SS_302_Coupe

it sucks (I know) to be on the receiving end
15 Year Member
Nov 11, 2003
6,933
1,589
223
41
Northern KY
I've got one for you guys.

My old combo was:
347, I think around 9:1 because of deeply dished pistons and large factory combustion chambers
'69 C9OE 351W heads, ported and polished by hand (very well done) 1.90/1.60 valves
AFM N-91 cam
Wieand Stealth intake
Holley 650DP
Full length headers, etc etc.
Made 362/364 at the wheels


New combo will the the same except for:
AFR Renegade 185’s, 58cc chambers to hopefully bump that compression up
Edelbrock Victor Jr intake
Pro Systems 780cfm carb

Whenever I get around to finishing it. I'm actually concerned that the new heads won't make much more power. The old heads were ported by a wizard. I also kinda expect to lose torque or not make much more but gain peek HP.


Attachments

  • 347Dyno2.jpg
    267.8 KB · Views: 256
Last edited:

25thmustang

Mustang Master
Sep 5, 2003
2,021
85
99
36
Montgomery, NY
25thmustang


Stock Shortblock
Stock HO Cam
GT40 Valves and a valve job
1.7 Roller Rockers
Cobra Intake
65mm TB
Pro M 75mm MAF
Mac LT Headers
VRS O/R X pipe
Spintech Catback
AFPR, Pulleys
FMS Aluminum DS
Stock suspension

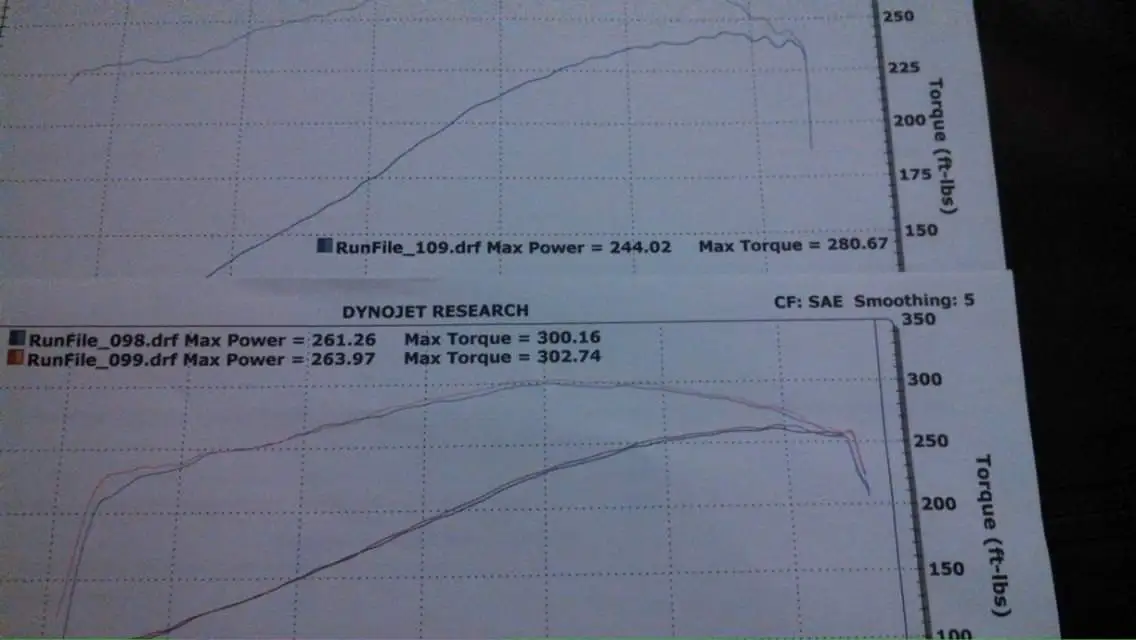

272 rwhp/ 316 rwtq


Can't believe I didn't mention track times. The car actually dynoed 256/295 when it ran its best times.

12.53 @ 107 on 17" ET Streets
12.95 @ 109 on 18" Street Radials

What suspension mods?

Mine has what I was told were Racecraft lowering springs, no name LCAs and the rest of it is stick 154k mike stuff. There is no weight transfer.

  • Like
Reactions: 1 user

MikeH686

Mine is only two inches though.
5 Year Member
Oct 11, 2011
2,840
1,730
174
29
Waldorf, MD
Dart 363 dart pro 1 heads 10:1 compression
7668 vs racing turbo at 10 psi 3200 lb car on 10x28" tires leaving at 3800 rpm

  • Like
Reactions: 2 users
Nov 23, 2017
2
2
13
22
Stock block 302
flat top 86' GT pistons
E7 heads lightly ported
1.72 roller rockers
stock HO cam
Weiand 8011 intake
670cfm street avenger carb
C4, FR Alum. DS, 8.8, 26x10 slicks
AC delete (still has p/s, clutch fan ect..)
91 Hatchback 2800lb race weight

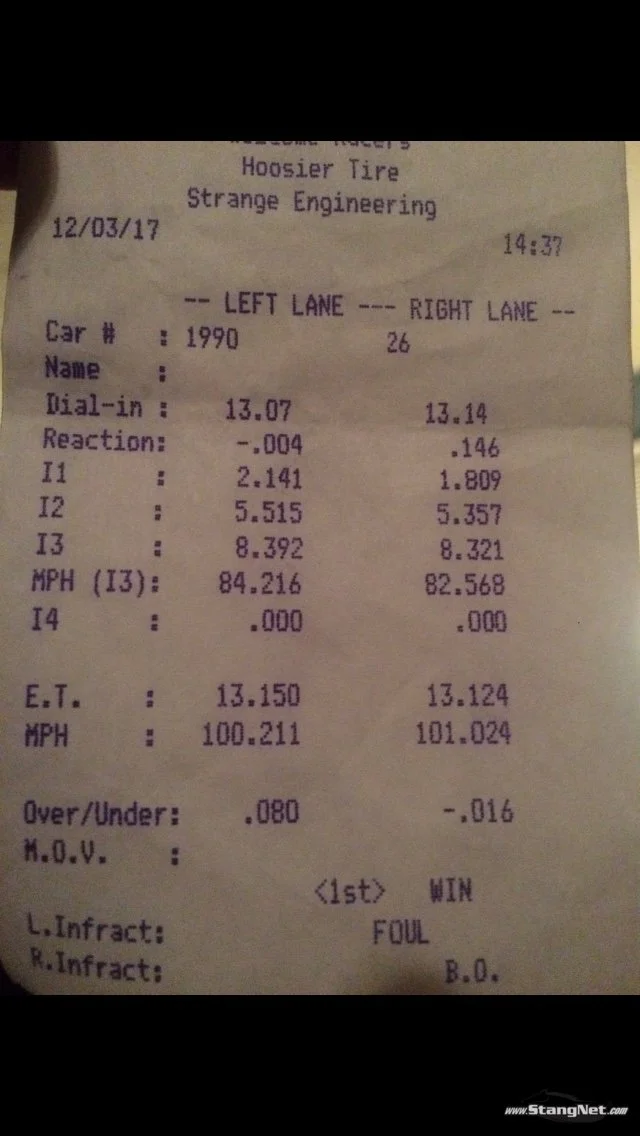

245 rwhp, 13.124 @101 mph w/1.809
60' ft

Last edited:
  • Like
Reactions: 1 user

deathb4dismount

Crap, didn’t realize my crotch was in that picture
5 Year Member
Oct 6, 2011
1,013
510
154
THE BUCKET

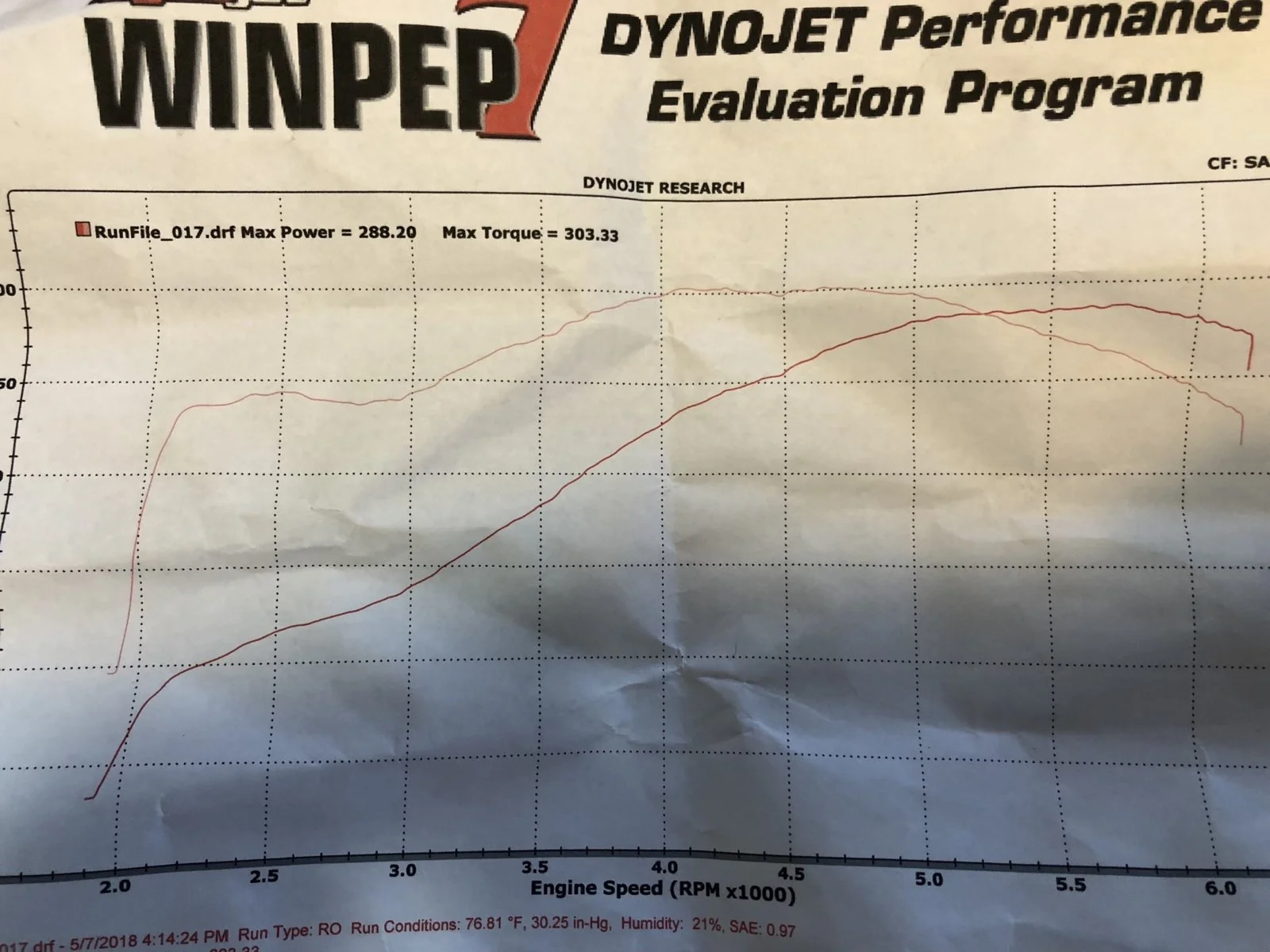

288/303. 306, TFS 170s, TFS stage 1, Holley Systemax, power pipe, 80 MM Maf, 75 MM tb, BBK shorties and h pipe. Maybe there’s more in it with some long tubes?

I assume a9l?
The stock ECU is a bit weak on its timing curve, how much timing and at what afr?

Stock computer and an ancient Superchips. It was in there when I bought the car. I know you and others will cringe, but I have absolutely no idea how much timing or what afr it’s running at. I leave that to the professionals.


Attachments

  • 9926F4C7-EE48-4846-BEC6-C95476D47B4E.jpeg
    239.4 KB · Views: 381

Dagassa

Member
Apr 2, 2018
4
7
13
53

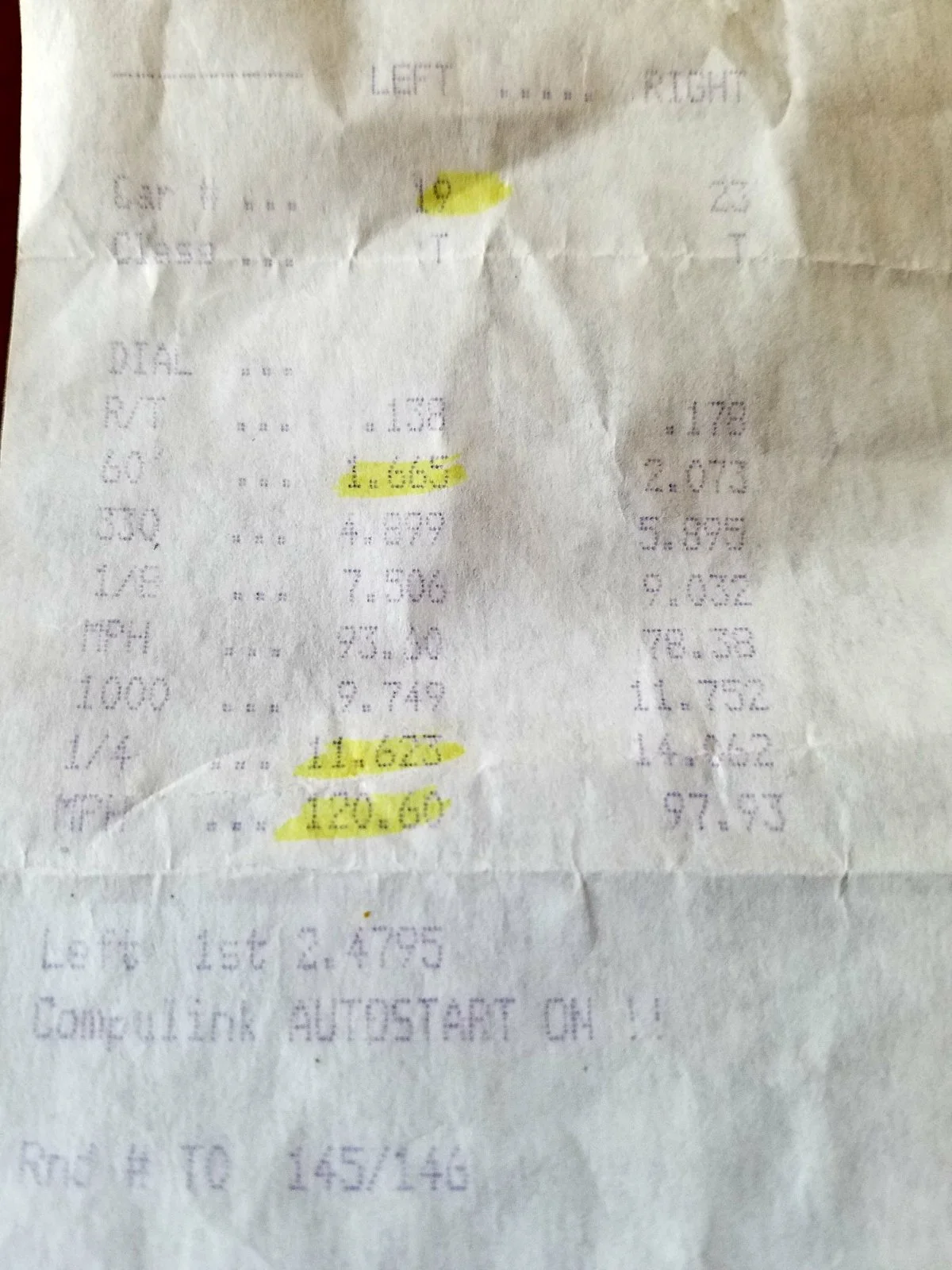

Recently purchased an 85 GT and it came with a time slip. :)

Mods are:

351W (F4TE block)
.040 over
10.5:1 compression
Ford "F" cam
AFR 185 heads (#1422, 58 cc)
Edelbrock RPM Air-Gap intake
150 shot NOS
Holley 4150 (4777-7, 650 DP)
3.73 Rear end gears
Tremec 3550
Mickey Thompson ET Streets
Southside Machine Lowers.
Stock springs.

Any guesses on HP/TQ? Also, any suggestions to get more power out of this combo? Thanks!


Attachments

  • Time slip.jpg
    Time slip.jpg
    269.9 KB · Views: 416
Last edited:

96pushrod

I think they're a little easier to get off
May 15, 2018
961
584
103
29
Savannah
347
10.8:1 comp, woody built long block
Forged internals
Custom comp cam: .576int .571 Exh. 226/234 @.050 112lsa. Idles nicely.
11r 205
Pro m 80
75mm tb
Ported r lower and stock box r upper
40lb injectors. 255lph pump
Stock sn95 fuel rails and lines.
A5 trans
Tuned with quarterhorse. 30 degrees advanced all in.
1 3/4 x 3in Long tubes with a pro chamber. The rest built by me using some dynomax ultra flows. Axle dumped.

All in a 96 chassis.

422hp @5500 /[email protected] Cars a little n/a monster on the street.


View: https://youtu.be/EkDJGlp3DTs

  • Like
Reactions: 5 users

GTVin

Member
Jan 15, 2019
52
4
18
48
San Diego
88 LX Magnaflow full exhaust with 4 cats, under drive pullies , March ram air, Cobra Intake, 76 MAF, 3:55 gears AOD with trans cooler and shift kit, and SCT chip

  • Like
Reactions: 1 user

FastDriver

My dad had a bra
SN Certified Technician
Sep 5, 2001
4,529
1,245
214
Fort Knox, KY
@RangerJoe
@85_SS_302_Coupe
Guys, you're the only ones I've left in the thread that never posted documentation. You're regulars and I trust you, but it would help keep the thread consistent if you'd post a timeslip or dyno for your combos. If you have them, please edit your posts to include them. Thank you!

  • Like
Reactions: 1 user

85_SS_302_Coupe

it sucks (I know) to be on the receiving end
15 Year Member
Nov 11, 2003
6,933
1,589
223
41
Northern KY
@RangerJoe
@85_SS_302_Coupe
Guys, you're the only ones I've left in the thread that never posted documentation. You're regulars and I trust you, but it would help keep the thread consistent if you'd post a timeslip or dyno for your combos. If you have them, please edit your posts to include them. Thank you!

I added my old dyno graph but it's 10 years old now and way obsolete. I never did get to race that combo so no time slips.

  • Like
Reactions: 1 user

Sk8trfred

Member
Feb 27, 2007
45
8
18
MA
Finally hitting the dyno in the AM

408w
AFR205
10.75:1 compression
Super Vic
Holley Sniper
1.75 Long Tube BBK
2.5" bbk catted H-pipe
Dynomax supertubo mufflers
CAM .608 lift 236/244 @.050 112 Separation 109 centerline
Tremec Magnum
3.73 gears

Last edited:
  • Hell Yeah!
Reactions: 1 user
Nov 23, 2017
2
2
13
22
My “new” combo:
Roller block 387w (3.85 stroke, 4in bore)
12.25:1 CR
Forged 4340 crank
Stock 351w rods, stock forged HO pistons
Edelbrock performer 2.02 heads, 1:6 Harlan sharp 7/16 rockers
Unknown HR cam, but it’s pretty big
Vic Jr intake, 780ps carb on 110 gas
1 3/4 BBK LTs, alternator, elec. water pump C4, PTC 4800 converter, 3:27 gear on 28x10.0 Hoosiers
2715lb race weight

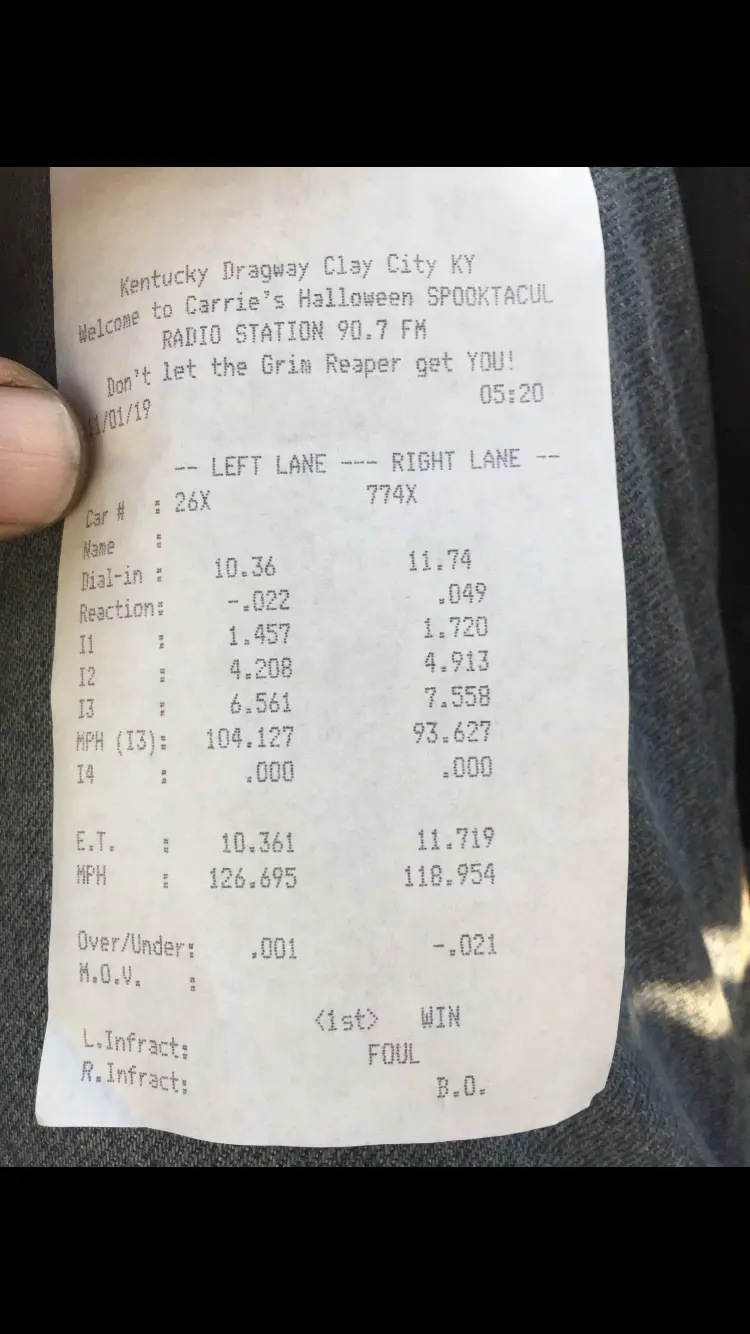

Left lane (26x)

Calculator says 483hp, I would guess close to 600 rwtq
