Build Thread '83 T-top Coupe - Welding Holes in My Rear

[Davedacarpainter]

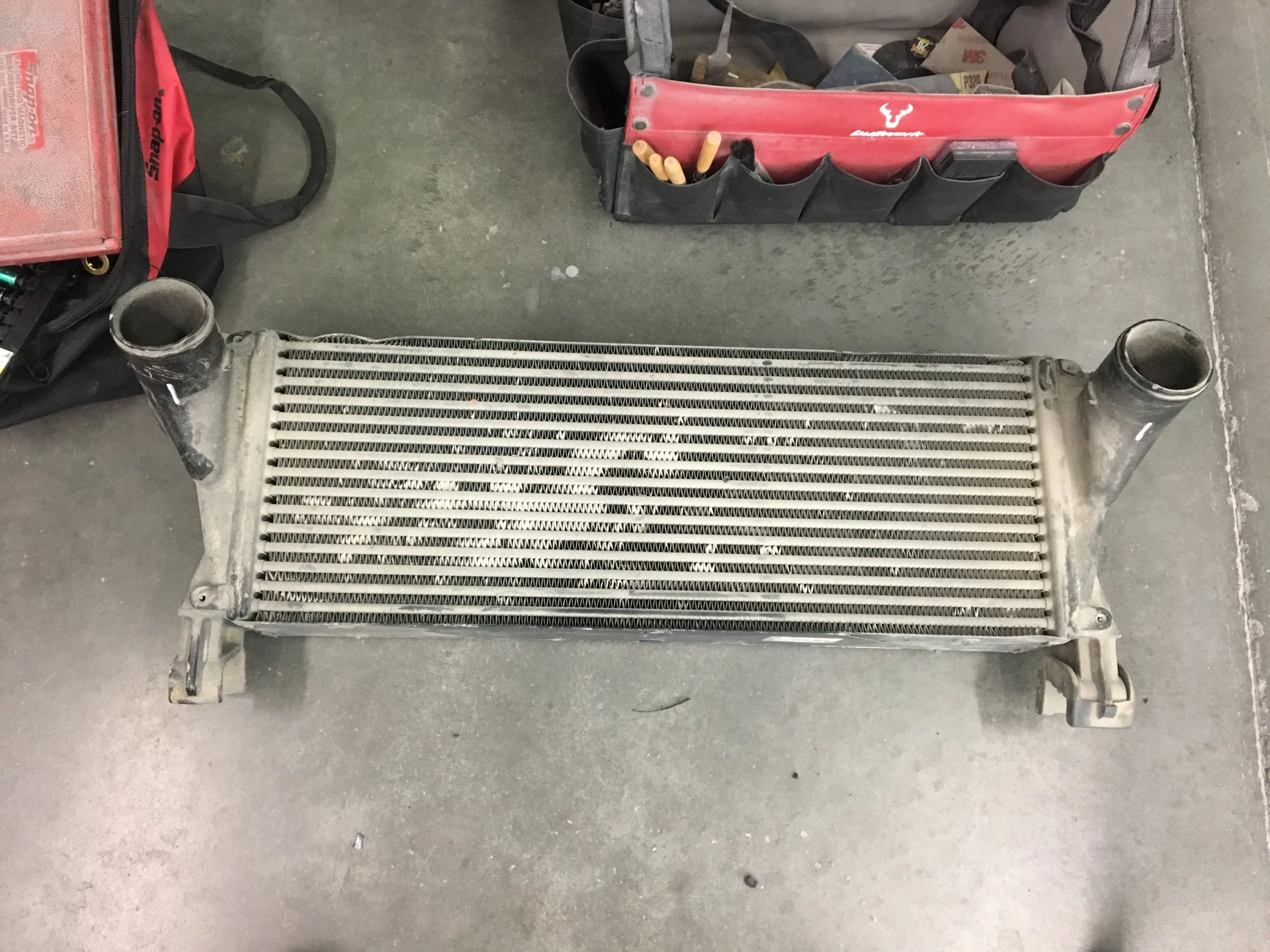

This came off a turbo diesel pick up at work. The truck only
had about 10k miles on it. I’m betting I can make this work on Scuby!

I’ll take a picture of it tonight with the original intercooler so you can see how much bigger it is.

Hopefully free will be good in this instance!

As a side note, same diameter tube as the sc’s.



[90sickfox]

I like where this is going'. Everyone is being bitten by the boost bug...



[Davedacarpainter]

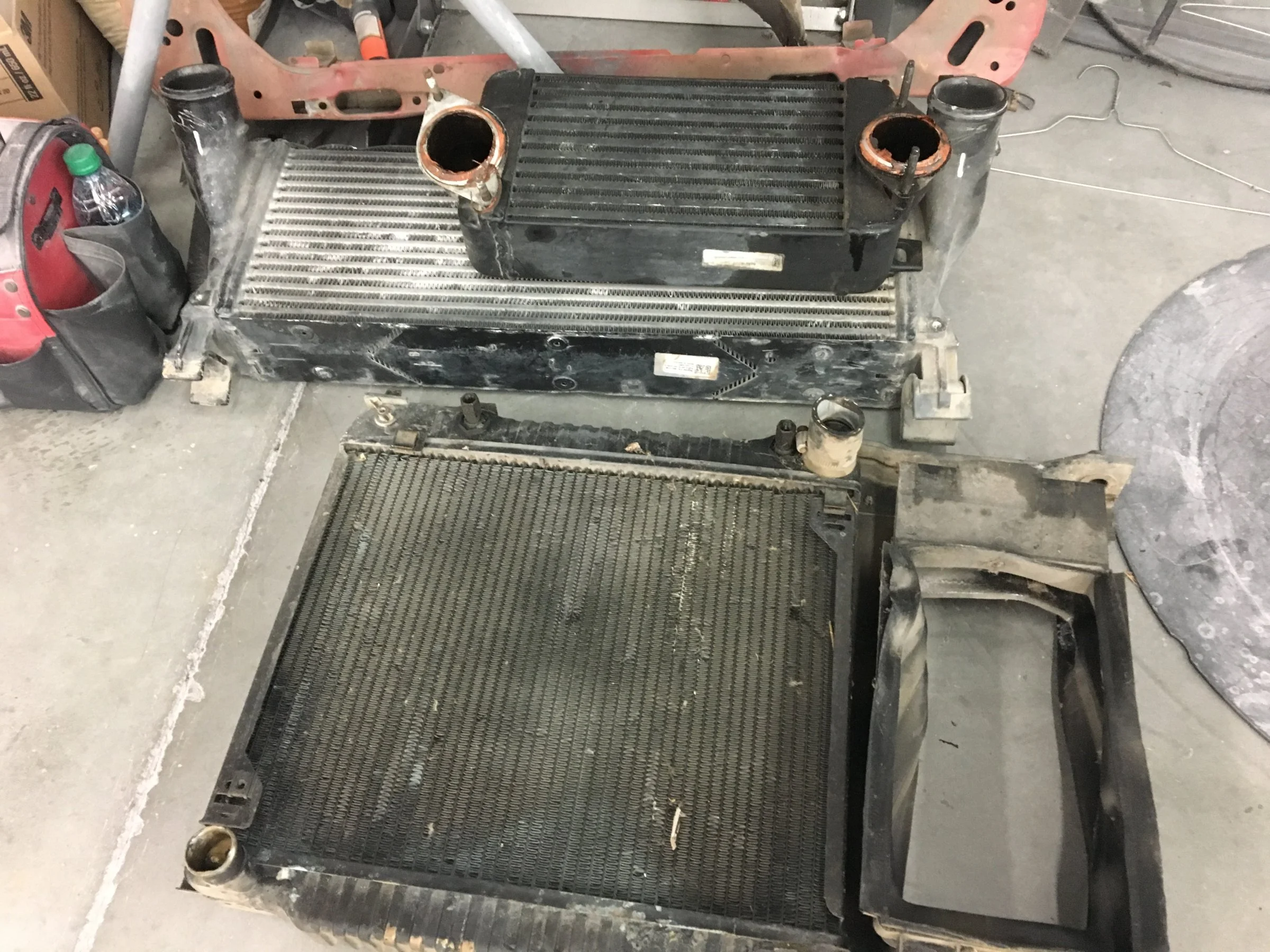

I went home at lunch and got the sc intercooler and the radiator. Plenty of room for everything.

Just a little larger, huh? That’s the sc intercooler on top. That’s the sc radiator in front of it.

I’ll do a tubular lower on the radiator support like Scott did. Give me that extra room.

I’ll pressure test it tomorrow.



[95BlueStallion]

Doesnt a giant intercooler create a significant boost drop?



[Bullitt347]

Doesnt a giant intercooler create a significant boost drop?

A good portion of boost (pressure) drop is due to the cooling of the air/charge temp. During one run in the drag car, the I/C pump did not work, and my air/charge temps went through the roof. The end result was a boost reading 10 psi higher than if the I/C pump had been on. The car made no more power even though the boost was significantly higher. I have data-logged the pressure difference before and after I/C and saw only a 1.5 psi drop. 18 psi after and 19.5 before. This is at around 1K power. Obviously my set up is a bit different that what is pictured, but maybe worth noting.



[90sickfox]

You should have plenty of room between the condenser and the bumper support for that thing....with only minor trimming. The tubular lower just gave me more room for piping.

Seems like one could be made way cheaper and easier than the one I got. All you need is a welder and a tubing bender.

How wide is the space between the inlet/outlet pipes ? Will a condenser or radiator fit between them ? I don't know how wide a v8 fox radiator is but.....



[Davedacarpainter]

You should have plenty of room between the condenser and the bumper support for that thing....with only minor trimming. The tubular lower just gave me more room for piping.

Seems like one could be made way cheaper and easier than the one I got. All you need is a welder and a tubing bender.

How wide is the space between the inlet/outlet pipes ? Will a condenser or radiator fit between them ? I don't know how wide a v8 fox radiator is but.....

Don't know for sure yet, I'm going to check tomorrow to see if a full size fox radiator will fit between the inlet and out.

I'll probably just buy the team z lower for the radiator support.



[Davedacarpainter]

@RaggedGT thanks for the new avatar!



[RaggedGT]

@RaggedGT thanks for the new avatar!

Glad ya liked it dave



[Vettn71]

Dave, in case you didn’t get to my thread

THANKS, MAN . You’re a great guy.

Happy Thanksgiving

Jim



[droopie85gt]

Is a 4.2 stoker worthwhile?

There's no replacement for displacement. More cubes equals more power potential. Since there's a factory 4.2 version of this engine, it would be a super easy choice to make. Unless it has some stupid ass hollow crank like a 255 sbf.

So then, cleaning, checking the integrity of the block and measurements for the first trip.

Thanks for the help thinking through this mike.

You could always just gunk the hell out of it and take it to the car wash, then deburr the block, open up oil return holes and the like. Get rid of sharp edges. No since doing the edges of the deck since it's going to get decked, but the bellhousing, oil pan rails, timing cover, etc. Sharp edges can lead to cracks and cut the hell out of you! Just super detail that block. With your skills, you could sand it smooth and prep it for a super paint job that no one can see once it's in the chassis, too!! lol.



[Davedacarpainter]

Dave, in case you didn’t get to my thread

THANKS, MAN . You’re a great guy.

Happy Thanksgiving

Jim

Thanks Jim, you have a good thanksgiving as well.



[Davedacarpainter]

This page is causing me to loose sleep....

http://supersixmotorsports.com/_pdf/2016/SSM2016catrev2ForgedInternals.pdf



[CarMichael Angelo]

This page is causing me to loose sleep....

http://supersixmotorsports.com/_pdf/2016/SSM2016catrev2ForgedInternals.pdf

Now that's the sht Dave. 4.3l in a pkg that's a fraction of the size and weight of my anchor.
Almost the same stroke, but w/a much better crank/rod combo. ( I have the same caliber piston)



[Vettn71]

Saweeeet



[droopie85gt]

I can blow that up to a 4 ft x 8 ft Fathead type wall decal at work and send it to you, so you can dream in bigger than life size! At least you only have 6 pistons and rods to get. That helps you hold down the cost a little. Little being figurative.



[stangboy]

HEEEEEEY GUYS!!!! Let's spend Dave's money!!!! I hypothetically built you a rock solid, high boostable, UNBEATABLE six shooter in less than 5 minutes, @Davedacarpainter



[Davedacarpainter]

Hey Steve @a91what , look, an adapting plate for an M112 for a supercoupe. I'm not saying I'm interested in doing this, just something interesting is all.
http://supersixmotorsports.com/_pdf/3.8_4.2/SSM2013catrev1IntakeManifolds.pdf

Would an M90 flow close to what an M112 flows with the MPx case and intake?



[a91what]

Dave all things equal, the m112 will flow more simply because it is a larger displacement blower.

The adapter is really cool however you will be in the same boat as myself relying on wmeth as the intercooler.

Cost is the next item, compare prices.

I think the m112 Essex 6 will be sweet.



[Noobz347]

Inter/aftercooling > water/meth just on the basis of maintenance alone.
