Have you had the fender and liner test fitted in place yet?
You may be surprised what's all going to keep the liner from fitting,I see a few things that may need to be reworked/routed for the liner to fit.

I have been test fitting the inner fenders as I’ve been working on this. You are right, it’s tighter than you think. I’ve had to make a few tweaks, but I think what I have will work.

I am going to grab the fender and do a full mock up. Would be worth checking at this point.

  • Sponsors(?)


Mustang5L5

i'm familiar with penetration
Mod Dude
Feb 18, 2001
35,977
11,917
224
Massachusetts
Too bad you did not plan a fuse/relay box before starting the wire hiding.

just gonna stick with the oem fuse box. I thought about doing an 94 style fuse box but didn’t want to over complicate things. I am trying to avoid going too far with this


7991LXnSHO

10 Year Member
Sep 1, 2010
4,719
1,345
184
Kearney, NE
just gonna stick with the oem fuse box. I thought about doing an 94 style fuse box but didn’t want to over complicate things. I am trying to avoid going too far with this
I meant just an aux location with a nice cover to hide stuff out under the hood without going into a fender. Not an entire electrical system surgery.


Mustang5L5

i'm familiar with penetration
Mod Dude
Feb 18, 2001
35,977
11,917
224
Massachusetts
I meant just an aux location with a nice cover to hide stuff out under the hood without going into a fender. Not an entire electrical system surgery.

I feel like that would be more complicated, as i'd need to extend the wires. Coil is still going back in the original spot, and i need to route my hydroboost lines also in that spot. So even though i've cleaned it out on the apron, it's not going to be open enough to mount a big fuse box. Plus i did want the wires in the fender vs running over the tower.

Basically...i'm committed now.


Mustang5L5

i'm familiar with penetration
Mod Dude
Feb 18, 2001
35,977
11,917
224
Massachusetts

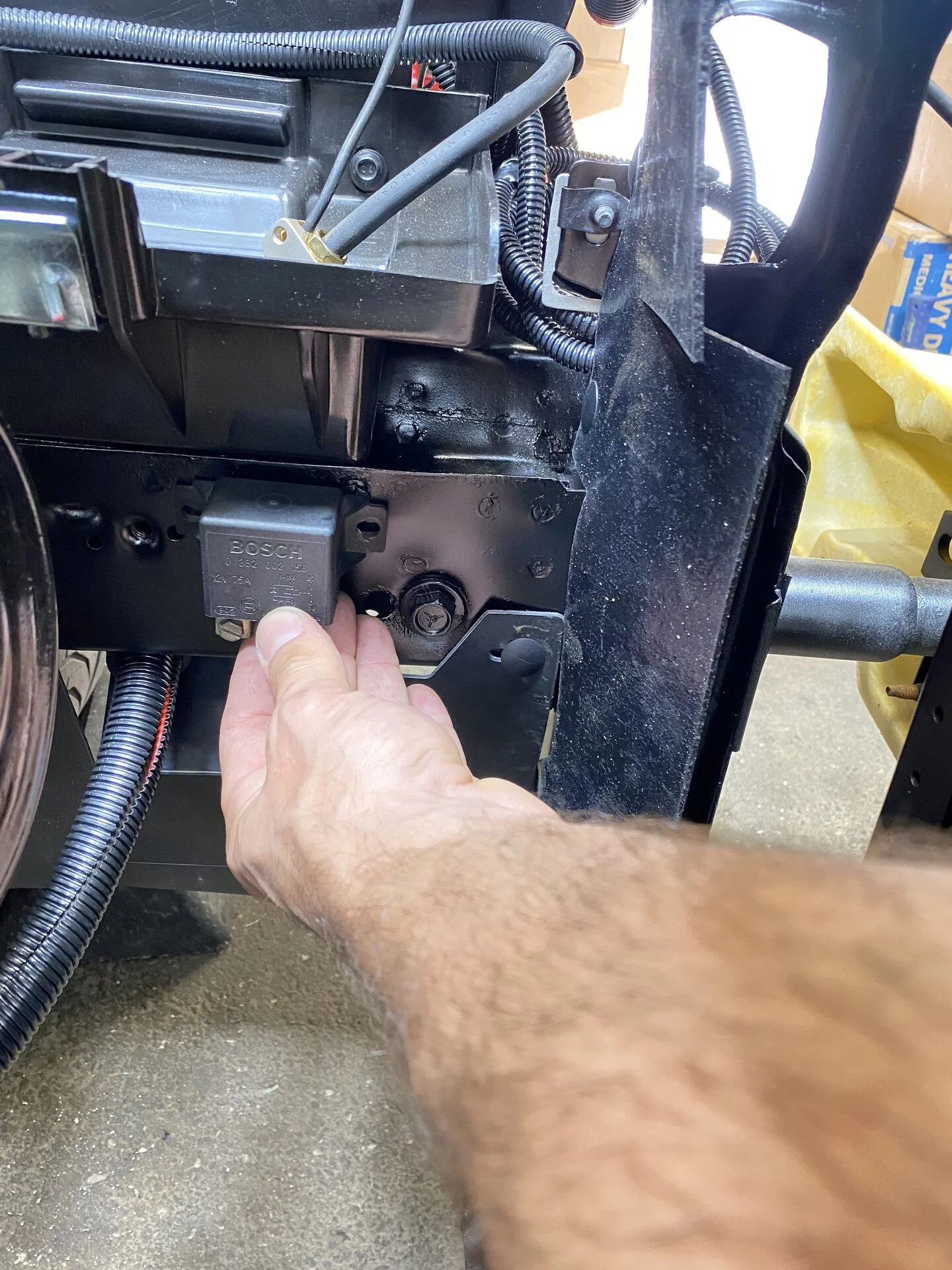

Ok. After sleeping on it, here’s where I’ll mount the starter relay.


out of sight, but I can still access it if I need to jump it or replace it. Car will never be driven in the rain, so shouldn’t be an issue here.

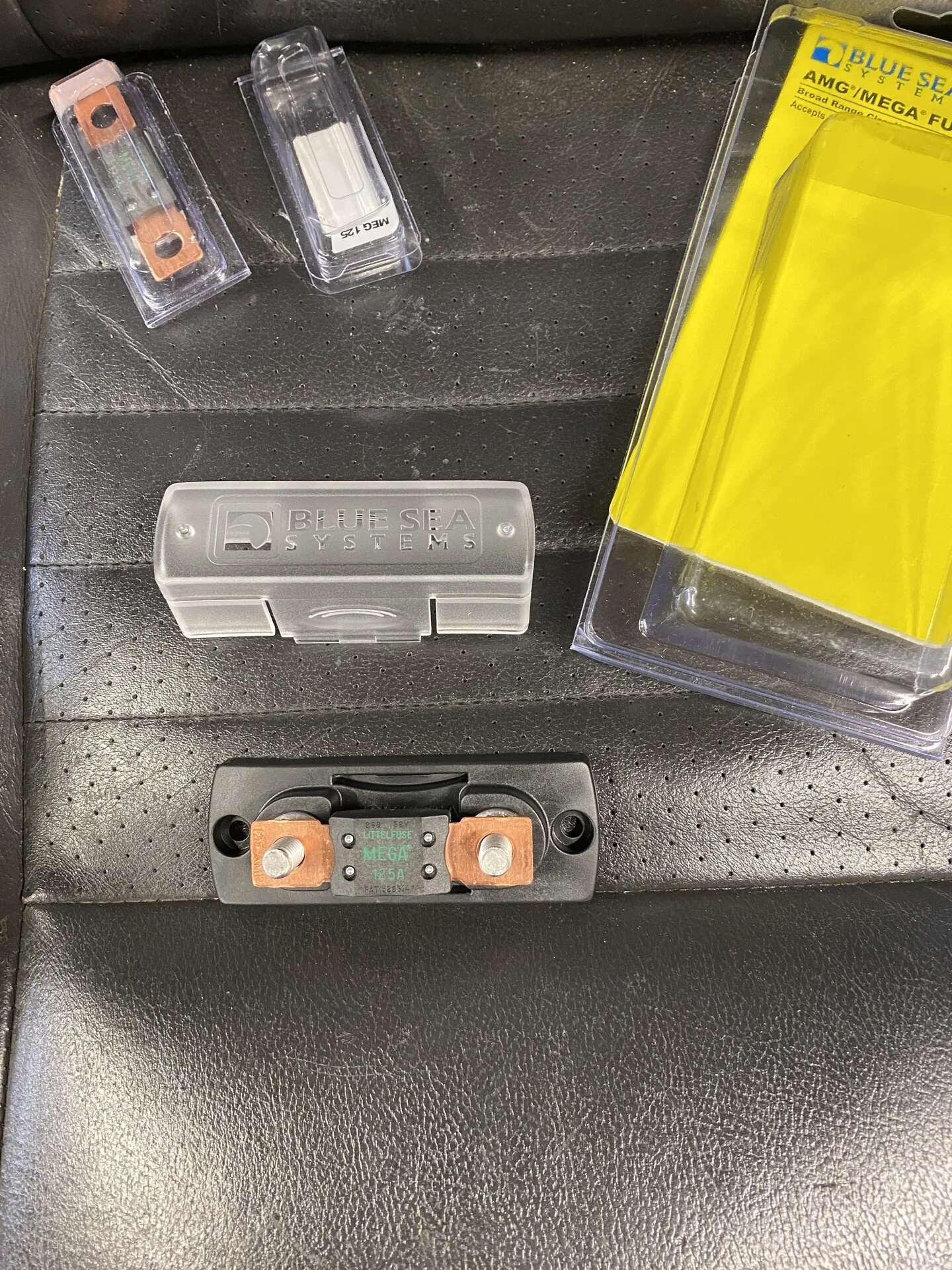

also got my alt fuse. Likely will install on same location on other side

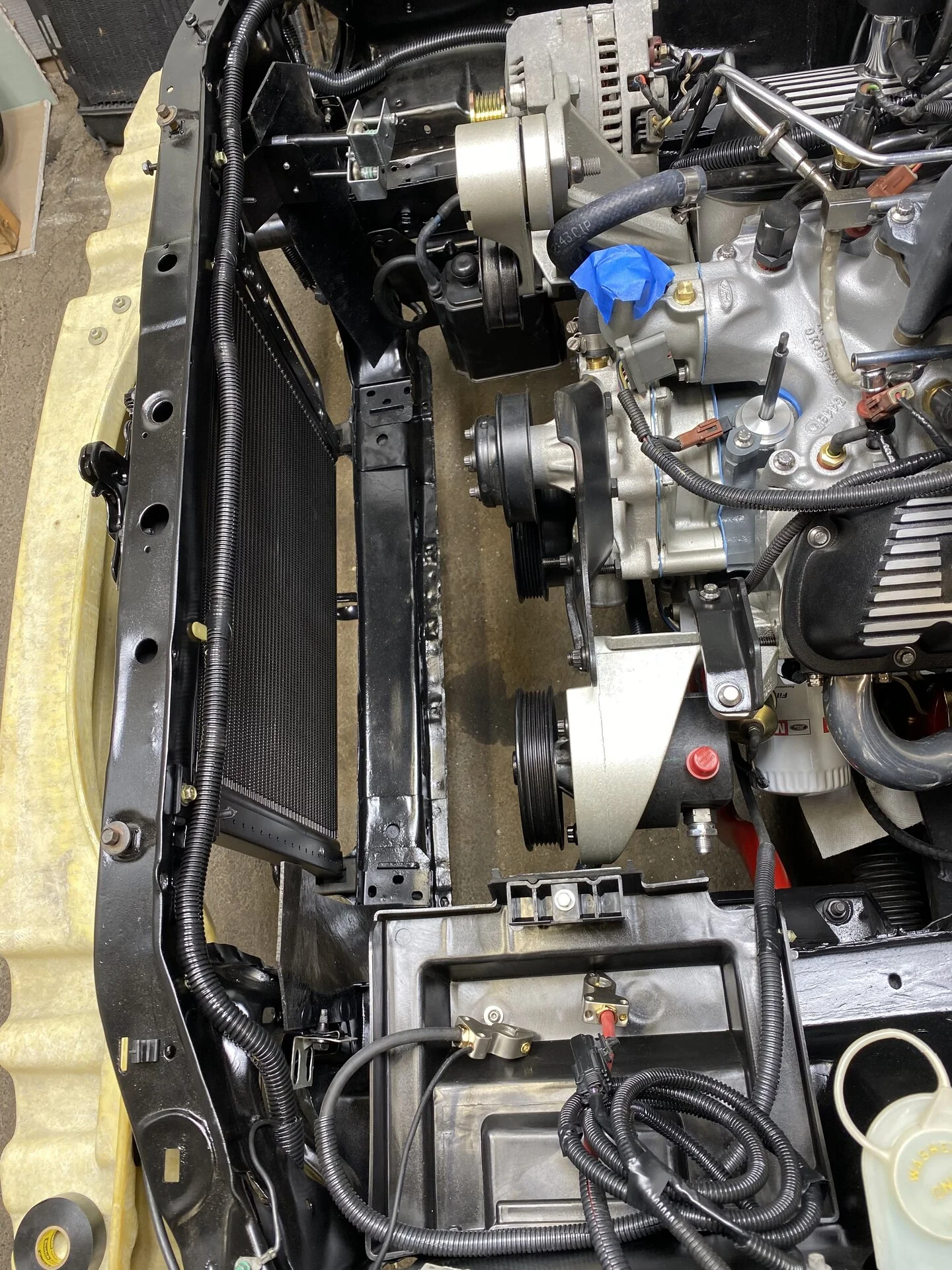

Reloomed and installed the headlight harness. Just need a few misc things and some small wire to wire up the starter relay and the car is almost fully wired.



I want to prime the fuel system and check for leaks, as well as blimp the starter over to make sure that all works.

  • Like
Reactions: 1 user

Rdub6

So while I wait to figure out my rear end issues
Dec 29, 2017
2,368
1,722
133
Long Island, NY
Ok. After sleeping on it, here’s where I’ll mount the starter relay.


out of sight, but I can still access it if I need to jump it or replace it. Car will never be driven in the rain, so shouldn’t be an issue here.

also got my alt fuse. Likely will install on same location on other side



Reloomed and installed the headlight harness. Just need a few misc things and some small wire to wire up the starter relay and the car is almost fully wired.



I want to prime the fuel system and check for leaks, as well as blimp the starter over to make sure that all works.
If you run that headlight harness inside the top of the radiator support, it will disappear too. Just sayin.... I know you don’t want to go too far. Lol

  • Like
Reactions: 1 user

Noobz347

Stangnet Facilities Maint Tech... Er... Janitor
Admin Dude
Jan 4, 1985
31,206
12,556
234
Box behind Walmart
www.stangnet.com
fc8946fe-dd2b-4636-94f5-1e2c63858546-jpeg.677932

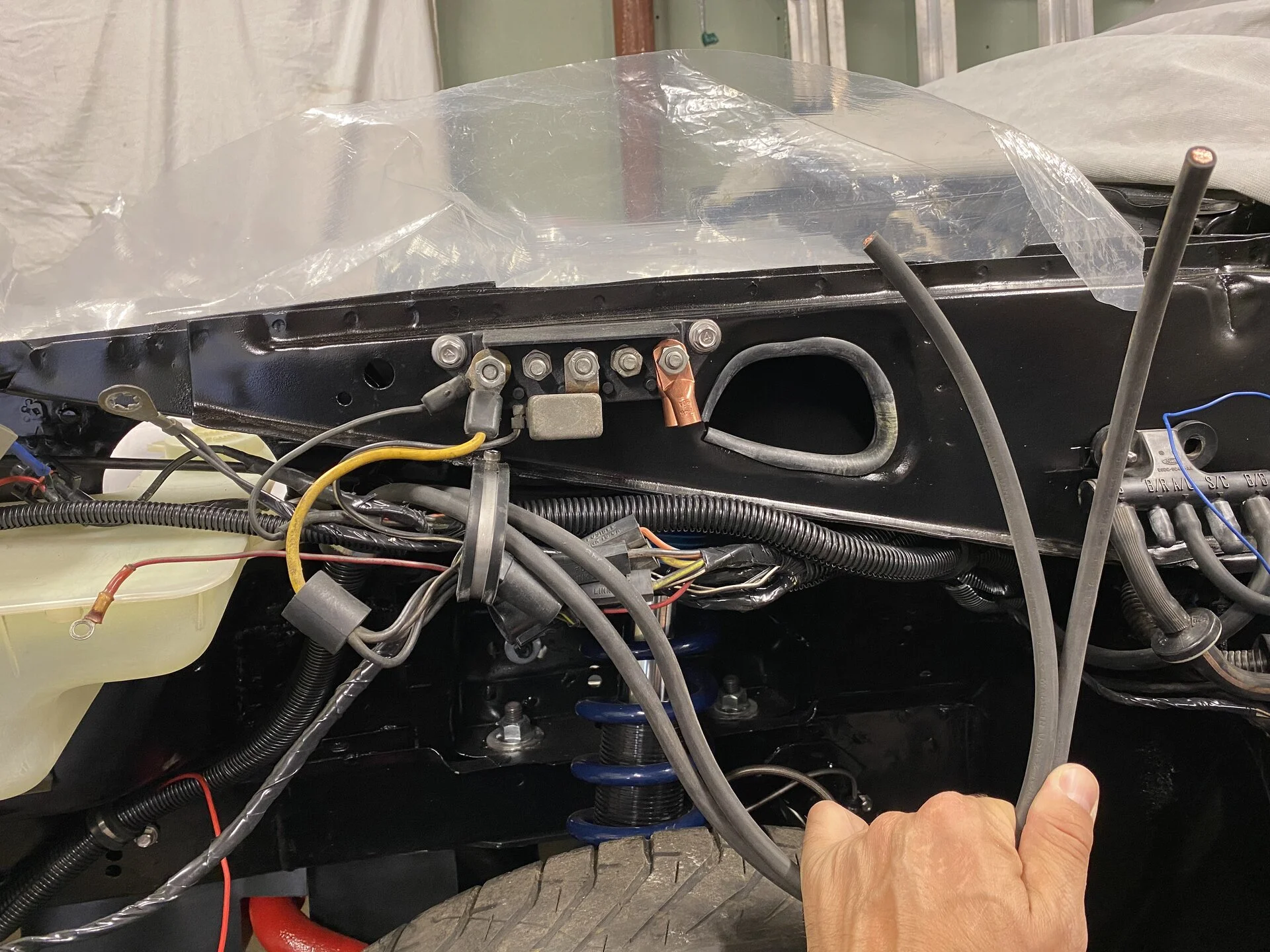

I envision a flat, 2-piece block that mounts to the fender for all this stuff. You'd have to measure each thing in the block and make a custom hole depending on how anal you wanted to be. :jester: Just tossin' that out there.

:demon:


  • Like
Reactions: 1 user

Mustang5L5

i'm familiar with penetration
Mod Dude
Feb 18, 2001
35,977
11,917
224
Massachusetts
Here’s a stupid question.

as I get more of the electrical online, I’ve been testing out all of it.

rear window defrost relay. When you turn the key to on but don’t start the engine , does the light come on and the relay click? Or does it need the engine running?


7991LXnSHO

10 Year Member
Sep 1, 2010
4,719
1,345
184
Kearney, NE
In the run position, the defroster light only comes on if the button is pushed. My exhaust and stereo are too old to hear that relay click normally, but I can listen later if the light goes on does not tell you enough. The light is only on while the defroster is.


Mustang5L5

i'm familiar with penetration
Mod Dude
Feb 18, 2001
35,977
11,917
224
Massachusetts
Does it do it if the engine is not running? Just turn the key to RUN and press the defrost button.

mine doesn’t come on (it used to) but not sure if the engine needs to be running. I could go dig the wiring diagram out and check.

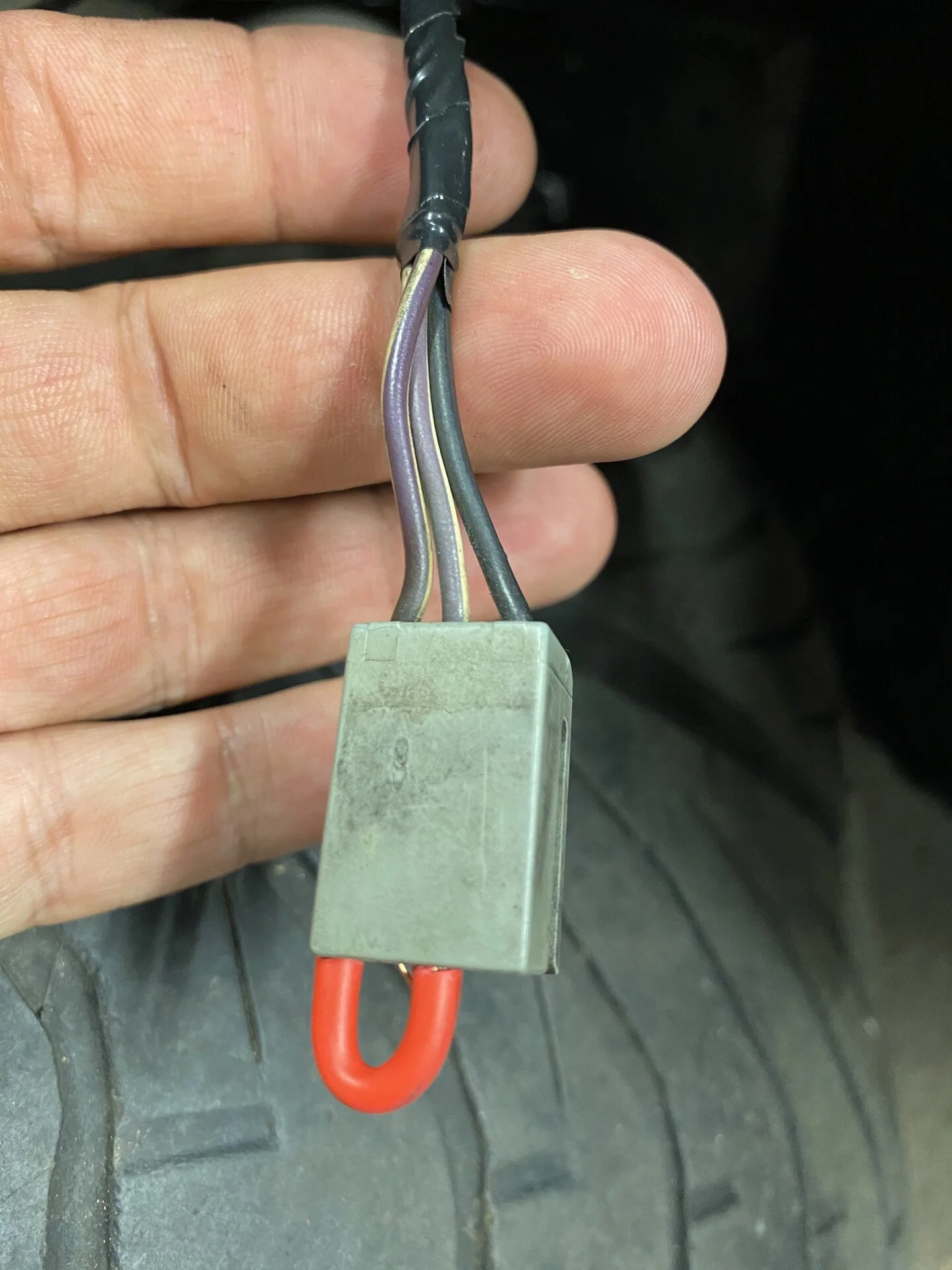

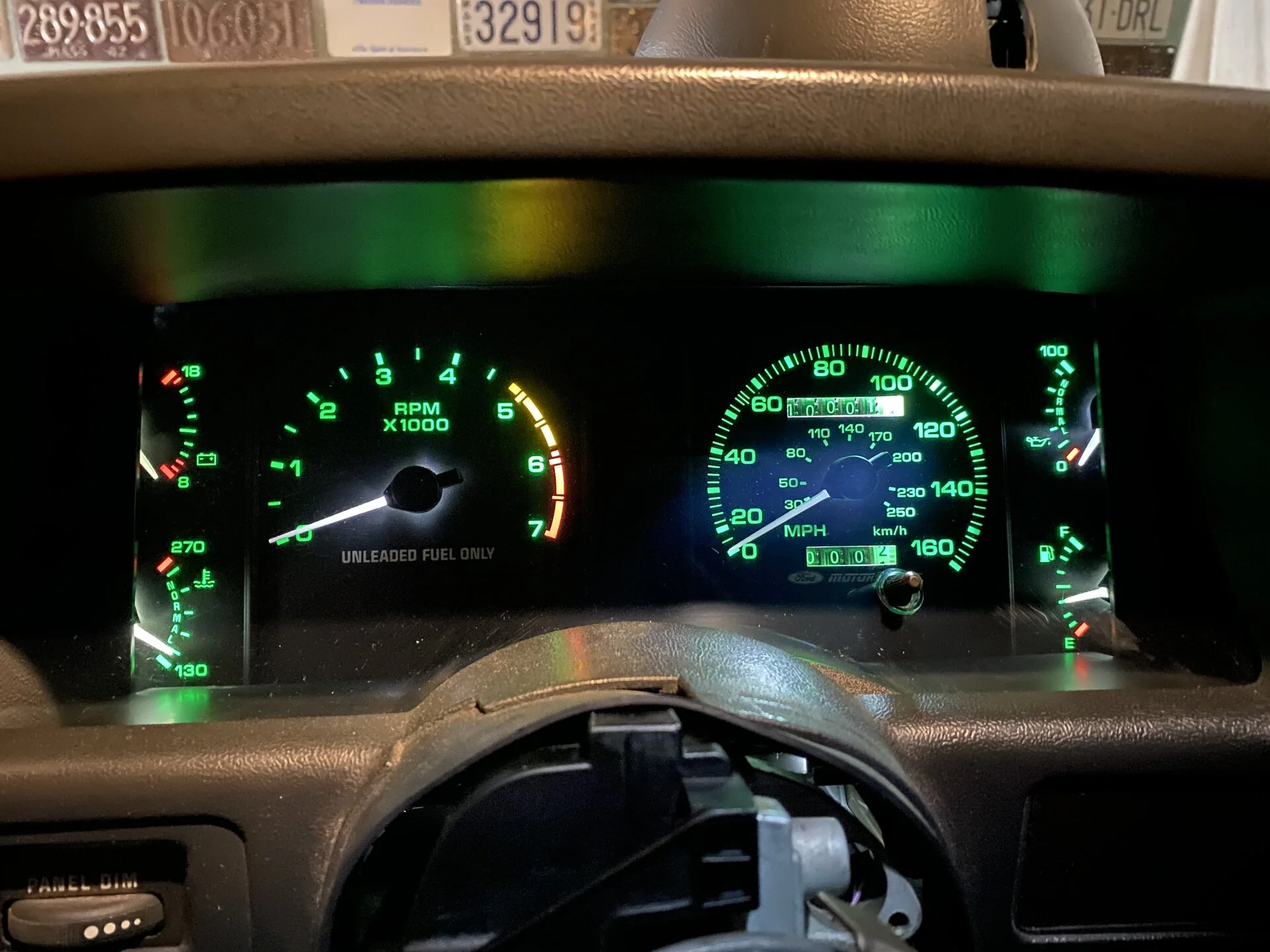

I have a couple small “glitches”. One is the defrost, the other is the BRAKE light doesn’t come on in the dash. With the baer MC there isn’t a provision, but it won’t come on with the parking brake. Bulb in cluster works. Not sure if I need to jumper the old MC plug to get it to work. Again, need to consult the wiring diagram


7991LXnSHO

10 Year Member
Sep 1, 2010
4,719
1,345
184
Kearney, NE
Does it do it if the engine is not running? Just turn the key to RUN and press the defrost button.

mine doesn’t come on (it used to) but not sure if the engine needs to be running. I could go dig the wiring diagram out and check.

I have a couple small “glitches”. One is the defrost, the other is the BRAKE light doesn’t come on in the dash. With the baer MC there isn’t a provision, but it won’t come on with the parking brake. Bulb in cluster works. Not sure if I need to jumper the old MC plug to get it to work. Again, need to consult the wiring diagram
I am sure it does, but will check before supper.

  • Like
Reactions: 1 user

7991LXnSHO

10 Year Member
Sep 1, 2010
4,719
1,345
184
Kearney, NE
I am sure it does, but will check before supper.
Key on, engine off, the defroster light is off until the spring loaded paddle is pushed. Then it stays on for a cycle.
I then started it with the light on. The light went off. (I assume it cuts power to most everything to start.) then running, I pushed the paddle and the light stayed on.

This is on a 91 LX 5.0 with a functioning hatch defroster.
Les

  • Like
Reactions: 1 user

Mustang5L5

i'm familiar with penetration
Mod Dude
Feb 18, 2001
35,977
11,917
224
Massachusetts
Ok. Defrost all set. Looks like one wire pulled out of the plug.

Just need to chase down why the brake light on the cluster doesn’t come on next.
