Put a 2.3 into a 5.0 chassis?

vristang

15 Year Member
Mar 31, 2005
4,933
106
124
Seattle
"Doing this out of necessity... as I need a car to get to work Monday"
As pointed out... I never said which Monday :jester:
Fortunately, I was able to make other arrangements...

Man, that sht just begs for a hydraulic throw out bearing.
Probably would have been easier to run Hydraulic clutch. Every damn Ranger in the local J/Y has hyd clutch.

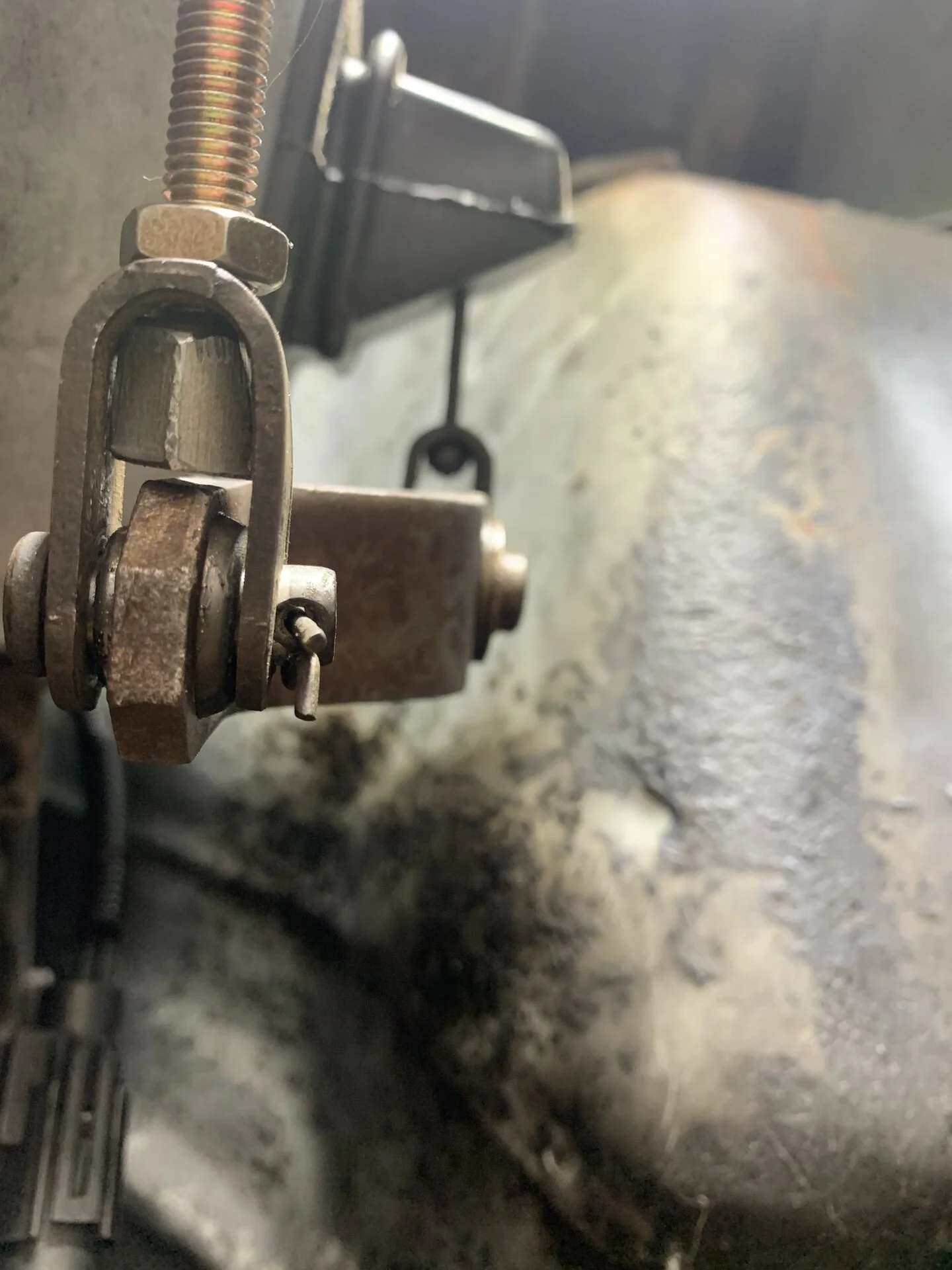

It took a couple weeks to find the right upper/lower clevis for this double throw setup. Parts stores don't seem to stock them.
And, the little dogbone cables are notorious for breaking...

On the list for future projects is either swap to a 5.0 flywheel/bellhousing OR modify this 2.3 bell for single throw.

  • Sponsors (?)


vristang

15 Year Member
Mar 31, 2005
4,933
106
124
Seattle

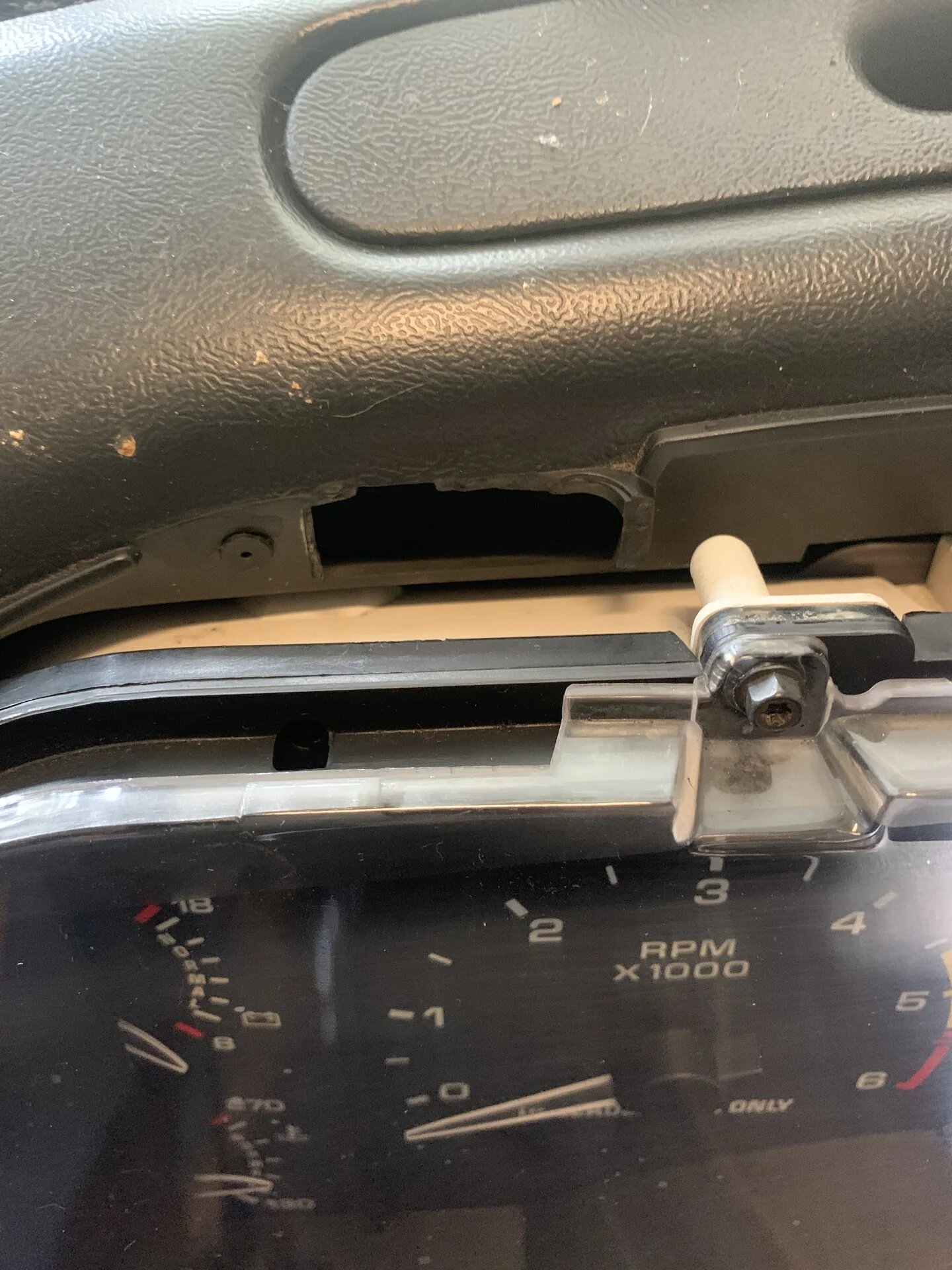

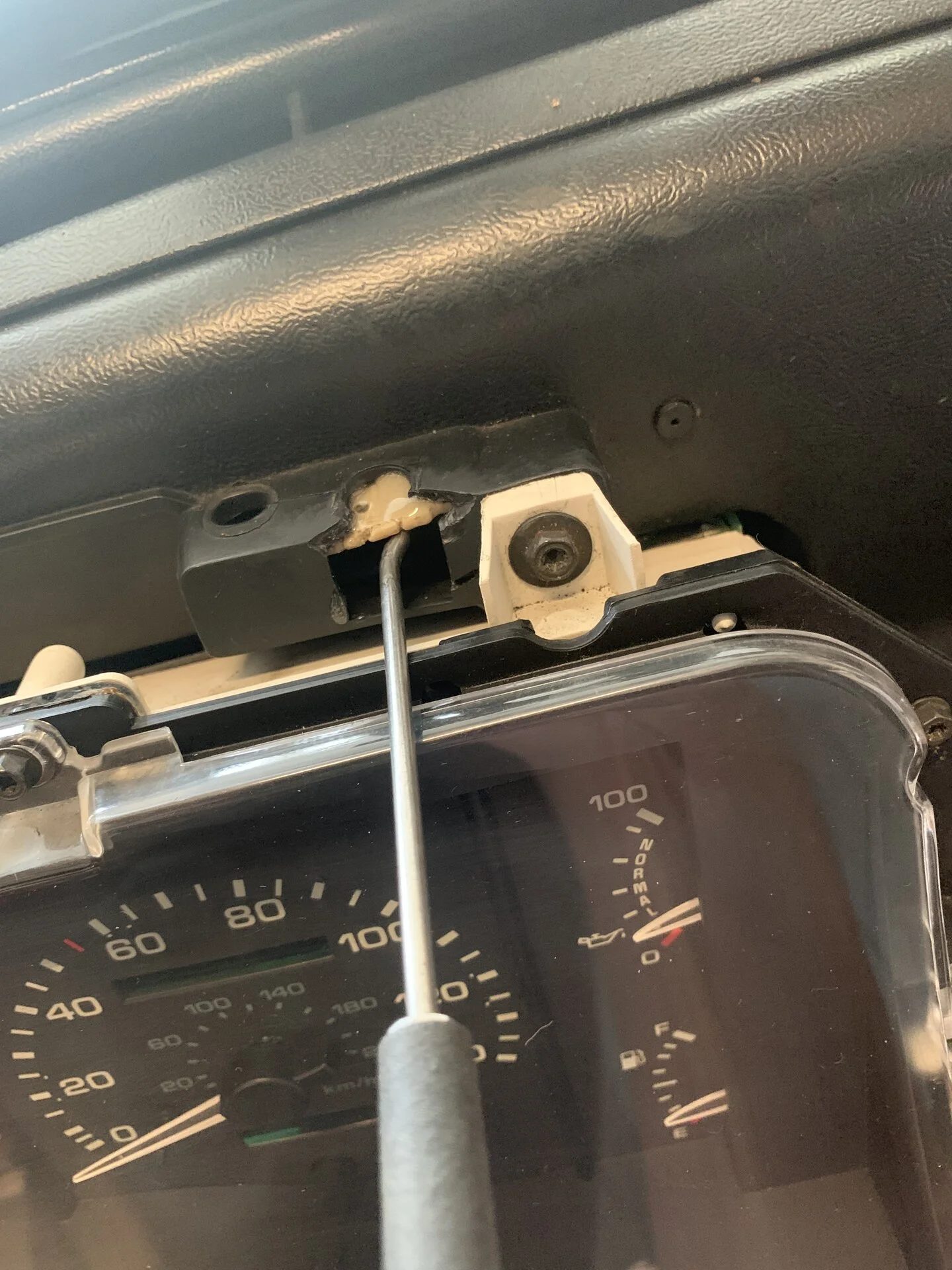

So, years ago, the dash tabs where the gauge bezel screws in, broke off. When I parked the car in 2006 the bezel was completely loose on the windshield side.

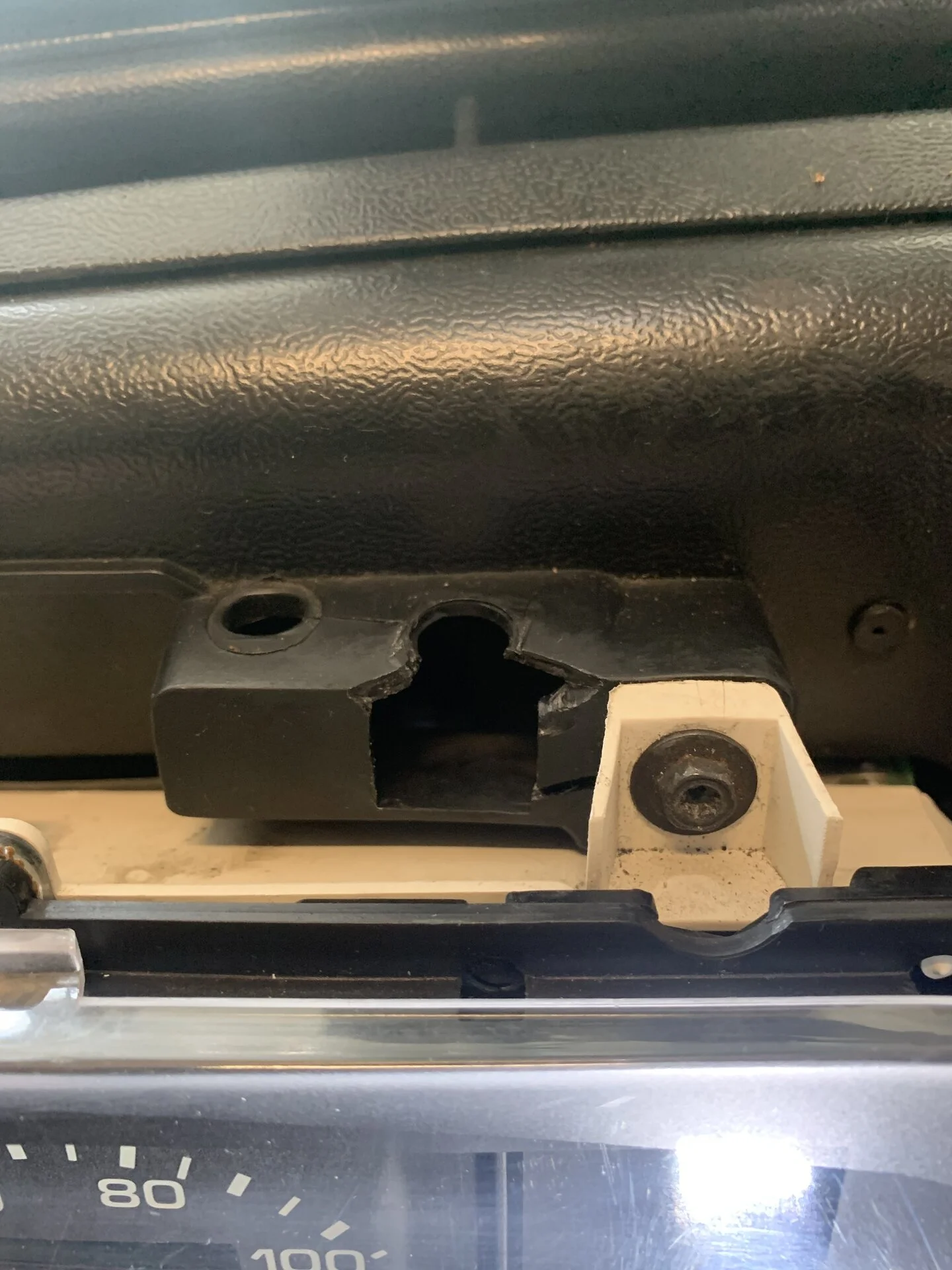

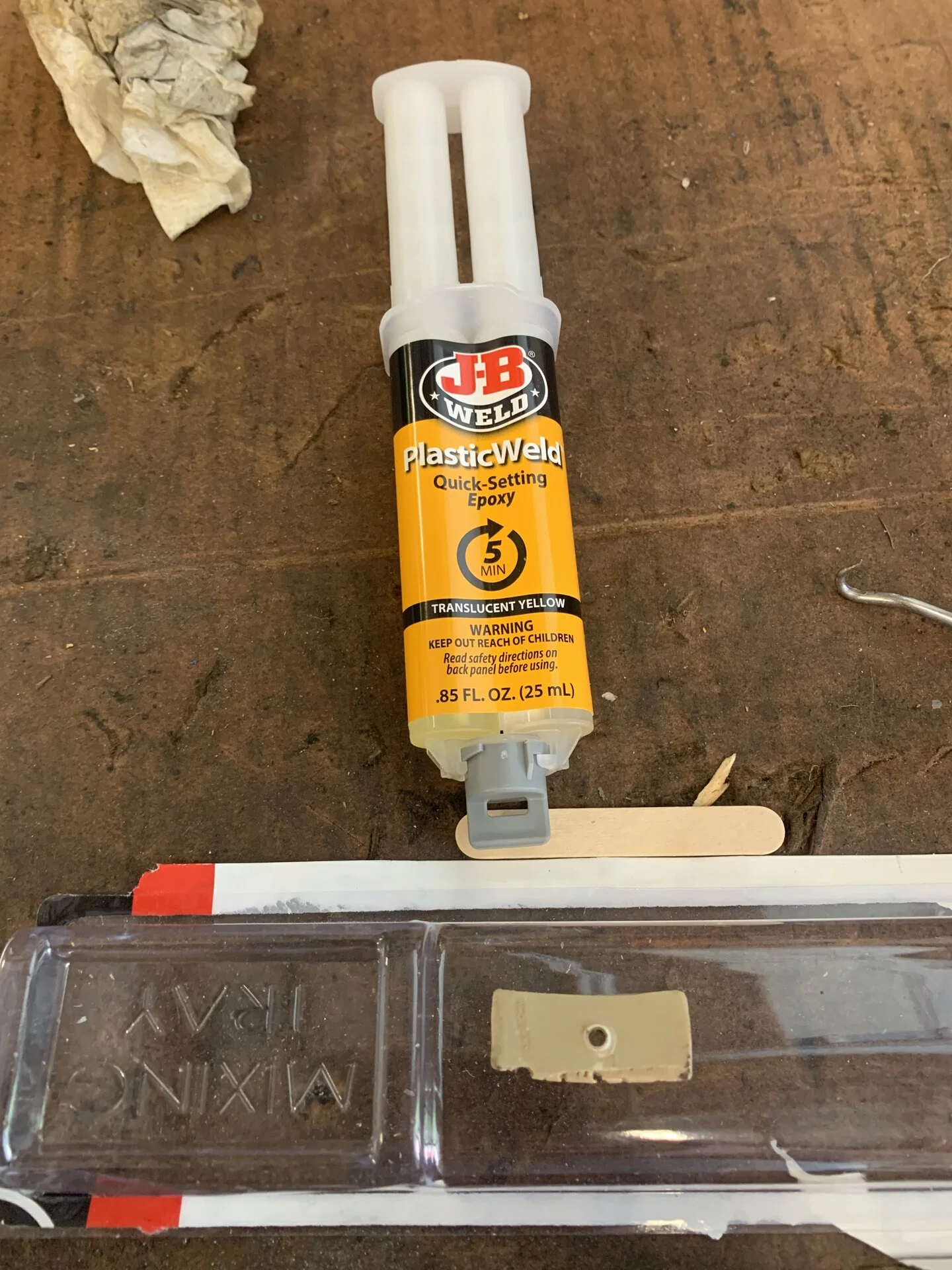

I tried to bond in a new tab tonight.
Didn’t quite center the hole where I wanted, but it should work ok?


Attachments

  • 96CA2ED3-7DBC-4230-80B8-F162F3BB616E.jpeg
    432.8 KB · Views: 45
  • EFF7B091-B1C0-40E9-B934-274180565BD0.jpeg
    336.9 KB · Views: 42
  • 019223B9-098C-4BFE-94C8-69B3D6B46F93.jpeg
    457.8 KB · Views: 40
  • 6BCEF04B-4F74-48B1-B651-F6D96B68836B.jpeg
    442.8 KB · Views: 31

vristang

15 Year Member
Mar 31, 2005
4,933
106
124
Seattle

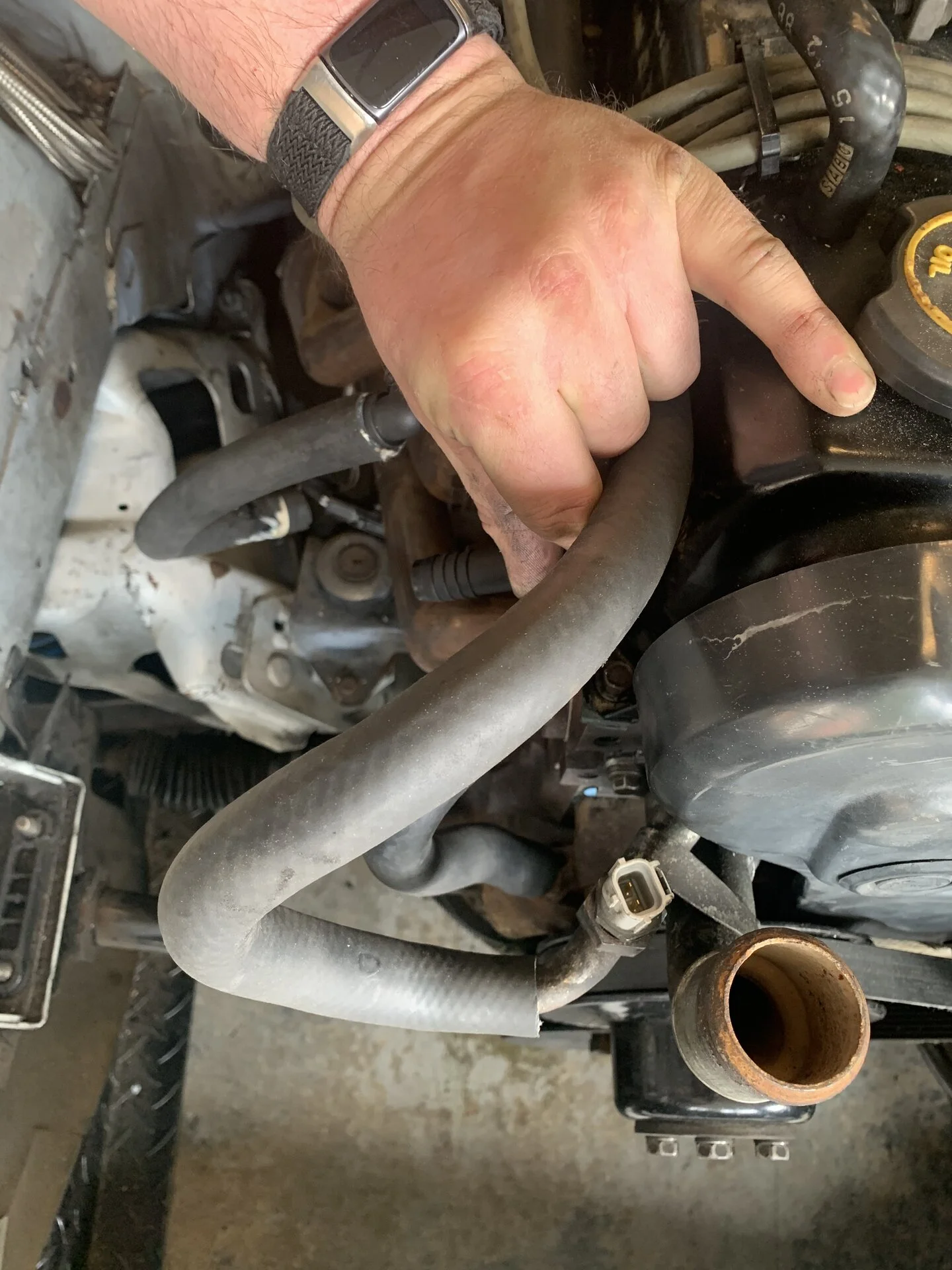

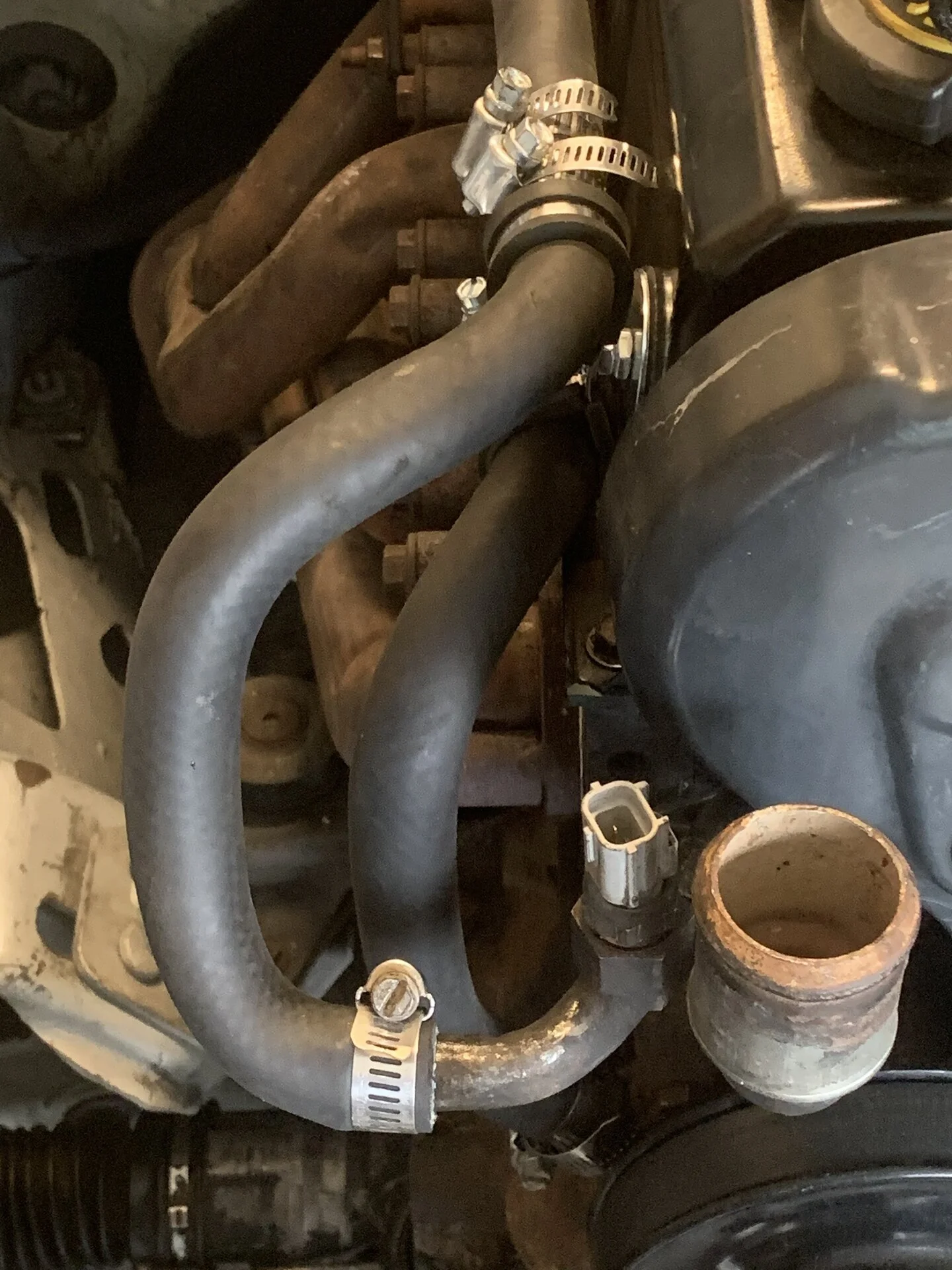

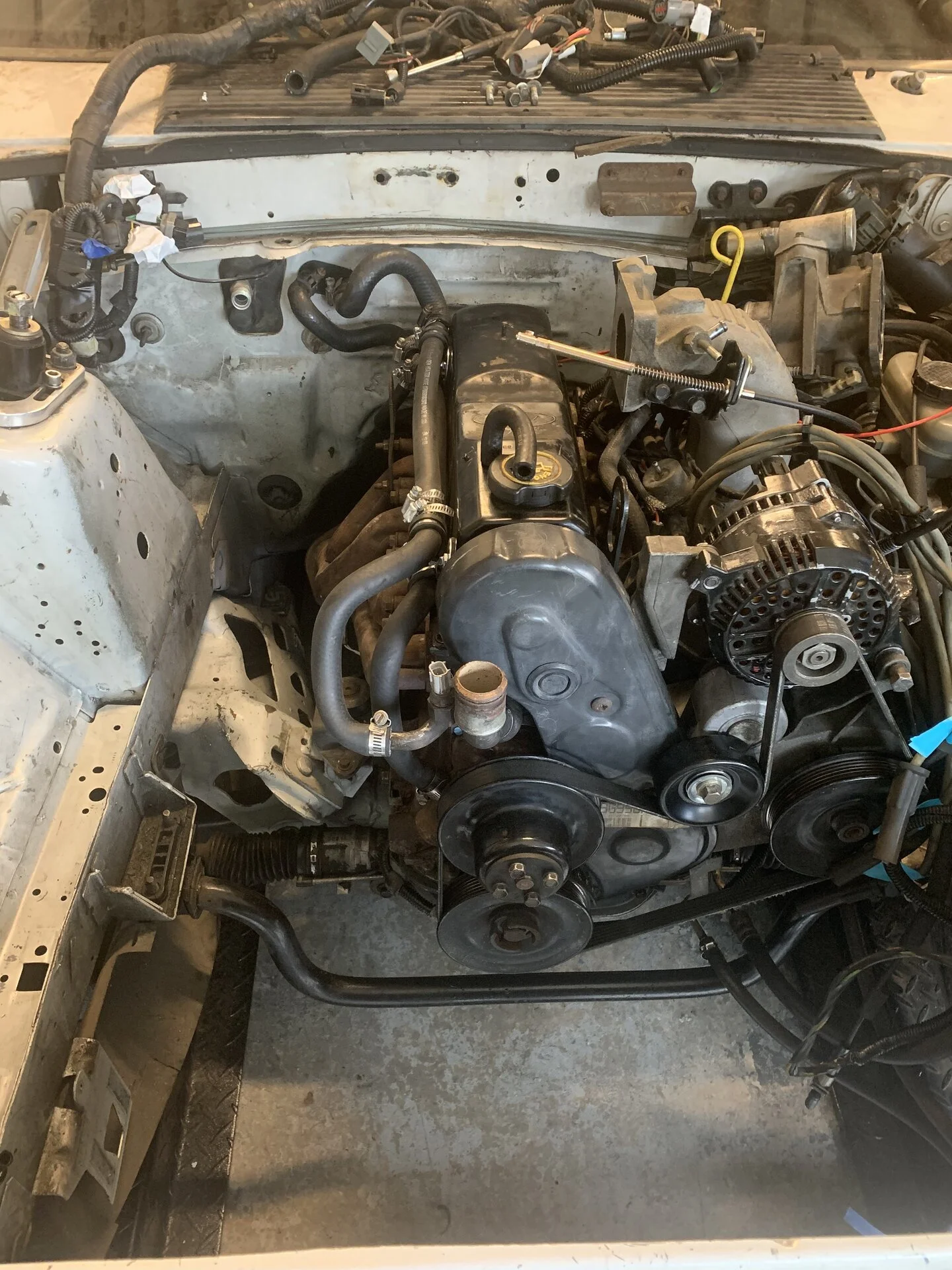

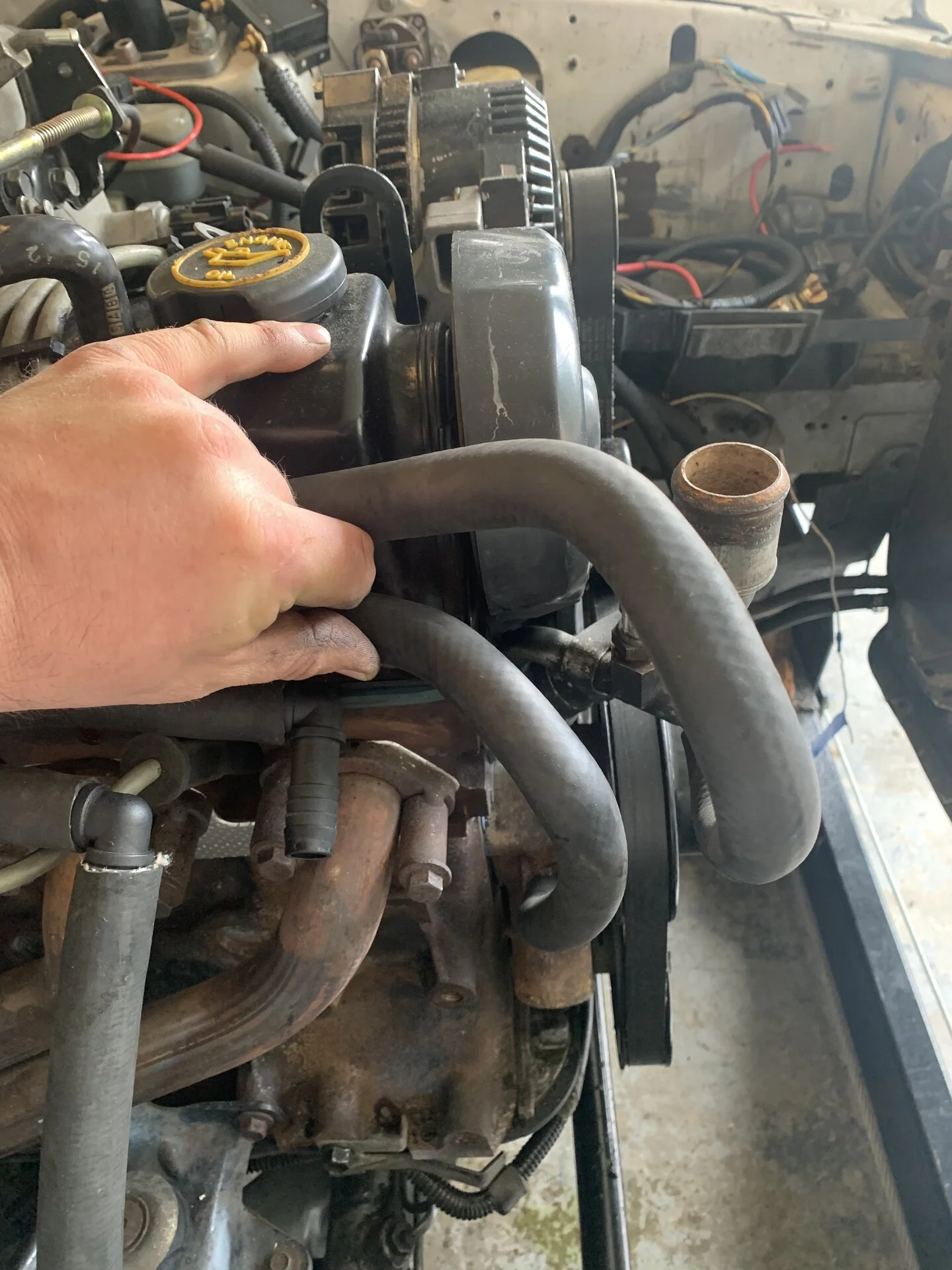

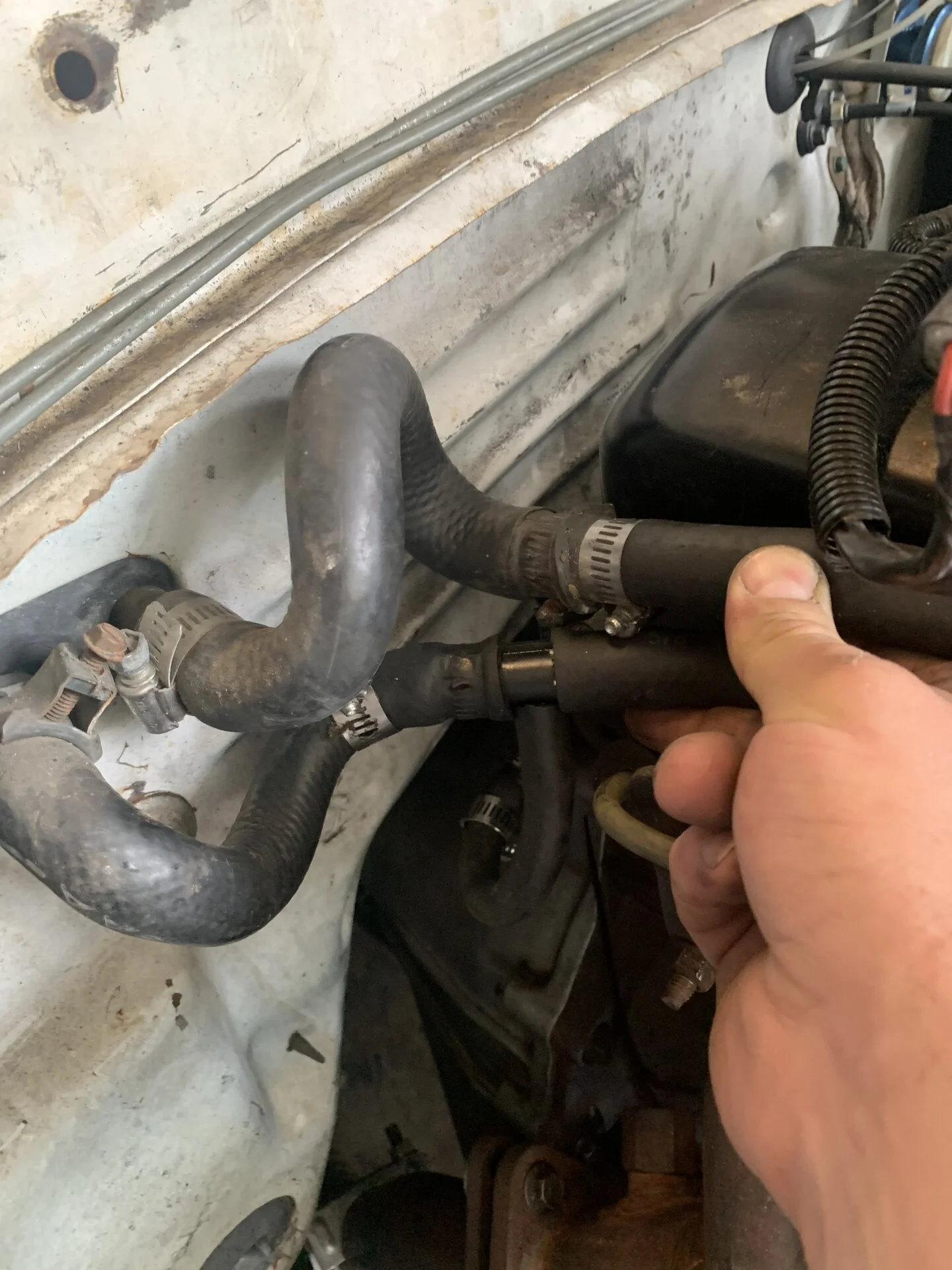

While the epoxy is curing, I started mocking up the heater core hose routing…
Basically this is just reusing hoses I had from the 89 2.3, and the stock 5.0.

I really want it secured to the valve cover, so pulled it back off today…

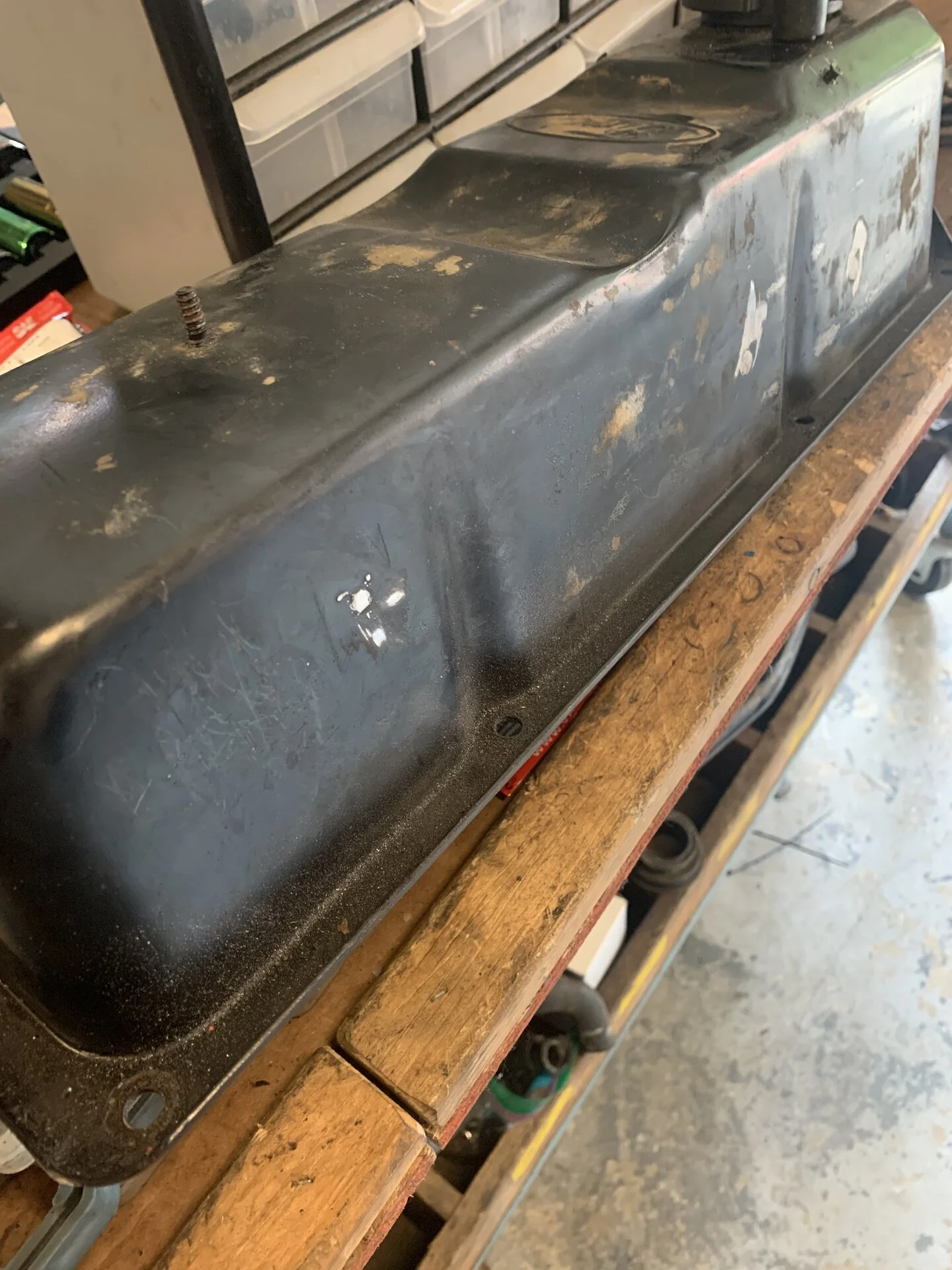

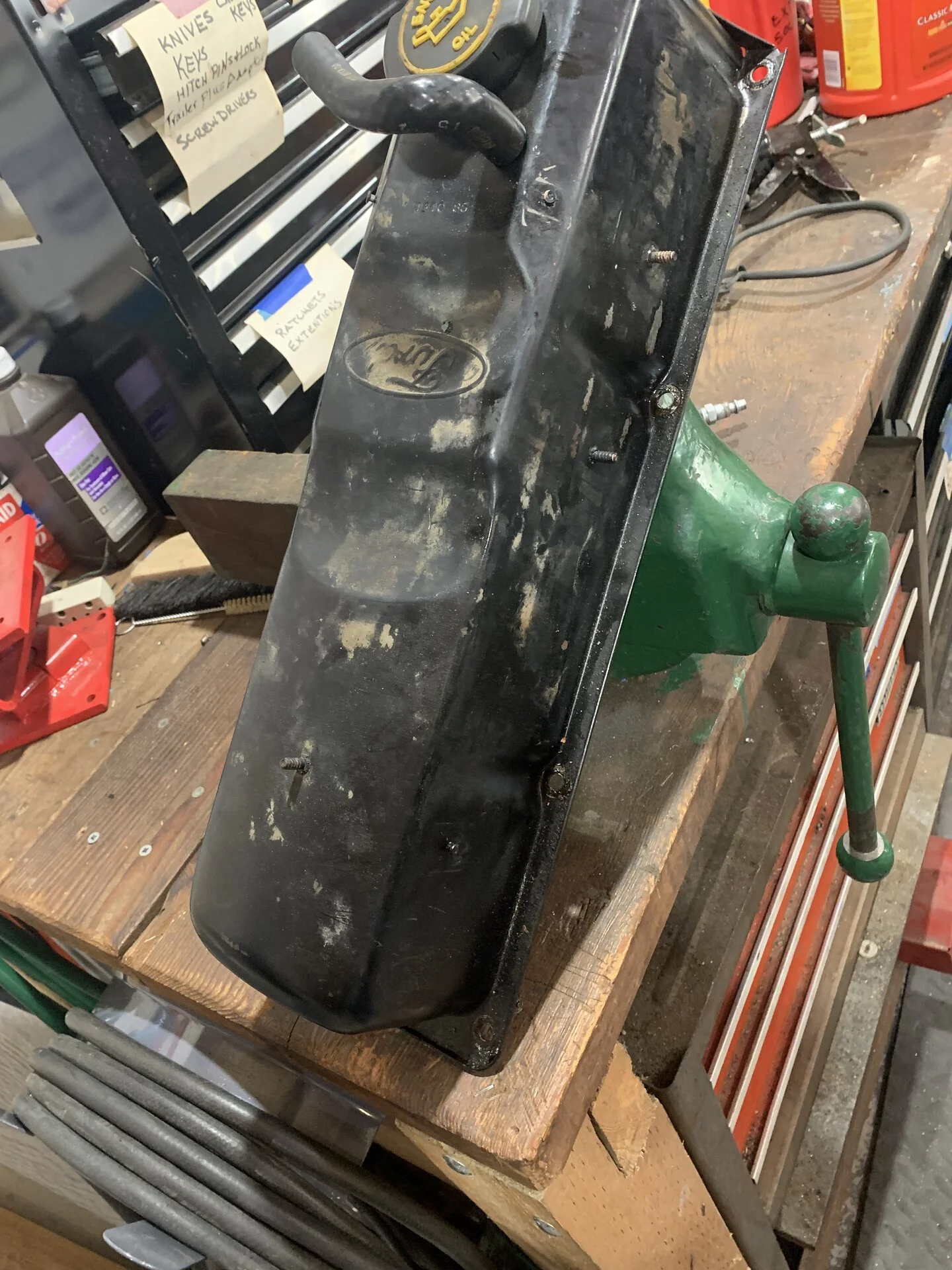

I ground off 3 factory nubs on the valve cover, and will attach some studs
0685D24D-1718-4B7B-B8CB-4A06C785A3BC.jpeg 4BDC033A-0BE7-48F6-99BF-4B5F6F447C57.jpeg 94550999-0ED7-4054-8CE8-A4630C7C1B94.jpeg D2DA4018-C2B8-4C54-9E4C-B1616ED93B9B.jpeg 3E053344-1FFD-4BB4-93DE-284C7DB6AF92.jpeg

Last edited:
  • Like
Reactions: 1 users

vristang

15 Year Member
Mar 31, 2005
4,933
106
124
Seattle
Well ain’t that a beeeotch…

If the dash ever comes back apart, I’ll go that route…

My hack work seems to be holding just fine though. Didn’t think to take pics of it, but the interior is now completely done.

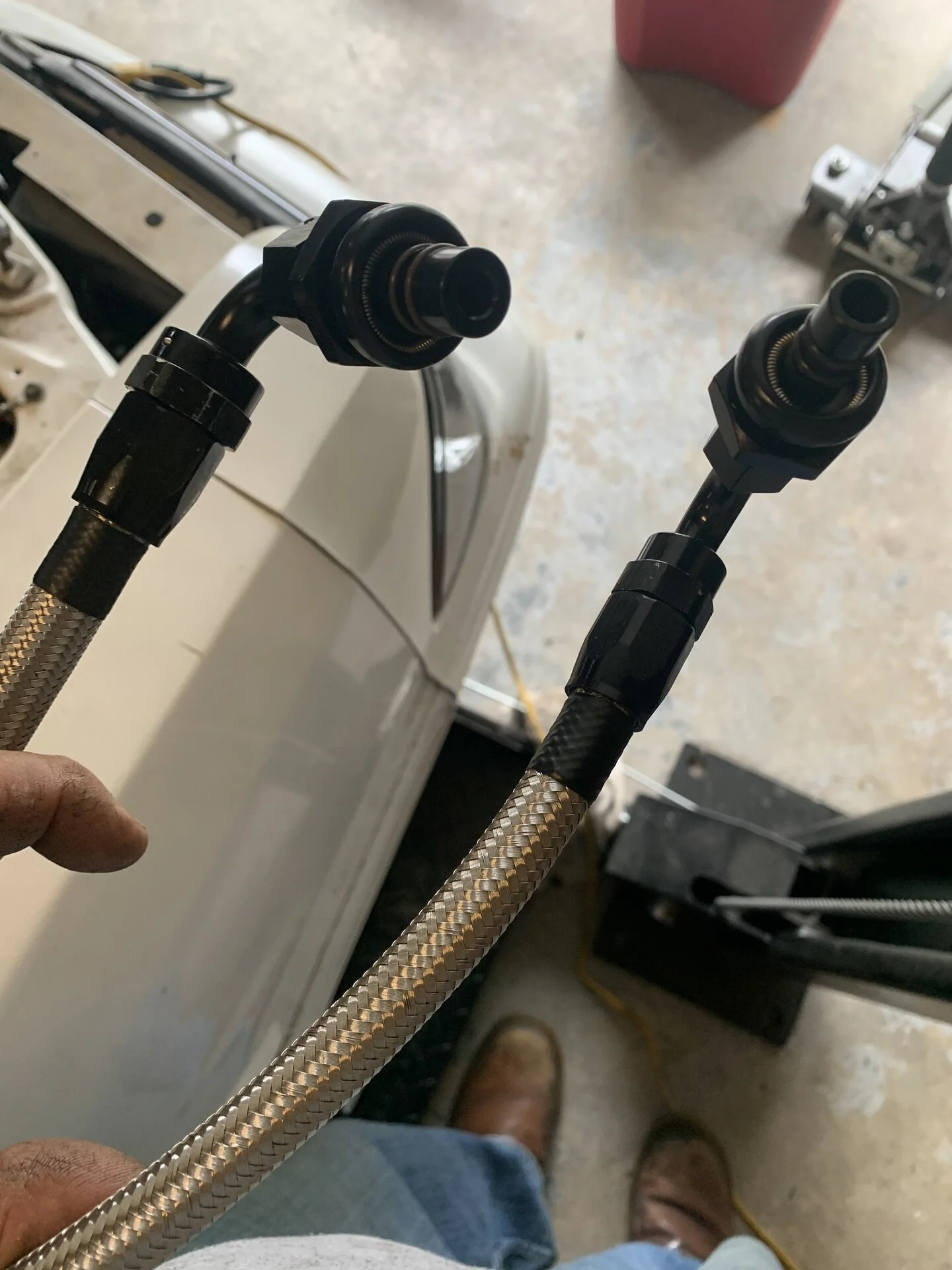

Managed to install the AN adapters for the stock fuel rail. Had some issues with the first cut of the fuel line, lmao.

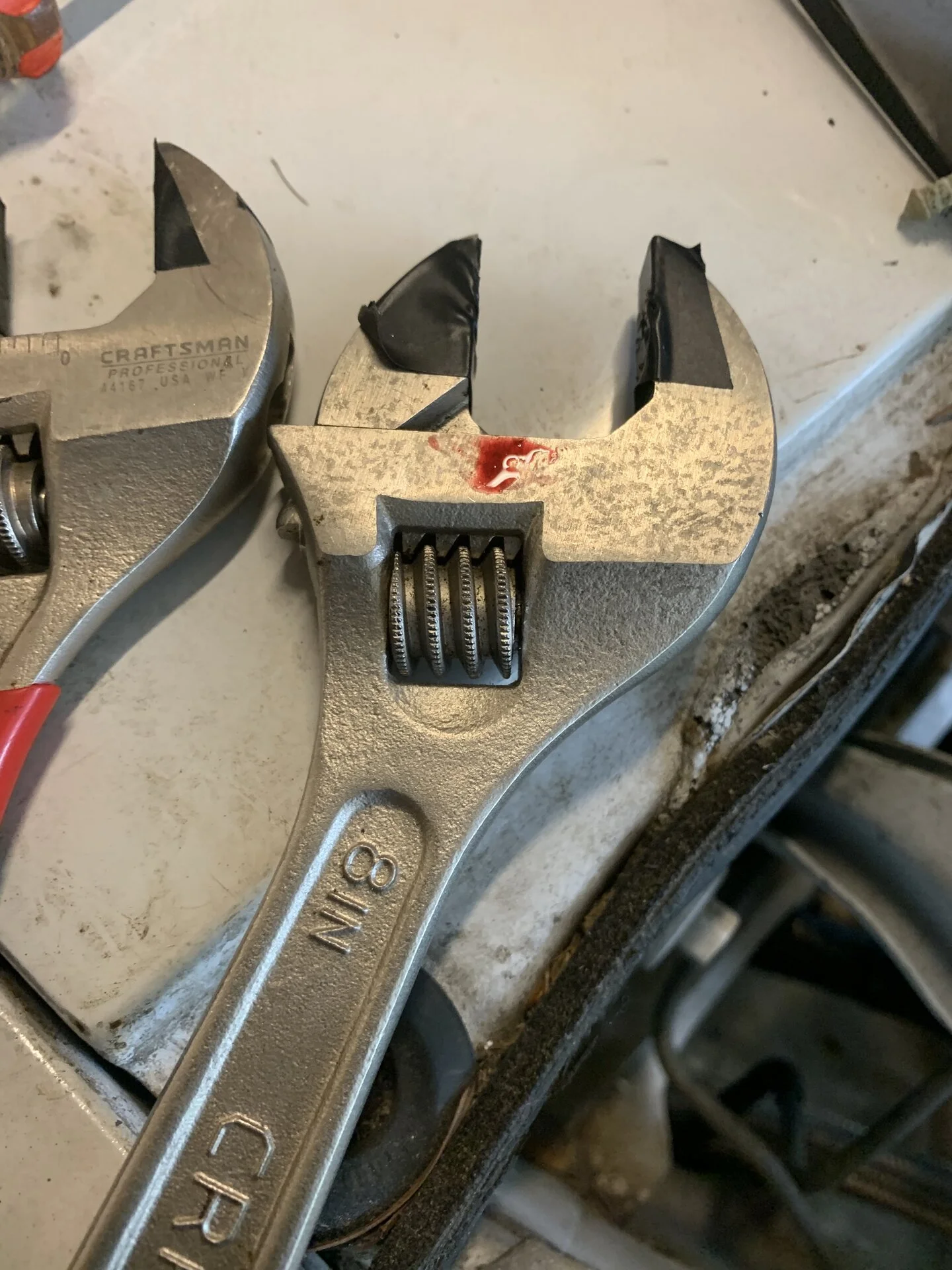

You don’t own it, until you bleed on it.
Made a fresh cut, and it almost fell together…

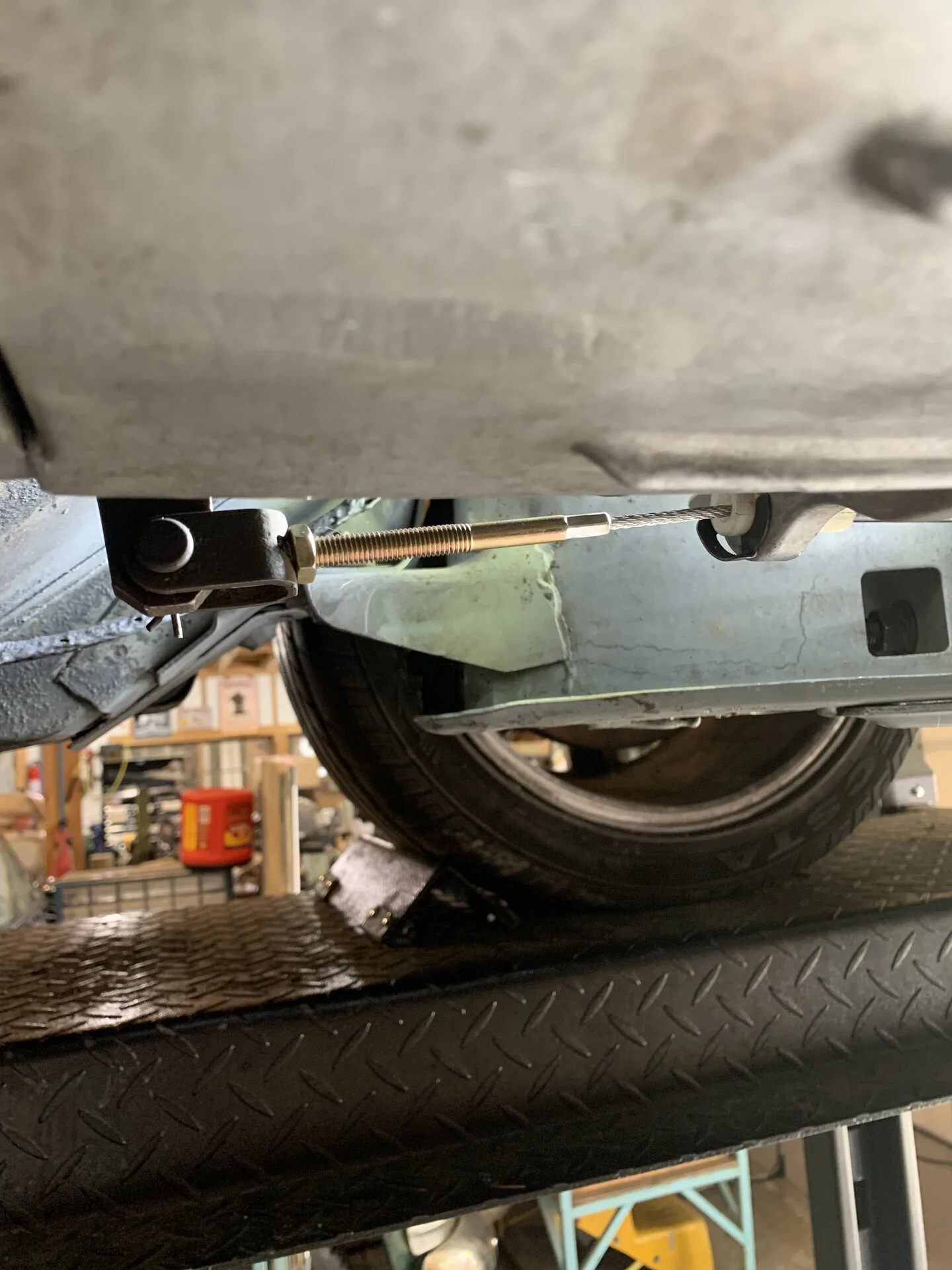

Made some adjustments to the clutch cable, and much happier with the angle of the lower cable. And installed the fork cover.

No pics, but the exhaust needed some adjustment too, as it was under .25 inch from the floor in one spot. Tweaked that secured everything back in with muffler clamps, then removed all the pipe to weld it.
B35494D9-F6FE-4405-85FE-62CFCF15361A.jpeg 9B45C2AA-4871-49E9-8B64-31EAEAAECCF1.jpeg 7CCB90B2-6E00-4625-9140-5BAC782915C2.jpeg 2059EEF6-7E32-49E0-829B-9426239EFF73.jpeg A3BDF955-5CF6-4843-B6A1-A7ACEB968C2D.jpeg

  • Like
Reactions: 1 user

General karthief

wonder how much it would cost to ship you a pair
Mod Dude
Aug 25, 2016
24,064
8,898
203
polk county florida
That little dab of blood won't even get you a second glance around my garage, maybe, just maybe a Teenage Mutant Ninja Turtle bandaid. Now the need to tie a greasy rag around a wound in order to finish the job or drip blood across the garage floor into the house, gets you an honorable mention (usually she'll yell 'you're gonna clean that up!), squirt blood up the wall while screaming 'call an ambulance' just before you pass out and you get ' just rub some dirt on it'.

  • Clever
  • Haha
Reactions: 1 users

7991LXnSHO

wanna catch the space herp
10 Year Member
Sep 1, 2010
7,388
3,091
194
Kearney, NE
That little dab of blood won't even get you a second glance around my garage, maybe, just maybe a Teenage Mutant Ninja Turtle bandaid. Now the need to tie a greasy rag around a wound in order to finish the job or drip blood across the garage floor into the house, gets you an honorable mention (usually she'll yell 'you're gonna clean that up!), squirt blood up the wall while screaming 'call an ambulance' just before you pass out and you get ' just rub some dirt on it'.
I can probably find some Dora the Explorer band aids left if you run out of Turtle Power ones.

  • Love
  • Haha
Reactions: 1 users

vristang

15 Year Member
Mar 31, 2005
4,933
106
124
Seattle
That little dab of blood won't even get you a second glance around my garage
LOL, I couldn't find where I was bleeding. Lost track of how many times I was stabbed, but it was directly correlated to the number of cuss words I used that morning.

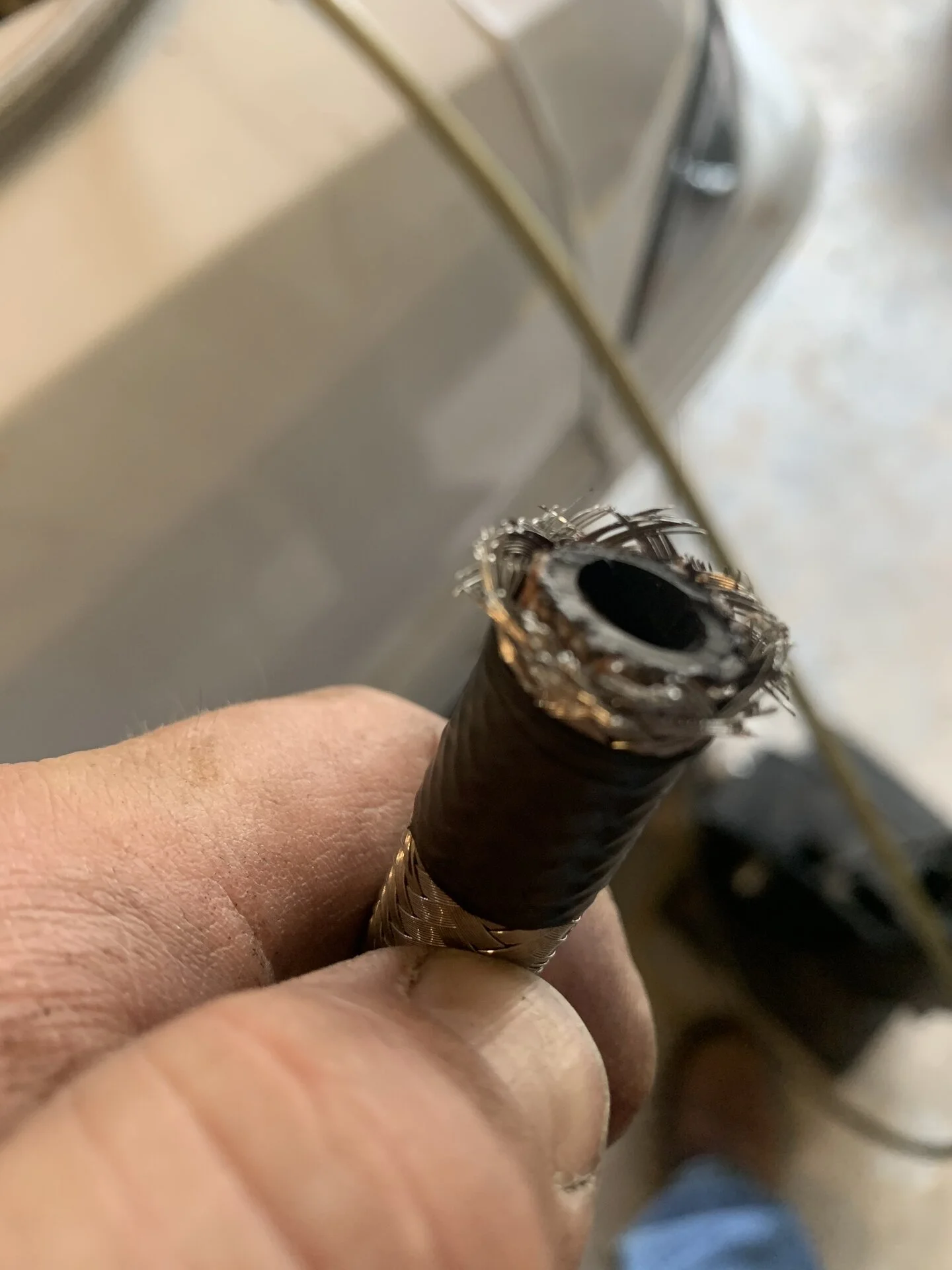

That braided line is a bitch when it blooms out like that though... Only thing to do, is recut and start over...
This was my first use of braided line.


vristang

15 Year Member
Mar 31, 2005
4,933
106
124
Seattle

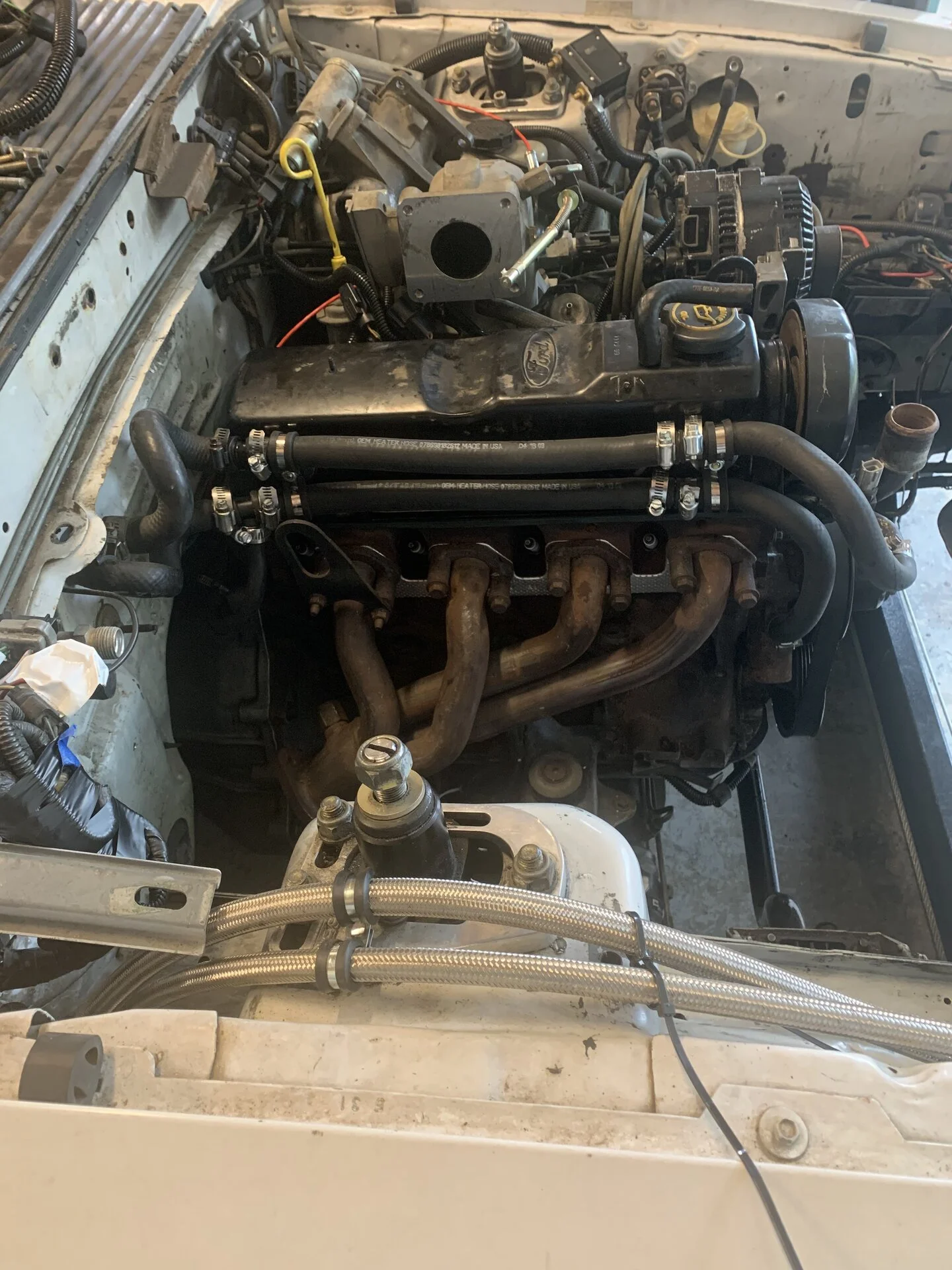

So, this worked a lot better in my head, but it’s done…. No going back now…

Drilled a couple holes in the valve cover. Used bolts sticking through as studs, and sealed it up pretty well.
The studs gave a way to secure the heater hoses…

63A2606D-ABCB-4F5C-BAC2-CC15B7B5D551.jpeg 3A16212D-2EE7-4764-8800-813B7CF4CE14.jpeg 1D0456C2-16E2-46BD-8249-99CEB6D1749F.jpeg


vristang

15 Year Member
Mar 31, 2005
4,933
106
124
Seattle
Been working slow, as I wasn’t feeling well for a week or so…

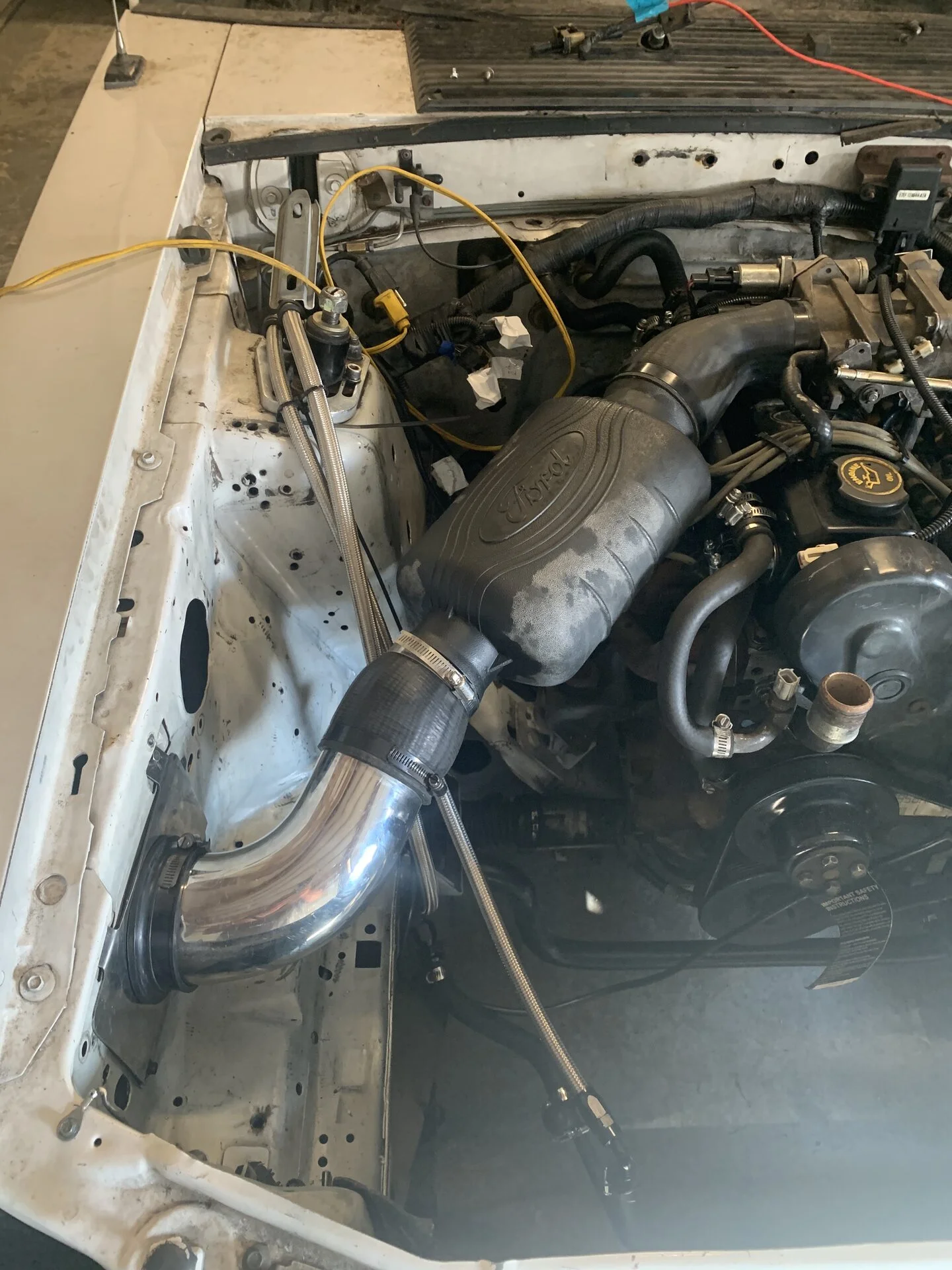

Hacked an intake together with parts I had laying around.
Jumpered out the egr, and cleaned up the last of the engine bay wiring…

Need to flush the fuel lines by running the pump for a few minutes, and hook up the cooling system.

I hooked up the battery, to check out the electrical.

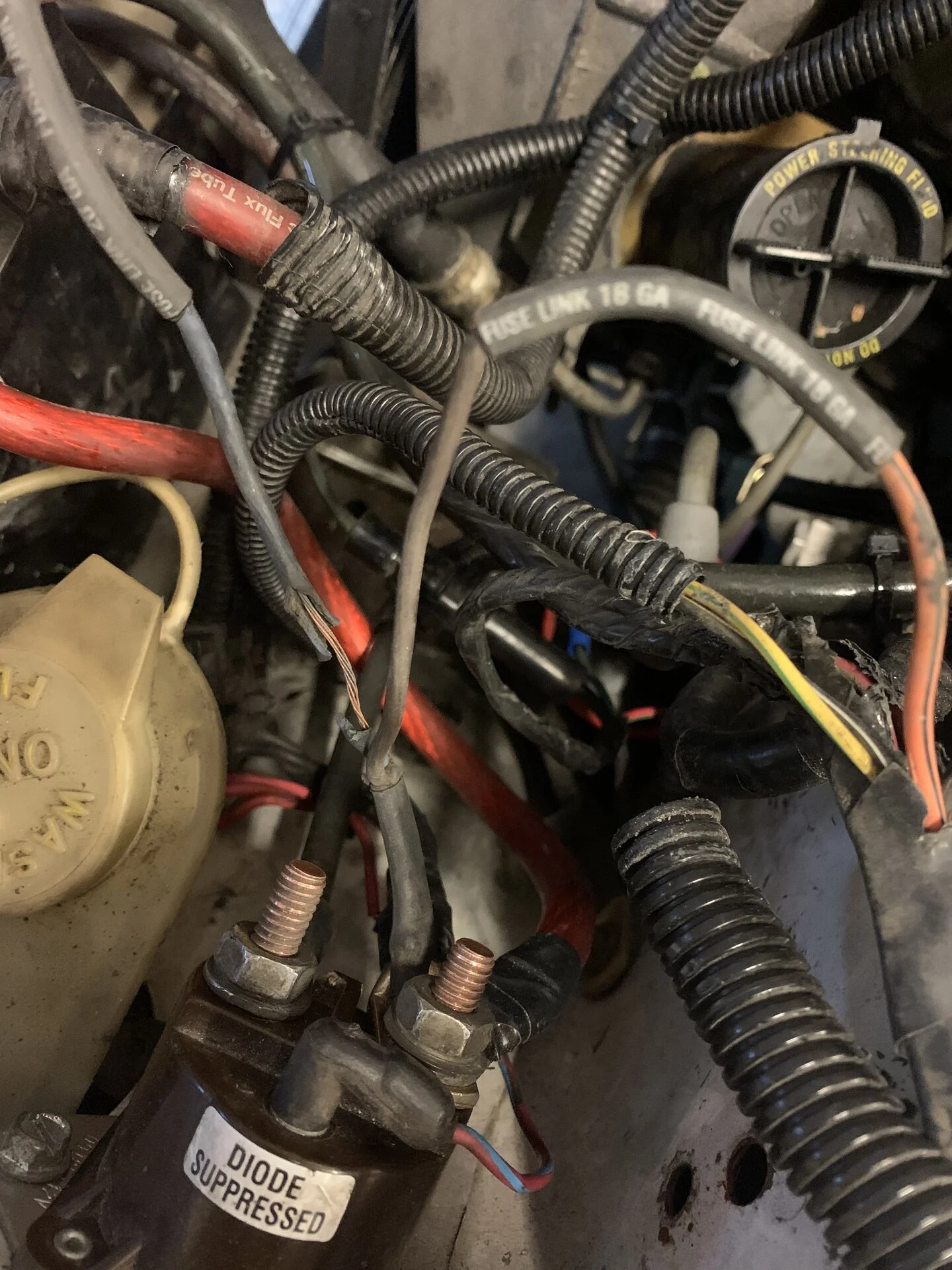

When I turned the key, the fusible link at the starter relay blew, letting out all the magic smoke.
It appears this wire gets +12v from he battery, but also shows continuity to ground.
This fusible link runs to the eec relay and KAM power to ecu, at pin 1.
Heading back out shortly to investigate some more…. Hope it’s something simple that I overlooked…


vristang

15 Year Member
Mar 31, 2005
4,933
106
124
Seattle
So, this fusible link blowing out is dragging on…
The link runs to eec relay, and ecu KAM (pin 1).
However, I jumpered out both those wires, and issue persists.
Replaced relay, issue persists.

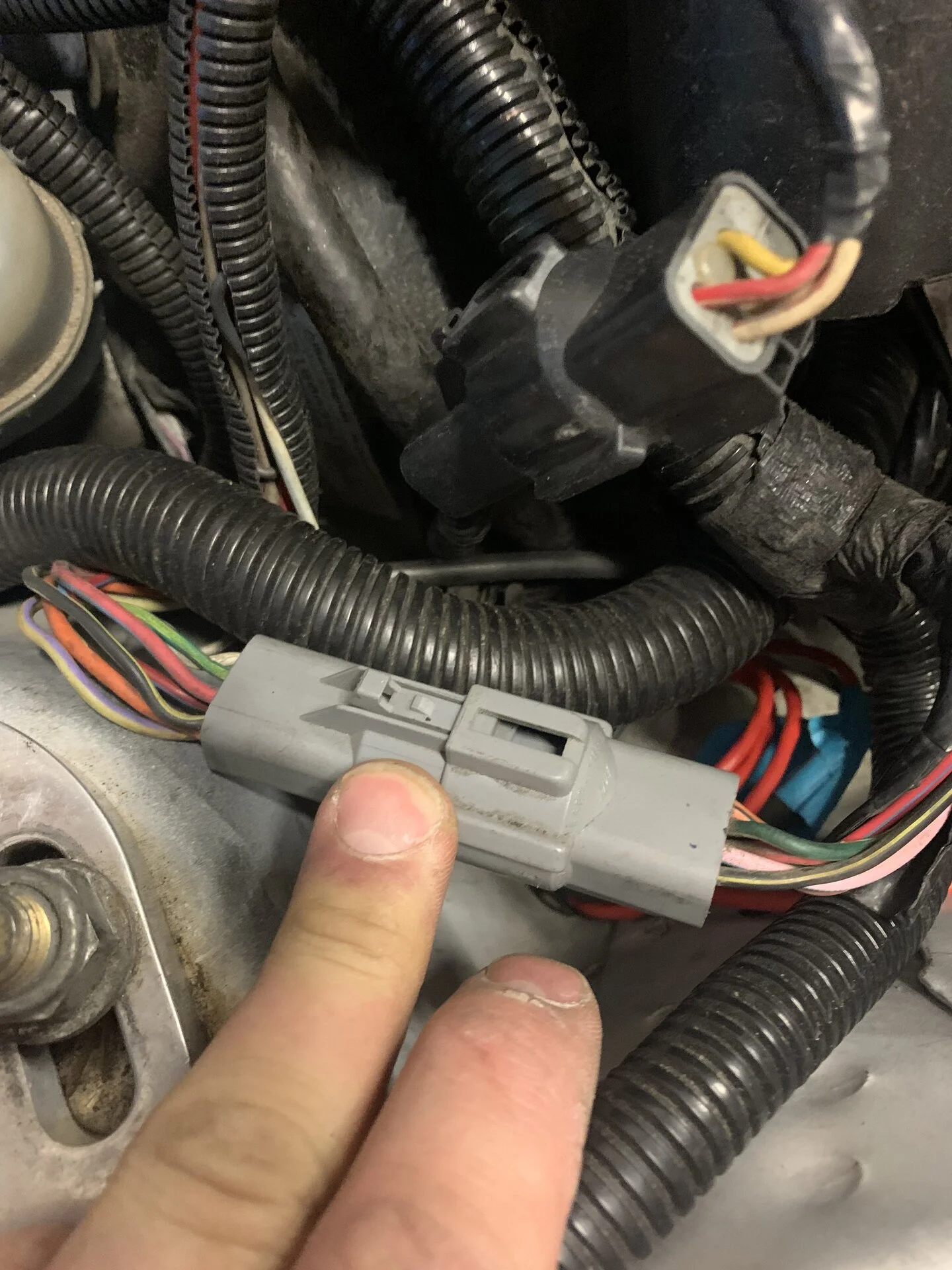

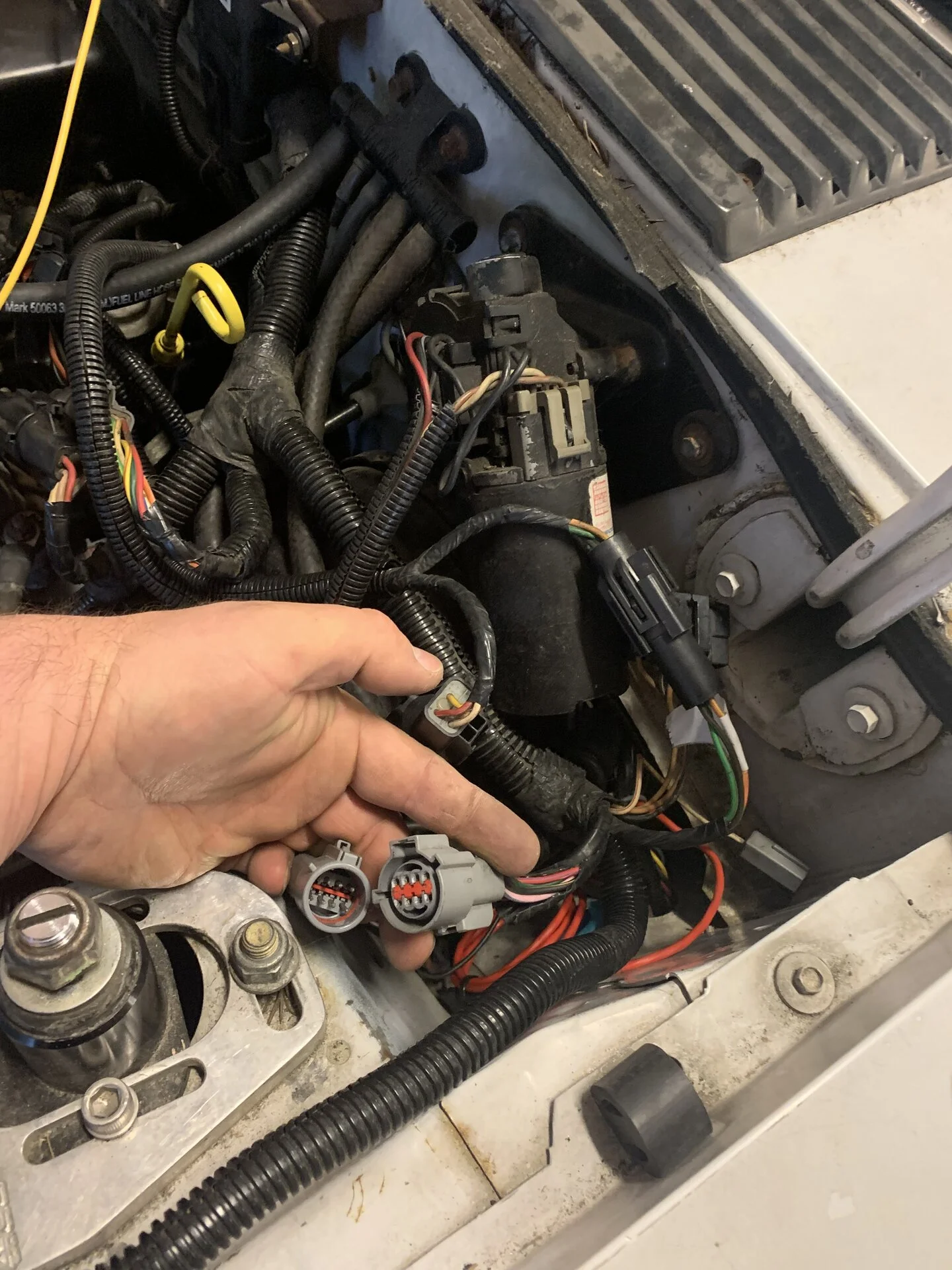

Disconnected random connectors, hoping to stumble on something… the pictured connector is now suspect, narrowing the issue down to 8 wires. I didn’t have time to trace down what they all are. I have a diagram for the 1990 v8 chassis harness, but haven’t found a diagram for this connector on the 1989 2.3 engine harness.
A few pin/wire colors match, but not all. Will try to post more detail tonight after work…

Could be 3 things.
1. Ecu and chassis harness are not compatible (haven’t found anything online to confirm this)
2. Damaged chassis wire harness (the car did have a mouse resident at some point)
3. One of the wiring changes I made under the carpet was wrong.

Any other thoughts/suggestions are welcome.
I have an appointment set for this coming Tuesday to have the front end aligned, and plan to be driving the car by then…


Attachments

  • B782D84E-35FB-4040-A704-326C5EB942E3.jpeg
    478 KB · Views: 28
  • 529B2A17-6364-4DF8-BD98-F0D0842F28AA.jpeg
    450.7 KB · Views: 25
  • 0405C14C-3E4F-48F9-8B6D-07AF354B44C4.jpeg
    431.5 KB · Views: 29
Last edited:

vristang

15 Year Member
Mar 31, 2005
4,933
106
124
Seattle
Is your ECM ground accidentally hooked up to +positive or the alternator shorted to ground internally? you may have said that this is the alternator from when you had a V-8 in the 'Stang?
I have had no reason to question the ecu ground. The engine harness is grounded on the chassis, in stock location...
Correct, the alternator was last used on when the car had a v8. I thought I eliminated the internal ground possibility, by disconnecting the 2 plugs on alt. Condition of burning the fuse link persisted. Also, disconnecting the main Alt cable had no effect.

I spent a week thinking I had a failure in my alarm system; AvantGard 4, from Clifford. Originally installed (certified shop), around 1999. I have been able to bypass the ignition circuit out of the alarm system, and the fusible link still burns.

The best clue I have at this point seems to be that little gray connector shown above, between the engine harness and the chassis harness.
Ignition wire does pass through this plug.
However, when I disconnect the plug, and only jumper the ignition wire, fusible link does not burn.

Plan for this afternoon/evening, is to build multiple jumper wires for this connector, so that I can test which wire is shorting to ignition.
Obviously I had to cancel the appointment for alignment...
