LOL. I'm not hard to find; just look for the pieces of cars scattered all over a garage and that will be me.

It's funny you mentioned Foureyed Pride. I am a member of that group and did just post pictures of it on their site. Yes, they do hate modifying foureyes with aero front ends and the like. As long as it stays a foureye, they seem to be a bit unhappy, but no threats of being bounced from the site. I love the foureye cars, so mine will be as stock as I can get it. I just don't have as good a starting place as my son does. Mine needs paint and .... everything. It is a completely bare shell at the moment. Once I get my son's junk out of my garage, I can start work on mine.

@a91what, sorry, dude, it will be carbureted. That's what I have. I do have a NOS GT40/Explorer-style intake that I never got to use on my 95 I used to have, but I think for now it will just use the Holley 4150 I'm rebuilding. At least it's not the junk style that's on the car currently.

@karthief. I appreciate the help you've given me so far. And I'm a boob guy myself

Jim

  • Sponsors(?)


Vettn71

Advanced Member
Jan 3, 2014
273
154
74
69
I noticed I don't have an avatar. I tried to upload one, but no buenos. Am I not holding my mouth right?

Jim


95BlueStallion

Drop into my dm’s gurrrrrl
10 Year Member
Feb 22, 2007
4,858
2,909
214
Cedar Rapids, Iowa
www.goodreads.com
I am sorry to hear you are ditching the car, but completely understand. At a certain point in time, the hassles just kill your motivation. With your 84 you will have a clean slate, and any hassles down the road will at least be your own fault! I think I am considered one of the 12, and will be around to see progress on your 84 if you post about it.


Vettn71

Advanced Member
Jan 3, 2014
273
154
74
69
@95BlueStallion, I hate to ditch it, also, but I really want to do my coupe. Now that my son has his own, I'm back on track with it. Well, not back on track, because I need his out of here, but more on track than I was. I will either sell the 85 as a roller or part it out, whatever makes the most sense. It could be rebuilt, just not by me.

@karthief, so when I go to my avatar menu and choose an avatar, what happens to that? I'm sure they don't want avatars that are obscene, so who do I submit it to? I was thinking of changing it every now and again, so maybe that's out
Thanks
Jim

  • Like
Reactions: 1 user

02 281 GT

Agreed...My wife has great Boobs
10 Year Member
Feb 3, 2009
2,478
1,533
184
Cabot, AR
Sad to see the other one go, however, that coupe is so very nice. I really, really want a 4-eye coupe for myself some day.

I'm actually kind of bummed that Summit opened the store in Arlington. It's too far from me to be practical, yet its presence in Texas means I have to pay taxes on internet purchases.


Vettn71

Advanced Member
Jan 3, 2014
273
154
74
69
@02 281 GT , it won’t actually go away. I have a party who is interested in it when I’m done. Hopefully, he will rebuild it to it’s former glory. I showed him the rust on the frame rails and he didn’t blink, so he probably has better welding skills than I do.

On the flip side, I very much would like to get my 84 coupe back to a more or less stock condition. I will need some parts to do this, like the information center, but I have time to find what I need

J8m

  • Like
Reactions: 1 user

Vettn71

Advanced Member
Jan 3, 2014
273
154
74
69
Wishing all a safe and happy Thanksgiving.

Thanks to each of you for your advice, support and sarcasm

Jim

  • Like
Reactions: 4 users

Vettn71

Advanced Member
Jan 3, 2014
273
154
74
69

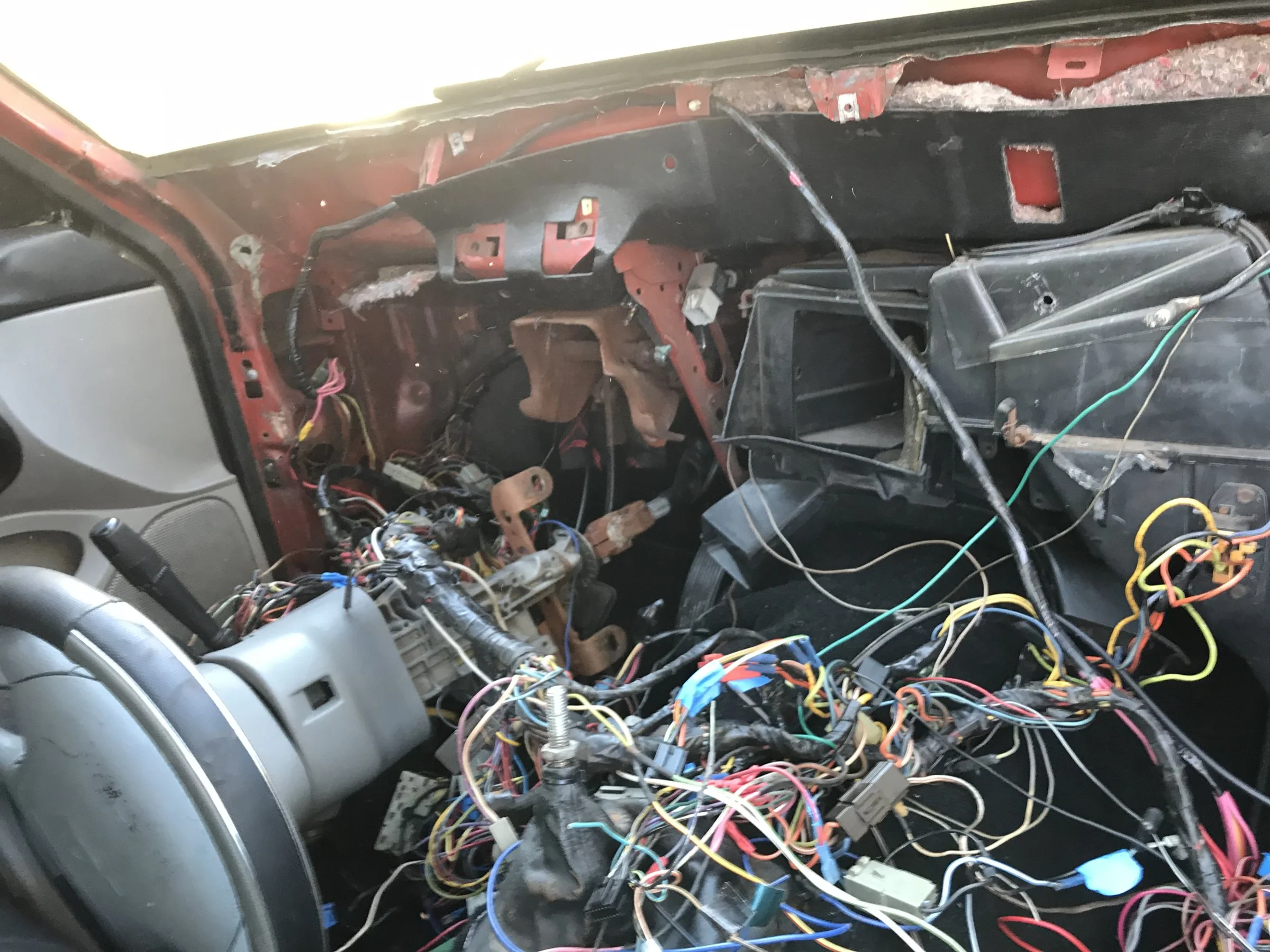

Started taking the 85 apart. I shot a few photos of the dash frame if anyone is considering an sn95 dash in their Fox

This probably the easiest method I’ve seen for this mod. The dash pad is only held on by four screws, then there’s three or four screws holding the ductwork in

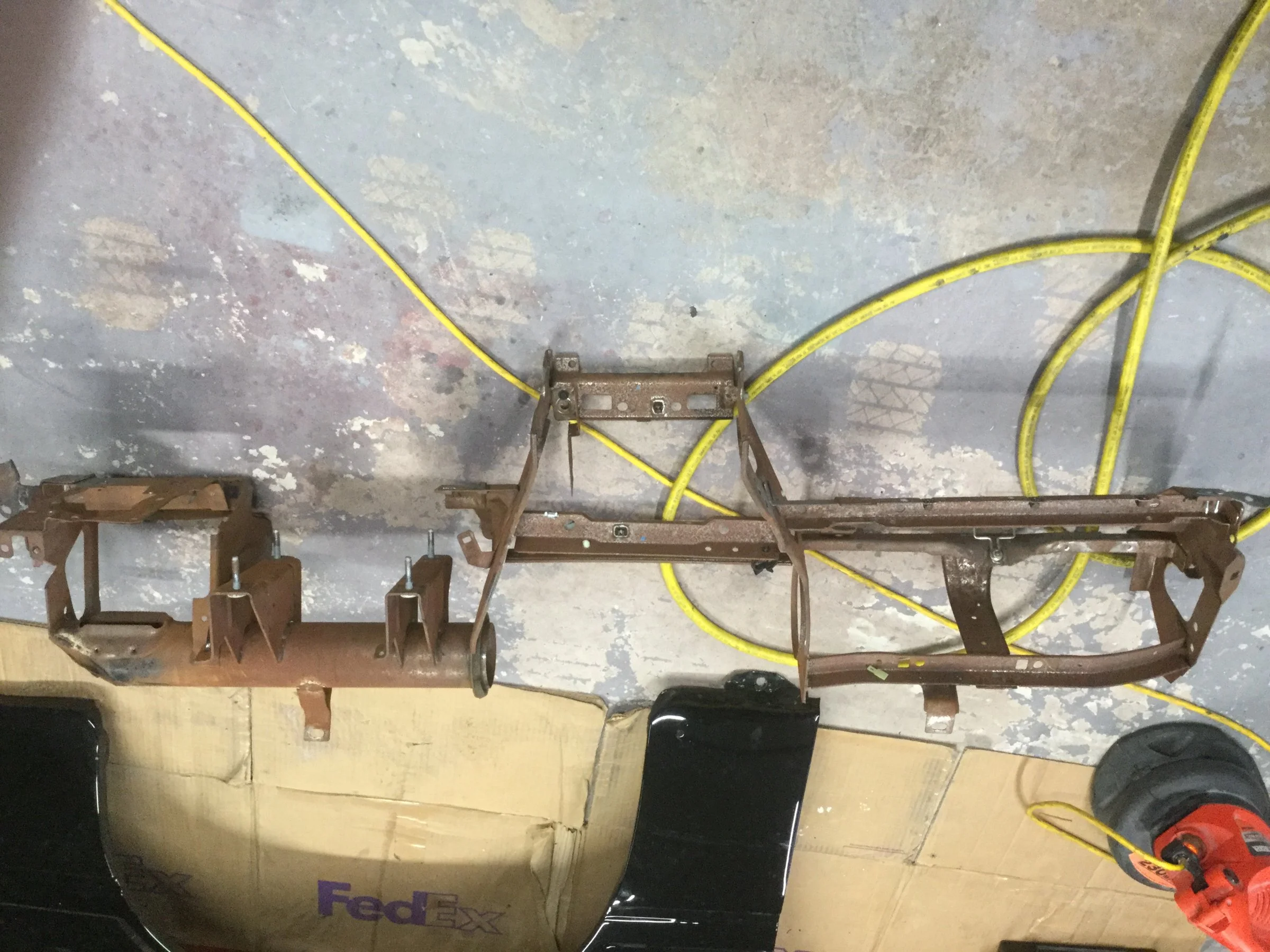

This is a view from the rear of the frame

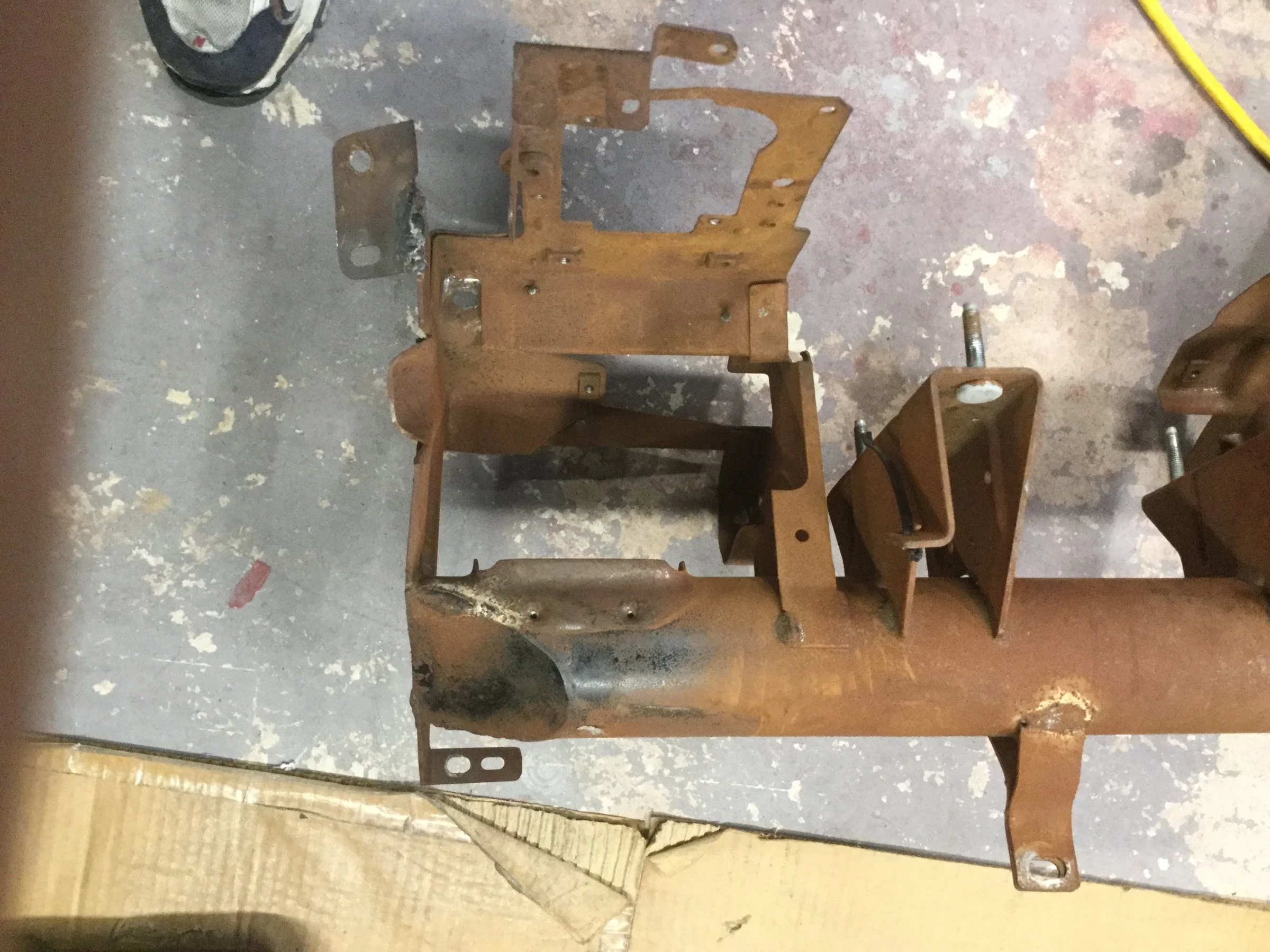

Again from the rear, this would be on the drivers side. Note the tubular support/air chamber has been angled to fit the Fox firewall

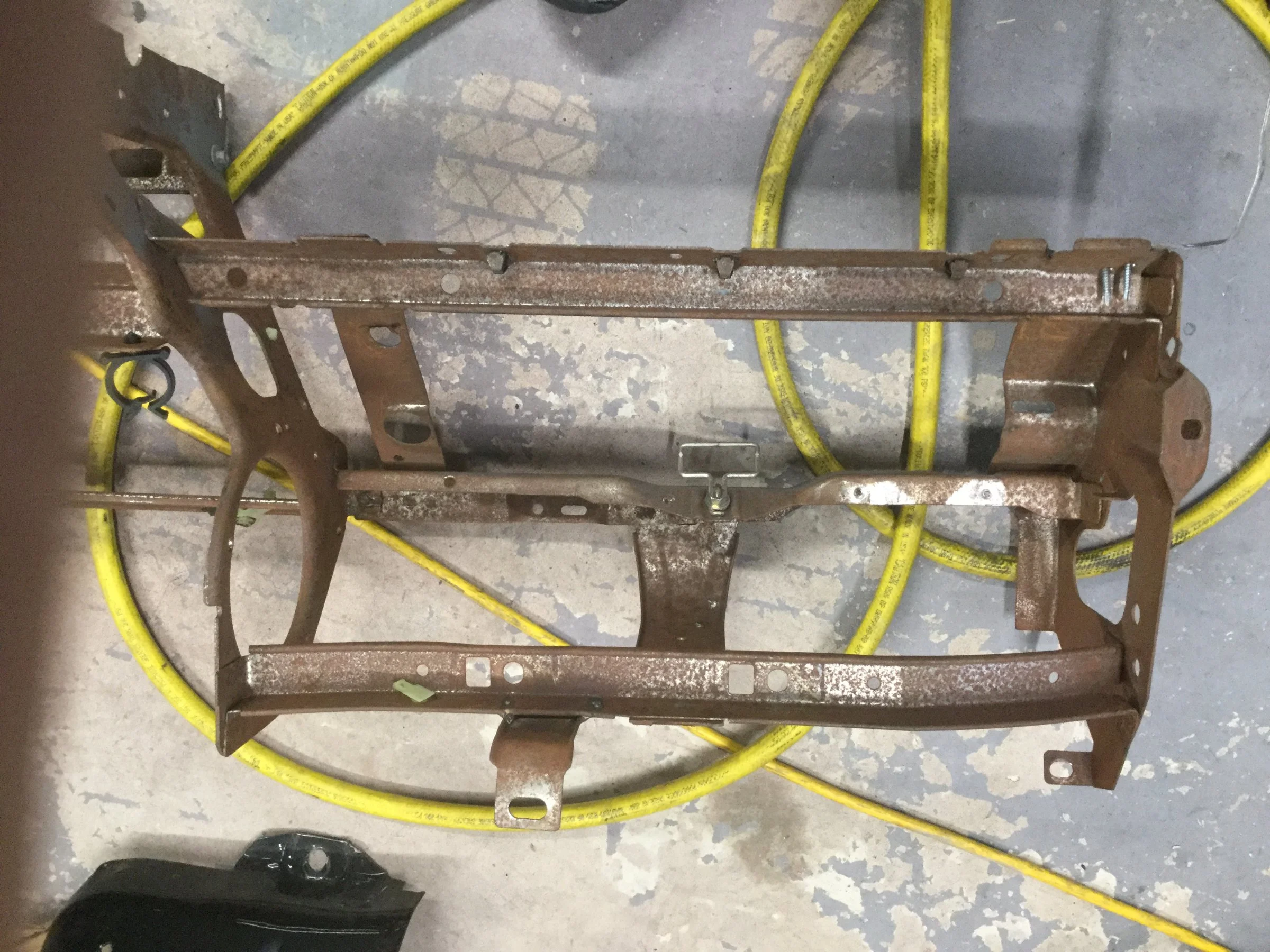

This is the passenger side, also from the rear. Tabs were welded to provide support. Unlike what others have done with this mod, there was no support at the bottom; it just “floated”

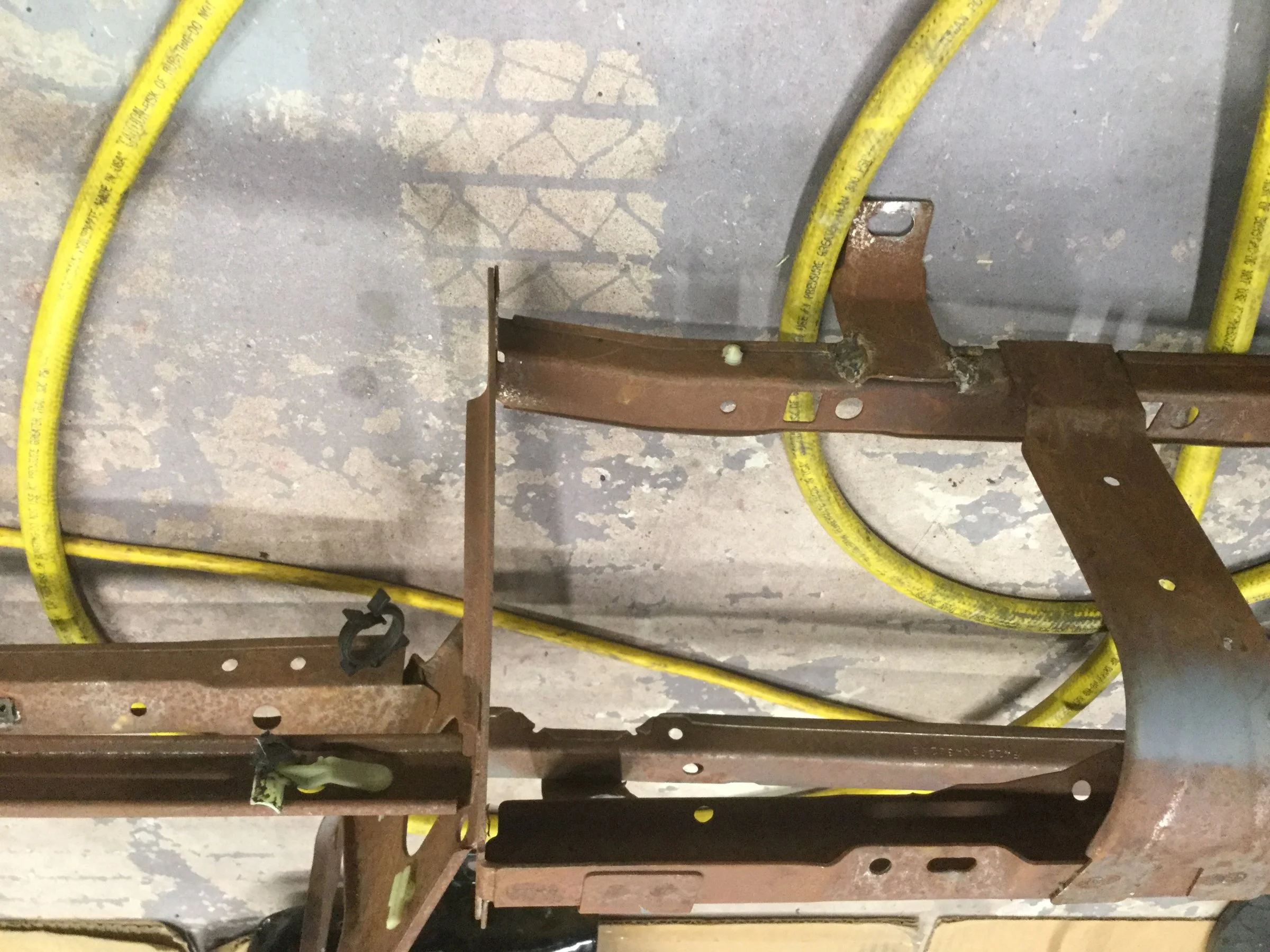

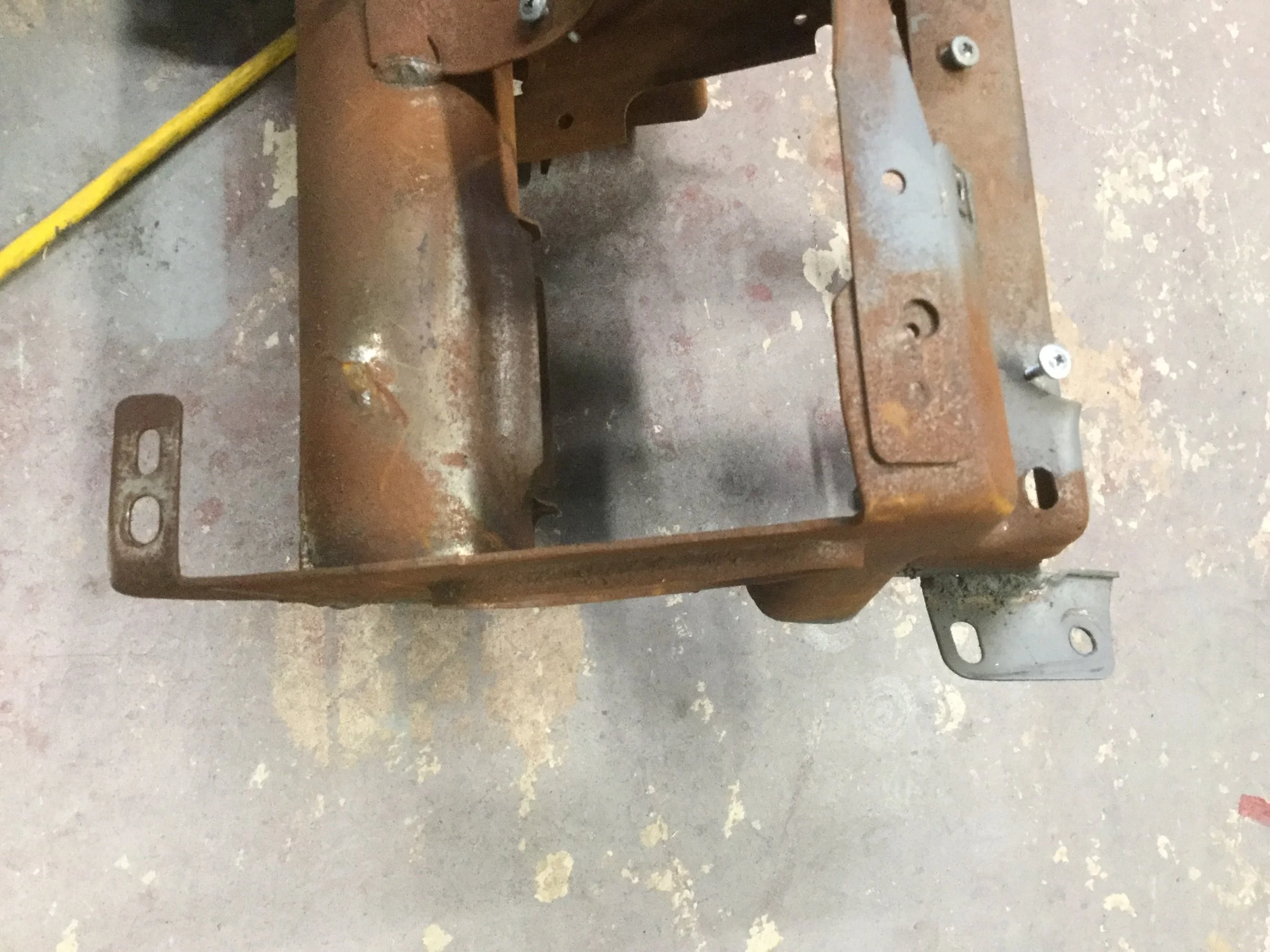

A closeup of the support tab on the bottom passenger side. This is from the front of the frame

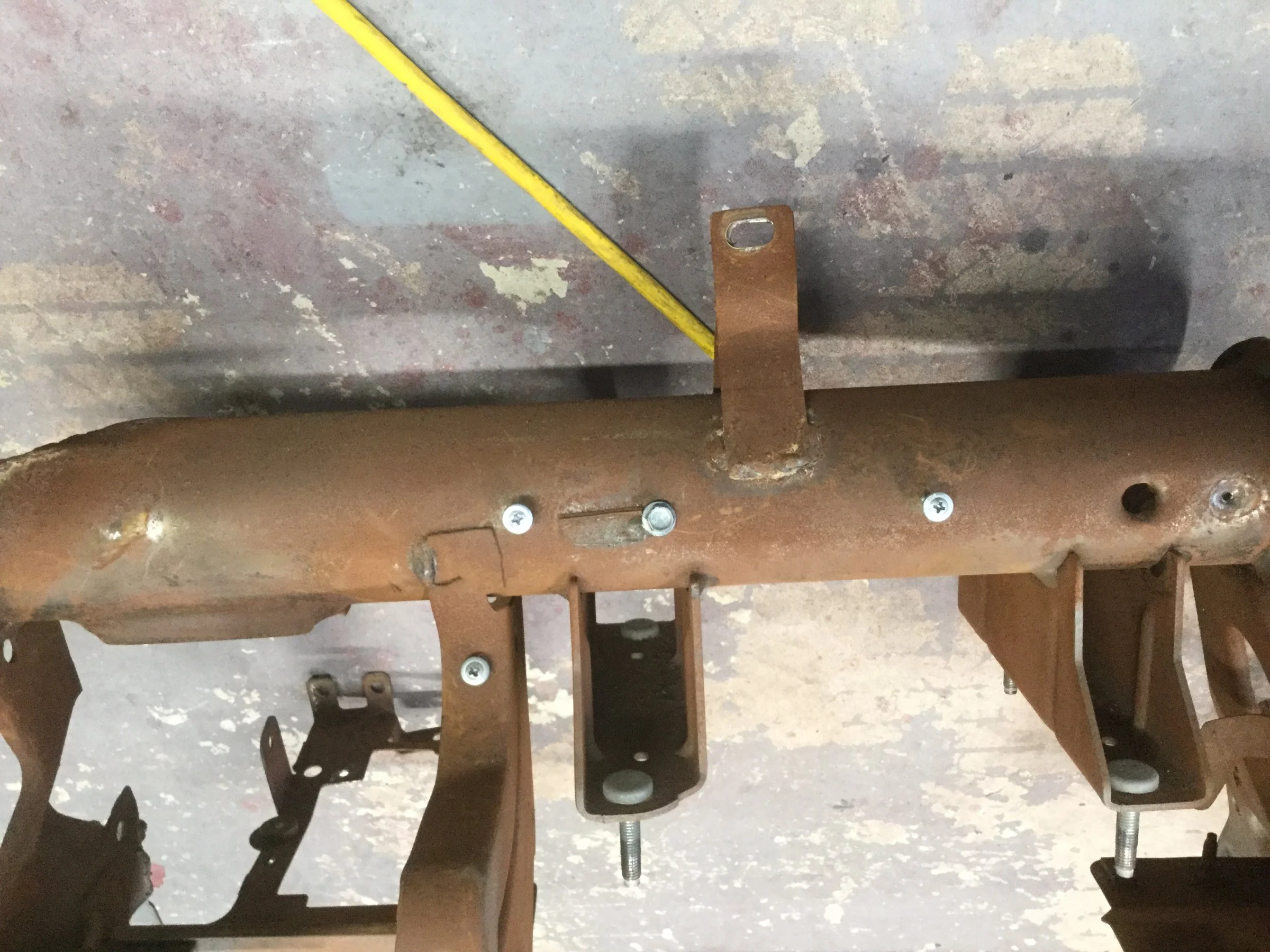

Also from the front, this is the drivers side

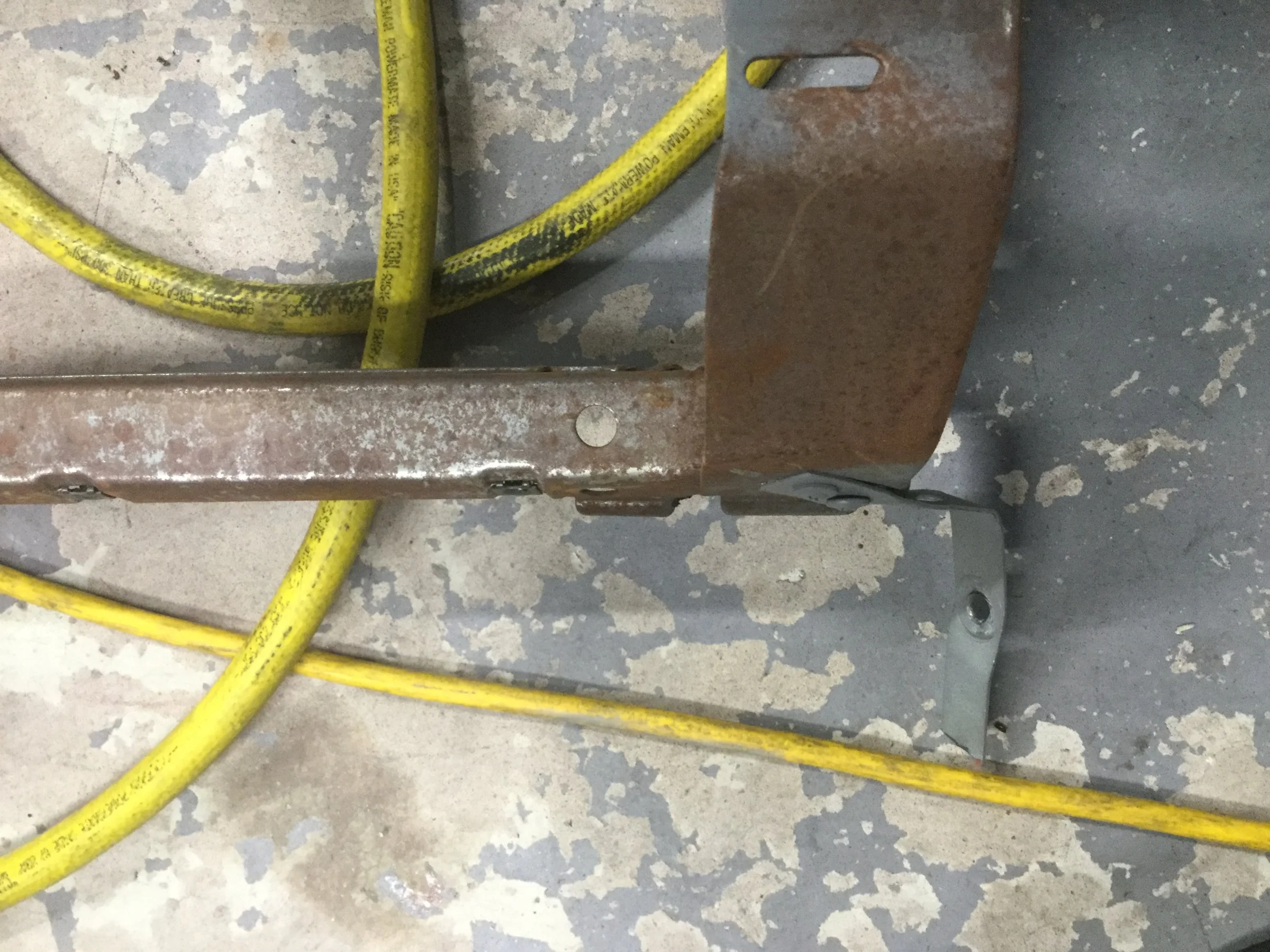

One of the top tabs

Another top tab

Hope this helps someone

Jim

  • Like
Reactions: 1 users

Vettn71

Advanced Member
Jan 3, 2014
273
154
74
69

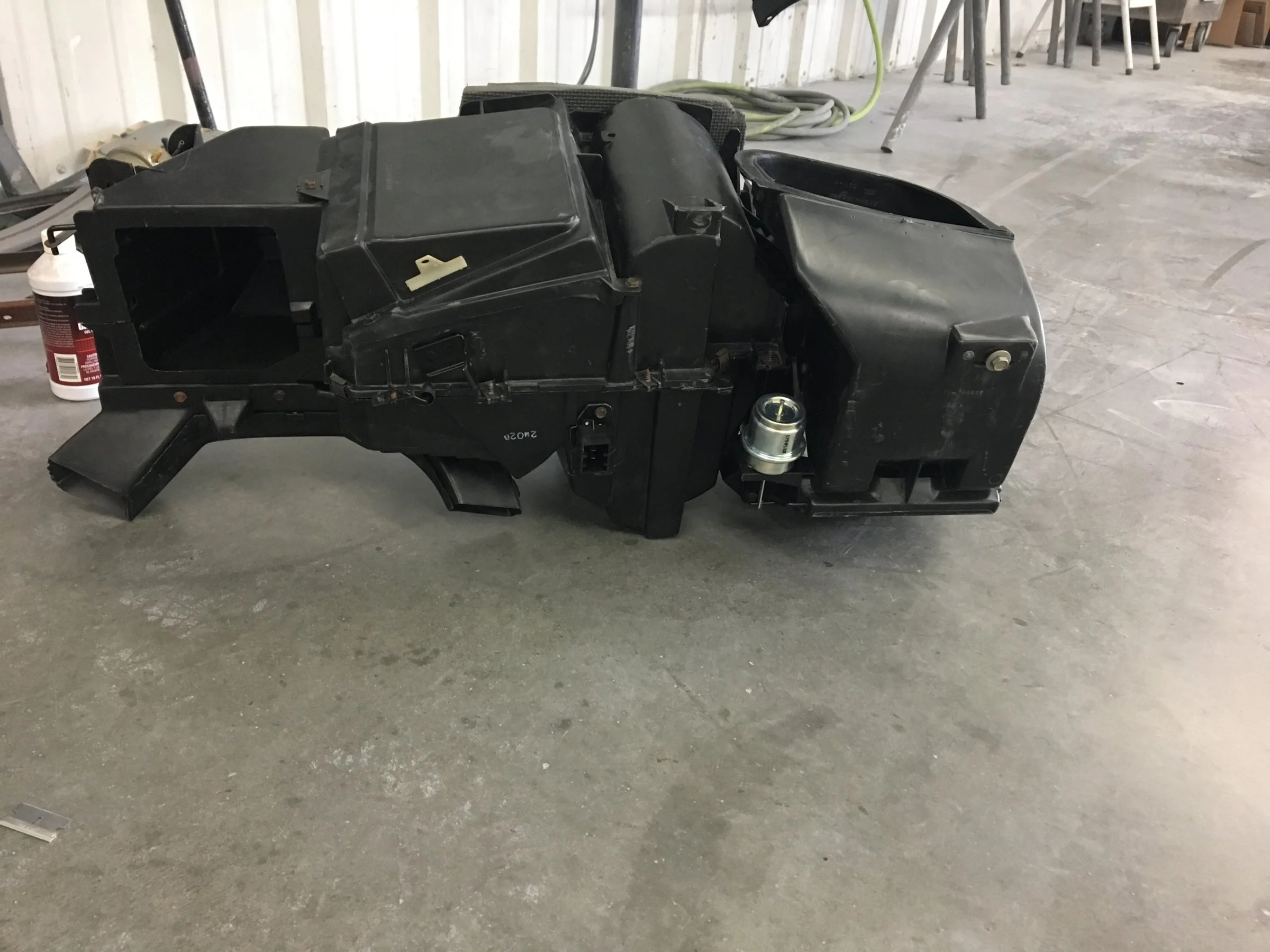

Can anyone tell me if this is a sn95 or a fox heater box?

TIA

Jim


Attachments

  • E4626B68-A75F-412C-98A1-69DA35B2F937.jpeg
    617.6 KB · Views: 74

Vettn71

Advanced Member
Jan 3, 2014
273
154
74
69
The only reason I ask is that the temperature blend door operates with a cable that moves back and forth, not the rotary switch sn95s have

Jim


Davedacarpainter

I think I've messed my pants
SN Certified Technician
Nov 28, 2015
11,753
11,505
203
58
Discordia


Can anyone tell me if this is a sn95 or a fox heater box?

TIA

Jim
It kind of looks like mine, let me see if I can dig up a picture to compare, I'll be back.

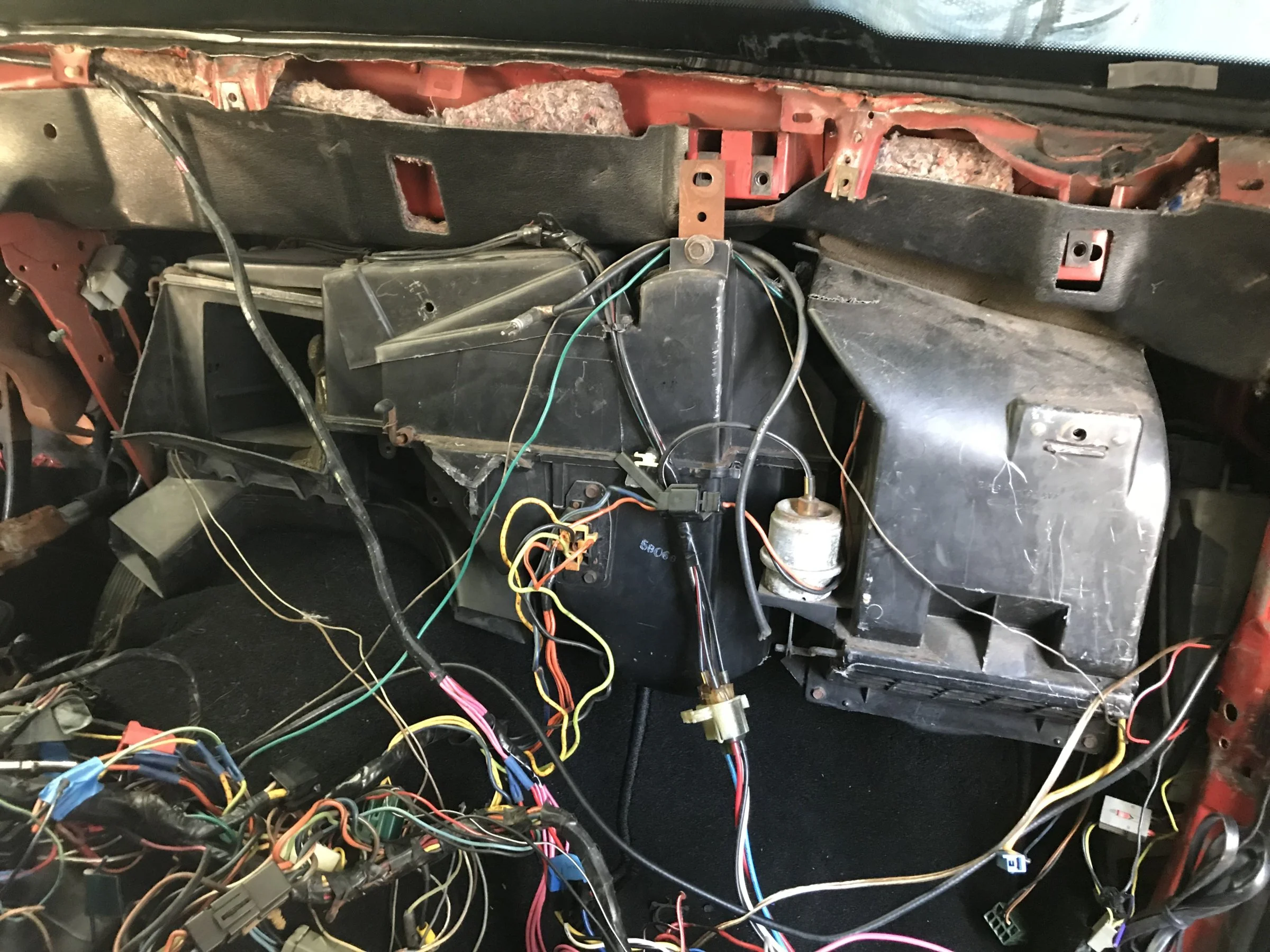

Yours
Mine from an '83
Sure looks like you have a fox box. I don't know what the one from an SN95 looks like.

Last edited:

Vettn71

Advanced Member
Jan 3, 2014
273
154
74
69
There is a strong familial resemblance

That is actually good news, since my son didn’t get one with his 84, He didn’t care, since he’s going all sn95. I do appreciate your assistance, @Davedacarpainter
