The crank can be worn without showing on the surface. You'd have to measure it horizontal and vertical. You don't want an egg shaped crank journal. That engine looks like it's due for rebuild. The piston skirts and cylinder wear are what I'd expect from 90k mile car. At this point the skirts need to be measured and cylinder bore checked.

The short answer to your question is....you could try standard bearings. New bearings would be better than what's in there now. The engine was on its way out.

The knock could be a wrist pin or the thrust bearing. Hard to tell without actually being there to hear the noise. The crank could have easily been knocking from the space from the worn bearings too.

If I were me I'd pull the engine and rebuild it. However, you would loose nothing but the cost of bearings replacing them and putting it back together. It's easier to take time to have an engine built when the current car starts, runs, and drives. You know what you have now and could get some time to get the money and parts together while still driving occasionally.

In reality you could but the car back together with just the new bearings and your knock could be gone. Crank pictures look OK but I'd want to measure it to be sure.

  • Like
Reactions: 1 user
  • Sponsors(?)


snovak

Active Member
Oct 9, 2020
175
90
38
41
Croatia
@90sickfox thnx.
I have no experience, but bearings which started to show copper as on 1st journal should not hurt crank due to design (hopefully).
If the rest of the journals are like that I may get some road life to save for proper high quality/performance rebuild. This is a weekend car anyhow, but a proper rebuild should be done. It is clear now.

I am just checking with you guys for experience, don't want to throw money/time...
Cam should get better life and less abuse in engine AFAIK? I got new lifters not long ago together with pushrods and rockers....
I will check journals OD as best as I can with micrometer, but rods ID can't be measured in engine. I will also try to measure widths, but it is crowded down there...
The plan is also to polish (grit 1000 and shoestring) journals a bit for smoothness.

Now, according the journals are okay... and all that above and new bearings, oil pump, pickup.... Can I expect some life (5/10/15k miles) until proper rebuild?

Thnx!


snovak

Active Member
Oct 9, 2020
175
90
38
41
Croatia
To be 100% honest...I am affraid to pull it out.
I would prefer "bottom end refresh" method if You allow and "bless" my method as "safe" for block.
Just wait for more pictures and measures...

Knowing myself it will finish like parts in picture, ripped, stripped, coated, renewed... (wheel arch parts still at powder coat service)

Why not? With engine it will take muuuuuuch loooonger time and fox will be far away from road next year I am affraid. When I opt for rebuild, belive me I will strip every single nut and renew it or order new one and one should look like engine from assembly line...
So from my point of view, rebuild needs to be planned in forward with half of the parts ready in garage. I am in Europe, remember. And I don't take compromises when I decide to rip apart complete engine...


Attachments

  • IMG_20210918_184056.jpg
    255 KB · Views: 34
  • Like
Reactions: 1 user

snovak

Active Member
Oct 9, 2020
175
90
38
41
Croatia

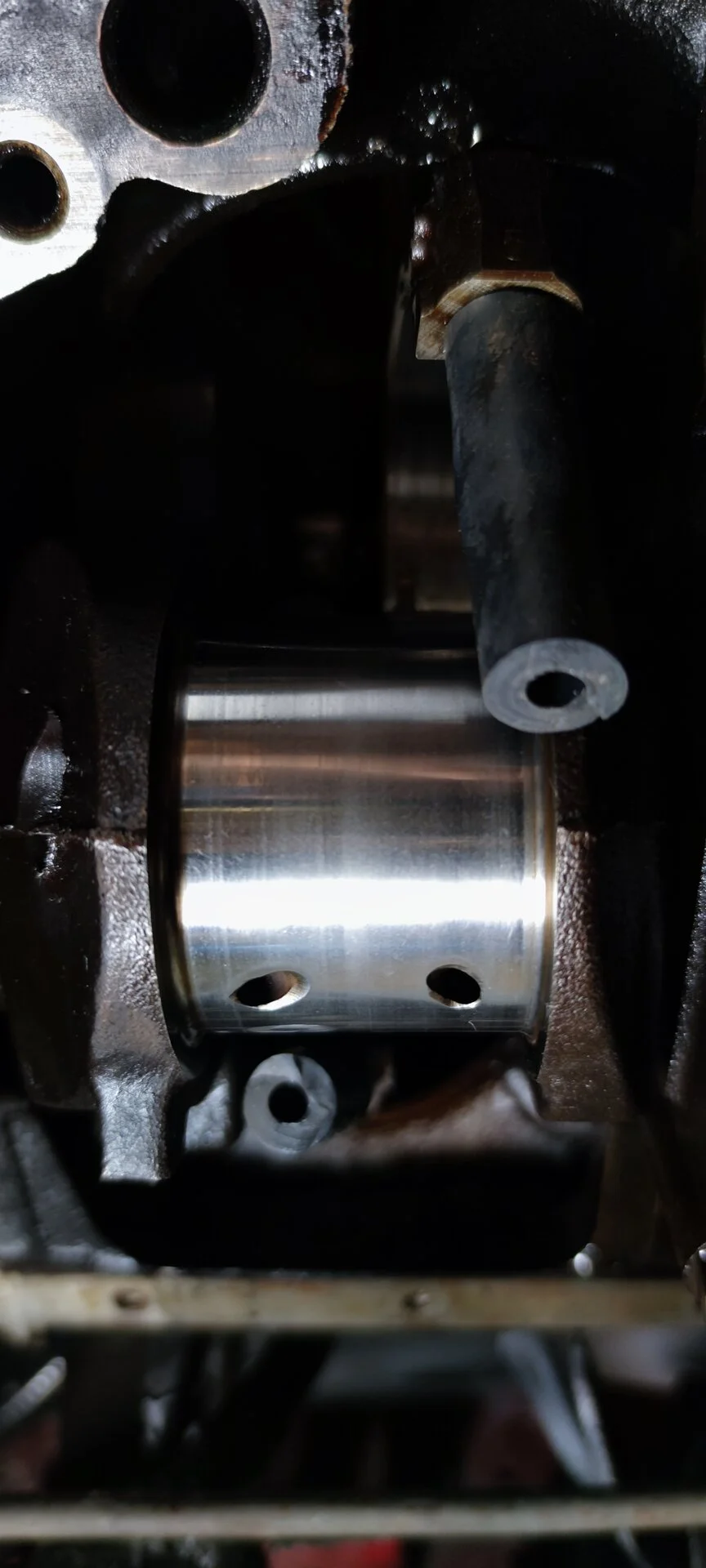

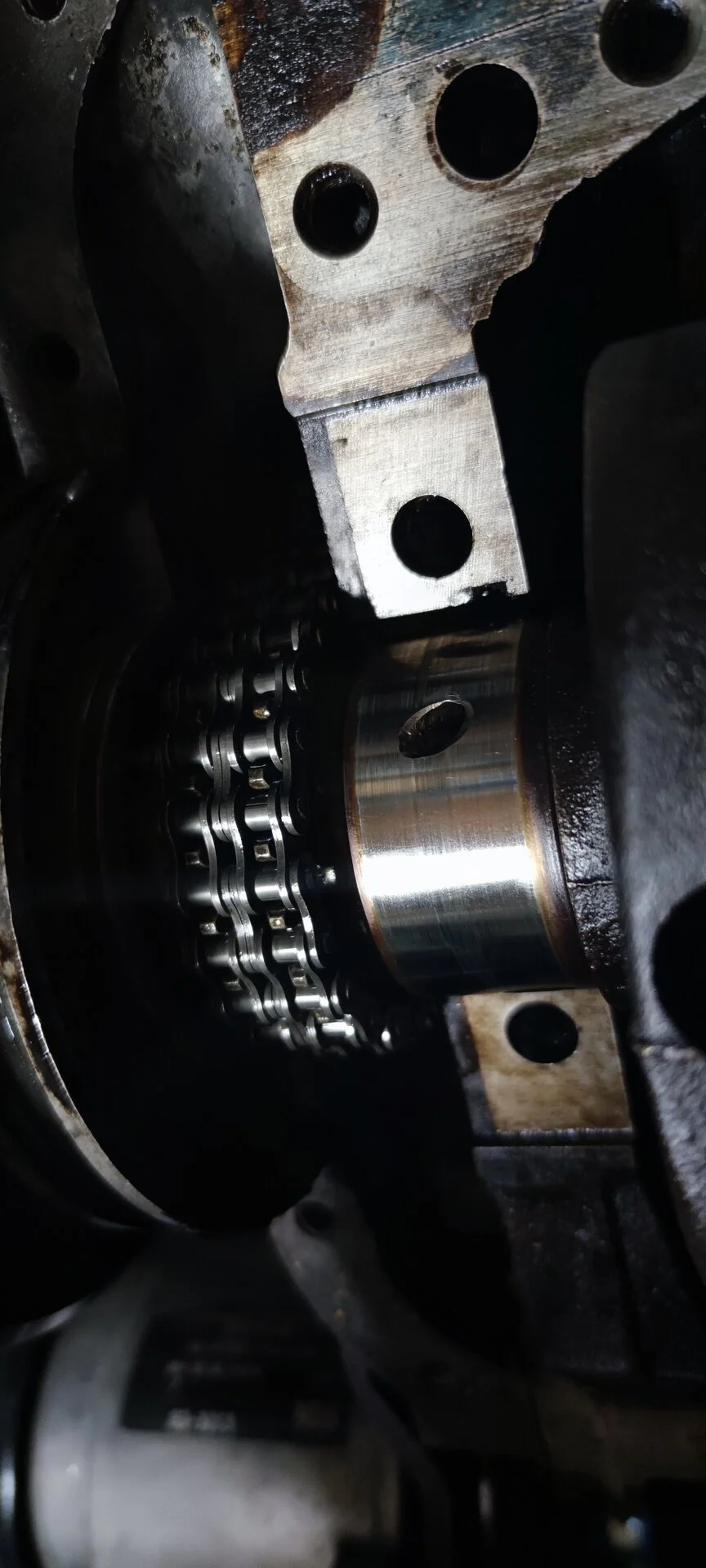

Okay, I would say journal 1 - cyl1&cyl5 are ready. I may get away with first one...

Used 1000 grit paper with WD40 and just a 30-40 soft turns with shoe string to loose lines slightly felt under fingernail.

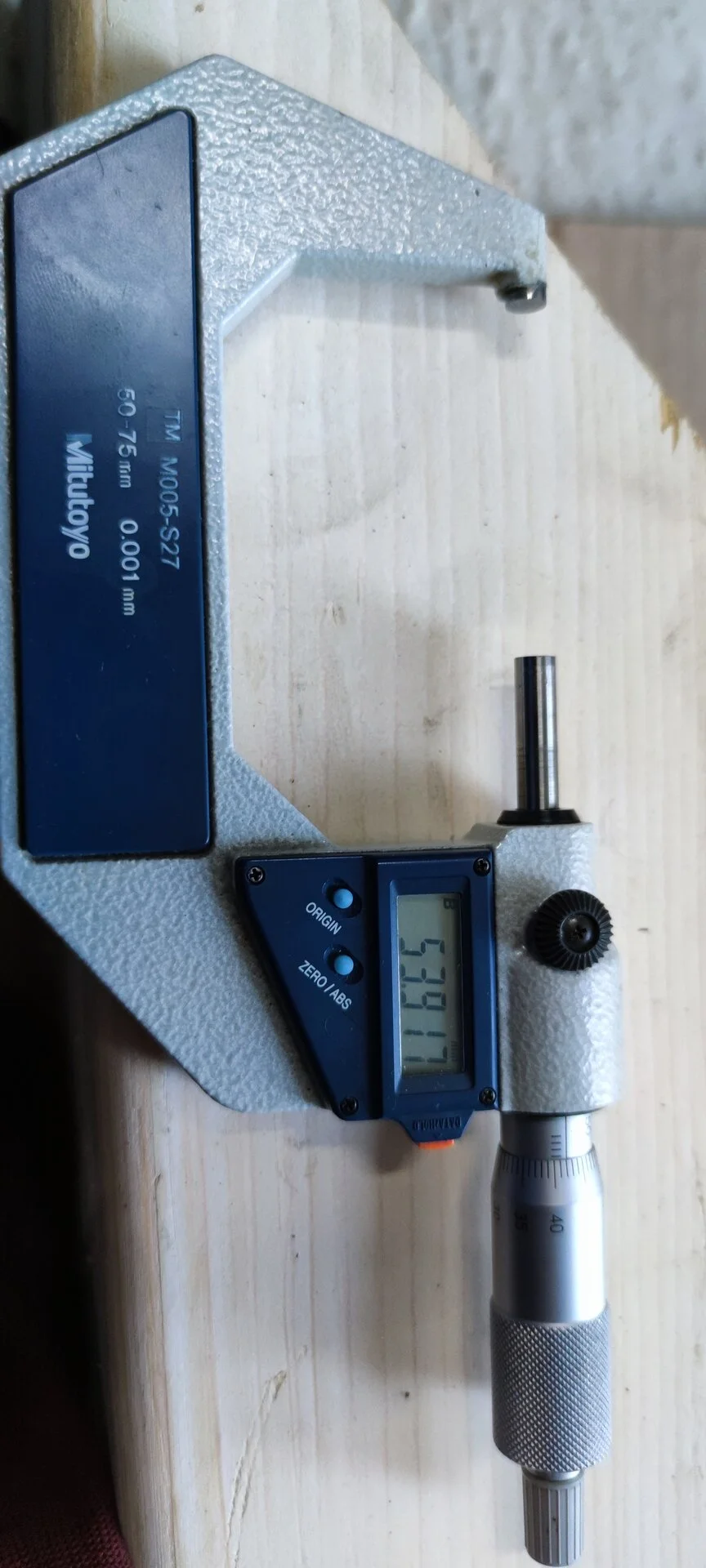

Measure is 53.917mm or 2.1227" which is a hair below specification minimum (2.1228"). Perfectly round journal, not oval. I used a micron OD micrometer. Can't check con rod ID down there.... :-(
Forgot to measure con rod and journal width, but it will be hard to do it precise down there.....

Waiting for assembly lube from mechanic, throw in new std bearings, tighten to ... middle 22 ft/lbs? (19-24 is spec)
And tomorrow we pray for journal 2...


Attachments

  • IMG_20210920_182228.jpg
    198.1 KB · Views: 21
  • IMG_20210920_195723.jpg
    150.9 KB · Views: 17
  • IMG_20210920_200254.jpg
    145.2 KB · Views: 20

snovak

Active Member
Oct 9, 2020
175
90
38
41
Croatia
For doing this in resonable time You need a retirement and grown up kids...

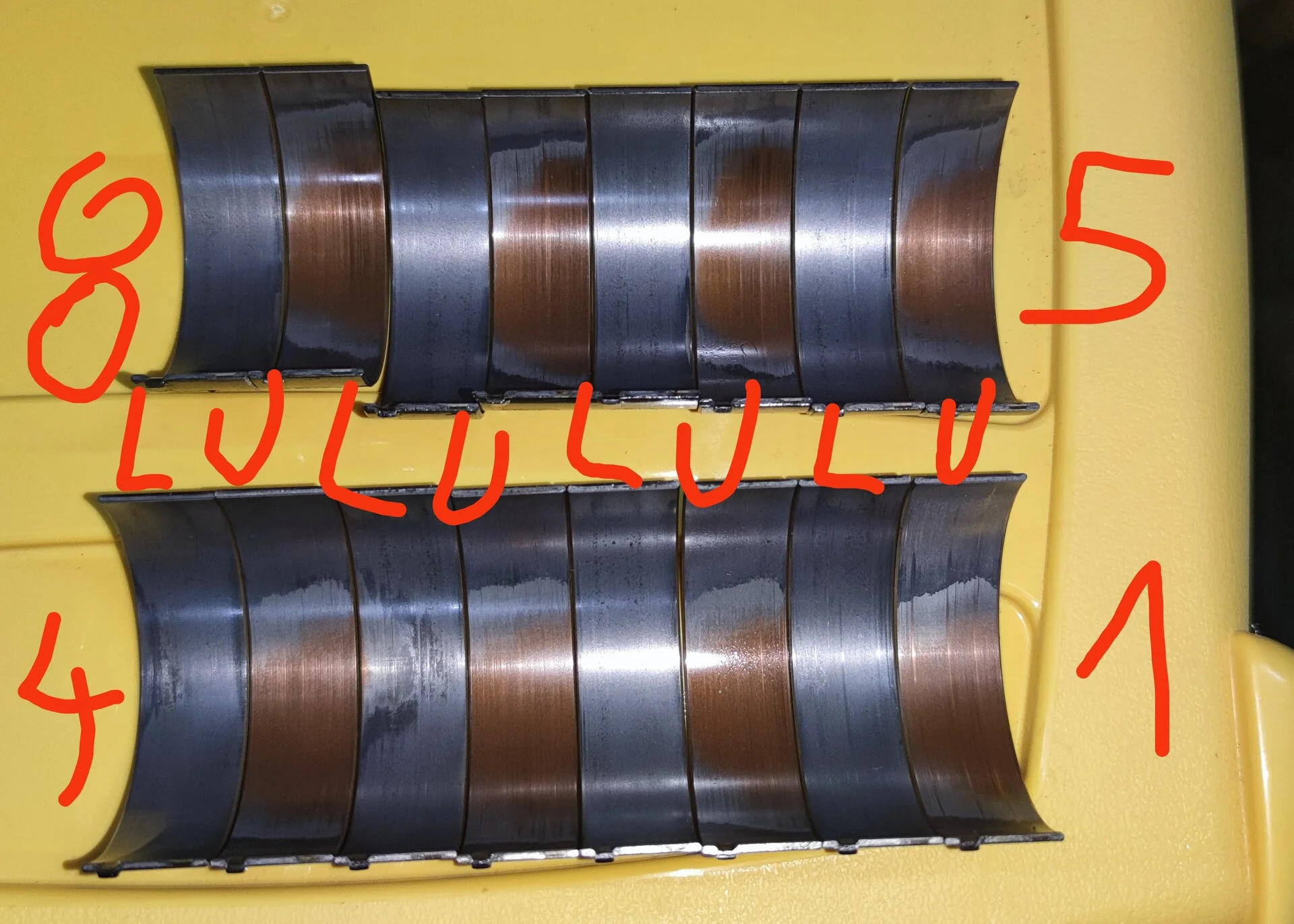

Finally I got all con rod bearings put and went to main bearings, this is first one on picture with journal. Again the upper part got beaten well like on connection rods.


Attachments

  • IMG_20210924_221624.jpg
    181.7 KB · Views: 13
  • IMG_20210924_221220.jpg
    108.7 KB · Views: 10
  • IMG_20210924_221228.jpg
    174.9 KB · Views: 17
  • IMG_20210924_230407.jpg
    386.1 KB · Views: 14

snovak

Active Member
Oct 9, 2020
175
90
38
41
Croatia
Maybe worth to mention:

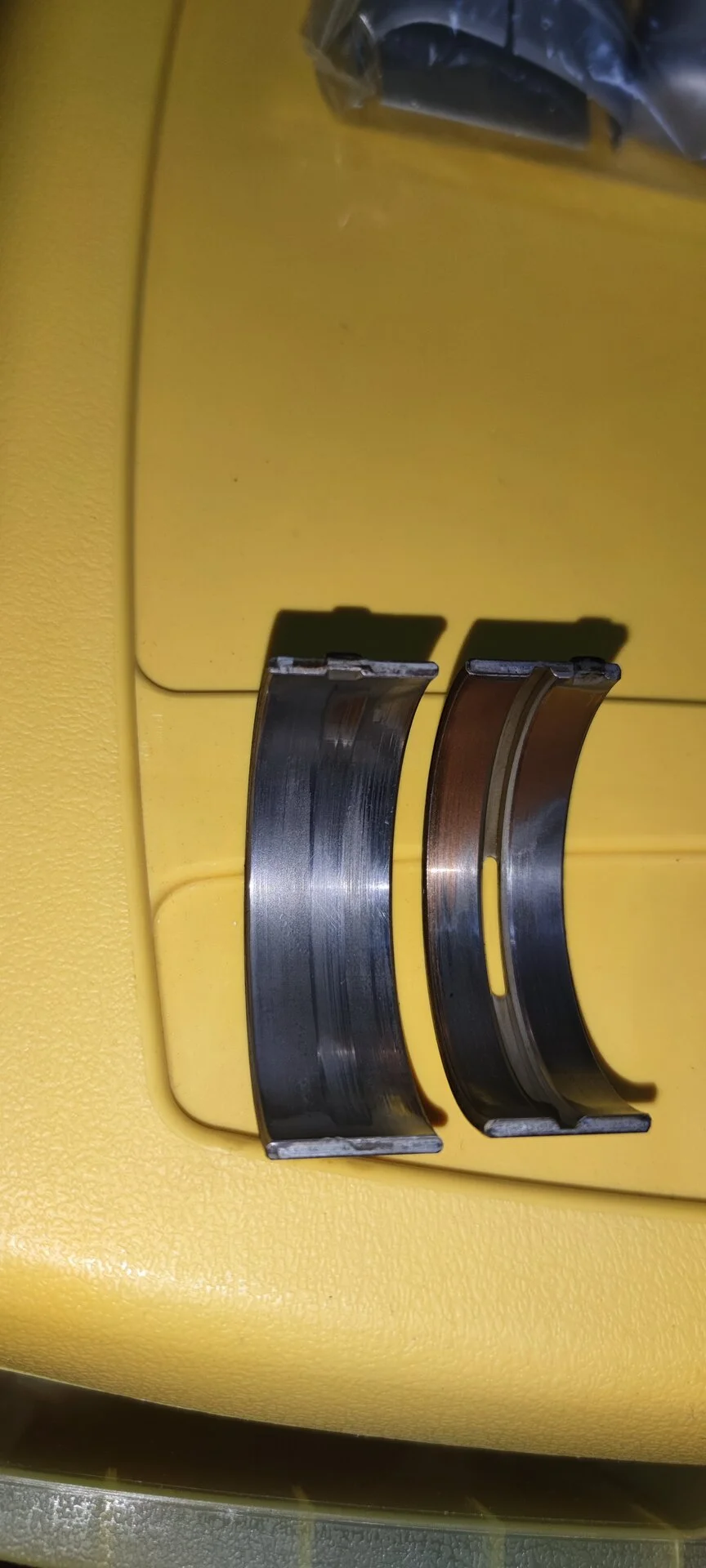

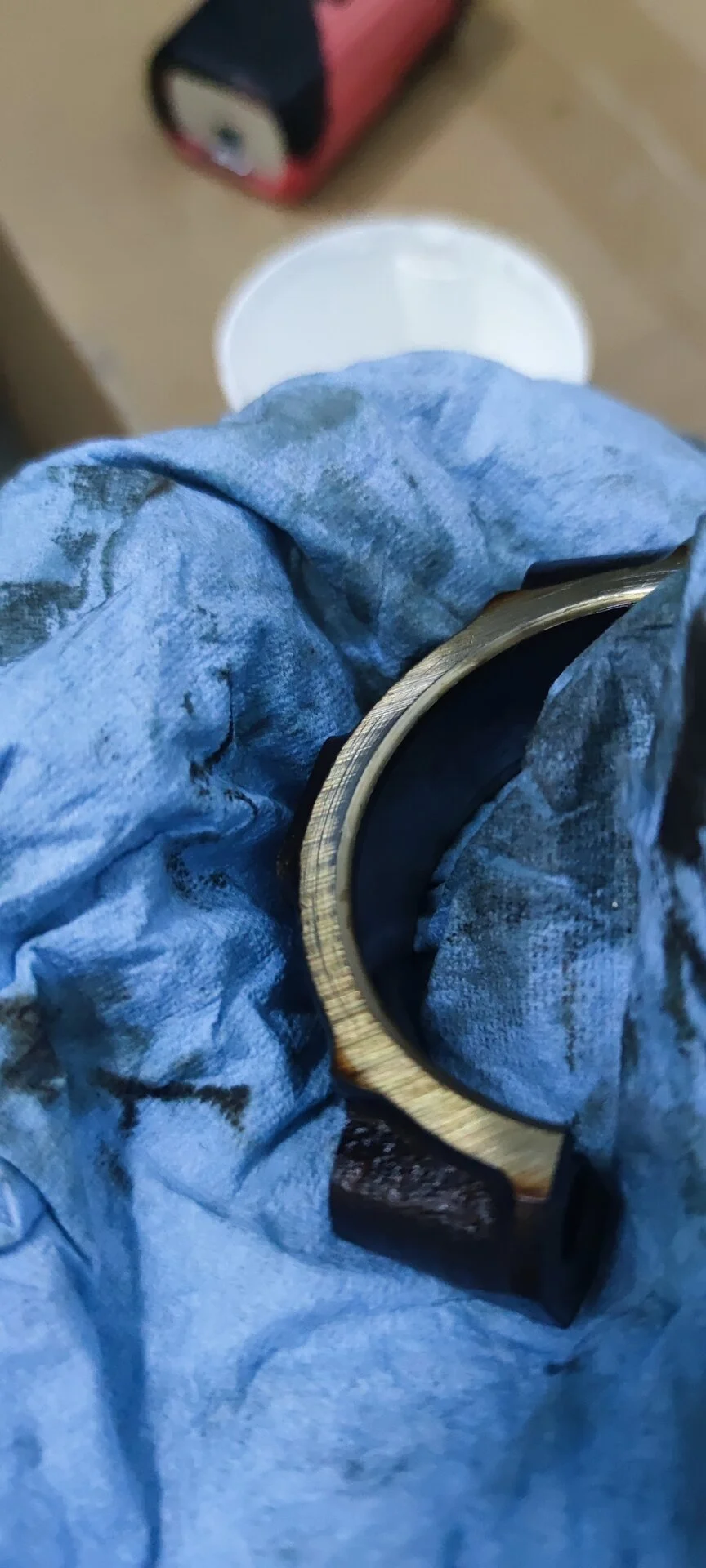

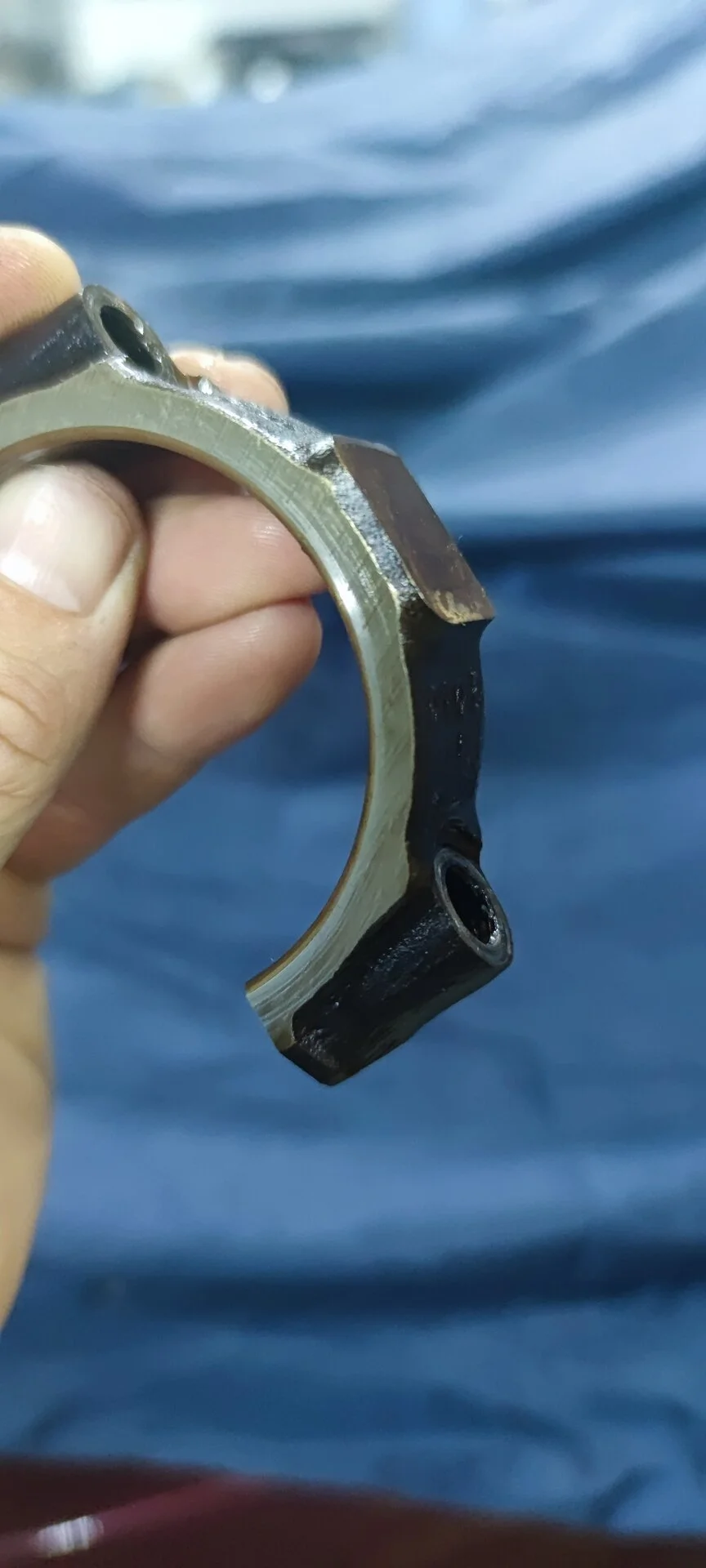

Rod cap #7 had some side slight grinding marks facing front towards crank and #8 facing back towards crank also.
I suppose a victims of axial crank play...and I hope I will get away with this...

But, why has this occured only on last pair of cylinders?


Attachments

  • IMG_20210924_200757.jpg
    207.4 KB · Views: 14
  • IMG_20210924_202134.jpg
    128.8 KB · Views: 15
  • IMG_20210924_202310.jpg
    272.4 KB · Views: 14

manicmechanic007

Active Member
Sep 26, 2017
559
144
53
62
Looks like just new bearings to me
Piston skirt wear looks normal to me for 90k
You will need to pull the pistons out
Need to see picture of thrust surface of crank
That was the initial problem right?
Is the thrust bearing toast or the crank?
Measurements needed
Disassemble the oil pump and inspect rotor clearance
Seen a lot of these go back together and still knock
I am talking about new motors at the dealer that had less than 1000 miles

  • Like
Reactions: 1 user

snovak

Active Member
Oct 9, 2020
175
90
38
41
Croatia
@manicmechanic007 God bless Your words and that all of that work was not futile....

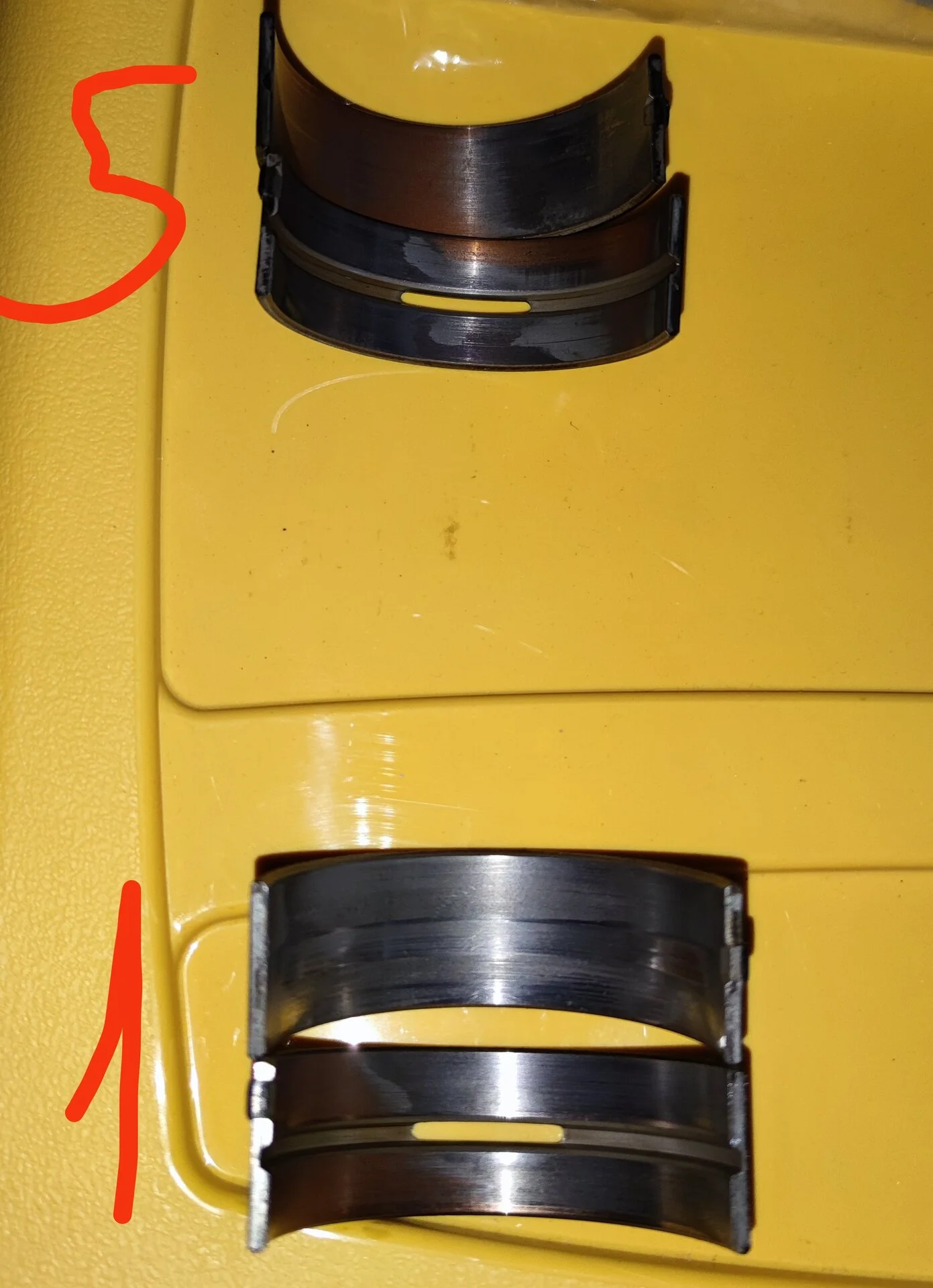

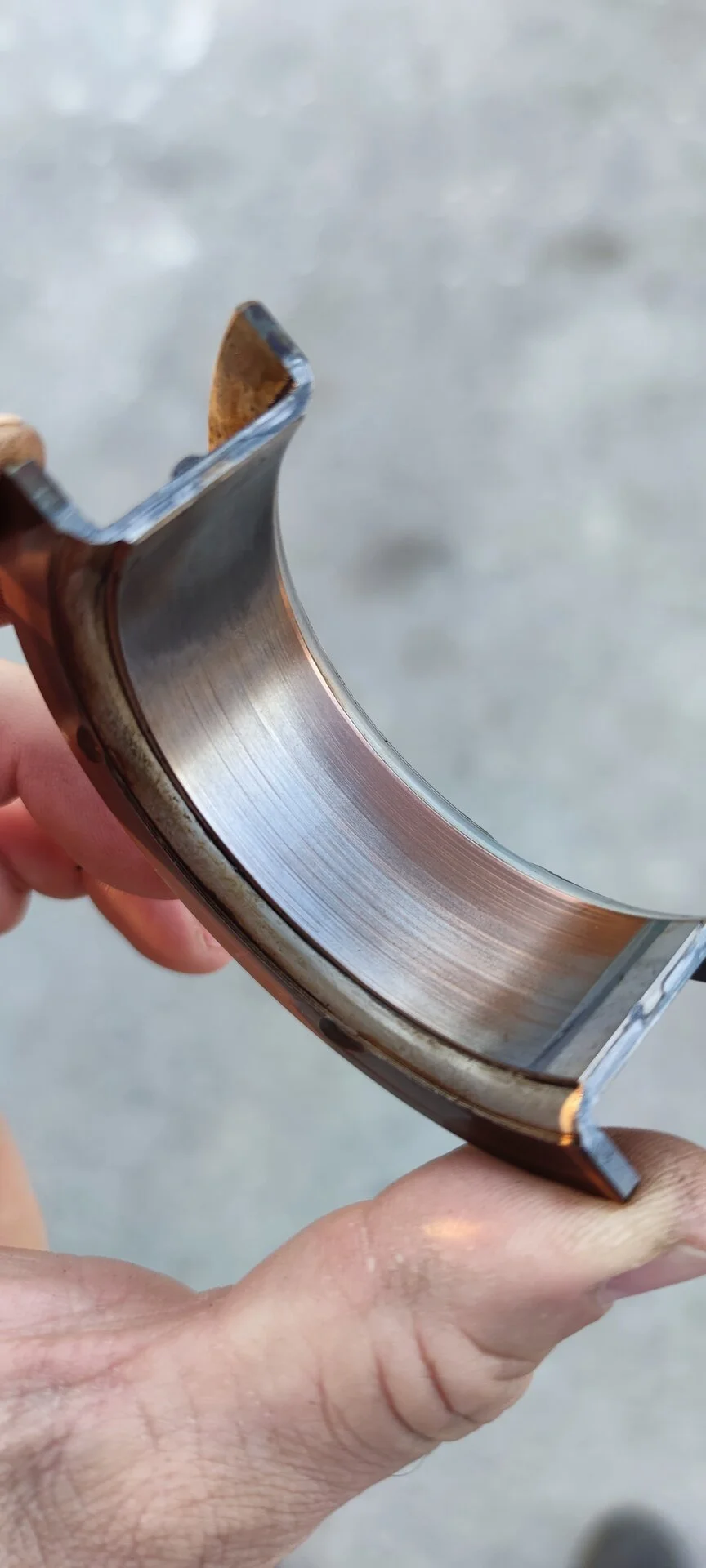

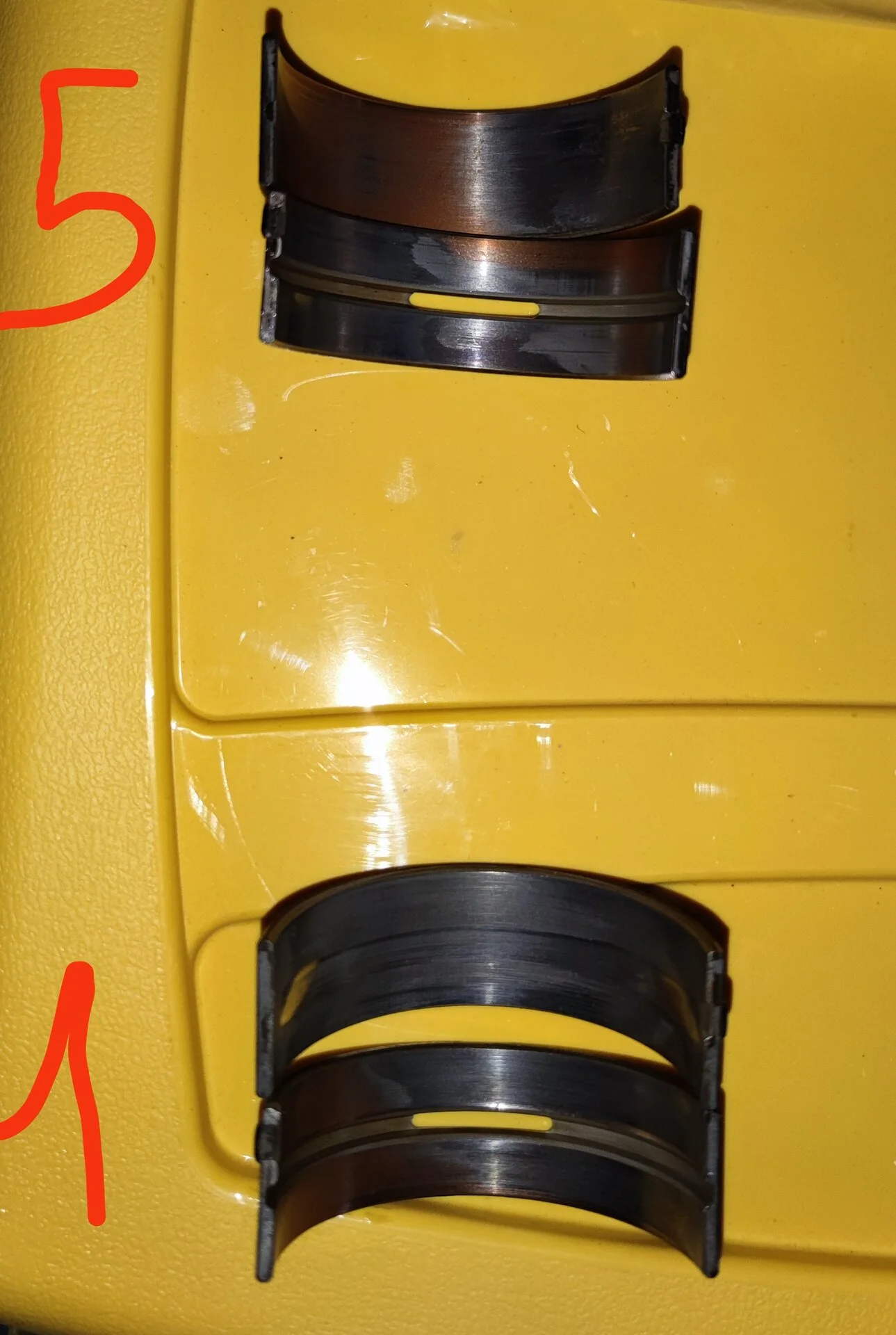

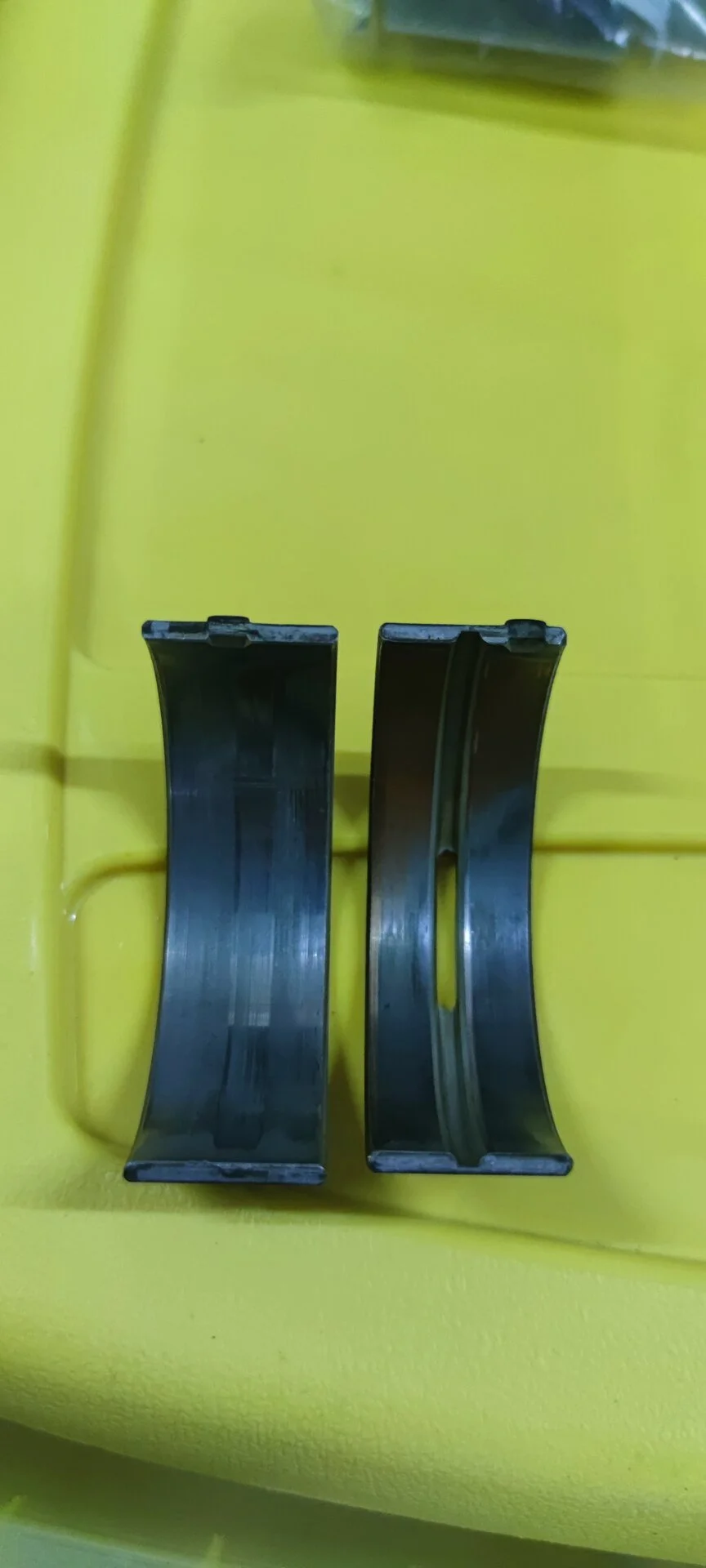

Bottom thrust is out:

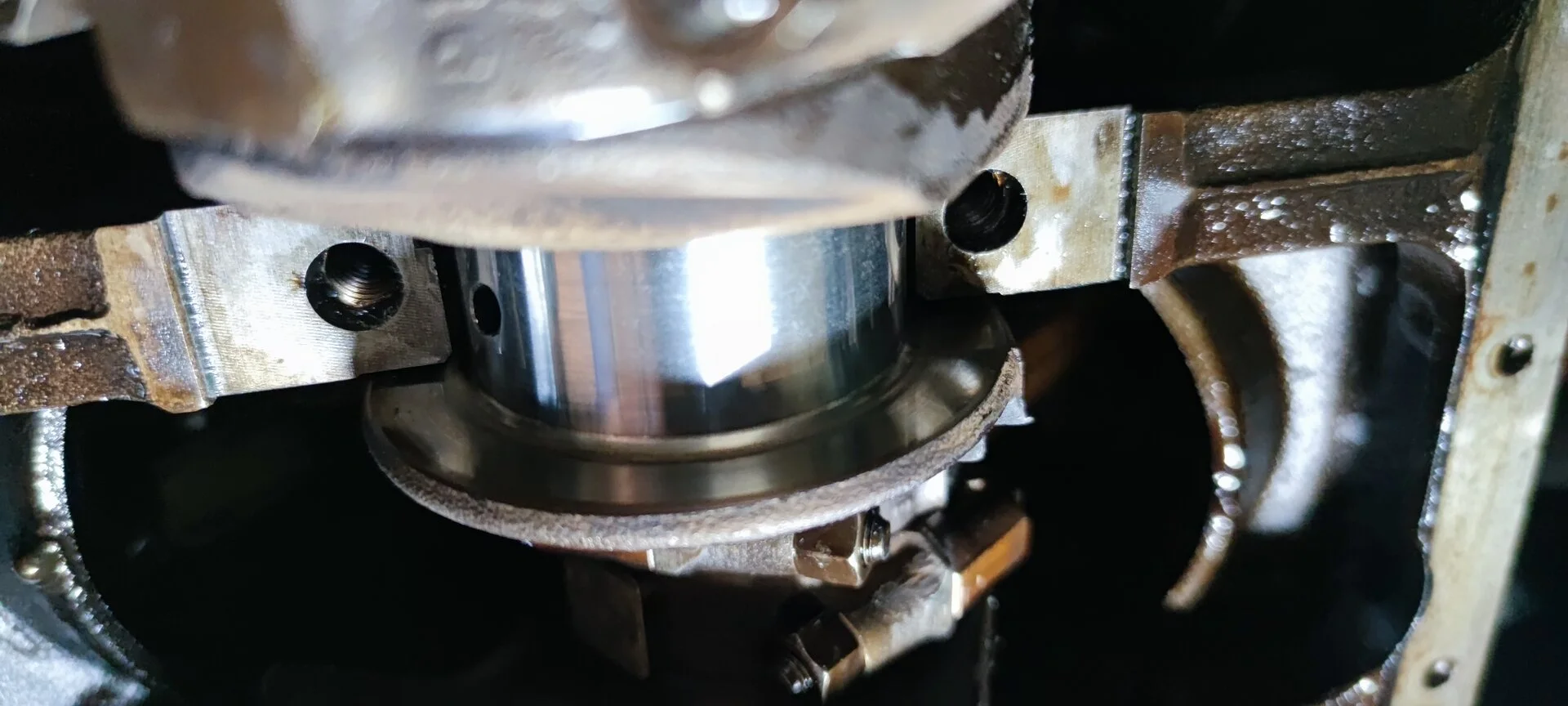

Crank thrust looks okay to me, I will take pictures when I remove upper bearing.

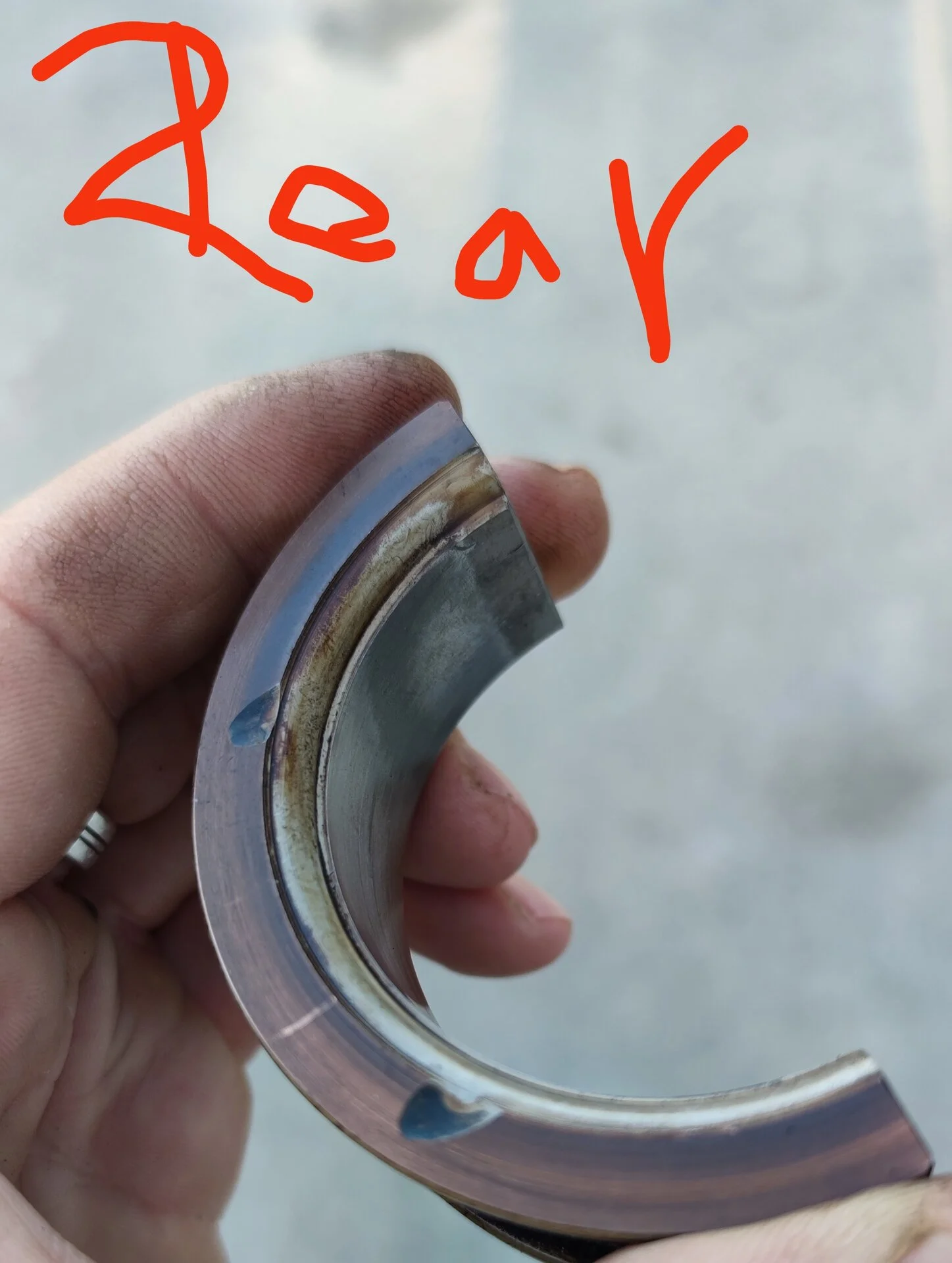

I was surprised that front of lower bearing is worn as I expected back side wear .....
I got weekend ban from SWMBO, so to be continued next week :)


Attachments

  • IMG_20210925_184515.jpg
    275.8 KB · Views: 9
  • IMG_20210925_184539.jpg
    280.6 KB · Views: 11
  • IMG_20210925_175635.jpg
    127.8 KB · Views: 10
  • IMG_20210925_184451.jpg
    182 KB · Views: 10
  • IMG_20210925_184430.jpg
    203.6 KB · Views: 12
  • Like
Reactions: 1 user

snovak

Active Member
Oct 9, 2020
175
90
38
41
Croatia

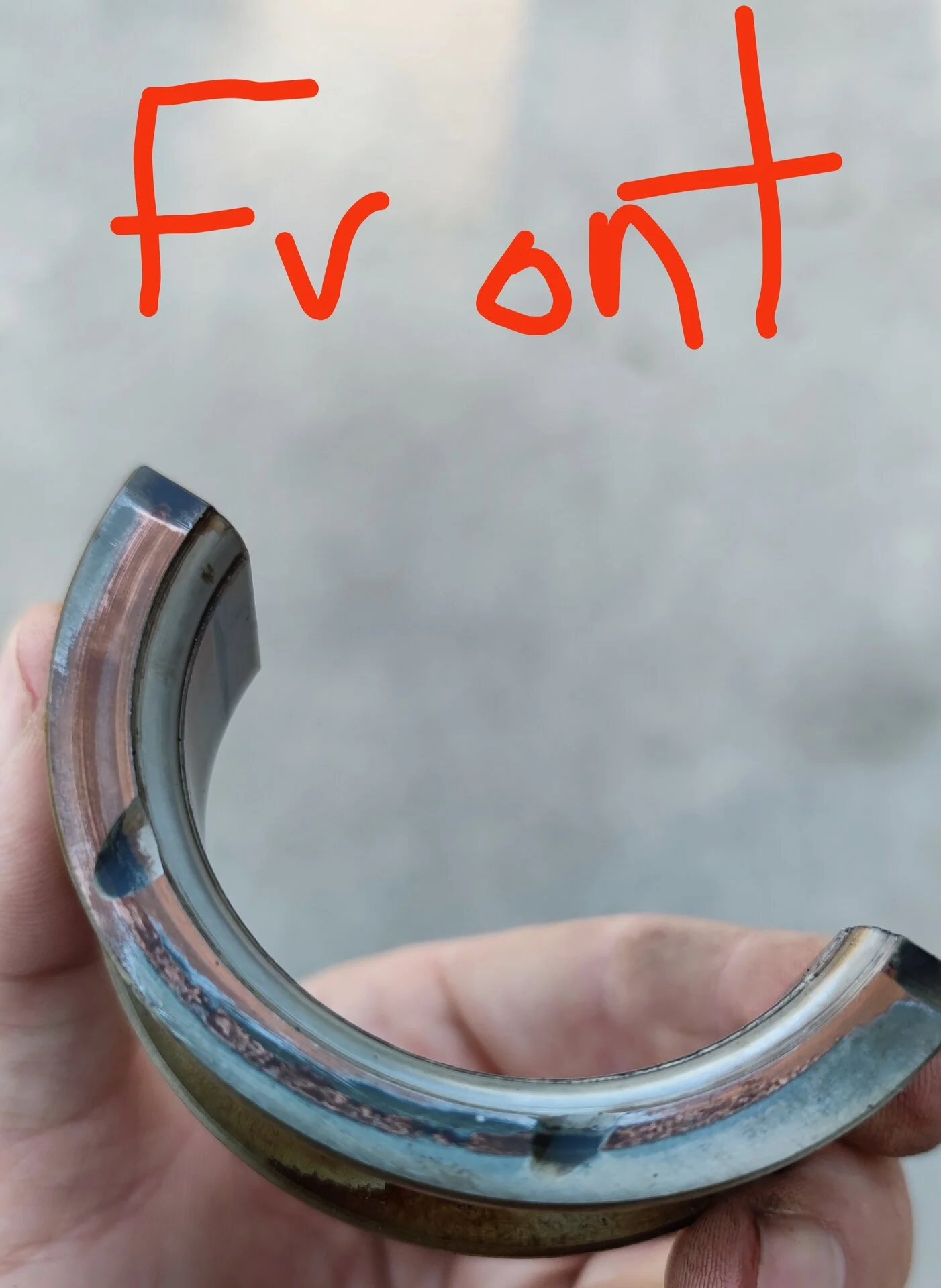

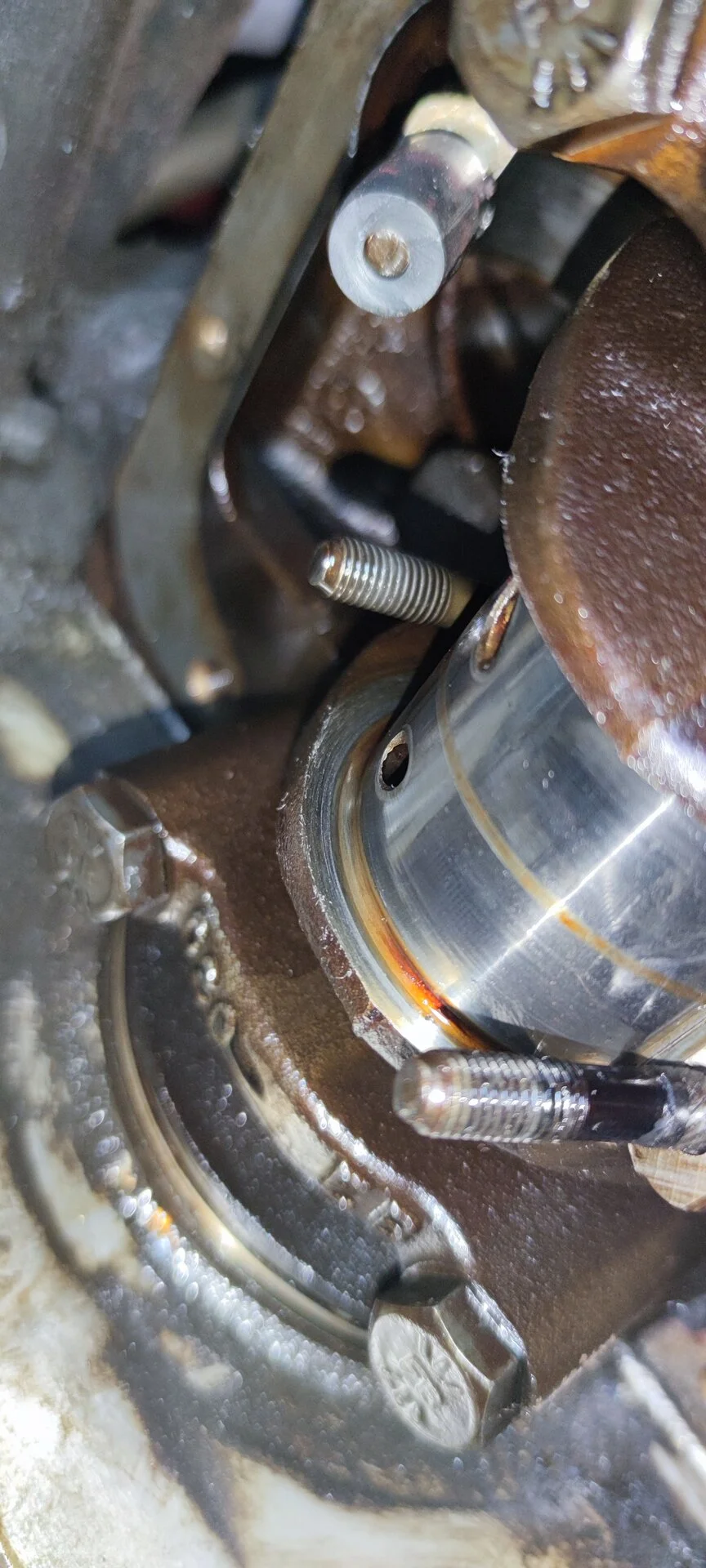

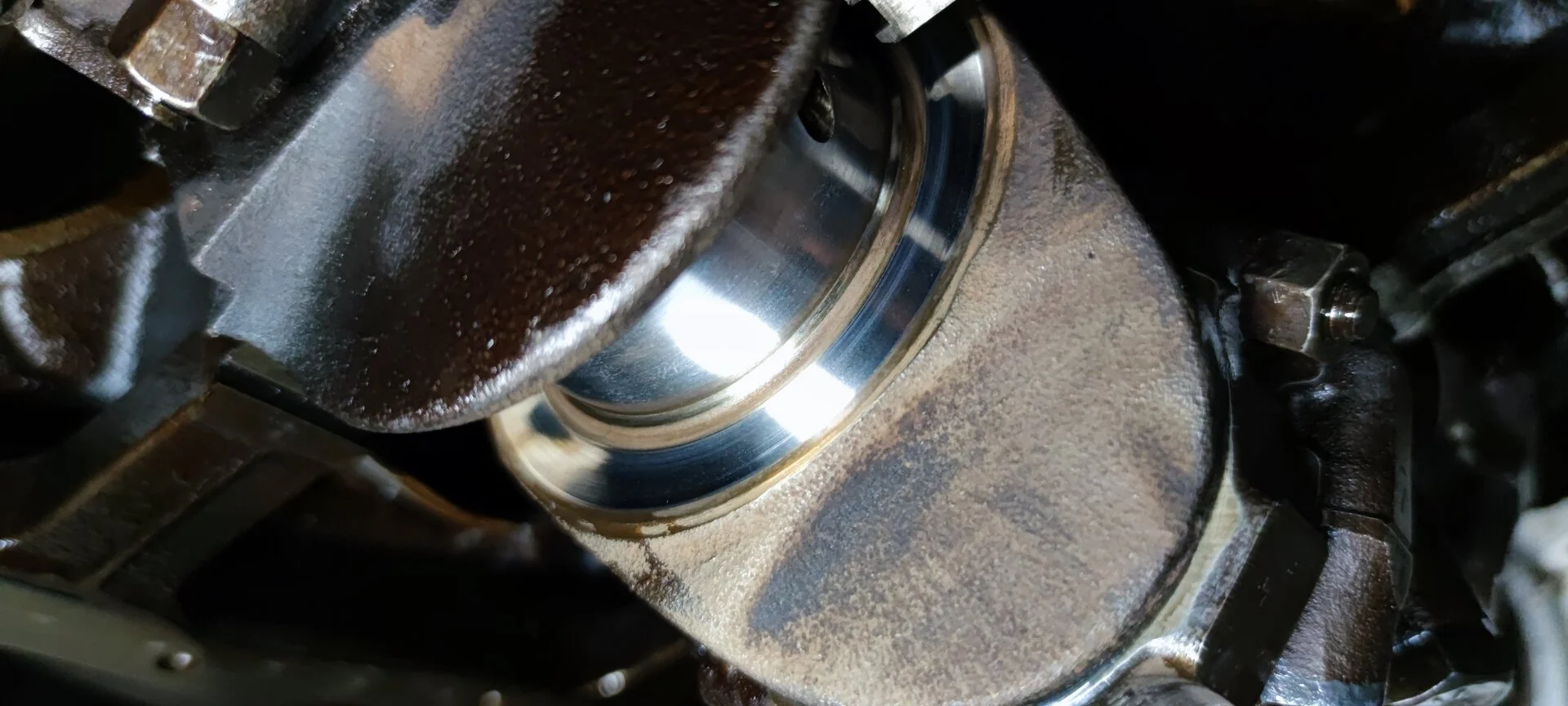

Thrust bearing journal after 1000-grit treatment.

Looks like it will hold to me...
With new thrust bearing inserted and fingertight cap, there is absolutely less crank play....

The question remains why it was the front of thrust bearing worn? Using impact when changing HB?

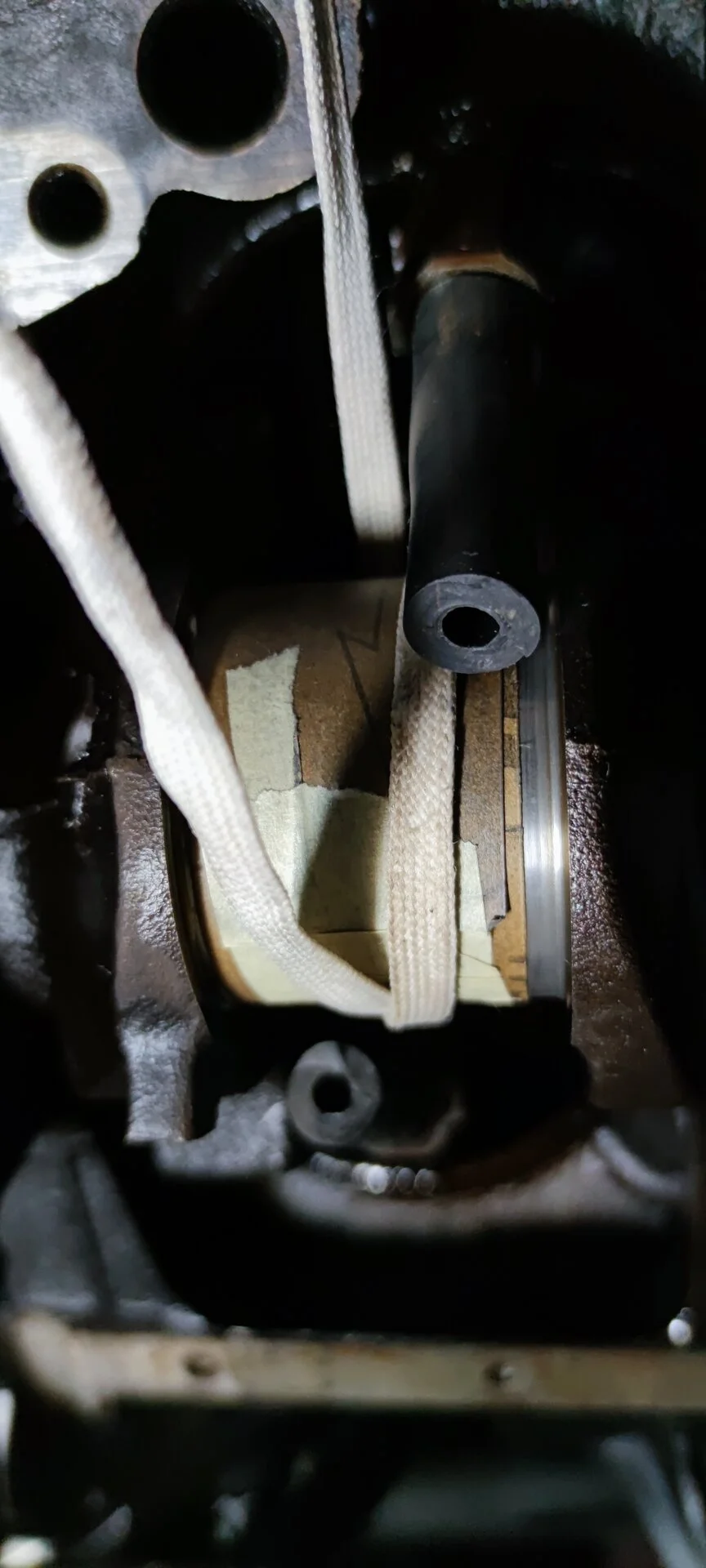

Question: on last cap there is a rubber seal (rear main). Do You put some thin layer of RTV there?


Attachments

  • IMG_20210927_202230.jpg
    196 KB · Views: 8
  • IMG_20210927_202219.jpg
    215.7 KB · Views: 16

manicmechanic007

Active Member
Sep 26, 2017
559
144
53
62
snovac,
Not too concerned about the location of the wear is on the thrust bearing
As you probably know when you press on the clutch or engage an automatic
The crank moves forward and wears the thrust bearing rear surface
You may not know because it usually only happens road or drag racing
At high rpm an externally balanced crank goes "S" shaped
That's what wears the #3 thrust on a Small Block Ford all screwy
I have never seen a perfect match on the wear surfaces
I used to chock it up to misalignment of the halves
The early two piece rear main seals were cocked about 1/4 inch and had a small dab of silicone where they joined together
The late one piece seals go in with no sealer
I have seen sealer Rubber not silicone on some GM applications 4.3 for example
I am also proud of GM for putting a large chunk of foam in the cavity back behind the rear main on some models (4.3 Blazer) et al.
Gets them out of base warranty with no leak
I am concerned about your crank
Put a new thrust bearing half in your crank and measure the side clearance
2 to 6 thou is roughly the spec 10 is too much and 15 or more will throw or bend a rod

  • Like
  • Winner
Reactions: 1 users

manicmechanic007

Active Member
Sep 26, 2017
559
144
53
62
Your crank is probably ok by the looks of your thrust bearing
Measure the clearance with the old bearing too

  • Like
Reactions: 1 user

snovak

Active Member
Oct 9, 2020
175
90
38
41
Croatia
2 to 6 thou is roughly the spec 10 is too much and 15 or more will throw or bend a rod
Crank set to max forward with long screwdriver:
6 thou I can squeeze in with new bearing on passenger side, drivers side is a bit tighter... 4 thou is a bit loose but I don't have feelers between 0,10 and 0,15mm to have exact measure.
Old bearing is out already, so I can't test with it unfortunately...


manicmechanic007

Active Member
Sep 26, 2017
559
144
53
62
You should be okay then
Take a new bearing half and measure the clearance when you put it into the crank journal without the main cap
That should be the same clearance and means you are okay

  • Like
Reactions: 1 user

snovak

Active Member
Oct 9, 2020
175
90
38
41
Croatia
@manicmechanic007 God bless your words, and with a little bit luck...it could run!

Allright, all in.
Bearings changed, rod and main.
-Thrust bearing to crank side clearance is 0.006"
-Con rod side play is 0.015"

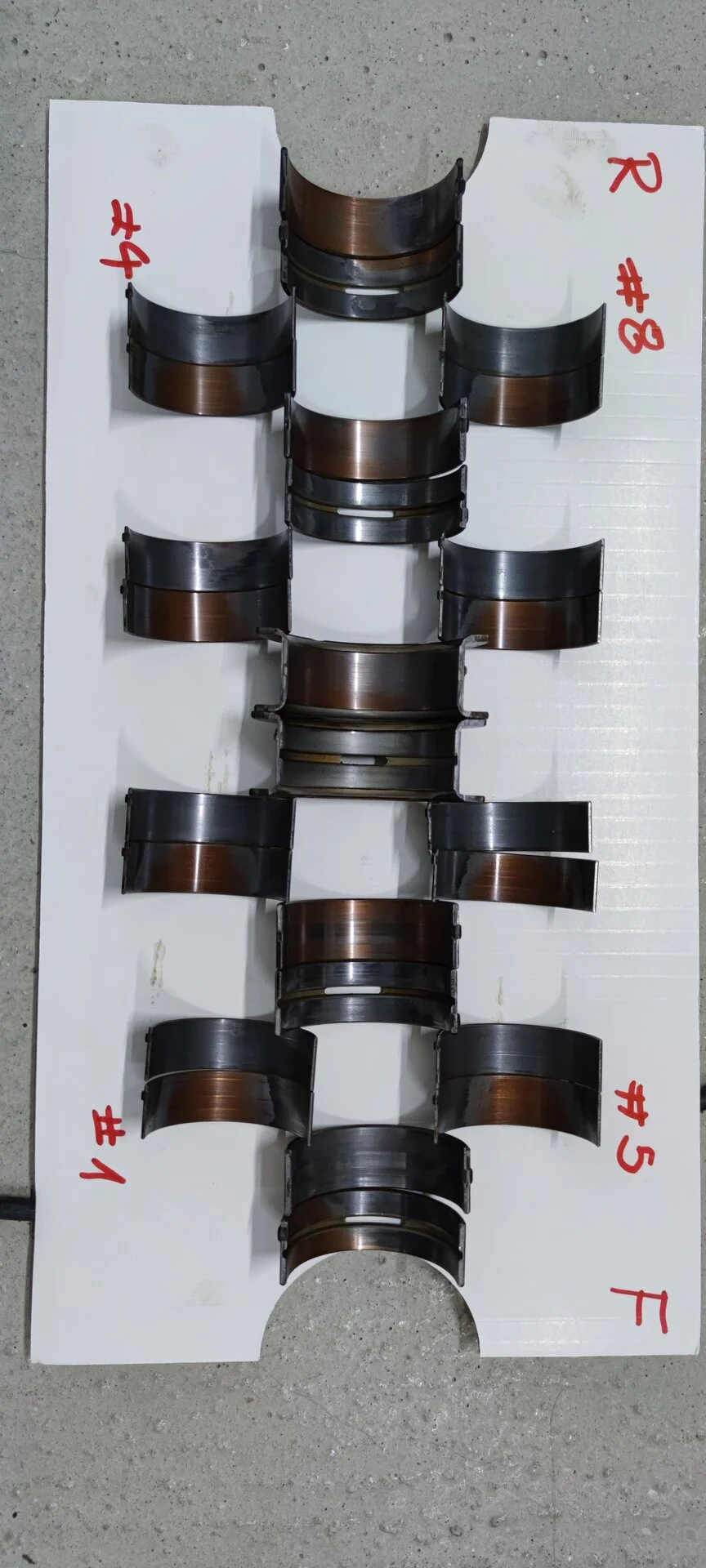

All bearings were worn to copper.

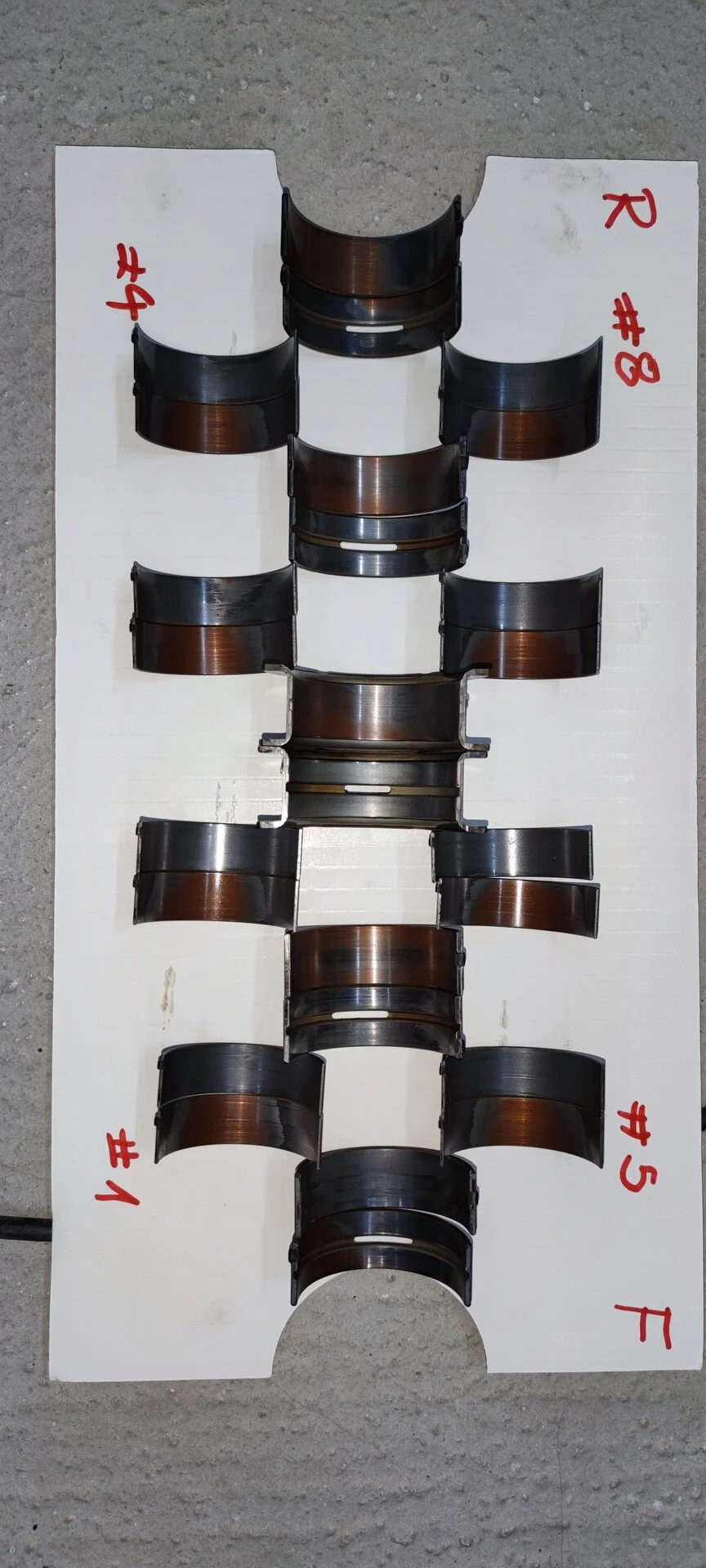

First main journal had a strange, embossed-like middle where the upper part bearing oiling groove aligns. It's not big, but You certainly can slightly feel it under finger.

Was this all a source of knock... We will know soon.


Attachments

  • IMG_20210929_204705.jpg
    218.1 KB · Views: 13
  • IMG_20210929_204654.jpg
    239.1 KB · Views: 14

snovak

Active Member
Oct 9, 2020
175
90
38
41
Croatia
Hillbilly rebuild done.
Just to summarize and make permanent entry of measures here:

**Keep in mind that this measures were taken under car with engine inside, so allow a "~" prefix**

Con rods:
Journal 1
dia ~2,1227 / width ~1,6811 / per con rod width ~0,8346
Journal 2
dia ~2,1230 / width ~1,6811 / per con rod width ~0,8346
Journal 3
dia ~2,1226 / width ~1,6811 / per con rod width ~0,8346
Journal 4
dia ~2,1227 / width ~1,6811 / per con rod width ~0,8346
In all of them I got tight fit of 0,016" feeler so gap is consistent with measuring

Main:
obviously couldn't measure journal diameter...
Between NEW thrust bearing and block I got 0,006" feeler, 0,008" was not even getting close to fit.

In short:
I dropped the K-member (also in order to repaint/powder suspension parts and change bushings) and oil pan. First I attached con-rod bearings one by one journal. Polishing with 1000grit and shoelace was done on each journal (needed or not just to keep consistency). Con rod upper bearings used more with copper visible.
Main bearings same story. Here we had most usage on bottom half of bearing except #5 which was more used on upper half. #1 journal has a very, very light "hump" approximately following upper bearing oiling channel.
Bearings were all used down to copper, but no severe beating visible. Either the engine has a lot more than 90k miles, or there was an abuse (neutral revving, irregular oil changes).
I put in clevite P class STD size con rod and main bearings.
Still have to mount NEW melling pickup tube, melling oil pump, victor reinz blue (drymax) pan seal and brand new shiny oil pan.
After that k-member and suspension fun for few afternoons...

I will assembly all together back. First run or time will show what I have done...

Last question for reassemble: When retightening caps with old bolts, do You use middle or top tolerance torque?

Thnx for Your assistance guys down this road.... I hope I will return with good news!
