Build Thread My Never Ending 89 Notch Thread

[TOOLOW91]

So I have a small leak I have to address out of the shifter level hole. Already got a new seal

Overdrive with the original relay setup from FB would only come out if you downshifted . Bought his 5 relay setup and now it will down shift when you click rhe button which is awesome on the highway and stuff

Bumper was wet sanded and buffed yesterday .

Other bad news . I noticed oil on my right side VC which is where the blow off valve is . So I assumed the blower was seeping . Checked it out and it was spoke to Vortech it on its way for seals . I’m not sure if the oil type and Viscostity change causes the seal to shrink or what .

Changed plugs . They look awesome zero oil or anything on them . Changed oil before the pa trip looks great .

My only gripe is I’d like a few more cranking amps out of the battery so eventually I need to look into a bigger batt .
This weekend I drove the car over 300 miles in less then 24 hours and for a sub 700 plus wheel horsepower car I couldn’t be happier



[a91what]

What trans are you running?



[TOOLOW91]

What trans are you running?

Freddy brown aod. Ultra bell , fwd manual , brake , over drive on momentary switch right behind mirror switch .

Ptc custom converter . Was cruising 78-80mph at 2500 rpm on the PA turnpike



[a91what]

ah ok, I plan on doing a 4r70w for the 393.. already built my transmission controller, I dont want to have to press a button for OD ect... and I am doing paddle shifters ect.



[TOOLOW91]

ah ok, I plan on doing a 4r70w for the 393.. already built my transmission controller, I dont want to have to press a button for OD ect... and I am doing paddle shifters ect.

Yeah no real choice with a manual VB . I don’t mind . It’s like driving manual still same thought process . This thing is good for 1200

That’s how I have it setup



[a91what]

Very nice, you always do clean installs. My power goals are more humble so a stock 4r out of a 03-04 V6 should get the job done just fine. I like to tune so thats another reason. I cant help but tinker.....
Nice thing is i can pull timing on shifts with my software, it only happens for a micro second but thats what will let me tune that trans to survive the TQ of the 393 on a hard run.
I cant wait to see what yours does on the dyno.



[TOOLOW91]

Very nice, you always do clean installs. My power goals are more humble so a stock 4r out of a 03-04 V6 should get the job done just fine. I like to tune so thats another reason. I cant help but tinker.....
Nice thing is i can pull timing on shifts with my software, it only happens for a micro second but thats what will let me tune that trans to survive the TQ of the 393 on a hard run.
I cant wait to see what yours does on the dyno.

Thanks bro I really appreciate the compliment . I try to do the best I can and each time learn how I could make it better next time .

4r70 done right are known to hold some stout power .



[TOOLOW91]

What a weekend . So the blower will be back on weds , new seals all taken care of by the boys at Vortech which i am thankful for.

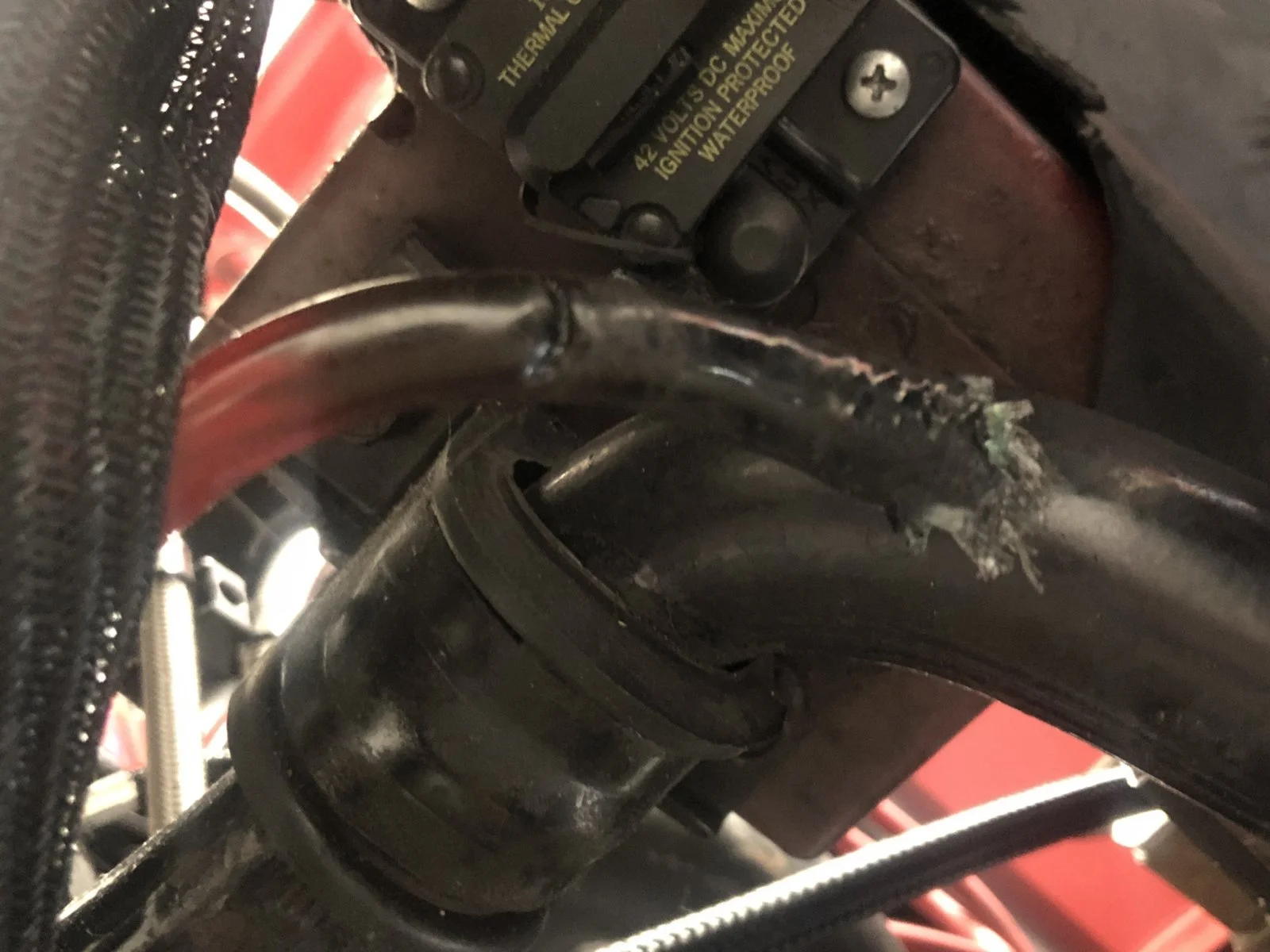

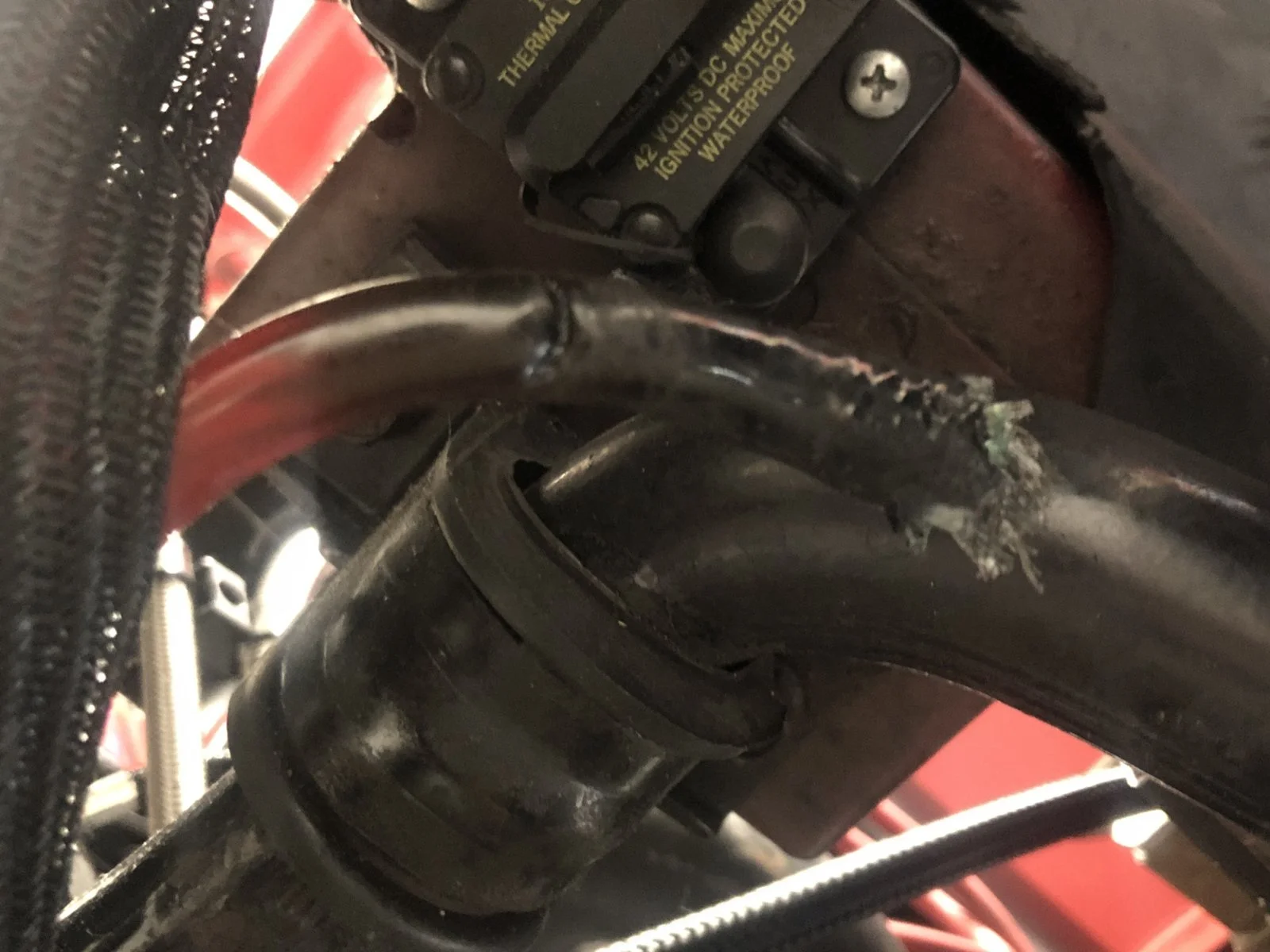

So yesterday i move the car out to pull a vert in im doing some side work on . I look at the dash as im pulling it in and realize it isnt charging. WTF. So i get my meter out and go to the back of the alt and the readings are all over the place. I go to my circuit breaker in line and what do I find ? the wire basically toast to a crisp again. Remember this happened once before but i was spinning the alt at like 32k rpm and didnt realize. This time it has the right pulleys. Both times it did this it had a cheap value craft replacement alt in it. So finally i went to autozone and i still had the warrenty . I got the guy to return mine and then i used that credit and added on top to get a brand new non reman unit. I installed it along with a new 2 awg piece of welding cable back to the breaker. All seems well so far.

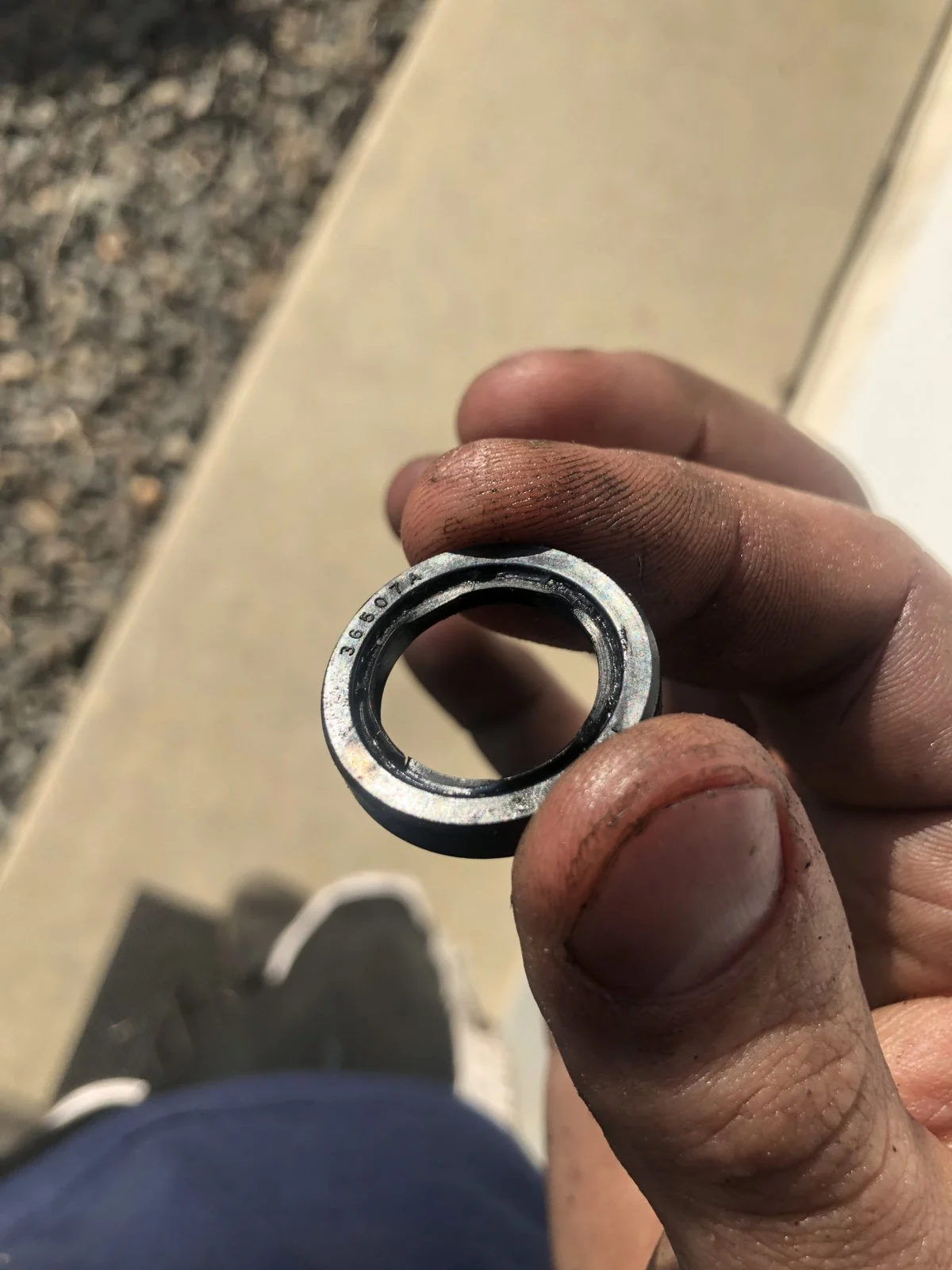

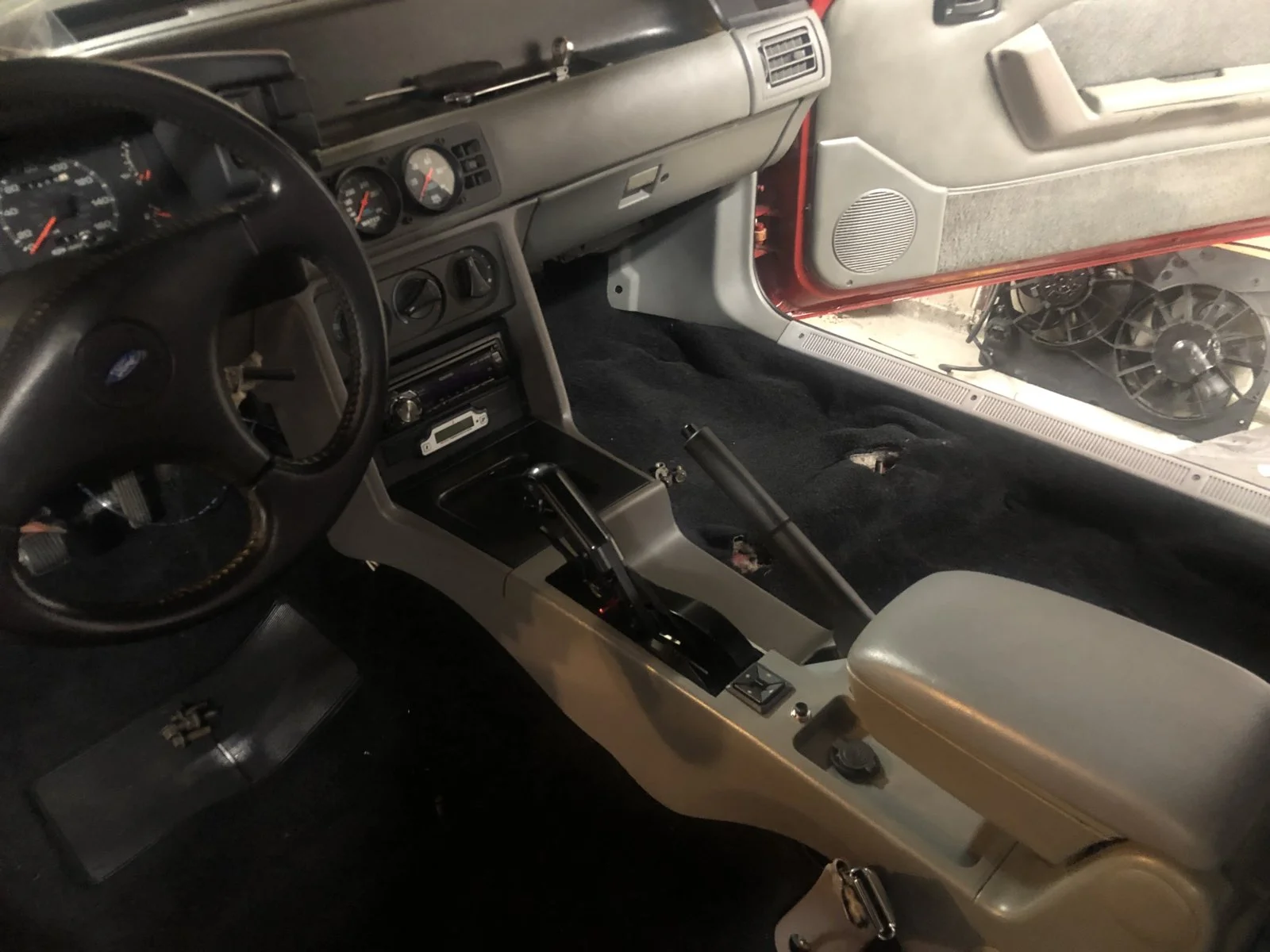

Then i drained the trans ( a mess as usual) to fix the shifter lever seal leak. The lever had a burr i missed in it and i think thats what tore it up so i cleaned it up. New seal , fluid back in . Seems ok so far fingers crossed.

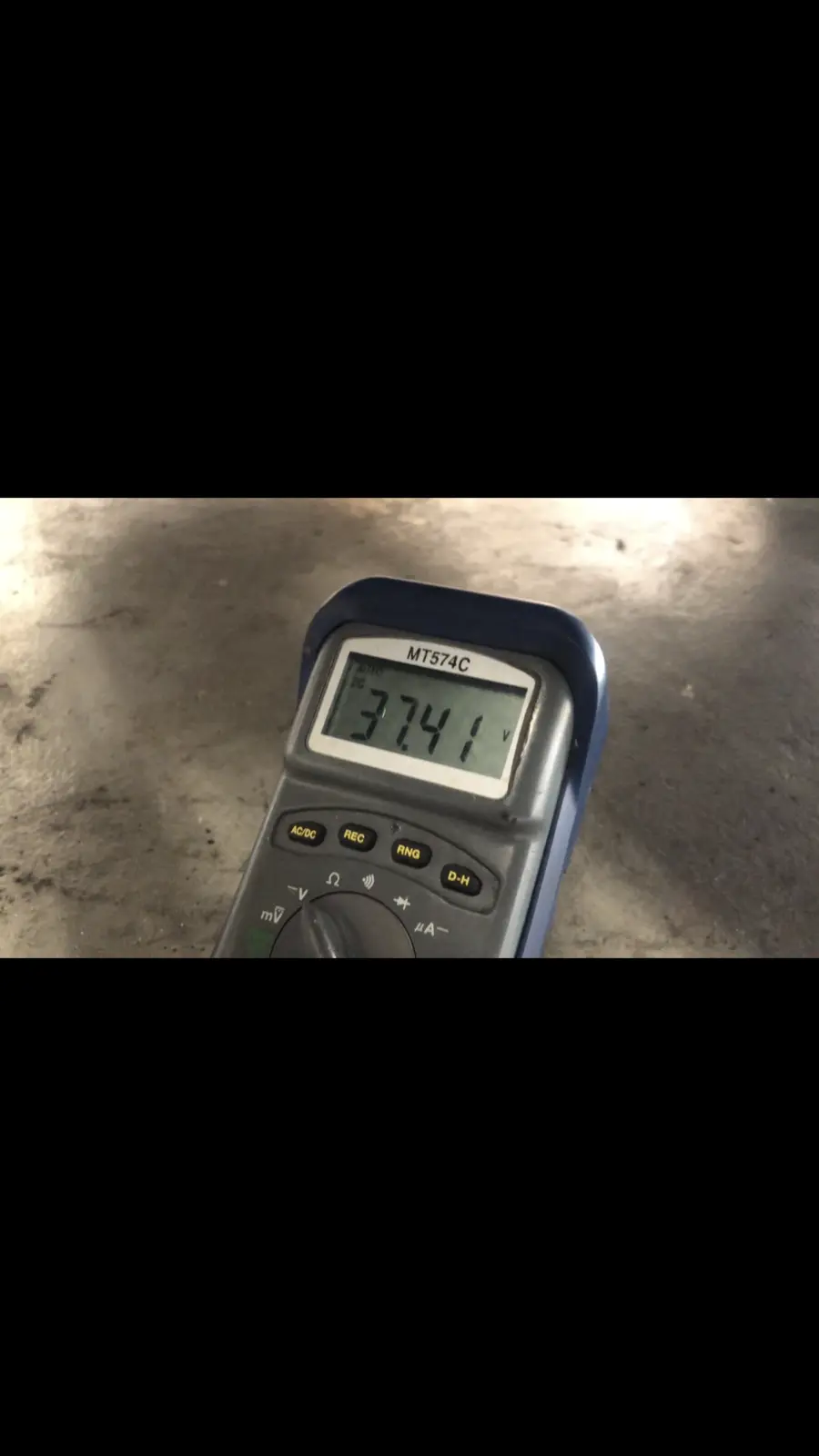

Yes that voltage is real at idle. Thank god it burned the wire or else i think id have no holley ecu as well as anything else in the car.



[TOOLOW91]



[RaggedGT]

Soooo... I mighta missed it-i saw that the Blower is back off and at Vortech, but where you having issues?



[TOOLOW91]

Soooo... I mighta missed it-i saw that the Blower is back off and at Vortech, but where you having issues?

2-3 posts up . Needed seals . I think from sitting and not having oil pass through it the hot and cold of my garage and the condensation hardened the seals up



[hoopty5.0]

I think I'd like to try the manual VB before I yank the auto altogether. My concerns are downshifting - Say you're rolling at 60-70. Can you just bump the gas slightly and downshift in the 'no load' time after the throttle blip, or do you even have to do that - as in, just downshift and go. Are there any other things you should/shouldn't do?



[TOOLOW91]

I think I'd like to try the manual VB before I yank the auto altogether. My concerns are downshifting - Say you're rolling at 60-70. Can you just bump the gas slightly and downshift in the 'no load' time after the throttle blip, or do you even have to do that - as in, just downshift and go. Are there any other things you should/shouldn't do?

That part has been a learning curve . I wouldn’t down shift at 60-70 unless from over drive to 3rd which is just off the button . If I down shift I’ll slow down to 30-40 to go down into second usually just coasting so to speak and then I’ll roll back in . It does make it still fun to drive it’s just very different vs a 5 speed . I’d do the Freddy brown valve body for sure



[hoopty5.0]

That part has been a learning curve . I wouldn’t down shift at 60-70 unless from over drive to 3rd which is just off the button . If I down shift I’ll slow down to 30-40 to go down into second usually just coasting so to speak and then I’ll roll back in . It does make it still fun to drive it’s just very different vs a 5 speed . I’d do the Freddy brown valve body for sure

Yeah, that's how my OD is now. It's wired to my rear defrost button, hit it 2x and locks out OD. I guess there really isnt much reason to be downshifting passed that now that I think about it.



[TOOLOW91]

Yeah, that's how my OD is now. It's wired to my rear defrost button, hit it 2x and locks out OD. I guess there really isnt much reason to be downshifting passed that now that I think about it.

on ramps or if you want to go from a roll



[Chuckman]

on ramps or if you want to go from a roll

This for sure, just learned that over the weekend the hard way. Takes for-freaking-ever to down shift from 4-2 (I'm electronic though so that might be part of it).

Waa kinda wishing I had stuck with plan A and put a t56 in it....



[TOOLOW91]

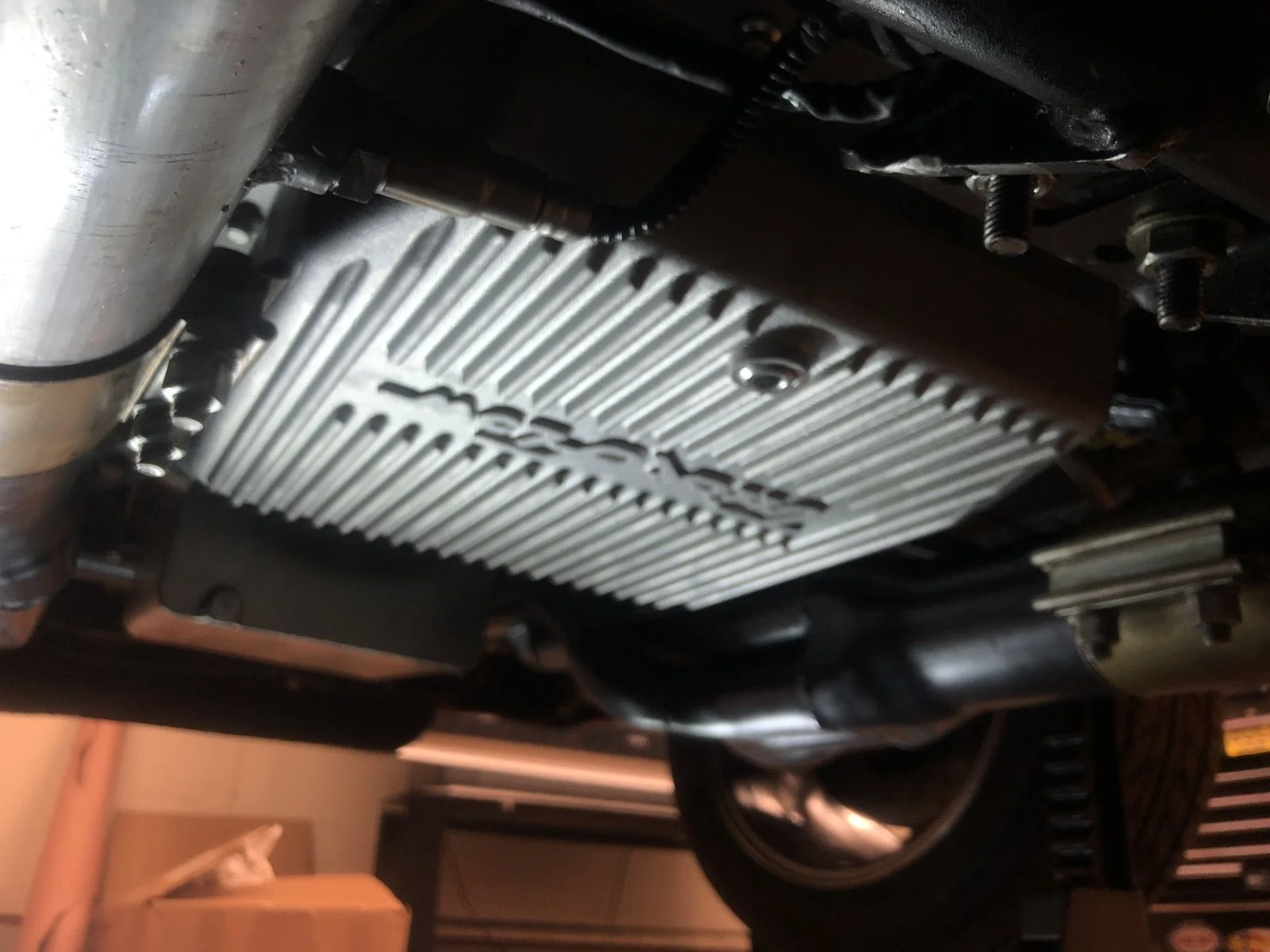

No more bent pan rail . No more leaks from the corners . Extra quart . Looks nice . I guess it was worth it LOL



[Davedacarpainter]

Right on Jeff, when do you get your blower back?



[TOOLOW91]

Right on Jeff, when do you get your blower back?

That bad boy has been back on the car since weds night !!!



[TOOLOW91]

So after being in the hospital with blood in my
Left lung . I am back , not 100 percent but I did sneak outside before . Trans is bone dry .

Changes the catch can fitting . Made a new blower drain and put a 60 on instead of a 90 . Seems to have a way better direct path to the pan . Took the car out for 30 min tonicht . Don’t smell oil dripping any more . Seems the valve cover is dry and not really soaked . Some residual by the bov but I expected that I haven’t really got on it and I let it see 5 psi at like 1/4 throttle . I think we are going to have a fun car here .
